MANUAL & SEMIAUTO-HVAC  7B/C-23

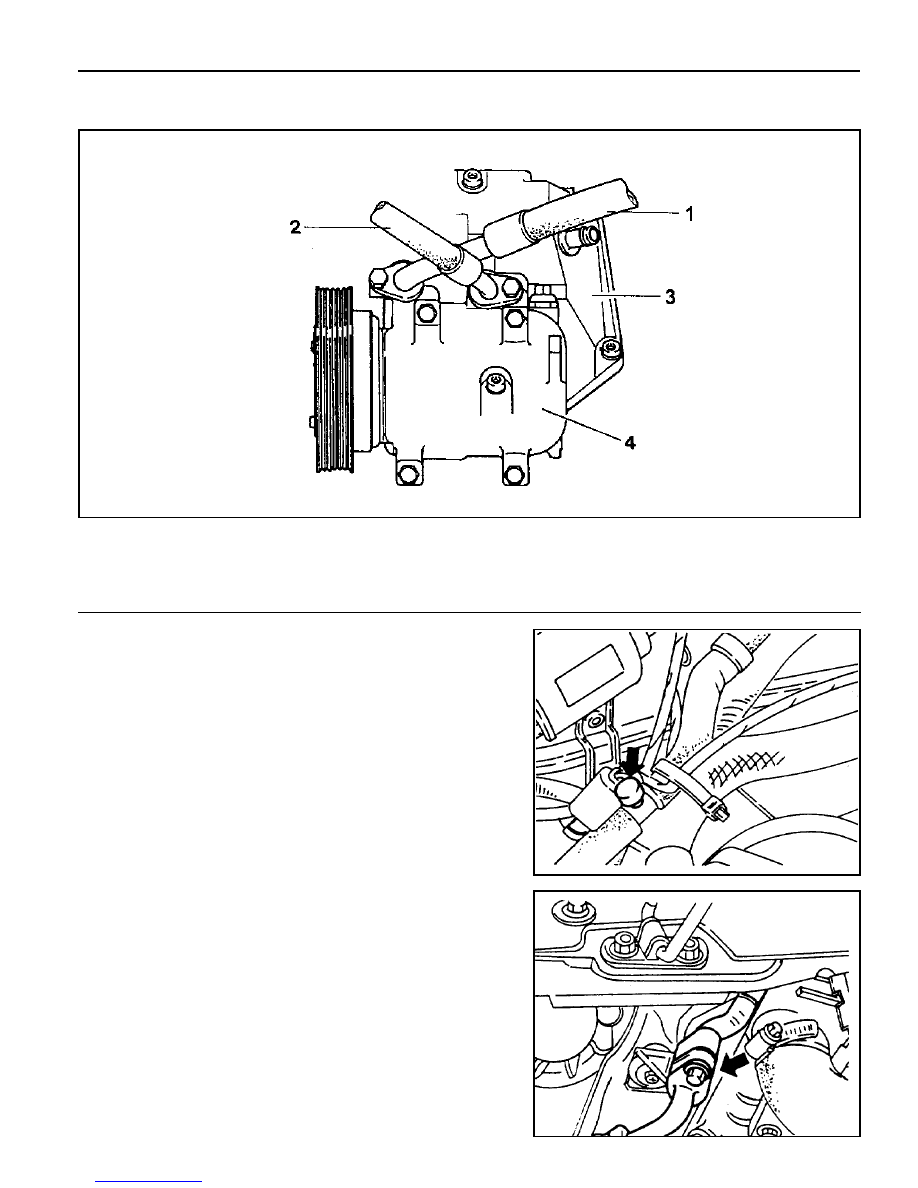

Gasoline Engine

1 Low Pressure Pipe
2 High Pressure Pipe

3 Compressor Bracket
4 Compressor

Removal & Installation Procedure

1. Disconnect the negative(-) terminal from the battery.

2. Discharge refrigerant from the system.

Notice

By connecting a manifold gauge connection hose to High/
Low pressure line, discharge the refrigerant.

3. Disconnect the high / low pressure pipe and wire connectors.

7B/C-24  MANUAL & SEMIAUTO-HVAC

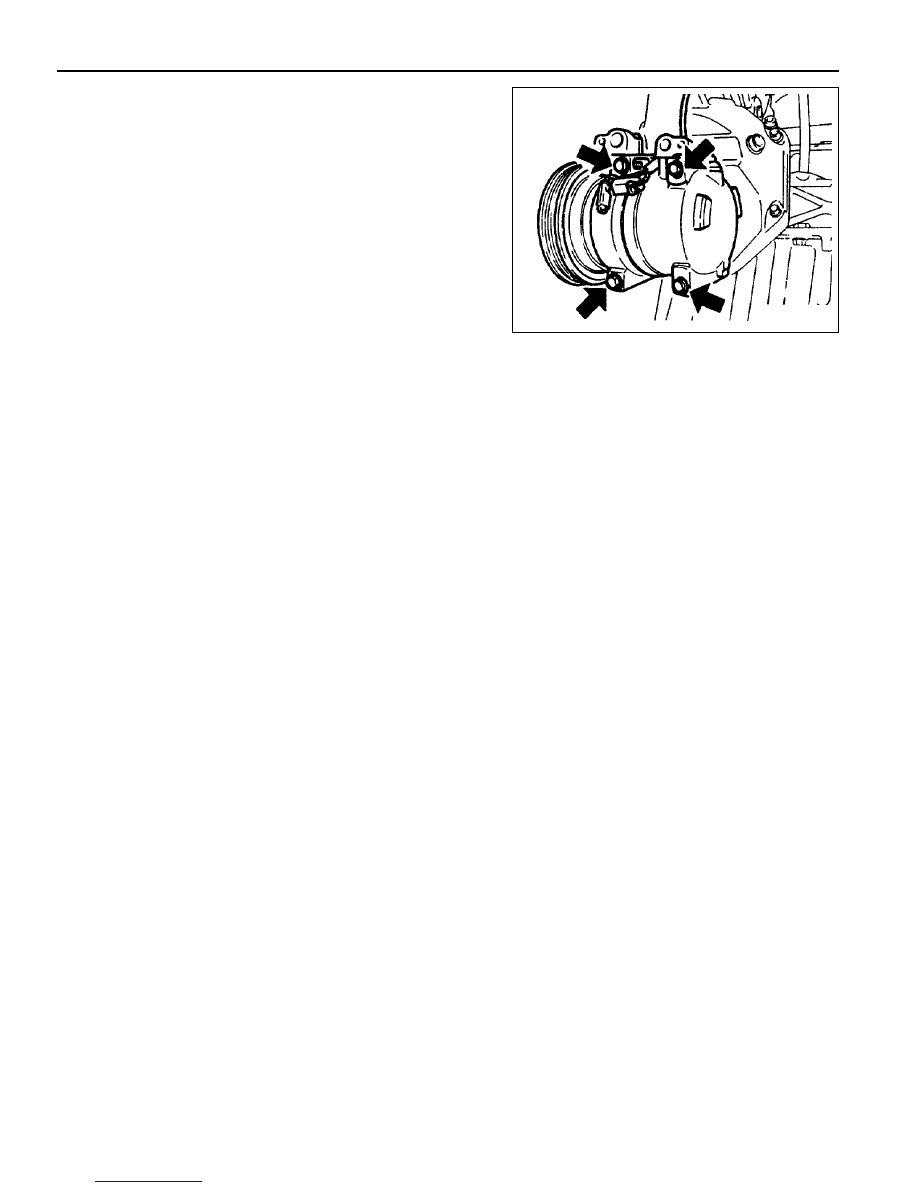

4. Remove the mounting bolt from the compressor bracket

and remove compressor assembly.

Notice

Place the removed compressor in vertical position.

5. Installation should follow the removal procedure in the

reverse order.

MANUAL & SEMIAUTO-HVAC  7B/C-25

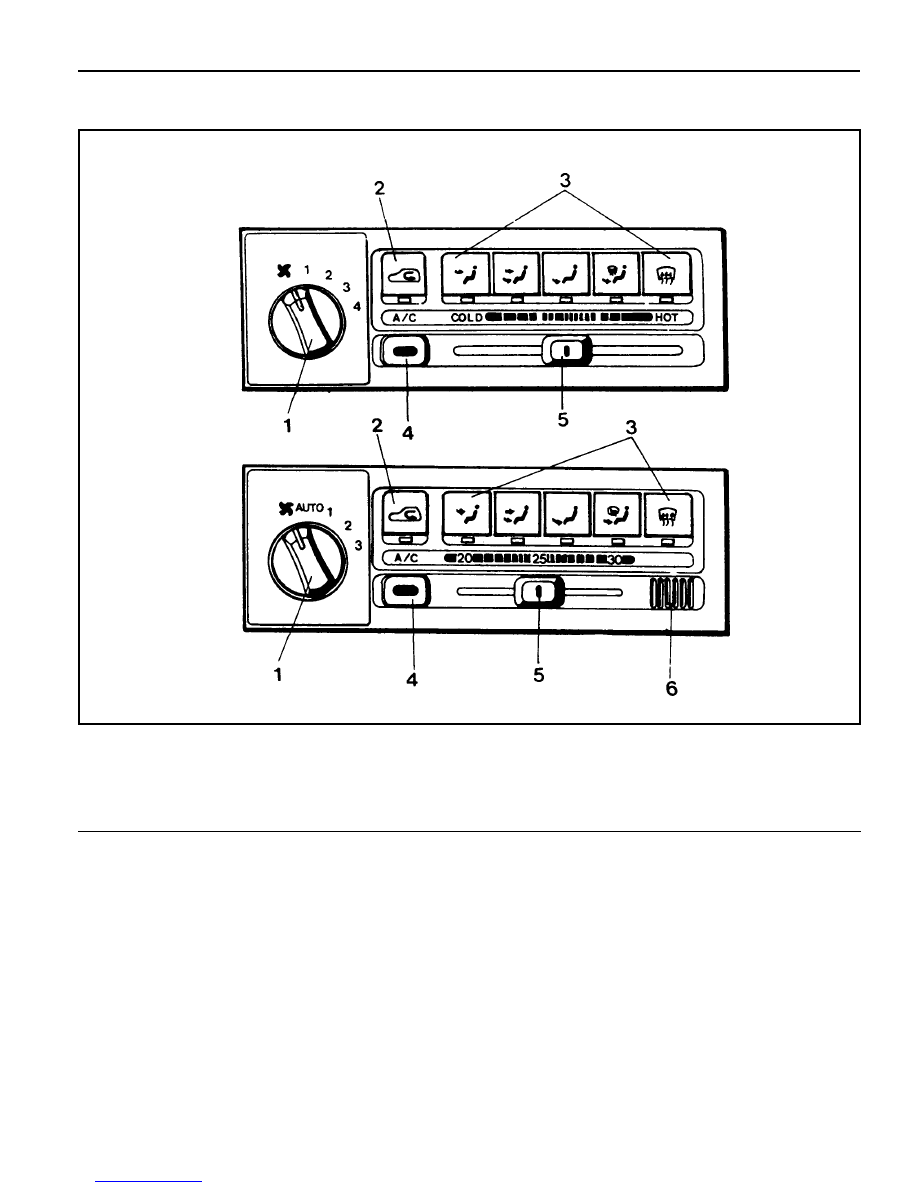

HEATER AND AIR CONDITIONER CONTROL BOX

1 Blower Switch
2 Recirculation Switch
3 Mode Switch

4 A/C Switch
5 Temperature Control Lever
6 In-vehicle Sensor

MANUAL

SATC

7B/C-26  MANUAL & SEMIAUTO-HVAC

Removal & Installation Procedure

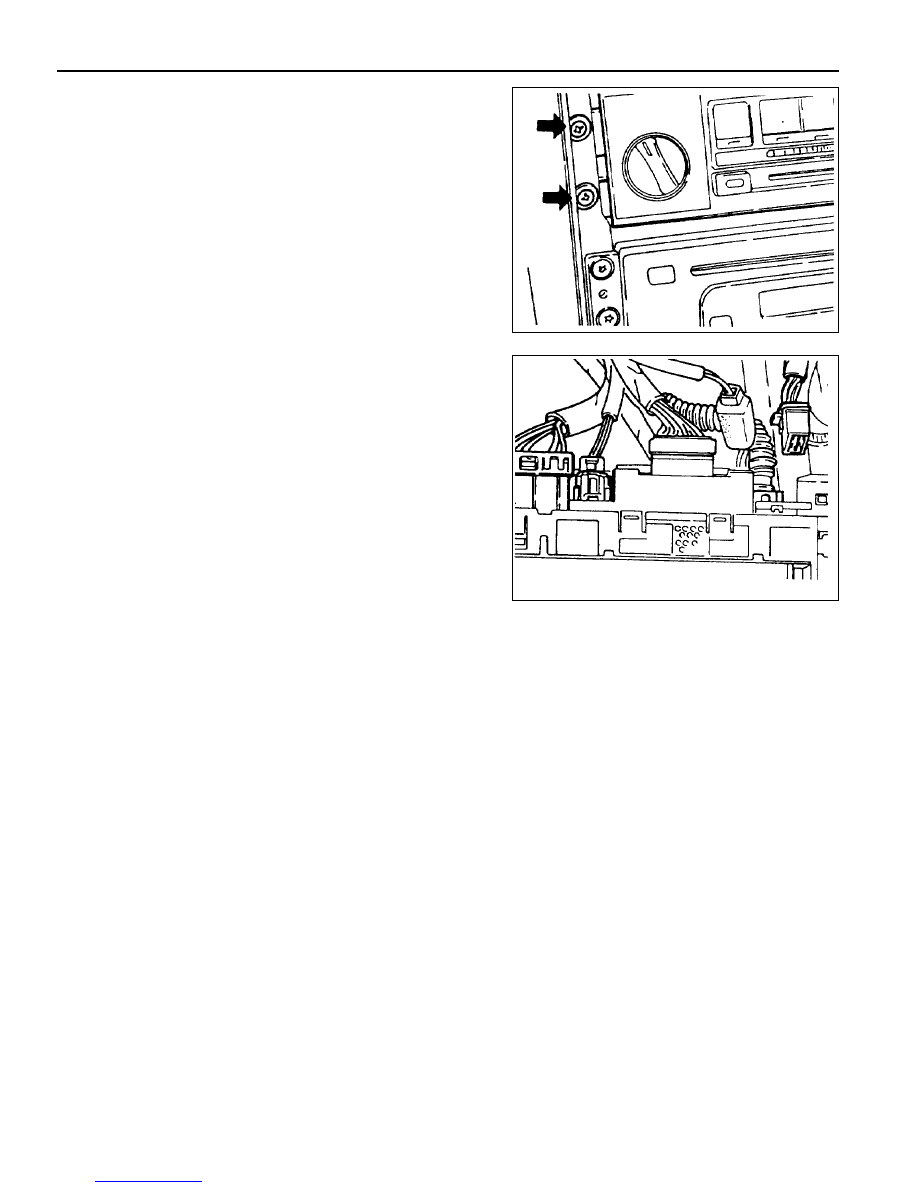

1. Remove the switch panel.

Notice

Be careful not to damage the switch panel.

2. Remove the fixing screws (4 screws) of the control box.

3. Disconnect the wire connectors and remove the control box.

4. Installation should follow the removal procedure in the

reverse order.
