SECTION 8A

SEAT  BELTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  8A-1

Fastener  Tightening  Specifications . . . . . . . . .  8A-1

Component Locator . . . . . . . . . . . . . . . . . . .  8A-2

Front Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .  8A-2

Rear Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .  8A-3

TABLE OF CONTENTS

Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.

General Description and System

   Operation . . . . . . . . . . . . . . . . . . . . . . . . .  8A-4

Driver Seat Belt Warning . . . . . . . . . . . . . . . .  8A-4

Operation and Functional Checks . . . . . . . . .  8A-4

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

Anchor Bolt

N

l

m

35 - 55

8A-2  SEAT BELT

COMPONENT LOCATOR

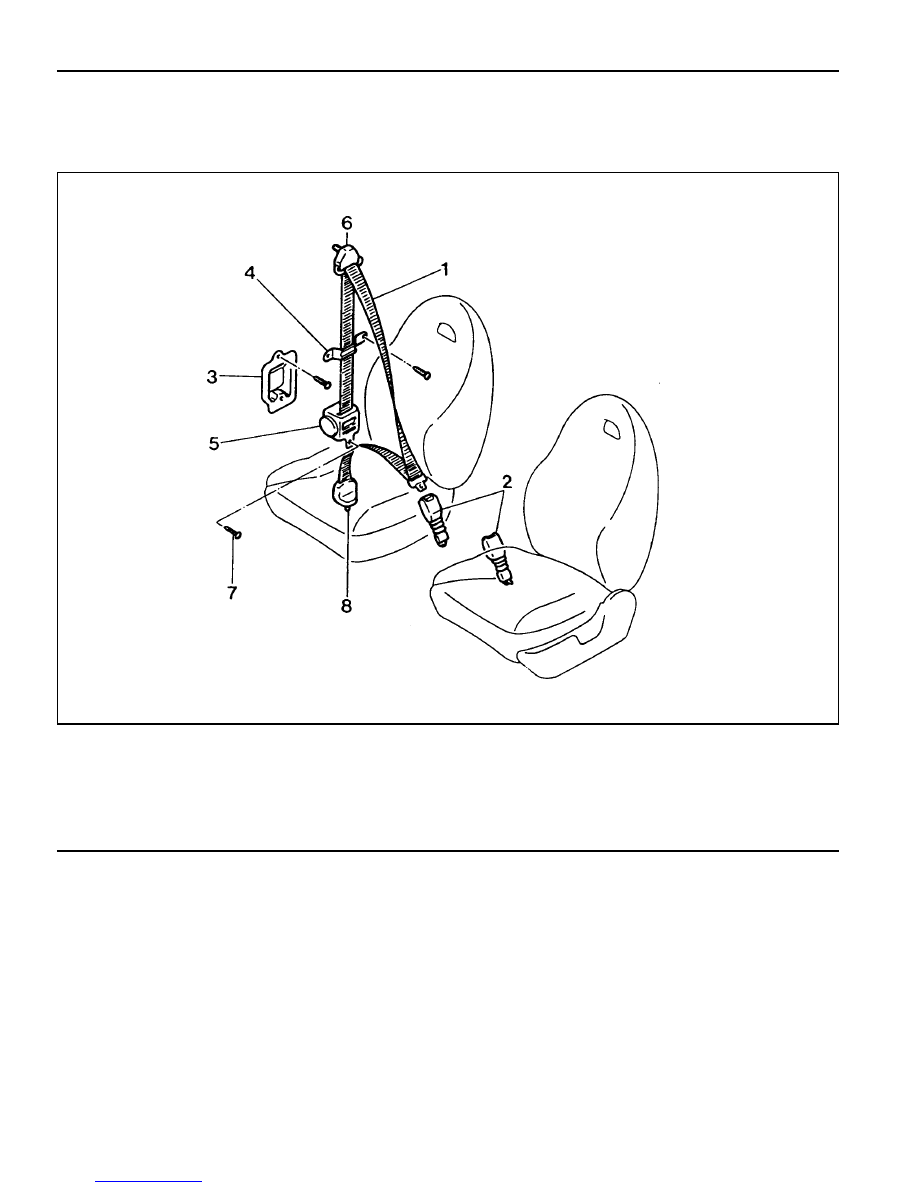

FRONT SEAT BELT

1 Seat Belt Assembly (3-Point)
2 Buckle Assembly
3 Seat Belt Dust Cover
4 Seat Belt Webbing Guide

5 Seat Belt Reel Assembly
6 Anchor Bolt .......................................... 35-55 Nm
7 Anchor Bolt .......................................... 35-55 Nm
8 Anchor Bolt .......................................... 35-55 Nm

SEAT BELTS  8A-3

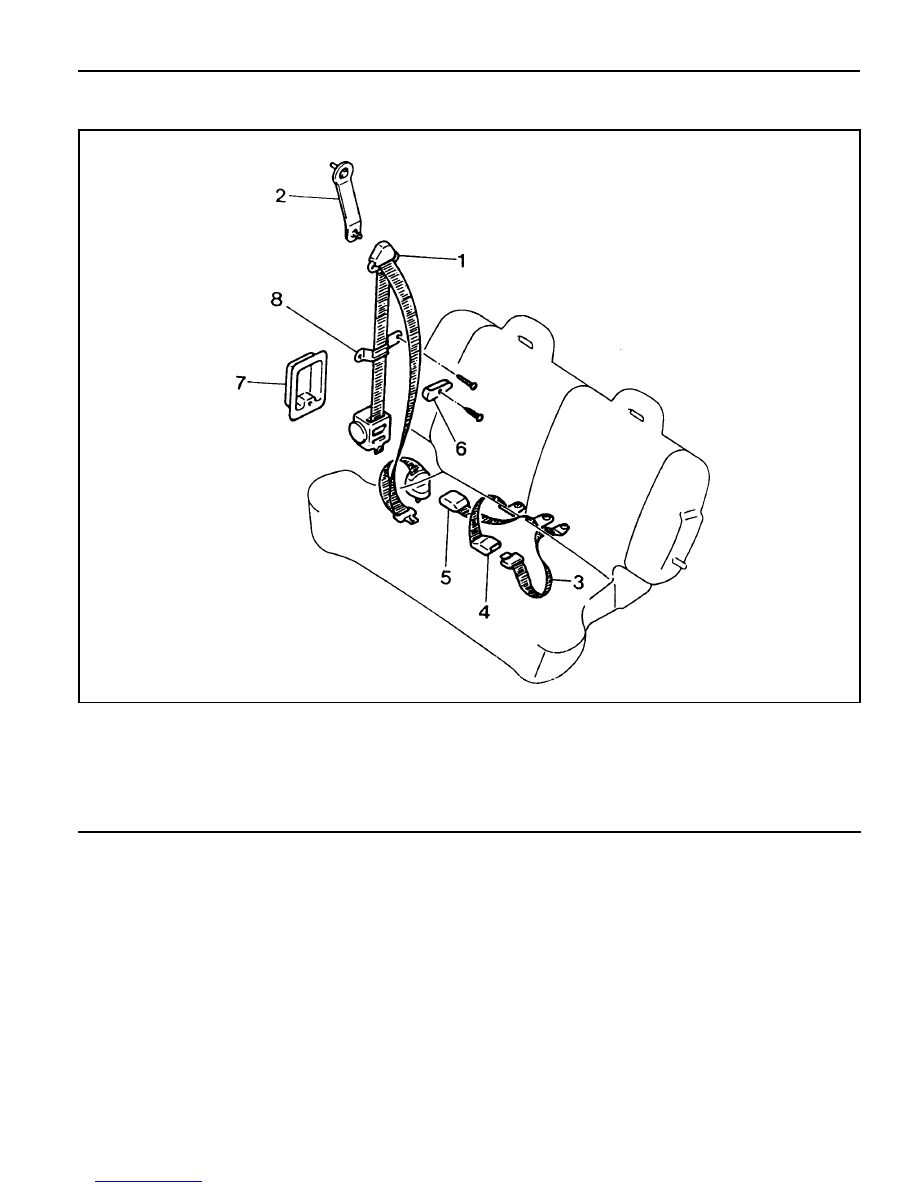

REAR SEAT BELT

1 Seat Belt Assembly (3-point)
2 Seat Belt Stalk Plate Assembly
3 Seat Belt Assembly (2-Point)
4 Webbing Buckle Assembly (Center)

5 Webbing Buckle Assembly (Rear)
6 Webbing Hanger
7 Seat Belt Dust Cover
8 Webbing Guide

8A-4  SEAT BELT

GENERAL DESCRIPTION

AND SYSTEM OPERATION

DRIVER SEAT BELT WARNING

The driver's safety belt incorporates a safety belt reminder
light in the instment cluster remind the driver if the safety belt
is not fastened when the ignition is turnd ON.

OPERATION AND FUNCTIONAL
CHECKS

Caution:

l

Keep sharp objects and potentially damaging objects
away from the seat belts.

l

Avoid bending or damaging any portion of the buckle
or the latch plate.

l

Do not bleach or dye the belt webbing. Use only mild
soap and water in order to clean the belts.

l

When installing the seat belt anchor bolts and the
screws, start the bolts and screws by hand in order
to prevent crossthreading.

l

Do not attempt any repairs on the retractor
mechsemblies with new assemblies.

l

Replace any belts that are cut r damaged in any way.

1. Inspect all saet belt anchor bolts and the screw in order to

verify that they are secure.

2. Inspect the seat belt buckle. The buckle must lock and

unlock easily.

3. After inserting the latch into the buckle, tug sharply on the

belt. The buckle must remain locked.

4. Fully extend the shoulder belt portion to make sure that

there is no twisting or tears in the belt.

5. Let the shoulder belt retract fully. The belt should retract

easily.
