MANUAL & SEMIAUTO-HVAC  7B/C-15

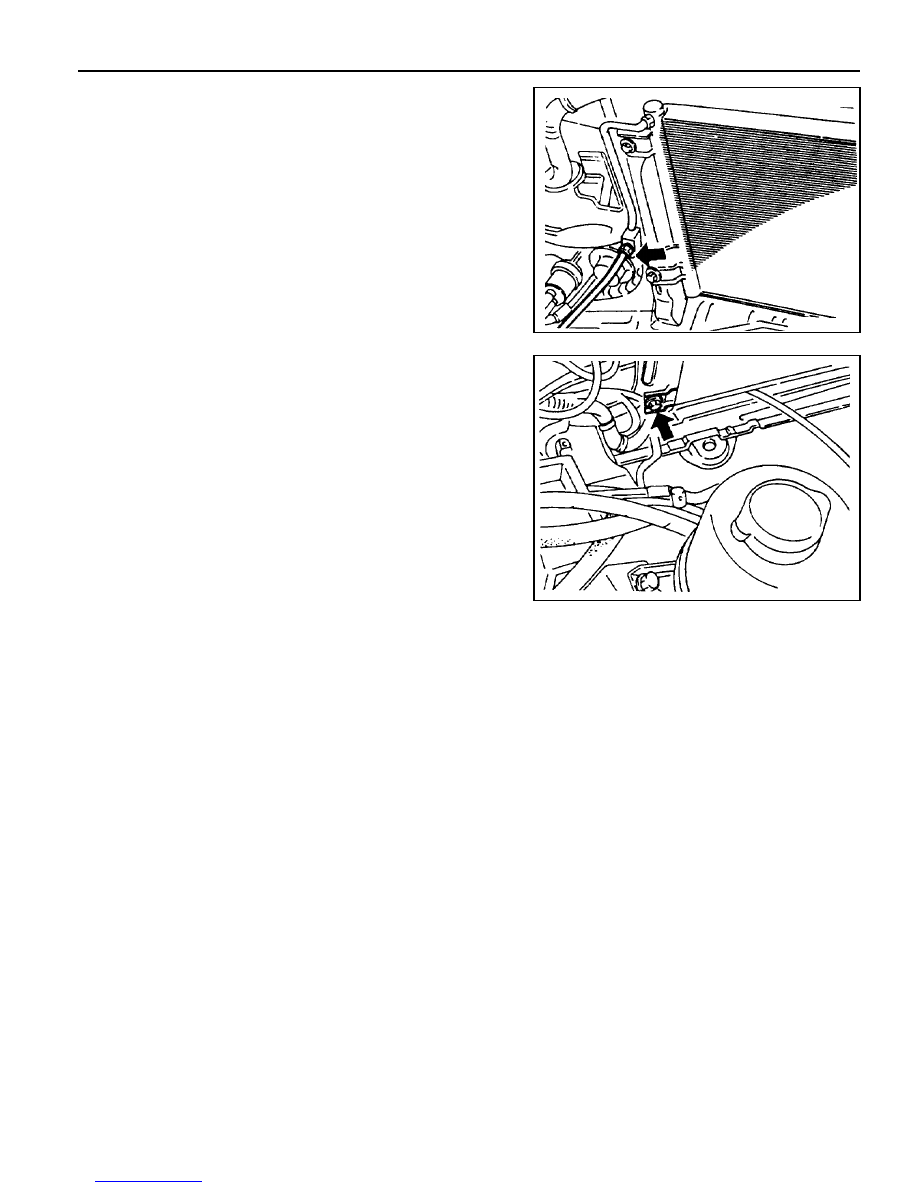

Removal & Installation Procedure

1. Disconnect the inlet and outlet pipes of condenser.

Notice

Before disconnection, evacuate the refrigerant from the
system.

2. Remove the mounting bolts (4 EA) and condenser assembly.

3. Installation should follow the removal procedure in the

reverse order.

7B/C-16  MANUAL & SEMIAUTO-HVAC

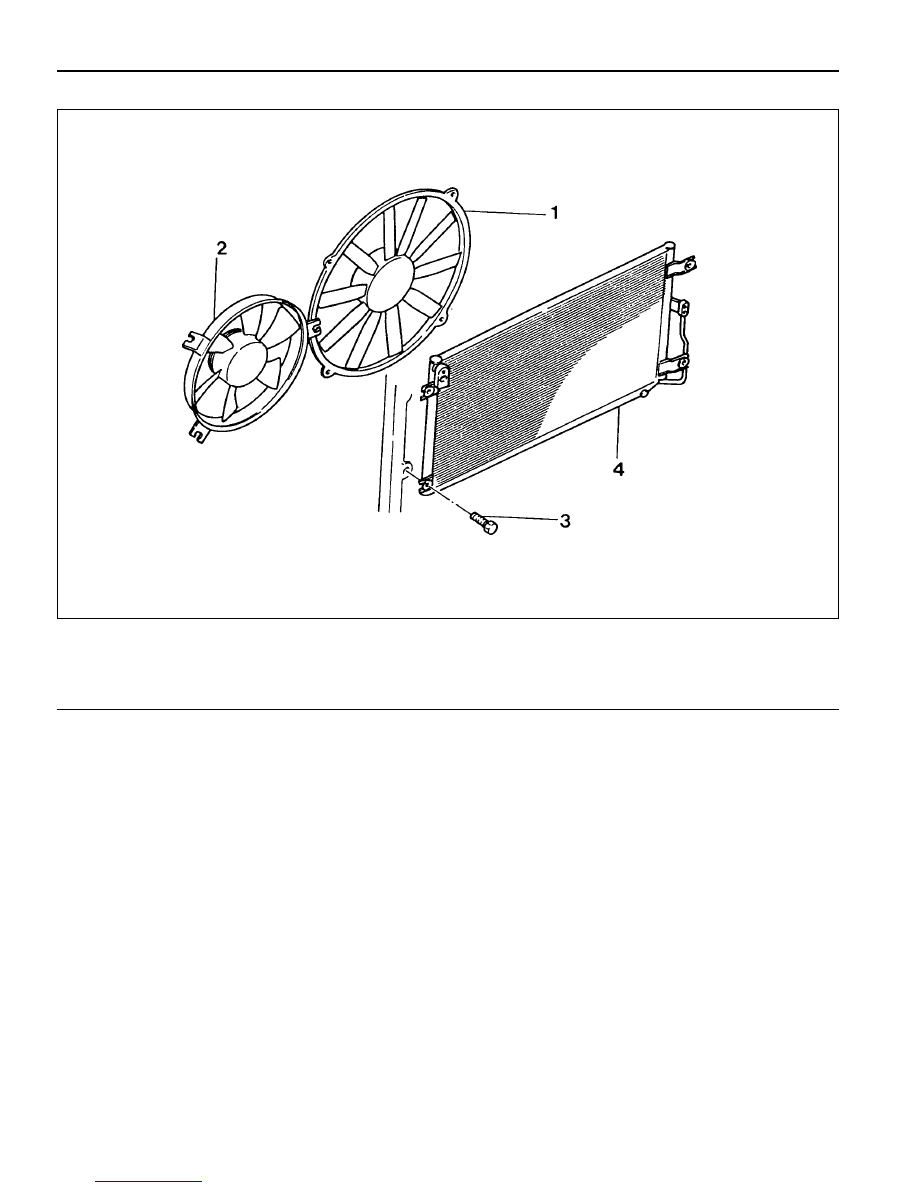

1 Main Condenser Fan
2 Auxiliary Condenser Fan

3 Bolt
4 Condenser

Gasoline Engine

MANUAL & SEMIAUTO-HVAC  7B/C-17

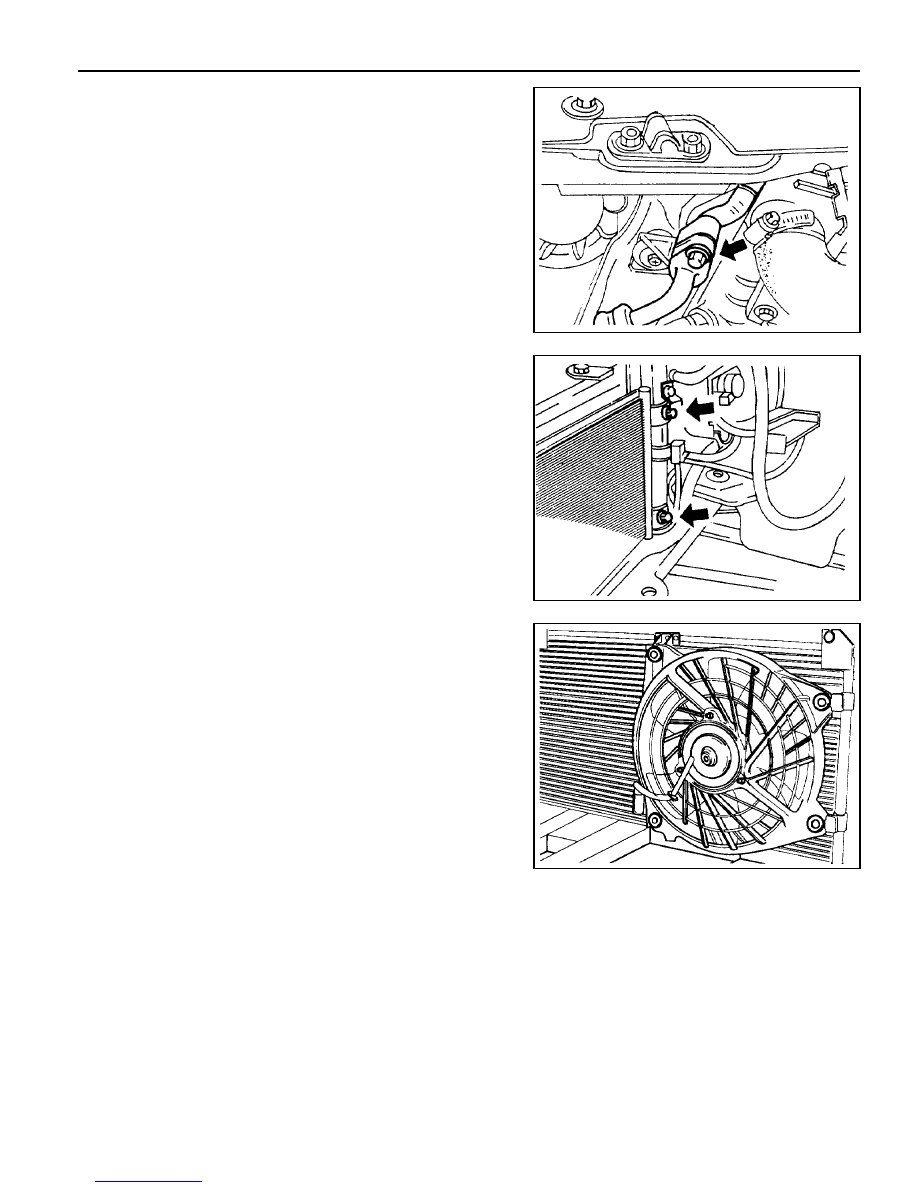

Removal & Installation Procedure

1. Disconnect  the inlet and outlet pipes of condenser.

Notice

Before disconnection, evacuate the refrigerant from the
system.

2. Remove the mounting bolts (4bolts) and condenser

assembly.

3. Remove the main condenser fan from condenser.

4. Installation should follow the removal procedure in the

reverse order.

7B/C-18  MANUAL & SEMIAUTO-HVAC

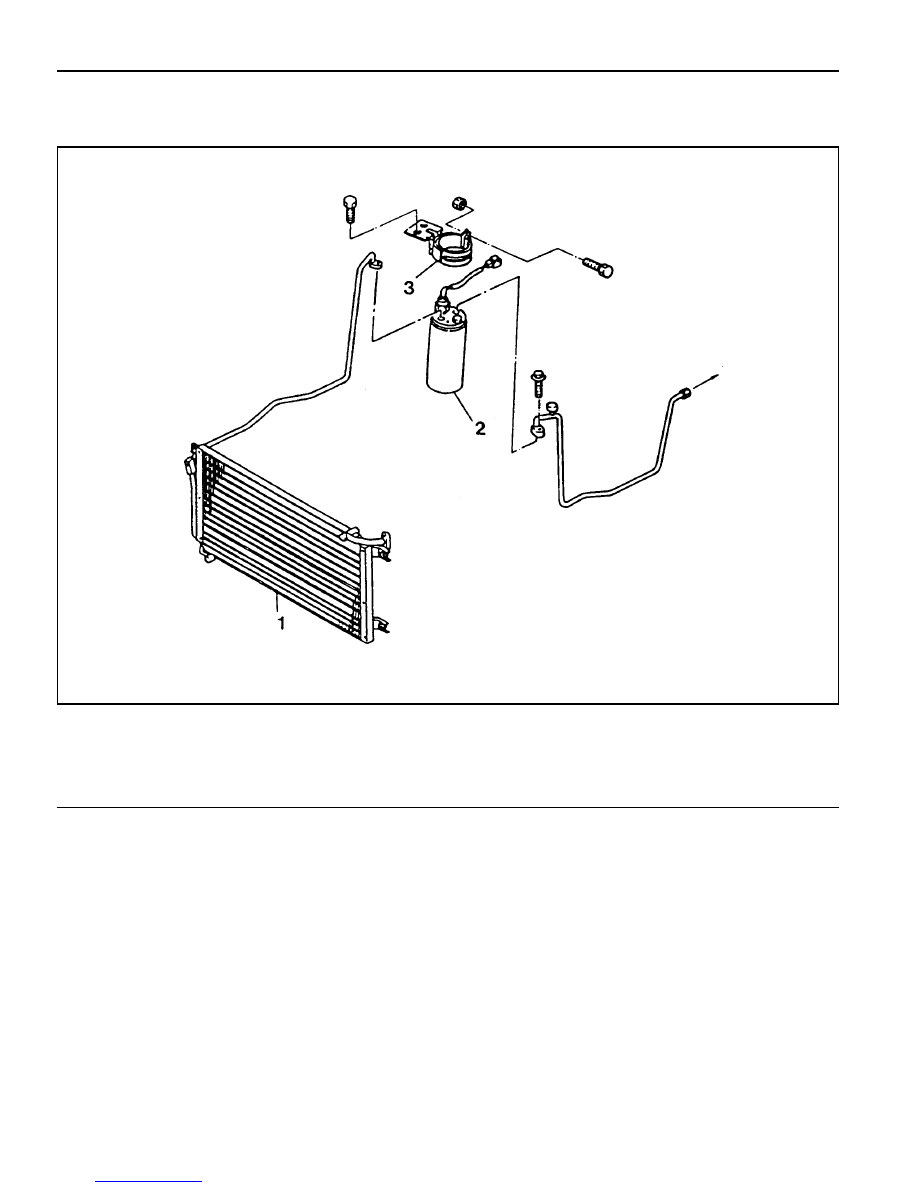

RECEIVER DRIER

Diesel Engine

1 Condenser
2 Receiver Drier
3 Bolt .........................................................  4-6 Nm

4 Bolt .......................................................... 5-8 Nm
5 Bracket
