OM600 ENGINE MECHANICAL  1B3-55

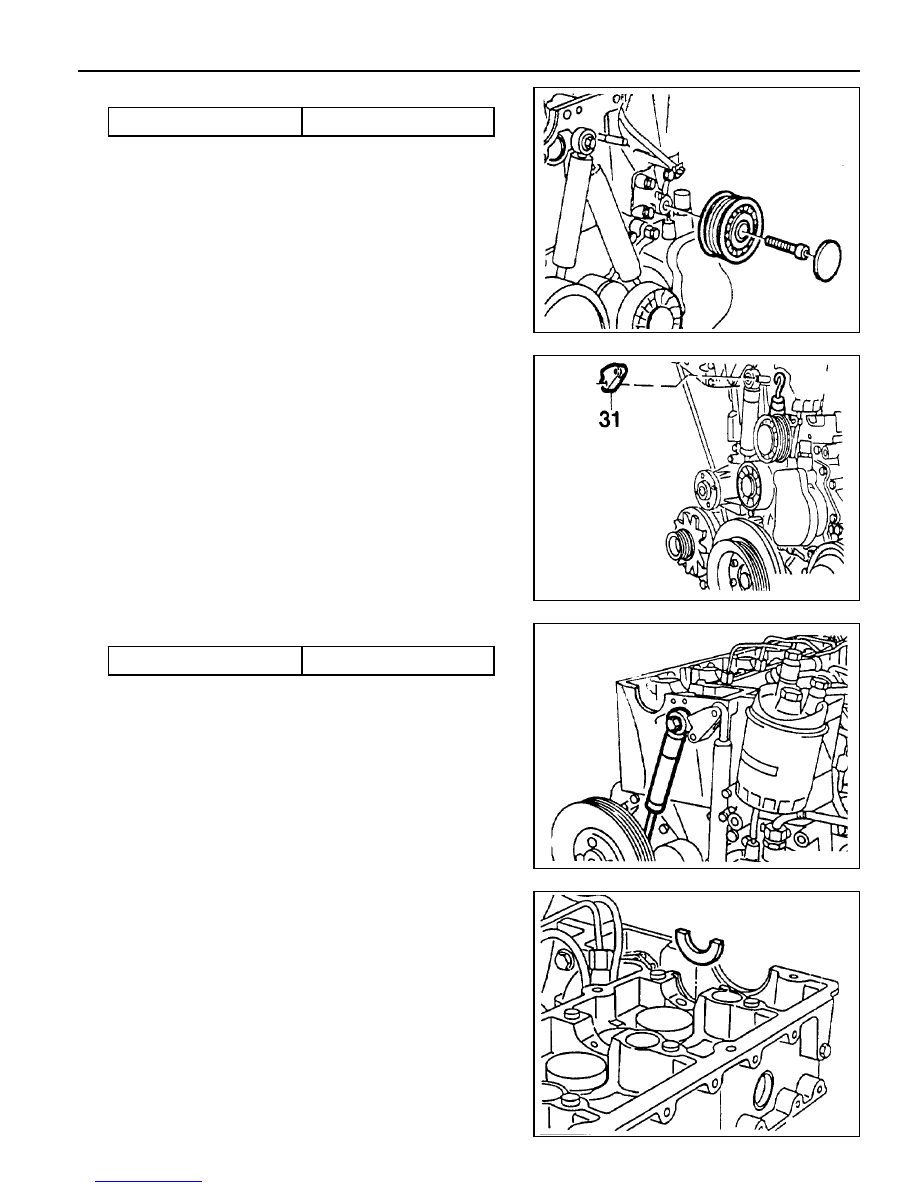

12. Install the idle pulley and fit the closing cover.

Tightening Torque

25 Nm

13. Insert the tensioning lever(31) and install the spring.

14. Install the damper.

Tightening Torque

23 Nm

Notice

Insert the tensioning lever bolts onto the mounting hole.

15. Insert the locking washer.

16. Inspect the valve tappet and check that the tappet moves

smoothly.

1B3-56  OM600 ENGINE MECHANICAL

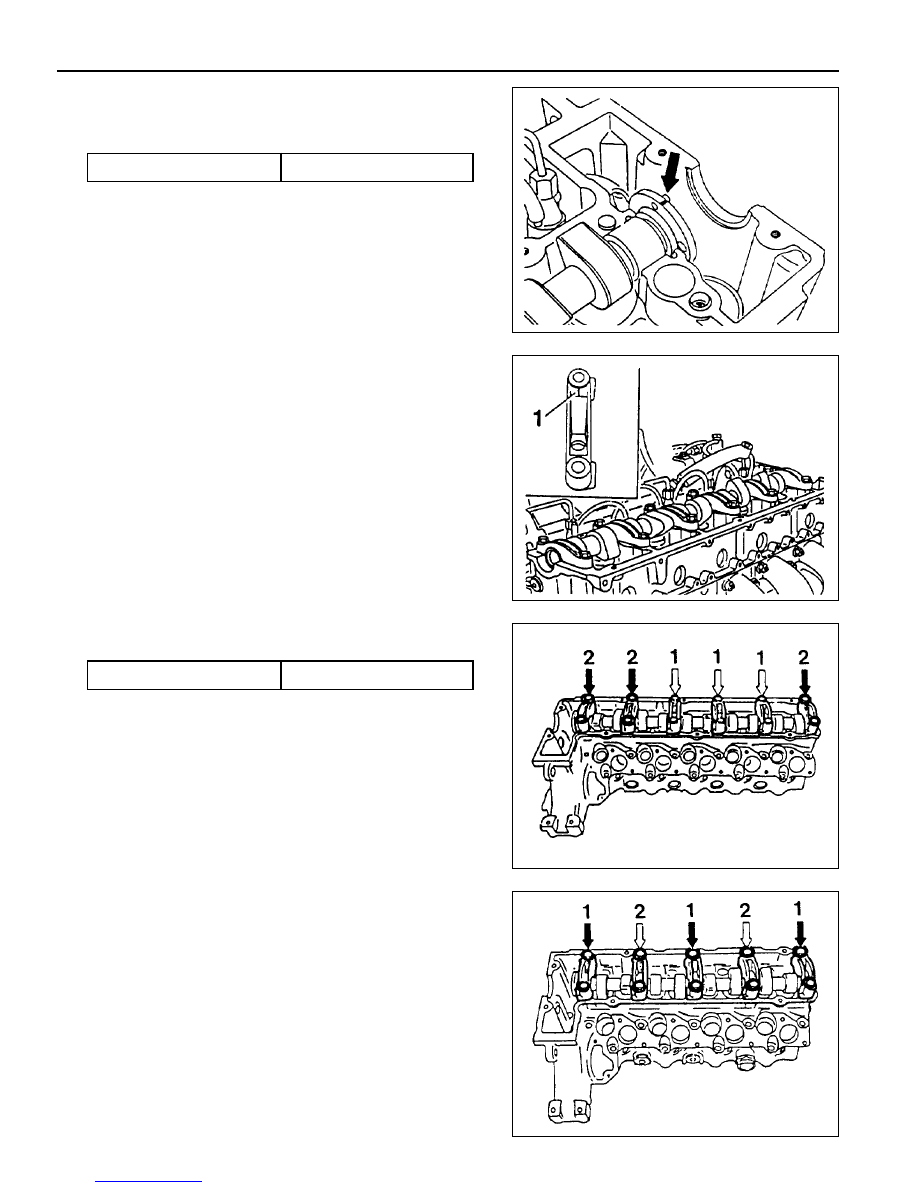

17. Coat the camshaft with oil and install the camshaft on the

cylinder head to be TDC mark(arrow) upward.

18. Measure the axial end play of the camshaft.

End Play

0.06 - 0.21mm

Notice

If out of standard, adjust it with the proper thickness of
locking washer.

19. Install the bearing caps on the camshaft according to the

number on the caps.

20. Tighten the bearing cap bolts according to the numerical

sequence.

Tightening Torque

25 Nm

Notice

Tighten the No. 1 bolts(light arrow) first and then tighten
the No. 2 bolts(dark arrow) stage by stage.

OM662LA

OM661LA

OM600 ENGINE MECHANICAL  1B3-57

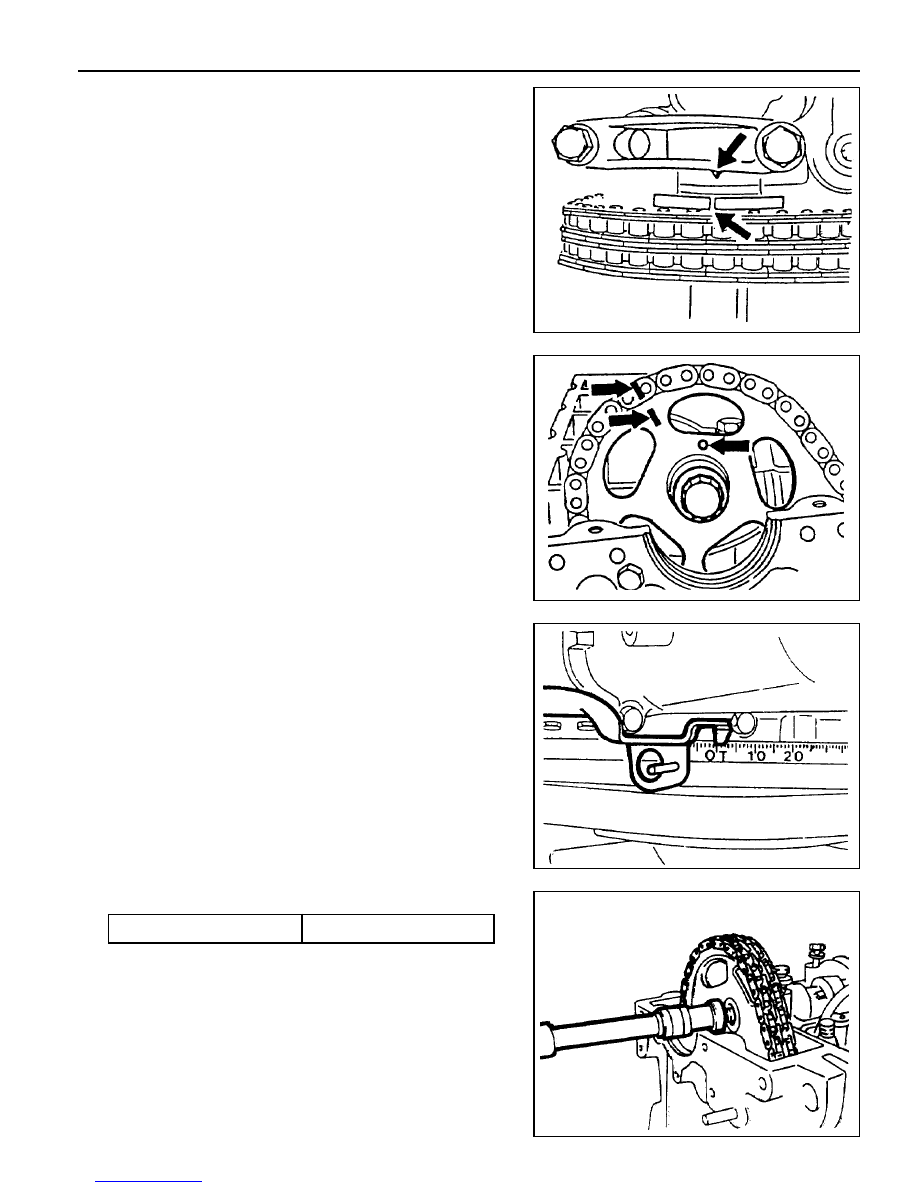

21. Position the camshaft on marking and install the camshaft

sprocket.

Notice

Align the alignment marks on the chain and sprocket.

23. Install the camshaft sprocket bolt.

22. Check the TDC position of the crankshaft.

Tightening  Torque

25 Nm + 90°

1B3-58  OM600 ENGINE MECHANICAL

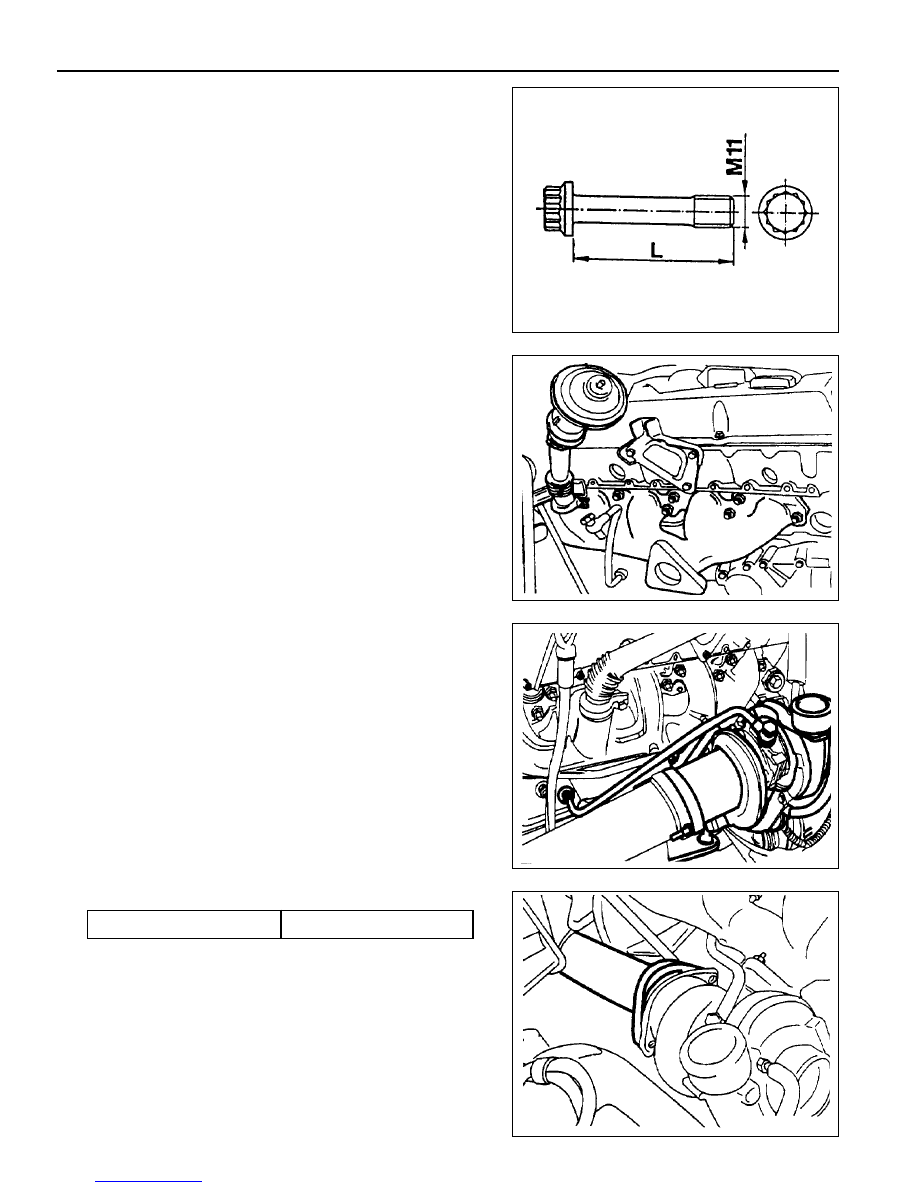

24. Install the exhaust manifold and gasket.

25. Install the turbocharger.

26. Install the exhaust pipe onto the turbocharger.

Tightening Torque

25 Nm

Notice

Measure the max. length ‘L’ and replace the bolt if it exceeds
53.6mm.
