OM600 ENGINE MECHANICAL  1B3-47

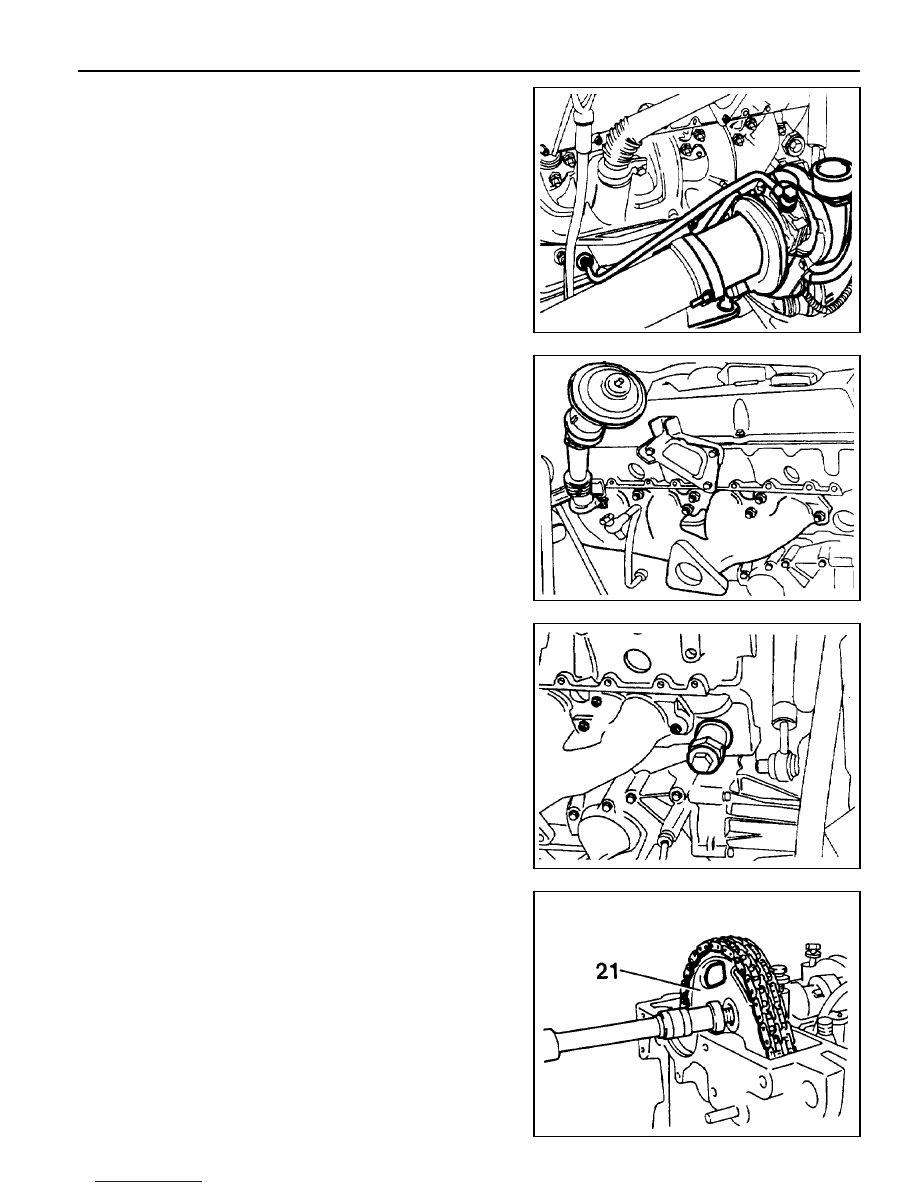

34. Remove the turbocharger.

35. Remove the exhaust manifold and gasket.

36. Remove the chain tensioner and seal.

37. Remove the bolt and separate the drive sprocket(21).

Notice

During removal, be careful not to drop the sprocket and
chain into the timing case.

Carefully pull off the chain and then pull out the sprocket.

1B3-48  OM600 ENGINE MECHANICAL

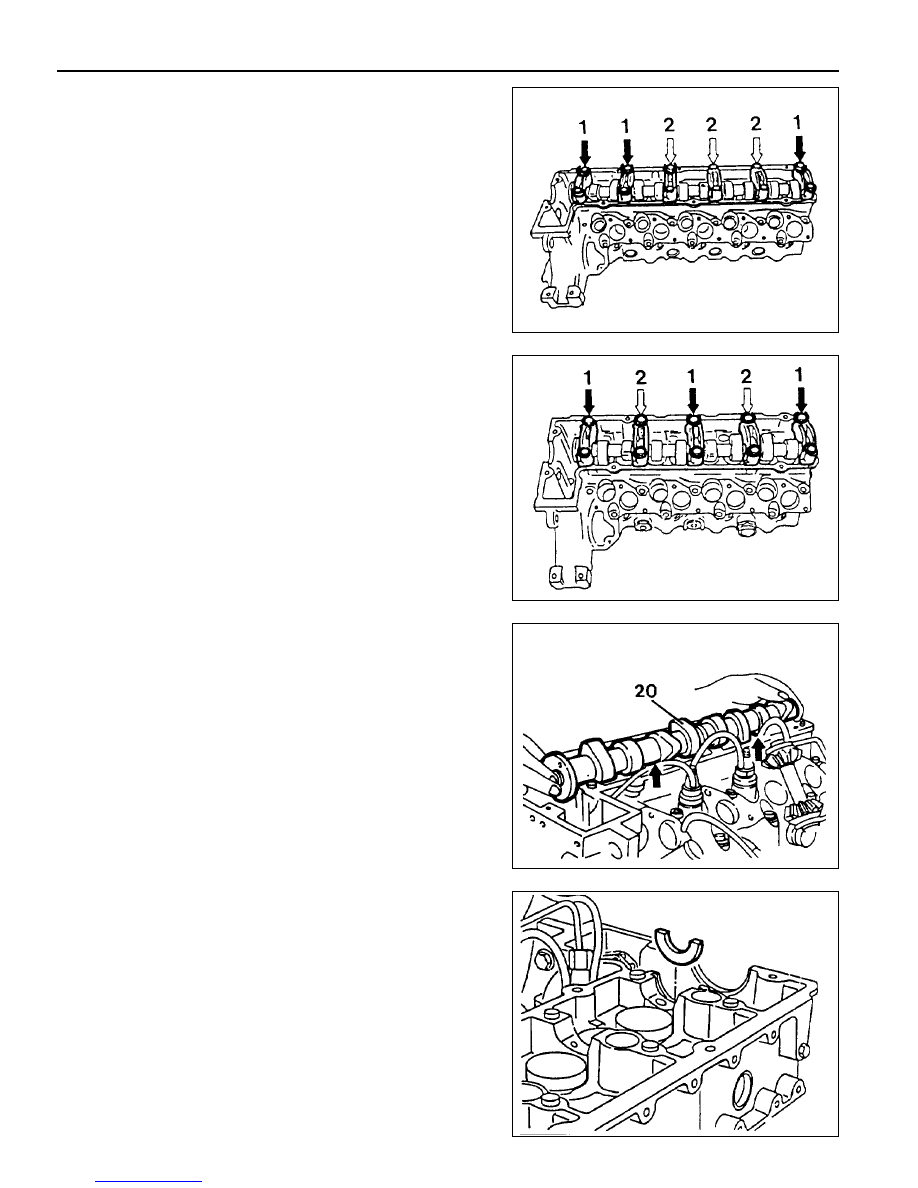

38. Remove the camshaft bearing cap bolts according to the

numerical sequence.

Notice

Remove the No.1 bolts first and then remove the No. 2
bolts. Do not remove the bolts at a time completely but
remove them step by step evenly or camshaft can be
seriously damaged.

OM662LA

39. Remove the bearing caps and then pull out the

camshaft(20) upward.

Notice

Be careful not to miss the locking washer.

40. Remove the locking washer.

Notice

Check the locking washer and replace if necessary.

OM661LA

OM600 ENGINE MECHANICAL  1B3-49

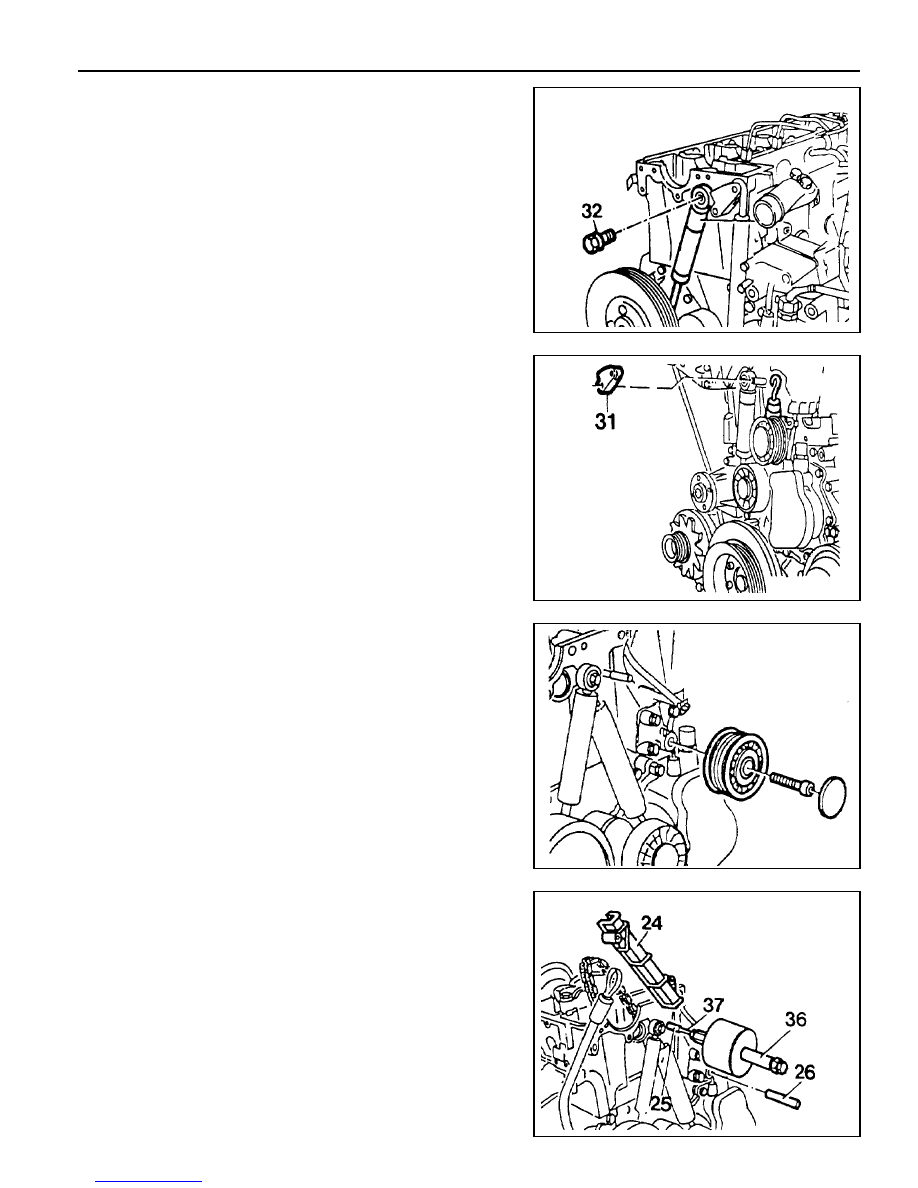

41. Remove the bolt(32).

42. Separate the spring and pull out the tensioning lever(31).

43. Pry off the closing cover. Remove the bolt and then remove

the idle pulley.

44. Using the sliding hammer(36) and the threaded pin(37),

pull out the sliding rail pins(25, 26) and remove the sliding
rail(24).

Sliding Hammer 116 589 20 33 00

Threaded Pin 116 589 02 34 00

1B3-50  OM600 ENGINE MECHANICAL

OM 662LA

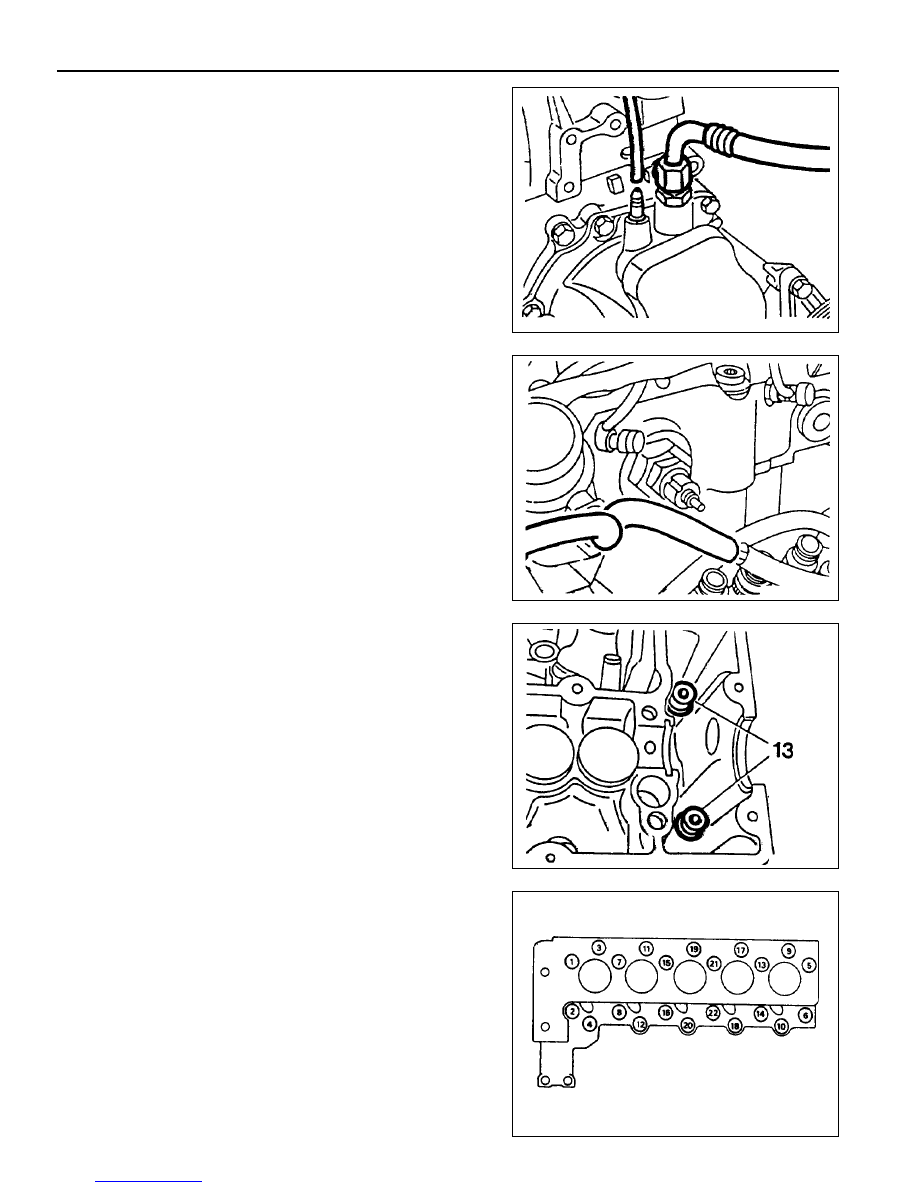

46. Disconnect the vacuum pipe from thermo valve.

47. Remove the socket bolts(13) of the chain box.

T Type Socket Wrench 116 589 03 07 00

Magnetic Bar 102 589 03 40 00

48. Remove the cylinder head bolts in numerical se-quence.

Cylinder Head Bolt Wrench 601 589 00 10 00

45. Remove the vacuum line from the vacuum pump.
