OM600 ENGINE MECHANICAL  1B3-43

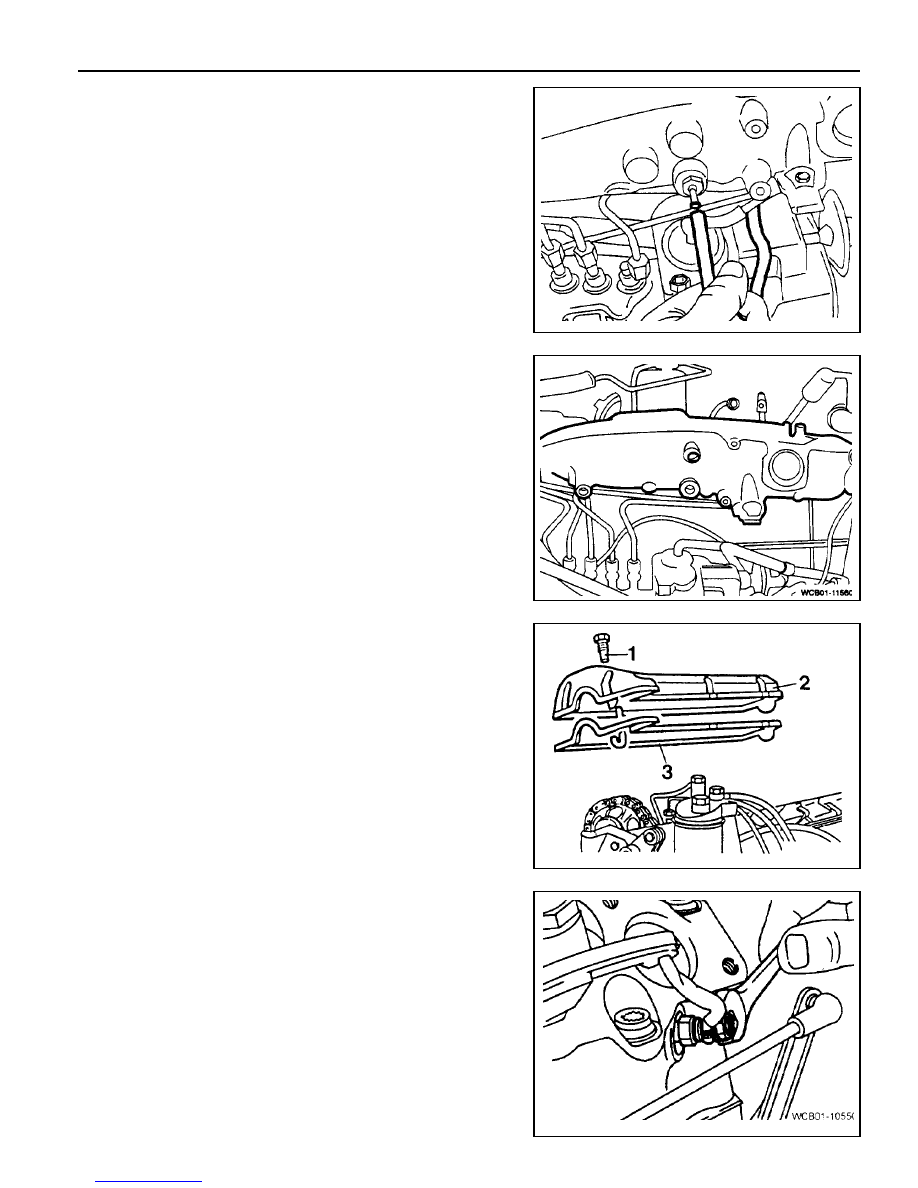

18. Disconnect the booster hose connected to intake manifold.

19. Remove the intake manifold and gasket.

20. Remove the cylinder head cover and gasket with the blow-

by gas hose.

21. Disconnect the glow plug cables.

1B3-44  OM600 ENGINE MECHANICAL

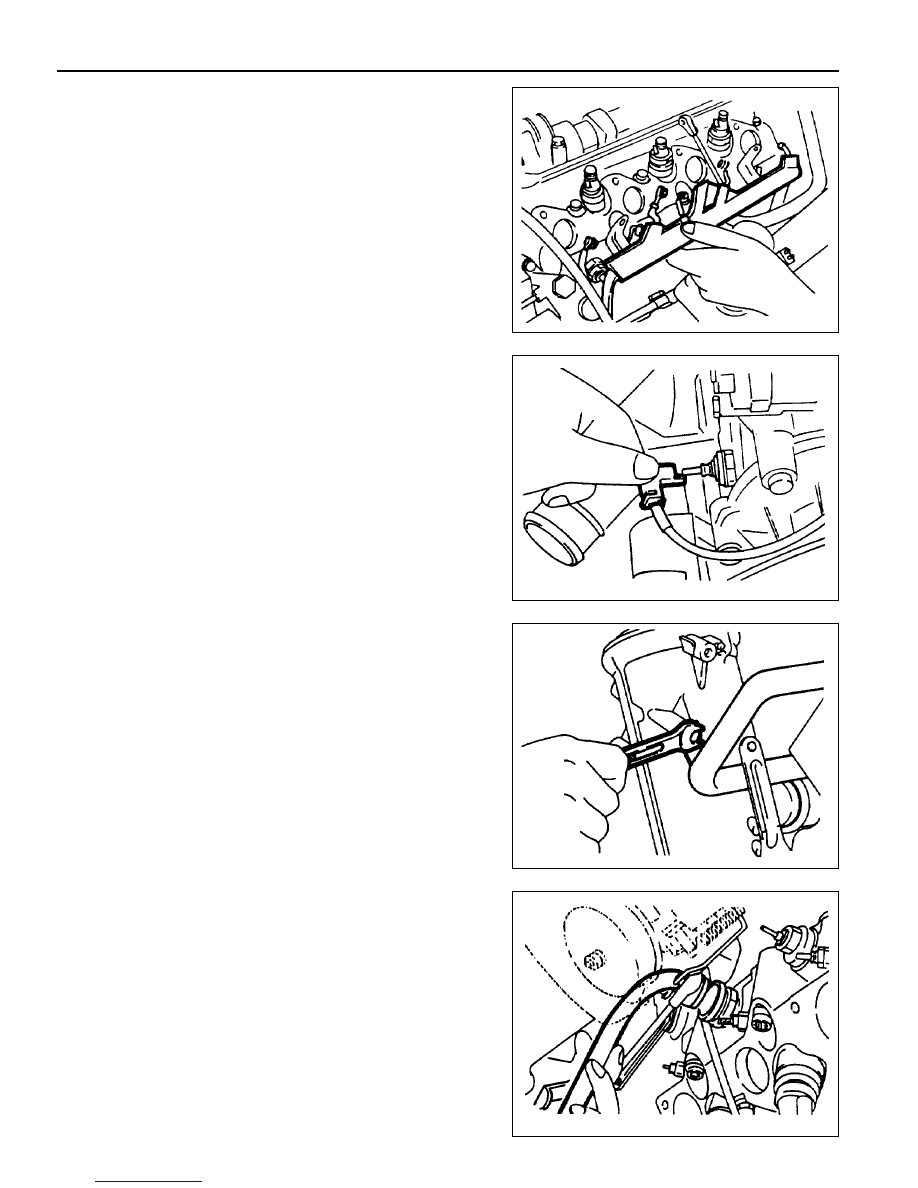

22. Remove the cable channel.

23. Disconnect the cables from the glow plug sensor and

coolant temperature sensor.

24. Remove the heater pipe bracket from the oil filter.

25. Pry off the clamp and push the heater feed pipe forward

and then pull out the pipe.

OM600 ENGINE MECHANICAL  1B3-45

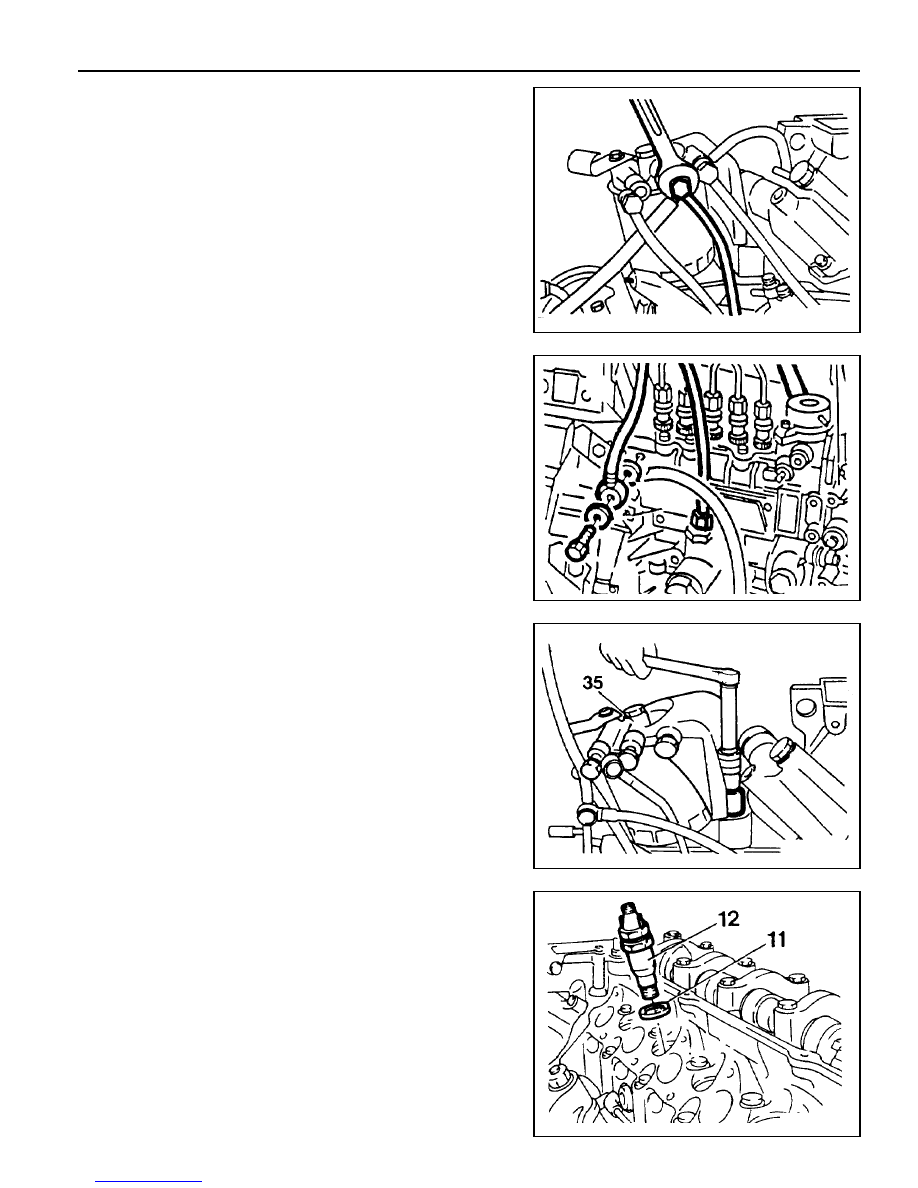

26. Disconnect the fuel lines from the fuel filter.

27. Disconnect the fuel lines from the injection pump.

28. Remove the fuel filter(35).

29. Remove the fuel injection nozzle(12) and nozzle

washer(11).

Socket Wrench Insert 001 589 65 09 00

1B3-46  OM600 ENGINE MECHANICAL

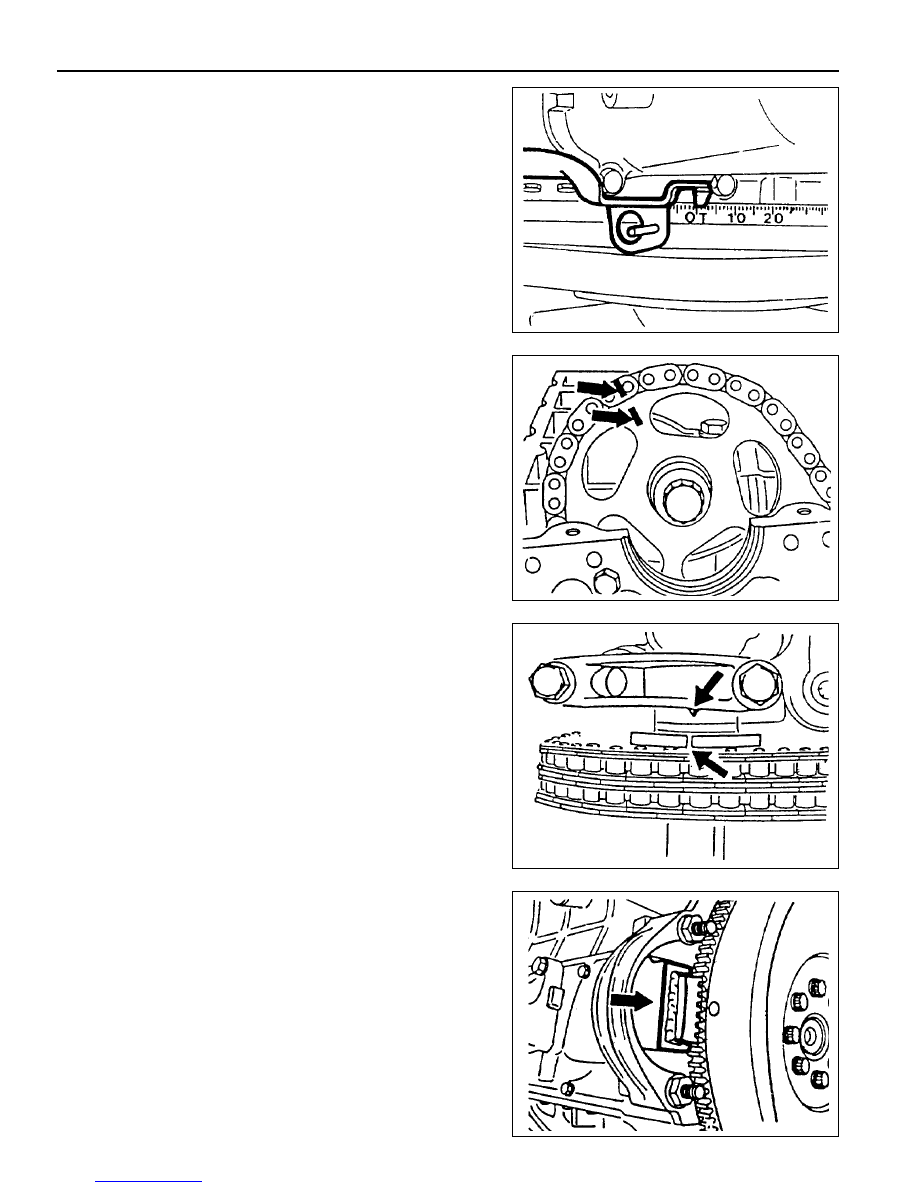

30. Rotate the crankshaft and set the no.1 cylinder at TDC.

Notice

Do not rotate the crankshaft to the opposite direction of
engine revolution.

31. Place alignment marks on the camshaft gear and timing

chain.

32. Ensure that the camshaft and the bearing cap marking

are aligned.

33. Remove the starter motor and install the engine lock onto

the flywheel ring gear.

Engine Lock 602 589 00 40 00
