1B1-72  M162 ENGINE MECHANICAL

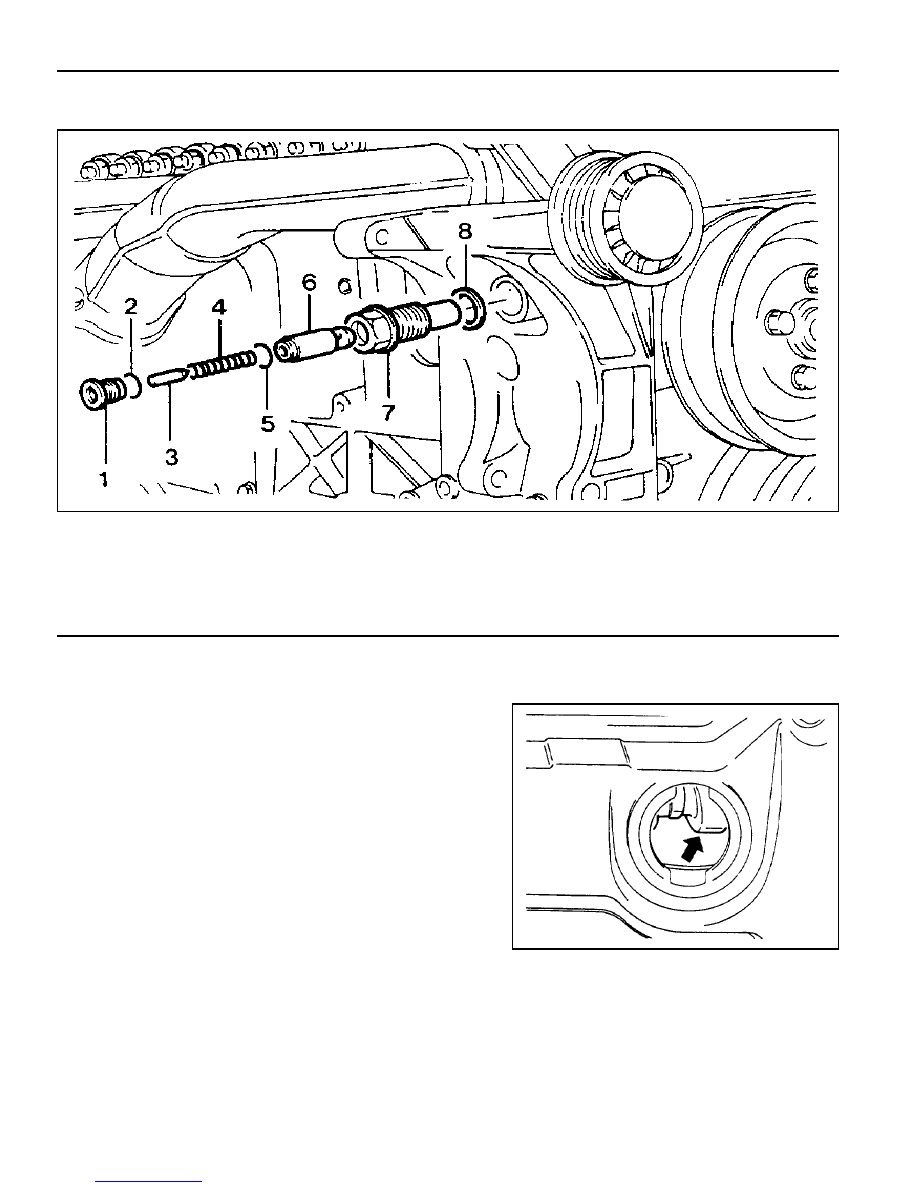

CHAIN TENSIONER

1 Screw Plug ................................................ 40 Nm
2 Seal
3 Filler Pin
4 Compression Spring

5 Snap Ring
6 Thrust Pin
7 Chain Tensioner Housing ..................... 72-88 Nm
8 Seal

Removal Procedure

1. Position the No.1 cylinder to TDC (OT).

Notice

Remove the oil filler cap at adjustment position, and check
whether the intake camshaft cam’s lobe (arrow) stays in the
upper side.

2. Cover the alternator with a clean cloth.

3. Release the tension by unscrewing the screw plug once.

Notice

In case that the tension is reduced by unscrewing the screw
plug, reinstall after completely removing the chain tensioner.
If the chain tensioner is tightened again without completely
reducing its tension, then the detent spring doesn’t return
to the original position and the tension gets excedded.

M162 ENGINE MECHANICAL  1B1-73

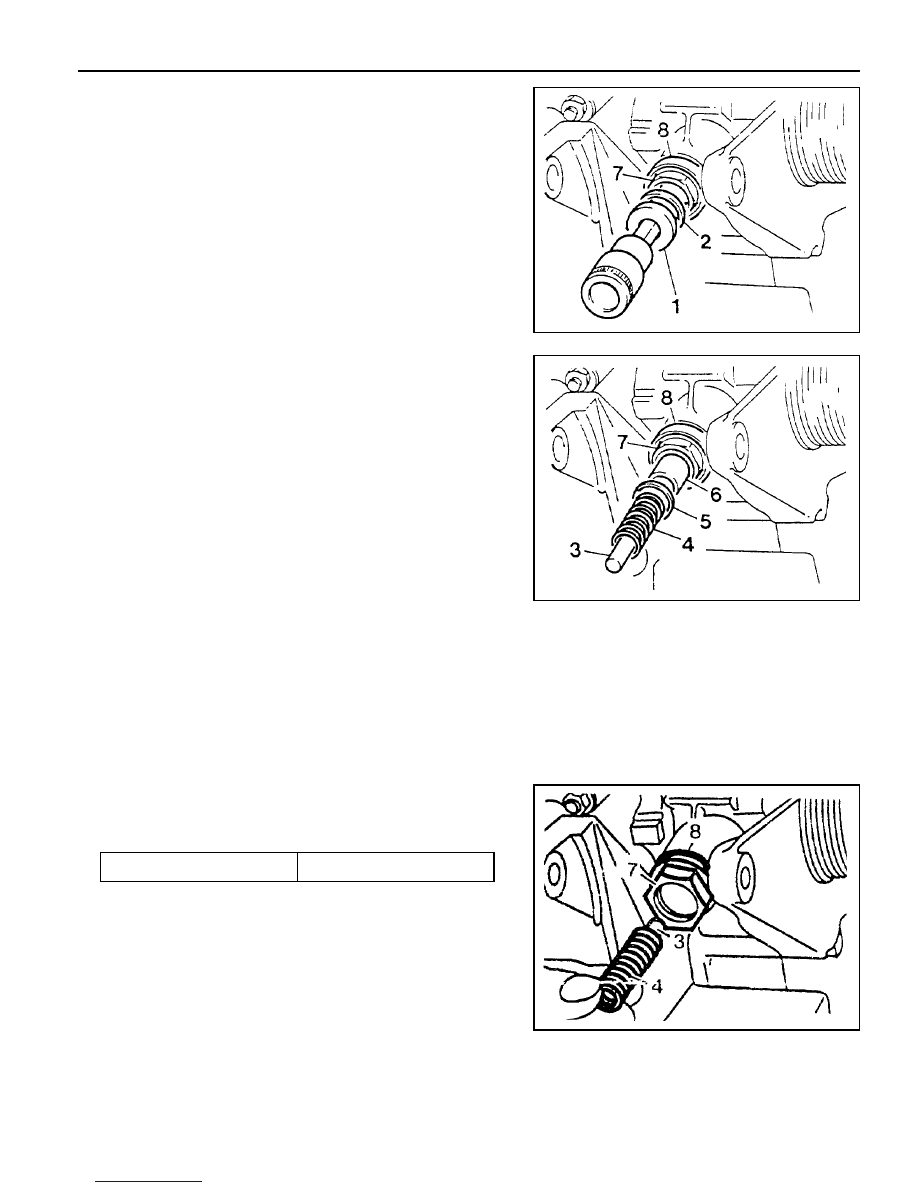

Installation Procedure

1. Connect the thrust pin (6) and the snap ring (5) to the chain

tensioner housing (7).

Notice

When connecting the thrust pin, push in the thrust pin far
enough so that it doesn’t protrude at the chain tensioner
housing.

4. Carefully unscrew the screw plug (1), and remove the seal

(2).

Notice

l

For the removal of screw plug, be careful that it can be
jumped out due to the force of compression spring.

l

Remove the screw plug only when the seal and
compression spring are damaged.

5. Carefully remove the filler pin (3), compression spring (4),

snap ring (5), and the thrust pin (6).

6. Remove the chain tensioner housing (7) and the seal (8).

3. Insert the compression spring (4) with the filler pin (3) into

chain tensioner housing.

2. Install the chain tensioner housing (7), thrust pin (6), snap

ring (5), and the seal (8).

Installation Notice

Tightening  Torque

35 - 40 Nm

1B1-74  M162 ENGINE MECHANICAL

4. Lightly apply the grease to the seal (2) and install the screw

plug (1).

Installation Notice

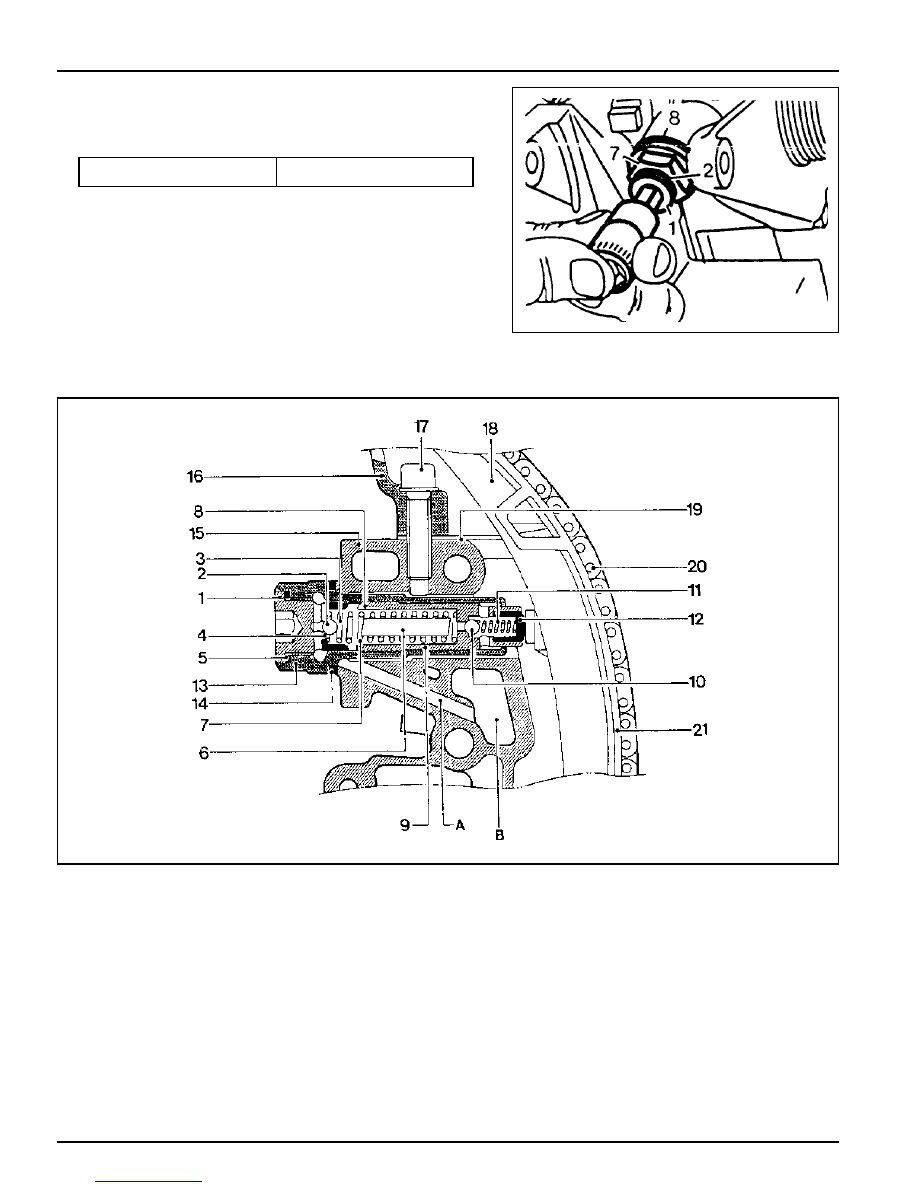

Sectional View

1 Screw Plug
2 Ball (Nonreturn Valve)
3 Compression Spring
4 Ball Guide
5 Seal (Aluminum)
6 Filler Pin
7 Compression Spring
8 Snap Ring
9 Thrust Pin

10 Ball (Nonreturn Valve)

11 Compression Spring

12 Thrust Piece

13 Chain Tensioner Housing
14 Seal
15 Timing Gear Case Cover
16 Cylinder Head
17 Bolt / Washer
18 Tensioning Rail
19 Cylinder Head Gasket
20 Timing Chain
21 Tensioning Rail Base (Sliding Surface)

A Oil Supply Hole
B Chain Tensioner Oil Storage Hole

5. Check for leaks by operating the engine.

Tightening Torque

40 Nm

M162 ENGINE MECHANICAL  1B1-75

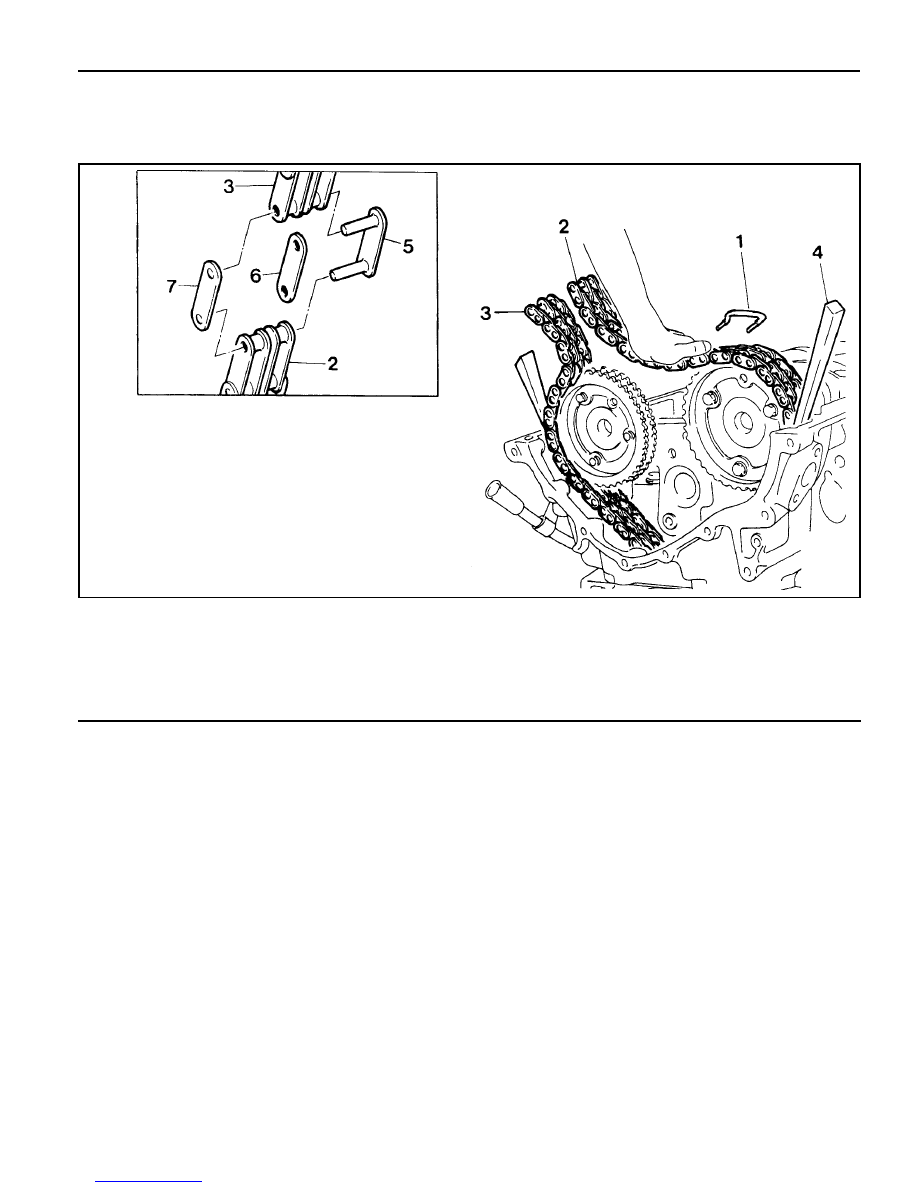

TIMING CHAIN

Preceding Work : Removal of cylinder head cover

Removal of spark plug

1 Pin
2 New Timing Chain
3 Timing Chain (Used)
4 Wedge

5 Link
6 Center Plate
7 Outer Plate
