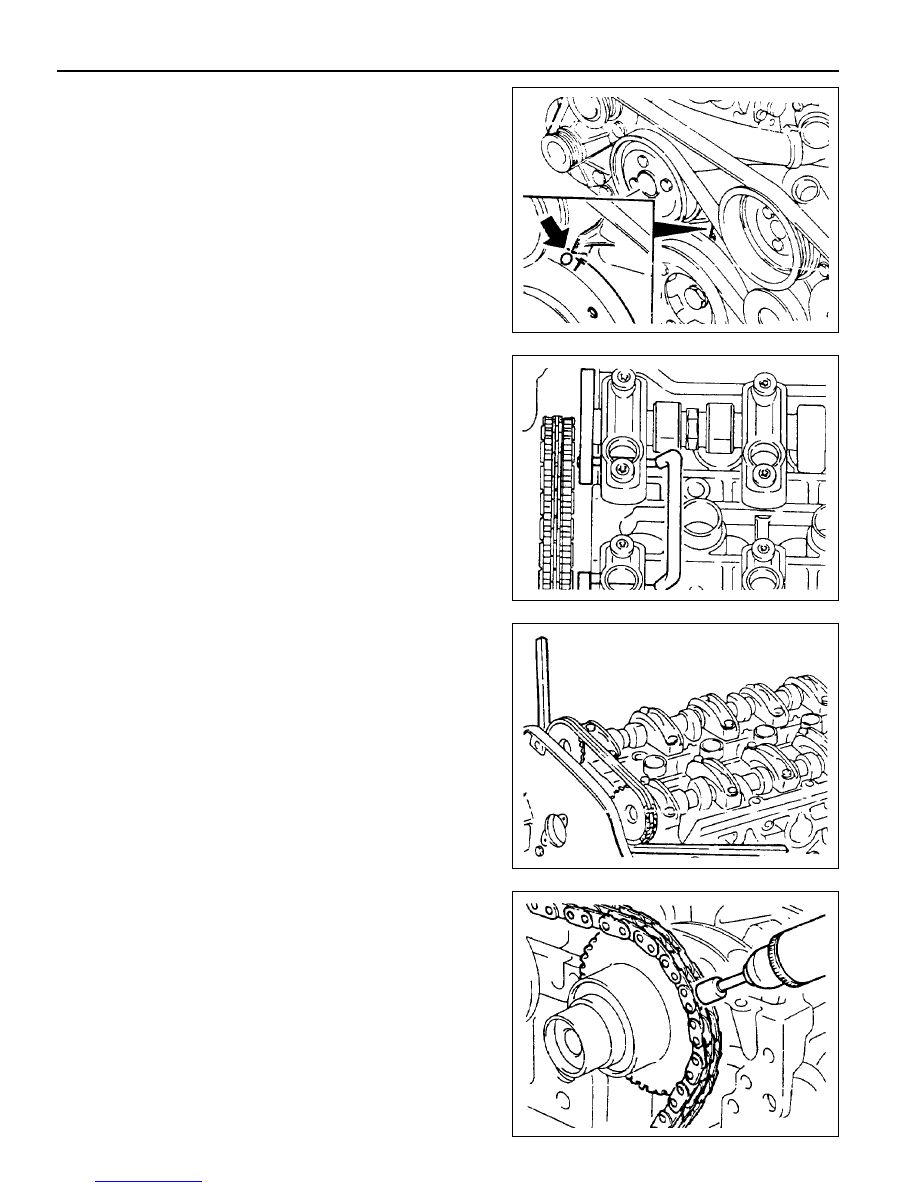

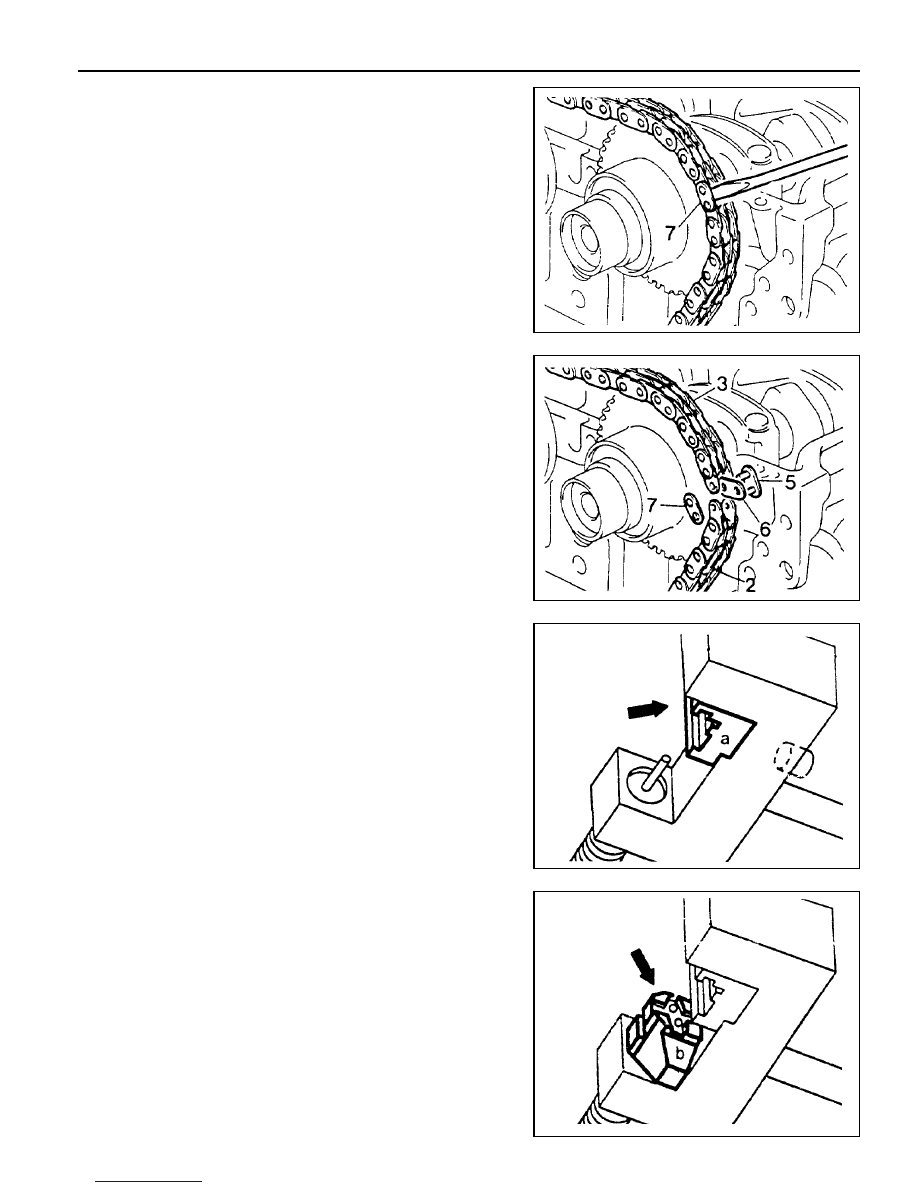

1B1-76 M162 ENGINE MECHANICAL Tools Required 000 589 58 43 00 Chain Assembly 103 589 01 63 00 Rivet Set 001 589 72 21 00 Torque Wrench Replacement Procedure 1. Position the No.1 cylinder to TDC (OT). 4. Mount the wedges to both sides of the camshaft sprocket as shown in the figure. 2. Insert the f 4mm pin to the intake and exhaust camshaft flange not to rotate camshaft. 3. Remove the chain tensioner. 5. Cover the chain housing with a clean cloth, and grind off the timing chain pin from the intake camshaft sprocket with |
