Daewoo Musso. Manual - part 32
1B1-64 M162 ENGINE MECHANICAL
CAMSHAFT TIMING POSITION
Preceding Work : Removal of cylinder head cover
Removal of cylinder head front cover

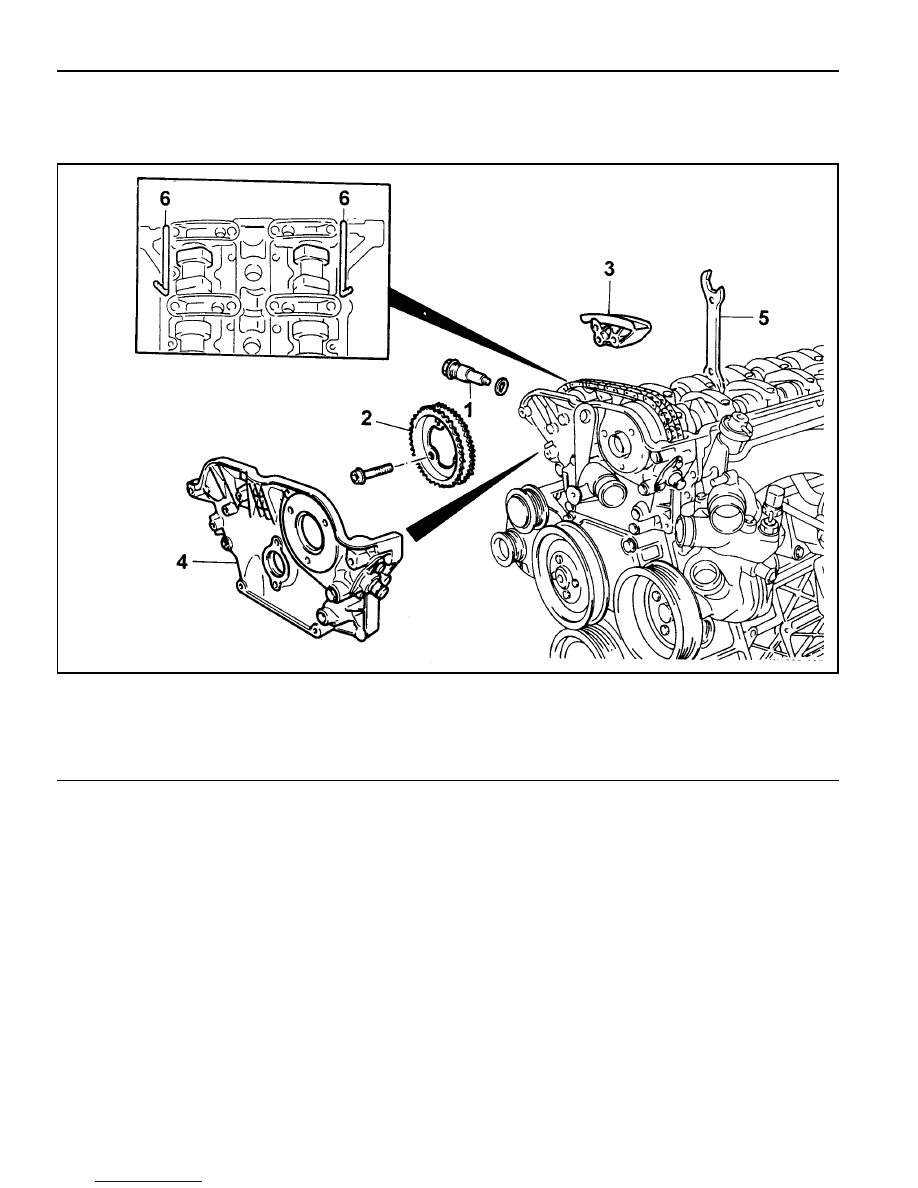

1 Chain Tensioner Assembly2 Exhaust Camshaft Sprocket3 Upper Guide Rail
4 Cylinder Head Front Cover5 Wrench (Special Tool)6 Adjustment Hole Fitting Pin (
f
4.0 mm)
