9E – 14 INSTRUMENTATION/DRIVER INFORMATION

 7. Install the instrument cluster assembly. Refer to “In-

strument Cluster” in this section.

 8. Install the floor console with the screws.

 9. Install the passenger’s airbag module to the instru-

ment panel. Refer to Section 8B, Supplemental In-
flatable Restraints (SIR) (For vehicle equipped with
the airbag).

10. Install the glove box assembly to the instrument

panel. Refer to “Glove Box” in this section.

11. Install the hood latch release lever to the instrument

panel. Refer to Section 9R, Body Front End.

12. Install the instrument cluster trim panel to the instru-

ment cluster trim panel with the screws.

13. Install the A–pillar trim panels. Refer to Section 9G,

Interior Trim.

14. Install the signal lamp switch and the wiper switch.

Refer to Section 6E, Steering Wheel and Column.

15. Install the steering column trim cover. Refer to Sec-

tion 6E, Steering Wheel and Column.

16. Install the steering wheel to the steering column.

17. Install the driver’s airbag module to the steering

wheel. Refer to Section 8B, Supplemental Inflatable
Restraints (SIR) (For vehicle equipped with the air-
bag).

18. Connect the negative battery cable.

D109B522

TIE–BAR

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

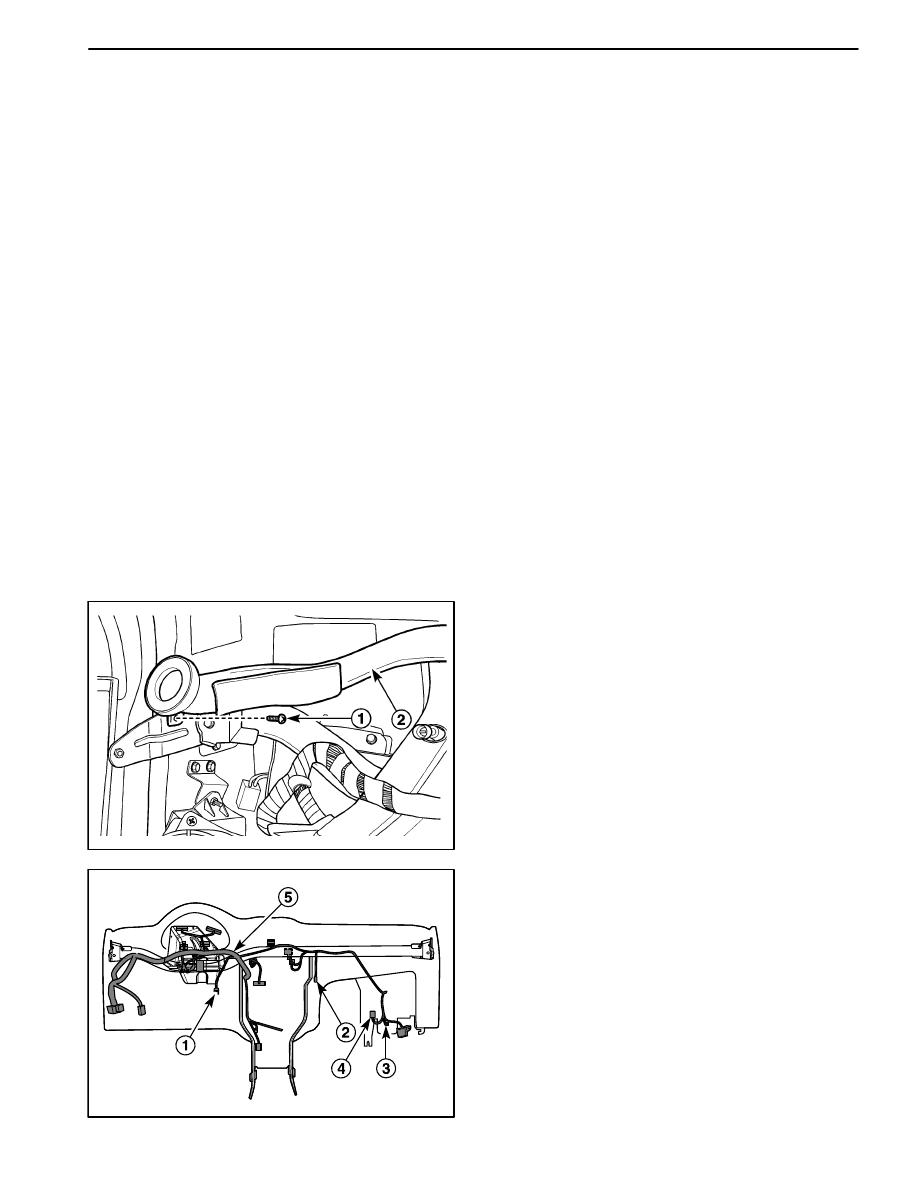

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument panel assembly. Refer to “In-

strument Panel” in this section.

3. Remove the defroster duct hose from the tie–bar.

D

Remove the screws (1).

D

Remove the defroster duct hose (2).

D19B547A

4. Remove the nuts and the steering column. Refer to

Section 6E, Steering Wheel and Column.

5. Disconnect the electrical connectors and electrical

wiring harness after removing the electrical wiring
harness strips.

D

Remove the electrical wiring harness strip.

D

Disconnect the brake switch connector (1).

D

Disconnect the thermostat connector (2).

D

Disconnect the blow motor connector (3).

D

Disconnect the blow motor resistance connector
(4).

D

Disconnect the electrical wiring harness (5).

INSTRUMENT/DRIVER INFORMATION  9E – 15

D109B523

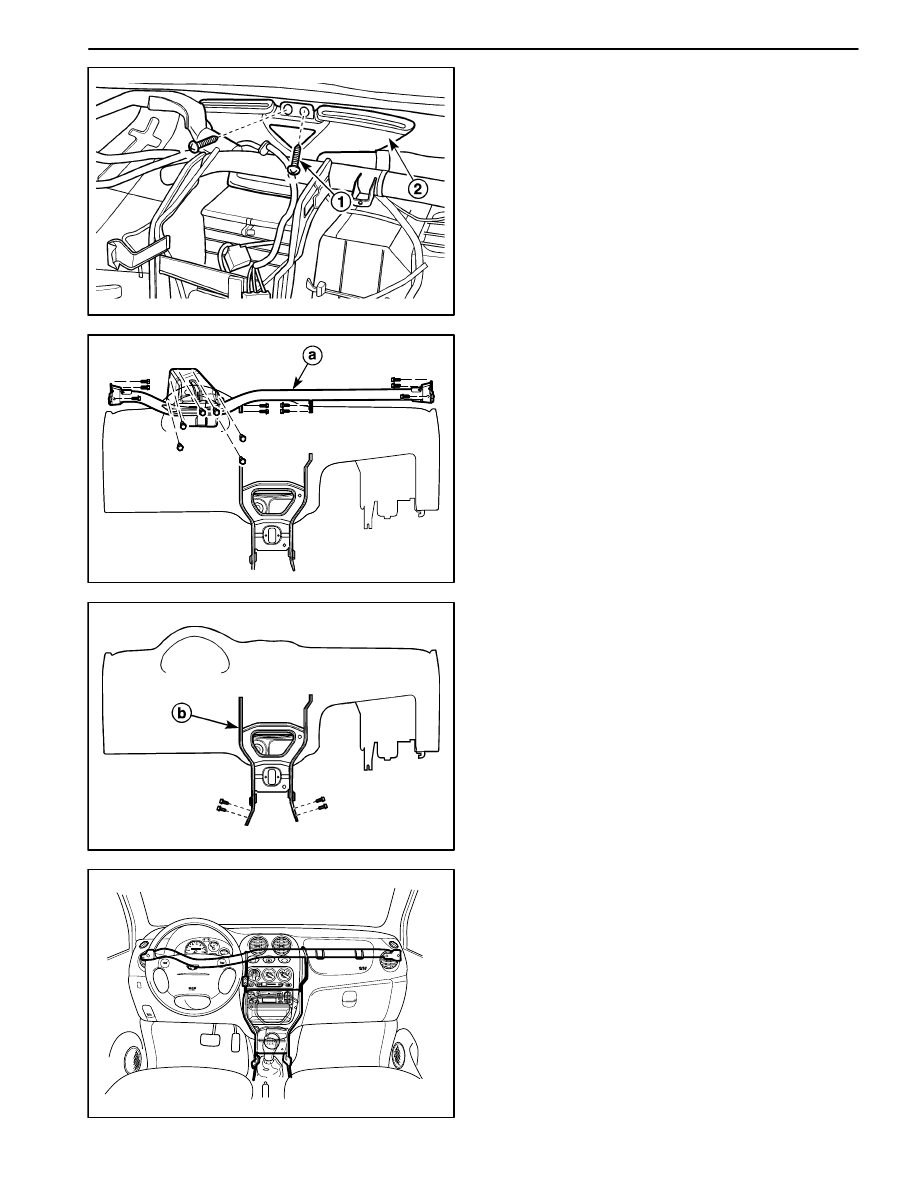

6. Remove the defroster duct from the cowl upper pan-

el.

D

Remove the screws (1).

D

Remove the defroster duct (2).

D109B524

7. Remove the bolts and the tie–bar.

a. Tie bar.

D109B525

8. Remove the bolts and the tie–bar center.

b. Tie bar center.

D109B526

Installation Procedure

1. Install the tie–bar with the bolts.

2. Install the tie–bar center with the bolts.

3. Install the defroster duct to the cowl upper panel with

the screws.

9E – 16  INSTRUMENT/DRIVER INFORMATION

 4. Connect the electrical wiring harness.

 5. Connect the blow motor resistance connector.

 6. Connect the blow motor connector.

 7. Connect the thermostat connector.

 8. Connect the brake switch connector.

 9. Bind the electrical wiring harness strip.

10. Install the steering column with the nuts.

11. Install the defroster duct hose with the screws.

12. Install the instrument panel assembly. Refer to “In-

strument Panel” in this section.

13. Connect the negative battery cable.

D109B516

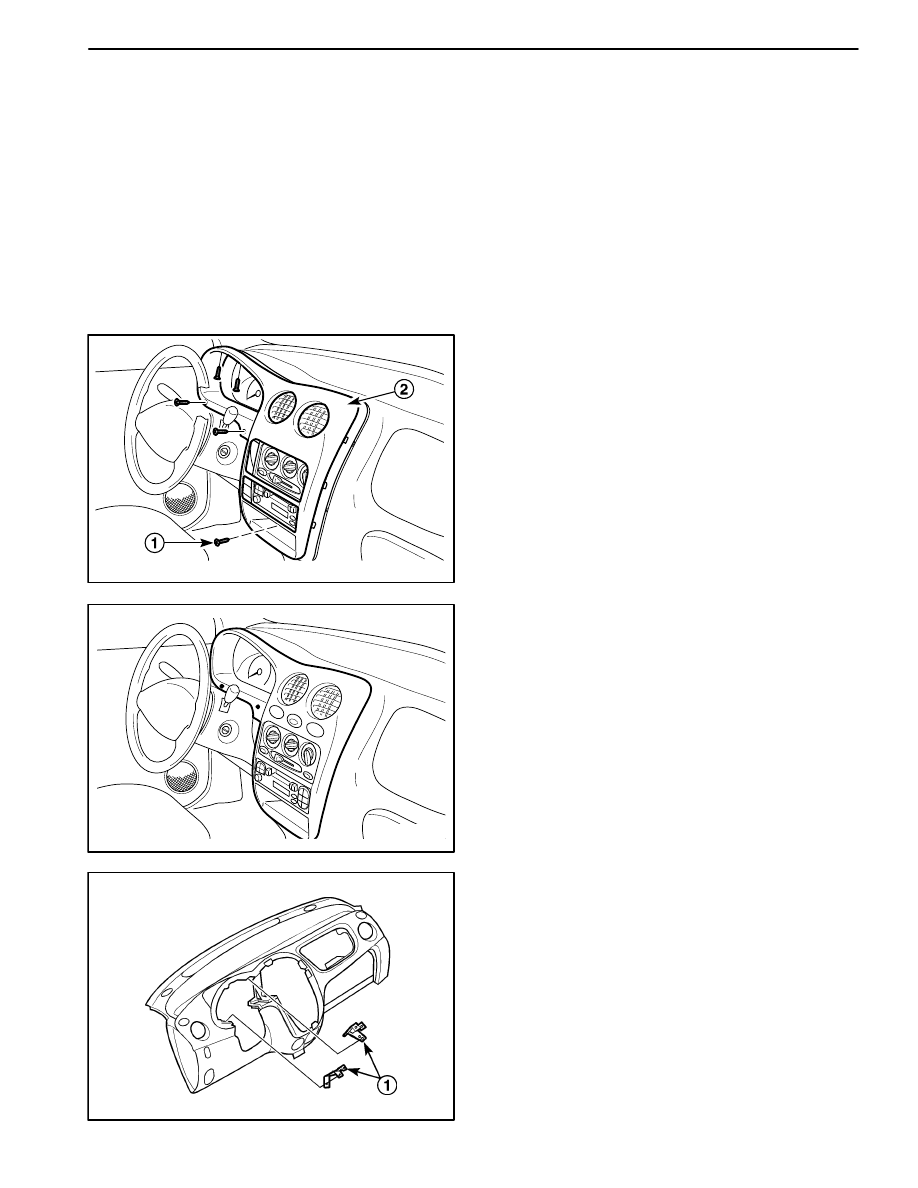

INSTRUMENT CLUSTER TRIM PANEL

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Remove the instrument cluster trim panel from the in-

strument panel.

D

Remove the screws (1).

D

Using a flathead screwdriver, remove the central
console cover (2).

Notice: To prevent the instrument panel damage, cover
the flathead screwdriver with a soft cloth.

D109B527

Installation Procedure

1. Install the instrument cluster trim panel with the

screws.

D109B701

INSTRUMENT  TRIM PANEL
ASSEMBLY

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument panel assembly. Refer to “In-

strument Panel” in this section.

3. Remove the instrument cluster brackets from the in-

strument panel.

D

Remove the screws.

D

Remove the instrument cluster brackets (1).

INSTRUMENT/DRIVER INFORMATION  9E – 17

D109B702

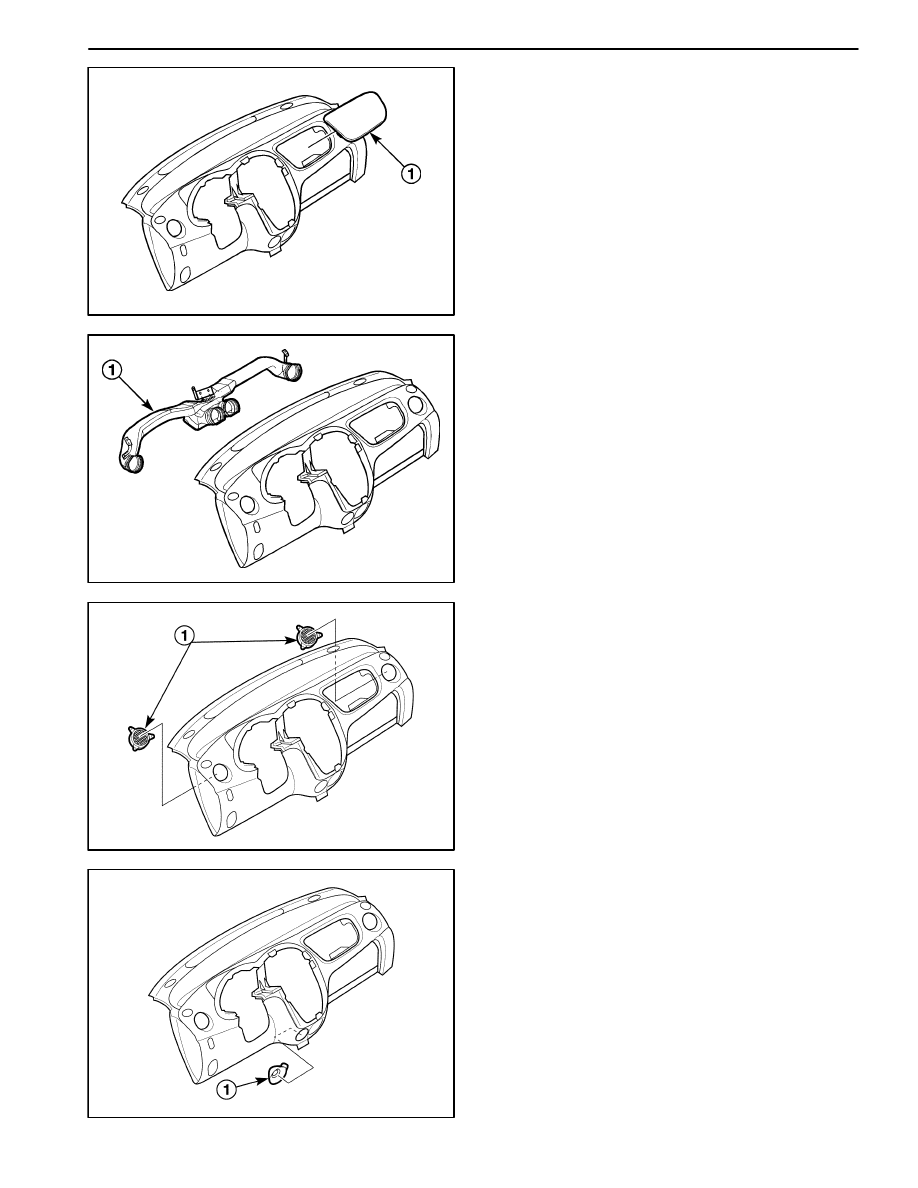

4. Remove the passenger’s airbag module blank cover

from the instrument panel.

D

Remove the screws.

D

Remove the passenger’s airbag module blank cov-
er (1).

D109B703

5. Remove the ventilation duct from the instrument pan-

el.

D

Remove the screws.

D

Remove the ventilation duct (1).

D109B704

6. Remove the ventilation grilles from the instrument

panel.

D

Remove the screws.

D

Remove the ventilation grilles (1).

D109B705

7. Remove the cigar lighter housing from the instrument

panel.

D

Remove the screws.

D

Remove the cigar lighter housing (1).
