Daewoo Matiz (2003 year). Manual - part 243

9E – 6 INSTRUMENTATION/DRIVER INFORMATION

D19B302B

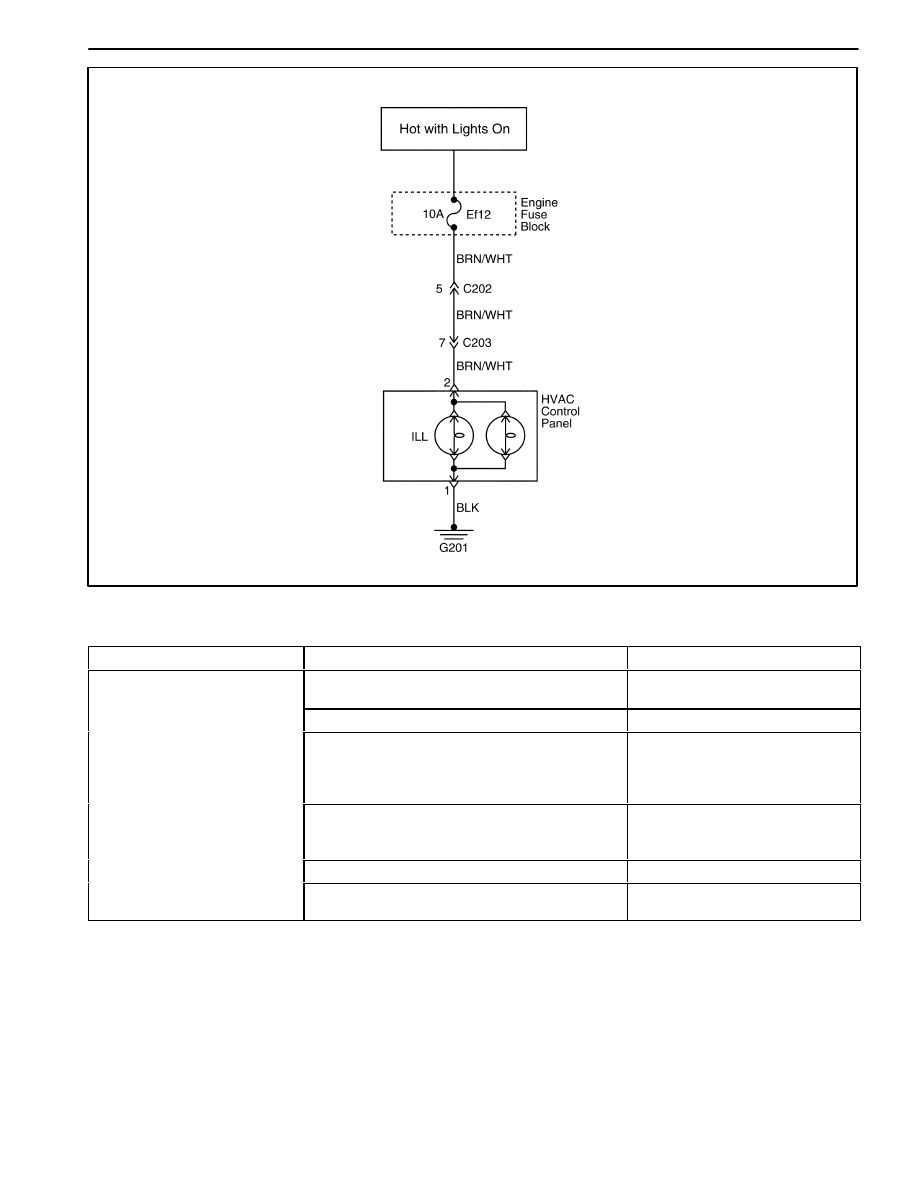

HVAC PANEL ILLUMINATION

ÁÁÁÁÁÁÁÁÁÁÁ

Condition

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Probable Cause

ÁÁÁÁÁÁÁÁÁÁÁ

Correction

ÁÁÁÁÁÁÁÁÁÁÁ

HVAC Panel Illumination
Inoperative

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The open or a short in the power supply
circuit to the fuse Ef12.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Fuse Ef12 is blown.

ÁÁÁÁÁÁÁÁÁÁÁ

Replace the fuse Ef12

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The circuit between the fuse Ef12 and the
terminal 2 of the HVAC panel illumination
connector is the open circuit or a short
circuit.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Faulty the HVAC panel illumination
connector.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the
instrument panel illumination
connector.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

HVAC panel illumination bulb is blown.

ÁÁÁÁÁÁÁÁÁÁÁ

Replace the bulb.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Open ground (G201) circuit.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair the open ground
circuit.

INSTRUMENTATION/DRIVER INFORMATION 9E – 7

D19B304B

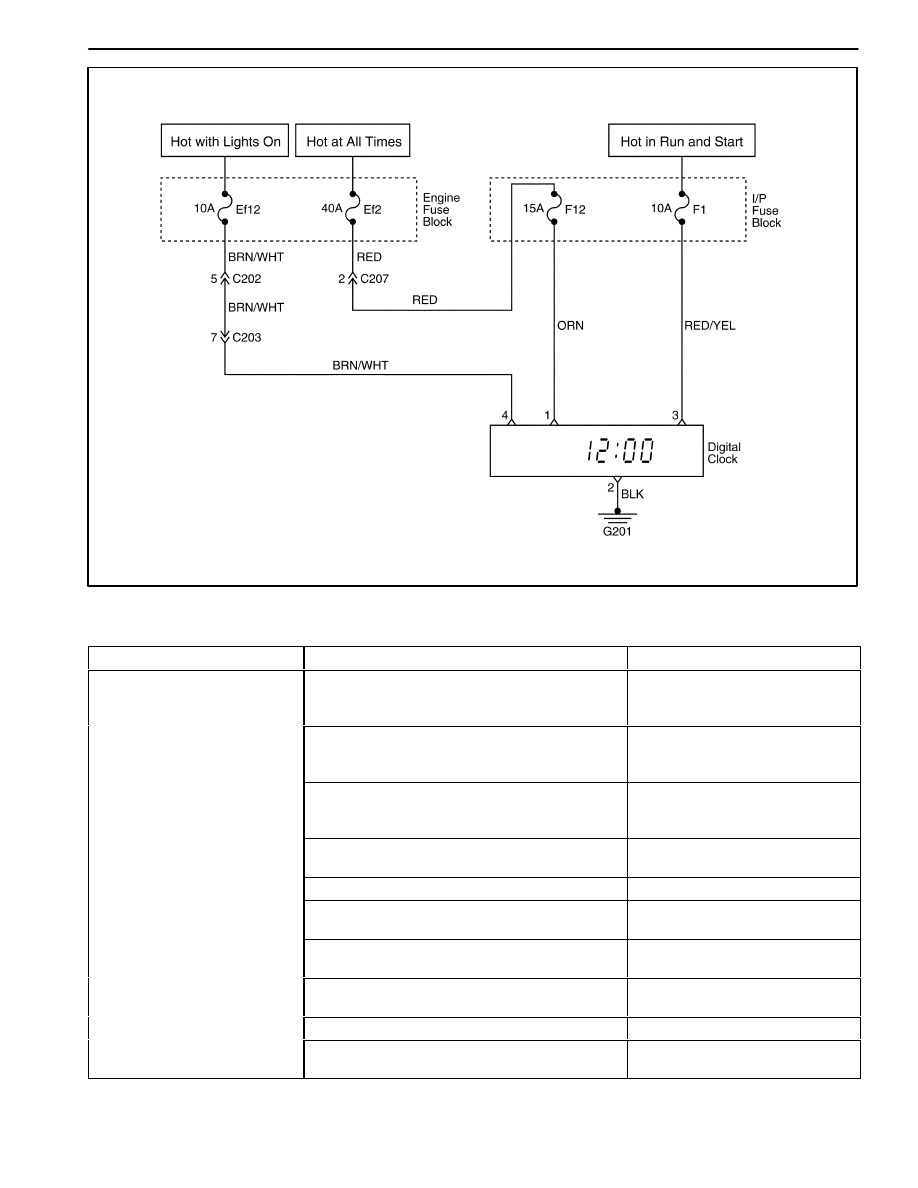

DIGITAL CLOCK

ÁÁÁÁÁÁÁÁÁÁÁ

Condition

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Probable Cause

ÁÁÁÁÁÁÁÁÁÁÁ

Correction

ÁÁÁÁÁÁÁÁÁÁÁ

Digital Clock Inoperative

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The open or a short in the power supply
circuit to the fuse Ef2 regardless of the
ignition position.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the power
supply circuit wiring harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The open or a short in the power supply
circuit to the fuse F1 with the ignition
position I.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the power
supply circuit wiring harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The open or a short in the power supply
circuit to the fuse Ef12 with the interior
courtesy lamp ON.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the power
supply circuit wiring harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The circuit between the fuse Ef2 and the
fuse F12 is open or short.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Fuse Ef2, Ef12, F1 or F12 is blown.

ÁÁÁÁÁÁÁÁÁÁÁ

Replace and fuse.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The circuit between the fuse F12 and the
digital clock connector.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The circuit between the fuse F1 and the
digital clock connector.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The circuit between the Ef12 and the
digital clock connector.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair or Replace the wiring
harness.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Faulty digital clock.

ÁÁÁÁÁÁÁÁÁÁÁ

Replace the digital clock.

ÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Open ground (G201) circuit.

ÁÁÁÁÁÁÁÁÁÁÁ

Repair the open ground
circuit.

9E – 8 INSTRUMENTATION/DRIVER INFORMATION

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D109B501

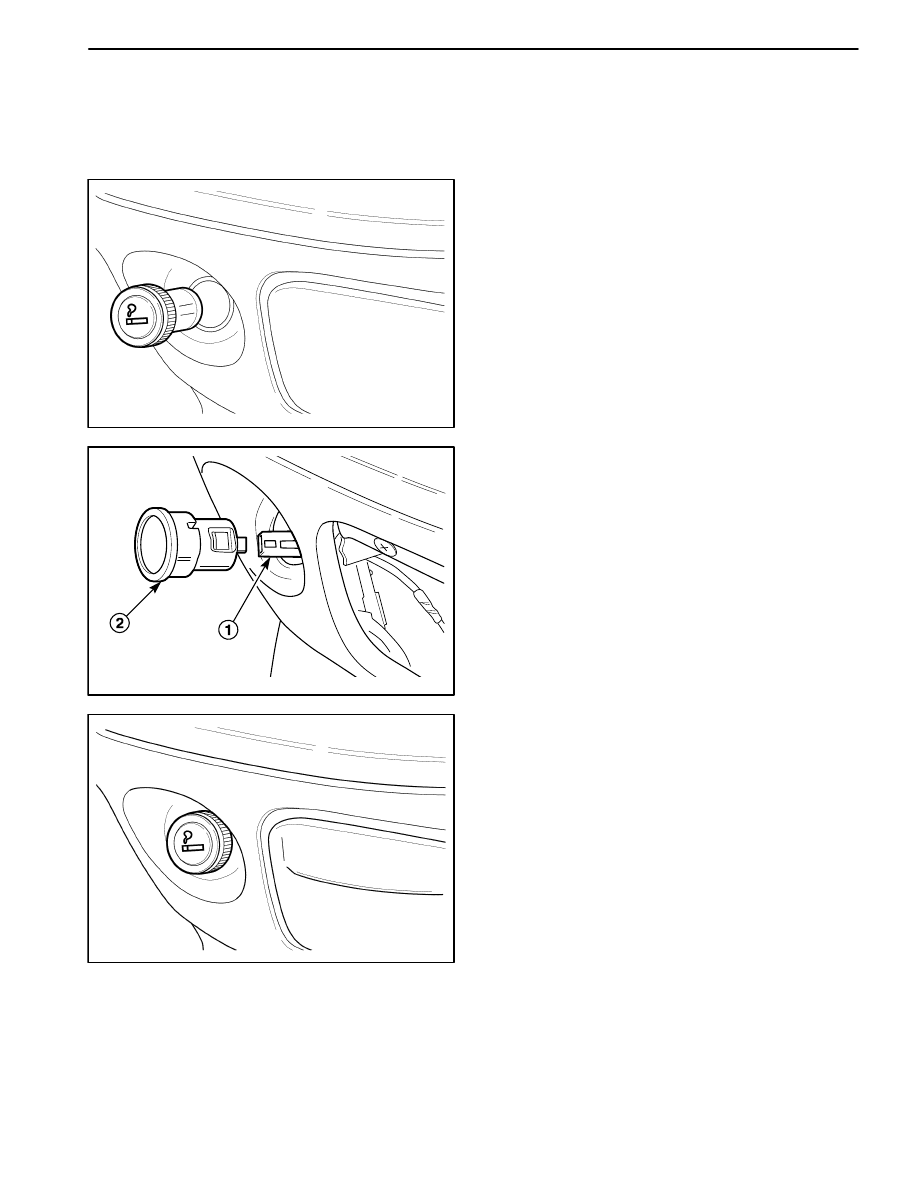

CIGAR LIGHTER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the ashtray from the ashtray housing.

3. Remove the cigar lighter from the cigar lighter socket.

D19B502A

4. Remove the cigar lighter socket from the cigar lighter

housing.

Caution: Ashtray housing edge could cause seri-
ous injury.

Push out the socket.

Disconnect the electrical connector (1).

Remove the socket (2).

D109B503

Installation Procedure

1. Connect the electrical connector.

2. Install the cigar lighter socket.

3. Install the cigar lighter in the cigar lighter socket.

4. Install the ashtray.

5. Connect the negative battery cable.

INSTRUMENTATION/DRIVER INFORMATION 9E – 9

D109B504

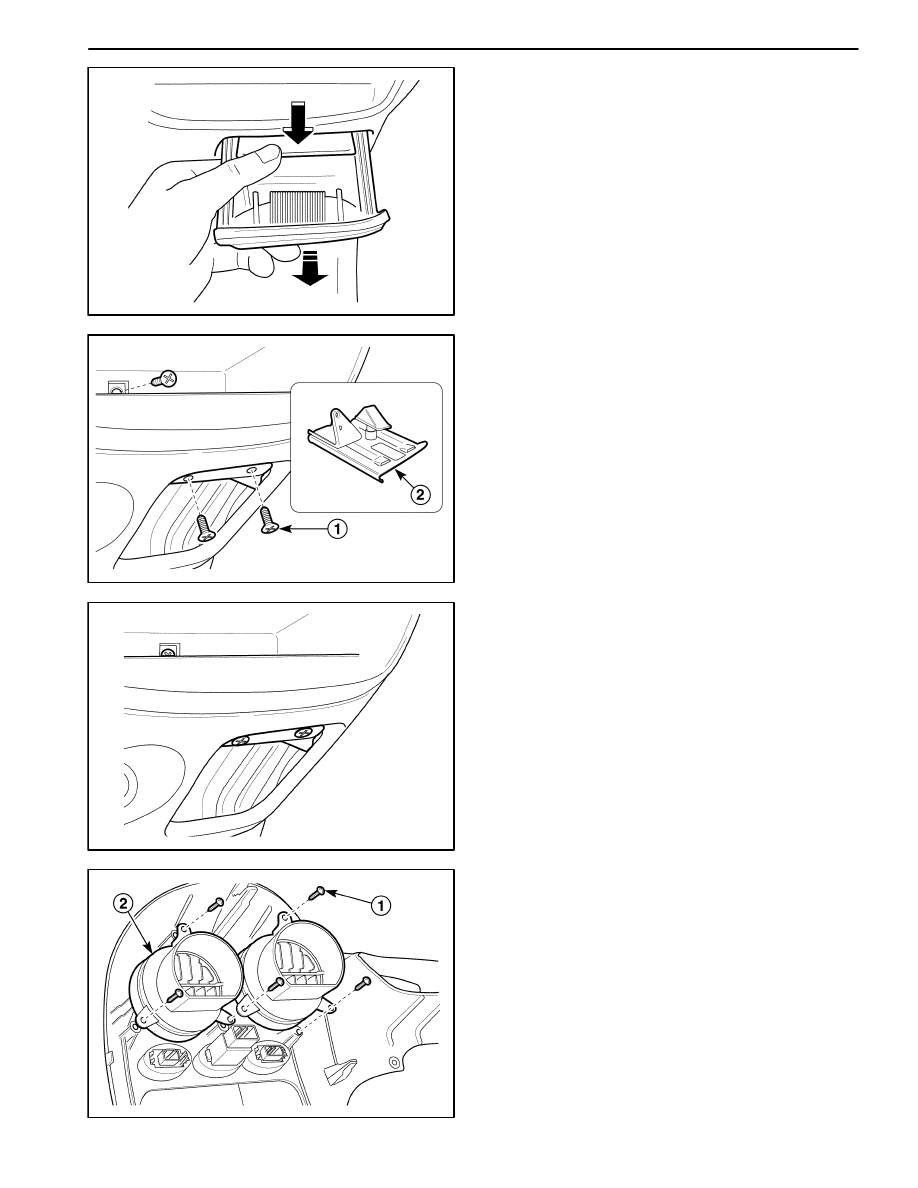

ASHTRAY

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Remove the ashtray from the ashtray bracket.

Pull off the ashtray by pressing the upper button.

D19B505A

2. Remove the ashtray bracket from the instrument pan-

el.

Remove the screws (1).

Remove the ashtray bracket (3).

D109B506

Installation Procedure

1. Install the ashtray bracket with the screws.

2. Install the ashtray.

D109B507

INSTRUMENT CLUSTER TRIM PANEL
VENTS

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Remove the instrument cluster trim panel from the in-

strument panel. Refer to “Instrument Cluster Trim
Panel” in this section.

2. Remove the vent from the instrument cluster trim

panel.

Remove the screws (1).

Remove the vents (2).
