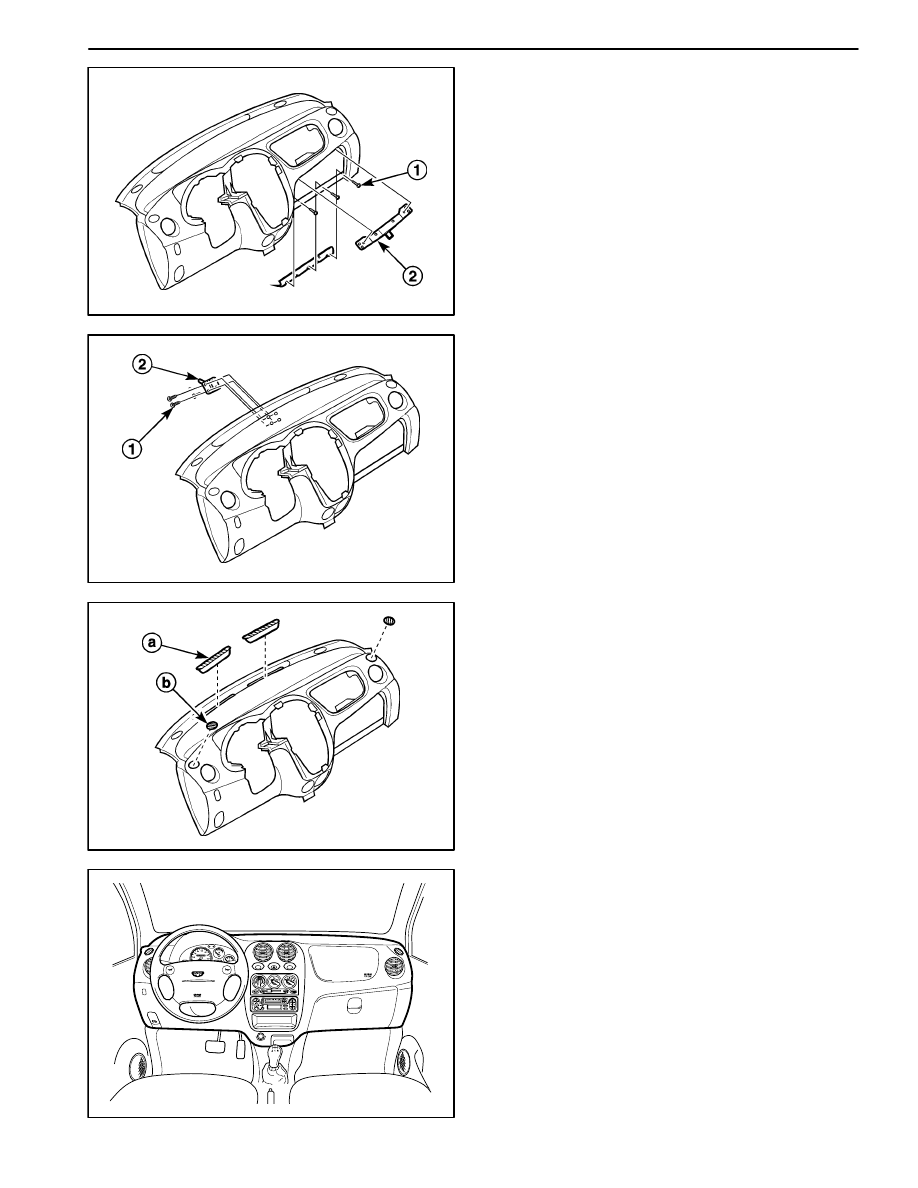

9E – 18  INSTRUMENT/DRIVER INFORMATION

D109B706

 8. Remove the glove box striker and bracket from the

instrument panel.

D

Remove the screws (1).

D

Remove the glove box striker and bracket (2).

D109B707

 9. Remove the instrument panel guide from the instru-

ment panel.

D

Remove the screws (1).

D

Remove the instrument panel guide (2).

D109B708

10. Remove the defroster grilles and the demister grilles

from the instrument panel.

a. Defroster grille.

b. Demister grille.

D109B521

Installation Procedure

1. Install the defroster grilles and the demister grilles to

the instrument.

2. Install the instrument panel guide to the instrument

panel with the screws.

3. Install the glove box striker and the bracket to the in-

strument panel with the screws.

4. Install the cigar lighter housing to the instrument pan-

el with the screws.

5. Install the ventilation grilles to the instrument panel

with the screws.

6. Install the ventilation duct to the instrument panel with

the screws.

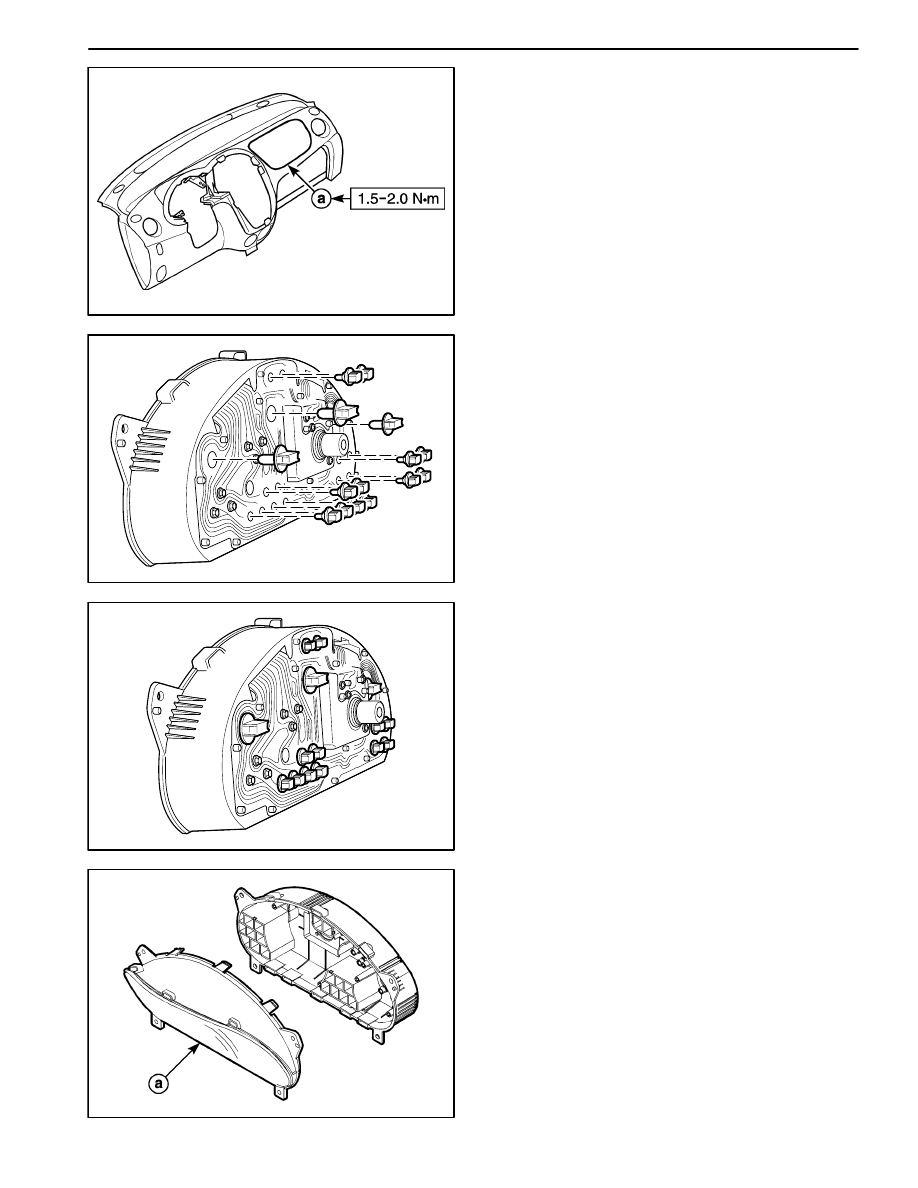

INSTRUMENT/DRIVER INFORMATION  9E – 19

D19B710A

 7. Install the passenger’s airbag module blank cover to

the instrument panel with the screws.

Tighten

Tighten the screws to 1.5–2 N.m (13–18 lb-in).

a. Passenger’s airbag module blank cover screw

 8. Install the instrument cluster brackets to the instru-

ment panel with the screws.

 9. Install the instrument panel assembly. Refer to “In-

strument Panel” in this section.

10. Connect the negative battery cable.

D109B711

INSTRUMENT CLUSTER INDICATOR
LAMPS

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument cluster from the instrument

panel. Refer to “Instrument Cluster” in this section.

3. Remove the indicator bulbs from the rear of the clus-

ter.

D109B712

Installation Procedure

1. Install the indicator bulb.

2. Install the instrument cluster to the instrument panel.

Refer to “Instrument Cluster” in this section.

3. Connect the negative battery cable.

D109B713

SPEEDOMETER/ODOMETER/TRIP
ODOMETER

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument cluster from the instrument

panel. Refer to “Instrument Cluster” in this section.

3. Remove the instrument cluster lens and the face

plate.

a. Window plate.

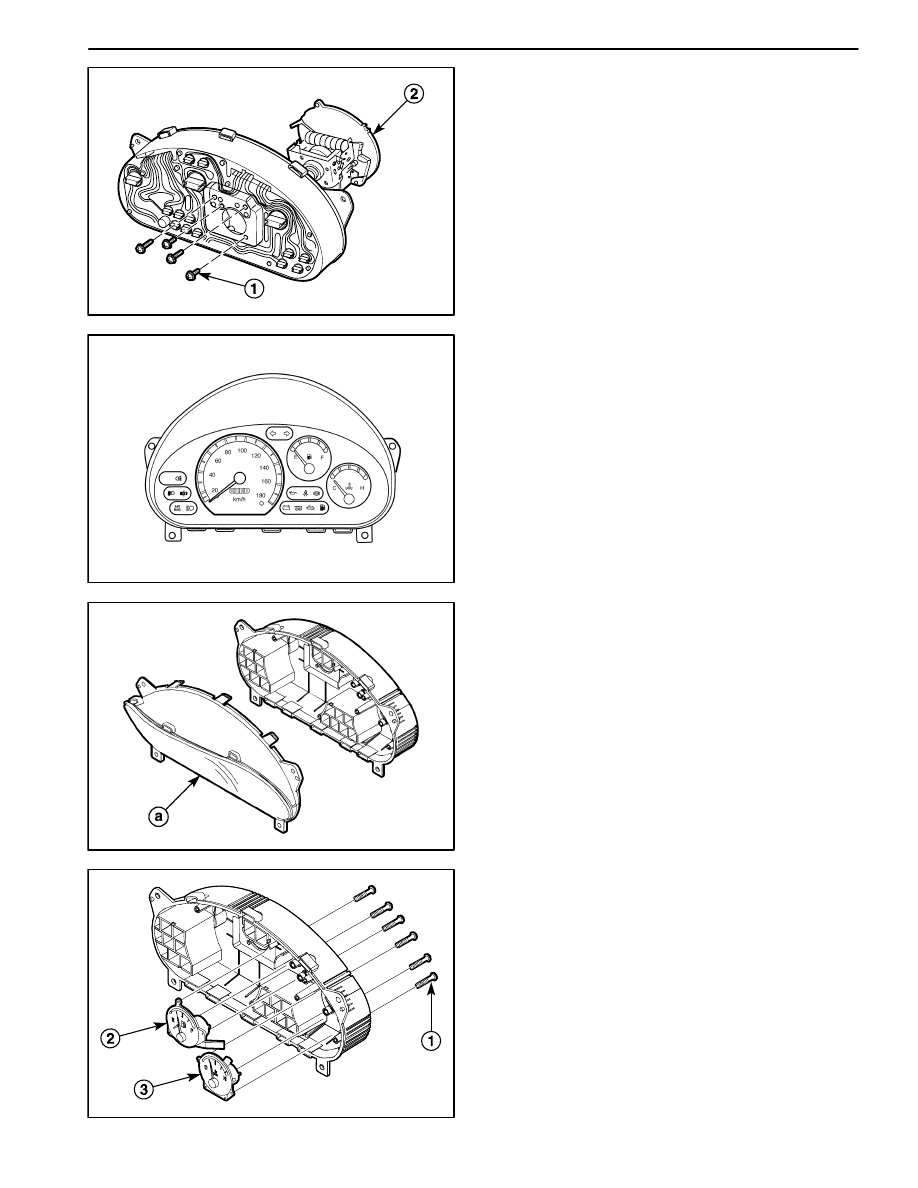

9E – 20  INSTRUMENT/DRIVER INFORMATION

D109B714

4. Remove the speedometer/odometer/trip odometer.

D

Remove the screws on the circuit plate (1).

D

Remove the speedometer/odometer/trip odometer
(2).

D19B715A

Installation Procedure

1. Install the speedometer/odometer/trip odometer with

the screws.

2. Install the instrument cluster lens and the face plate.

3. Install the instrument cluster. Refer to “Instrument

Cluster” in this section.

4. Connect the negative battery cable.

D109B713

FUEL GAUGE/TEMPERATURE
GAUGE

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument cluster. Refer to “Instrument

Cluster” in this section.

3. Remove the instrument cluster lens and the face

plate.

a. Window plate.

D109B716

4. Remove the fuel gauge/temperature gauge from the

cluster assembly.

D

Remove the screws on the circuit plate (1).

D

Remove the fuel gauge (2).

D

Remove the temperature gauge (3).

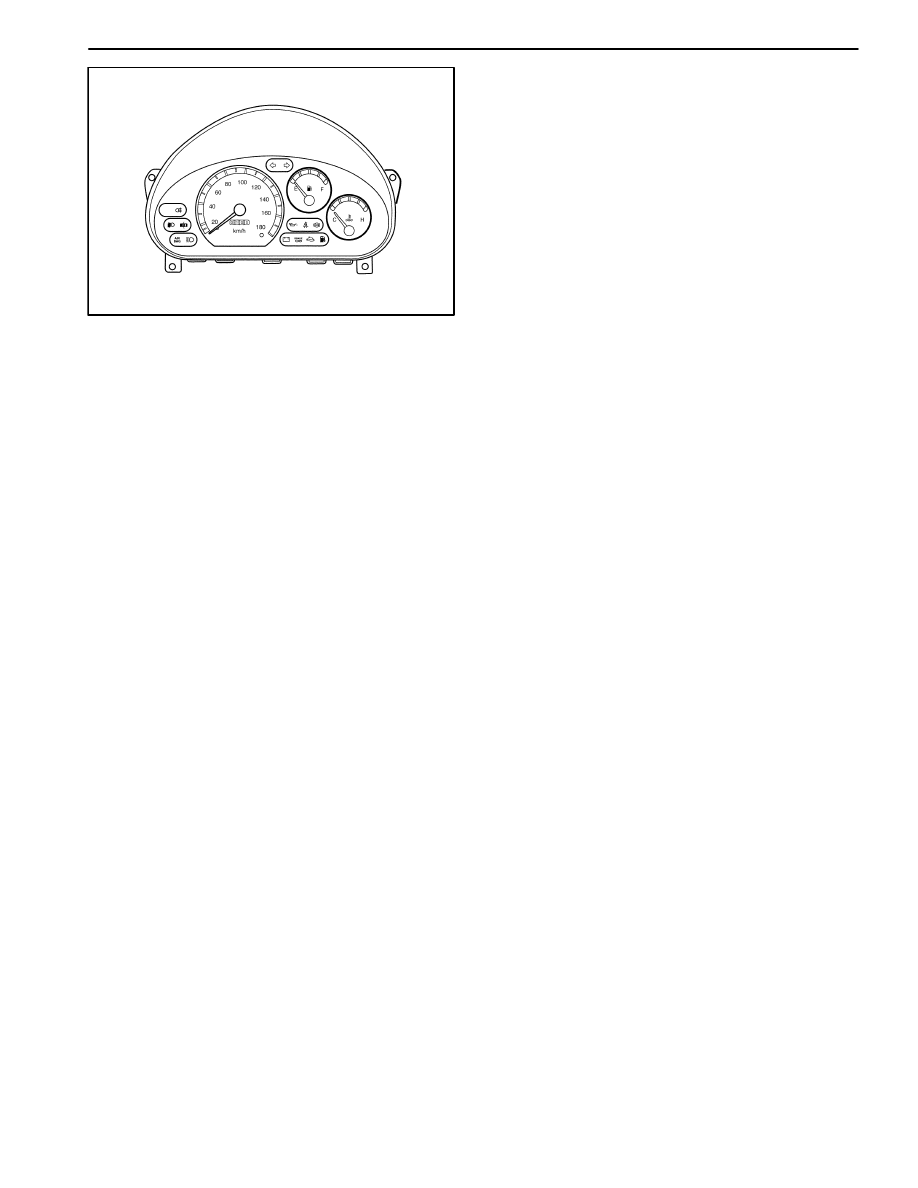

INSTRUMENT/DRIVER INFORMATION  9E – 21

D19B717A

Installation Procedure

1. Install the fuel gauge/temperature gauge to the clus-

ter assembly with the screws.

2. Install the instrument cluster lens and the face plate.

3. Install the instrument cluster. Refer to “Instrument

Cluster” in this section.

4. Connect the negative battery cable.
