FIVE-SPEED MANUAL TRANSAXLE  5B – 3

COMPONENT LOCATORS

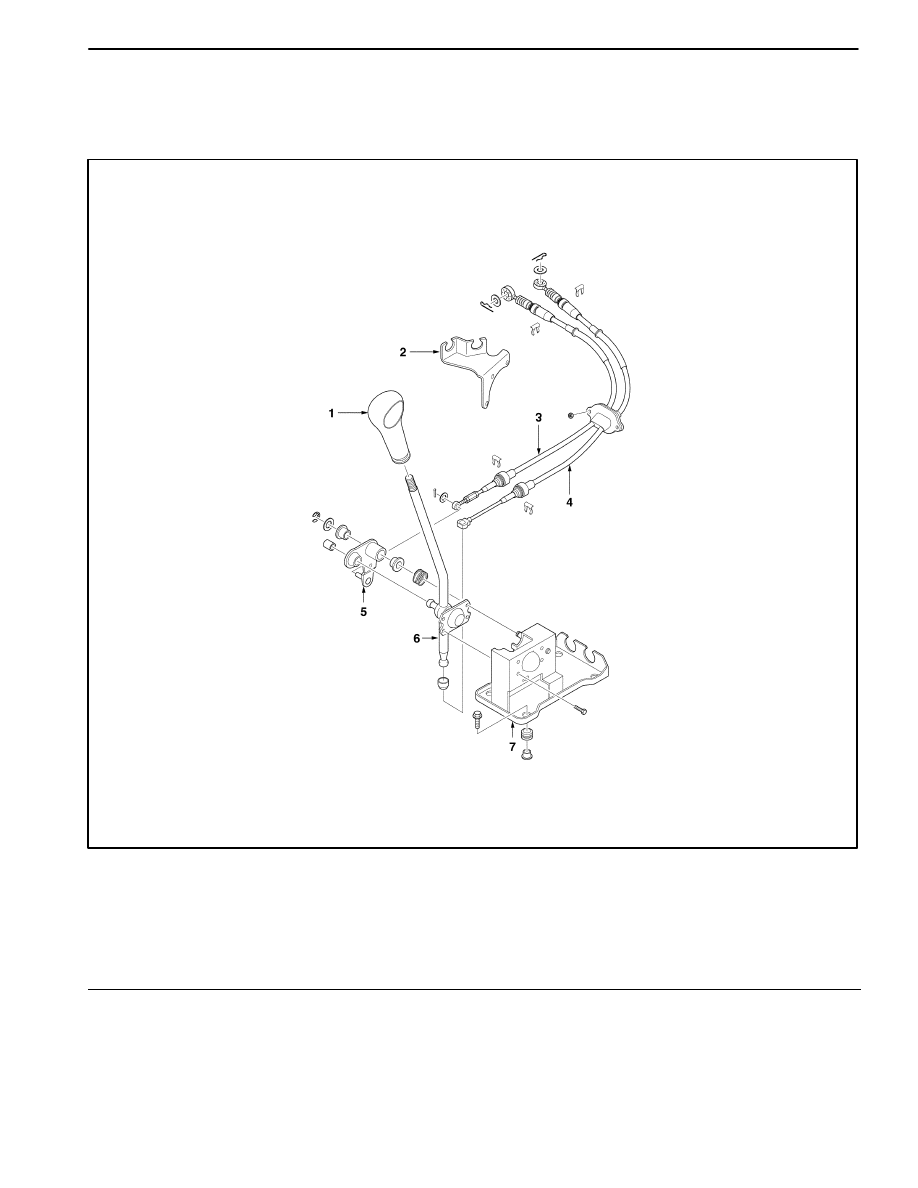

GEAR SHIFT CONTROL



D13B4011

1 Gear Shift Control Lever Knob
2 Gear Shift Cable Bracket
3 Select Cable
4 Shift Cable

5 Select Arm
6 Gear Shift Control Lever
7 Gear Shift Control Lever Guide

5B – 4  FIVE-SPEED MANUAL TRANSAXLE

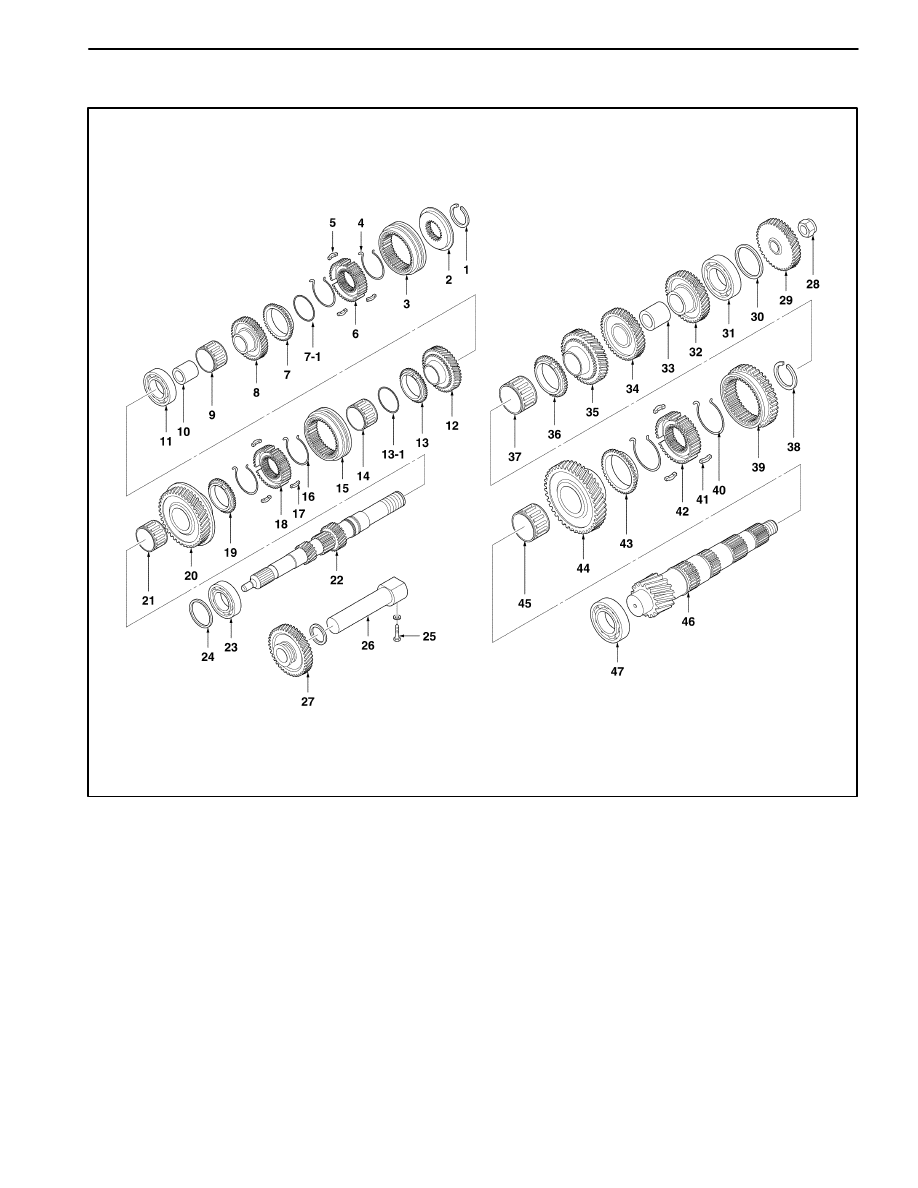

INPUT SHAFT AND COUNTER SHAFT GEAR

D13B4031

FIVE-SPEED MANUAL TRANSAXLE  5B – 5

1  Input Shaft Circlip
2  5th Gear Synchronizer Plate
3  5th Gear Synchronizer Sleeve
4  5th Gear Synchronizer Spring
5  5th Gear Synchronizer Key
6  5th Gear Synchronizer Hub
7  5th Gear Synchronizer Ring

7-1  Wave Spring

8  Input Shaft 5th Gear
9  Input Shaft 5th Gear Bearing

10  Input Shaft 5th Gear Spacer

11  Input Shaft Bearing(Left)

12  Input Shaft 4th Gear
13  4th Gear Synchronizer Ring

13-1 Wave Spring

14  Input Shaft 4th Gear Bearing
15  3rd-4th Gear Synchronizer Sleeve
16  3rd-4th Gear Synchronizer Spring
17  3rd-4th Gear Synchronizer Key
18  3rd-4th Gear Synchronizer Hub
19  3rd Gear Synchronizer Ring
20   Input Shaft 3rd Gear
21  Input Shaft 3rd Gear Bearing
22  Input Shaft
23  Input Shaft Bearing(Right)

24 Input Shaft Oil Seal
25 Reverse Gear Shaft Bolt
26 Reverse Gear Shaft
27 Reverse Idle Gear
28 Counter Shaft Nut
29 Counter Shaft 5th Gear
30 Counter Shaft Bearing Shim
31 Counter Shaft Bearing(Left)
32 Counter Shaft 4th Gear
33 Counter Shaft 3rd-4th Gear Spacer
34 Counter Shaft 3rd Gear
35 Counter Shaft 2nd Gear
36 2nd Gear Synchronizer Ring
37 Counter Shaft 2nd Gear Bearing
38 1st-2nd Gear Synchronizer Circlip
39 1st-2nd Gear Synchronizer Sleeve
40 1st-2nd Gear Synchronizer Spring
41 1st-2nd Gear Synchronizer Key
42 1st-2nd Gear Synchronizer Hub
43 1st Gear Synchronizer Ring
44 Counter Shaft 1st Gear
45 Counter Shaft 1st Gear Bearing
46 Counter Shaft
47 Counter Shaft Bearing(Right)

5B – 6  FIVE-SPEED MANUAL TRANSAXLE

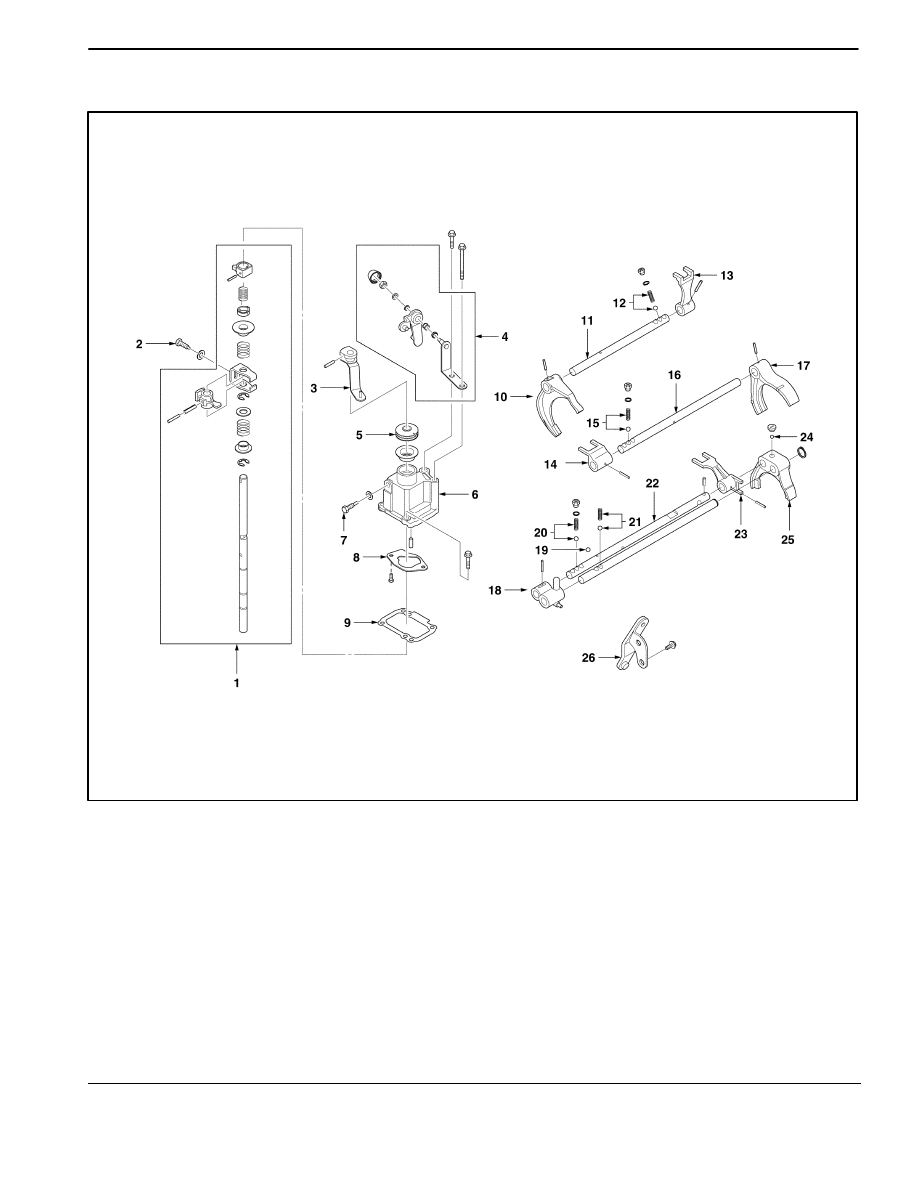

GEAR SHIFT FORK

D13B4021

1 Shift and Select Shaft
2 Shift Interlock Bolt
3 Shift Lever
4 Select Lever
5 Shift and Select Shaft Boot
6 Gearshift Control Case
7 Shift Guide Bolt
8 Gearshift Control Case Guide Plate
9 Gearshift Control Case Gasket

10 Low Speed Shift Fork

11 Low Speed Shift Shaft

12 Low Speed Shift Shaft Spring/Ball
13 Low Speed Shift York

14 High Speed Shift York
15 High Speed Shaft Spring/Ball
16 High Speed Shift Shaft
17 High Speed Shift Fork
18 Reverse Shift Arm
19 5th/Reverse Shift Ball
20 5th/Reverse Shift Shaft Spring/Ball
21 Reverse Shift Shaft Guide Spring/Ball
22 5th/Reverse Shift Shaft
23 5th/Reverse Shift York
24 5th/Shift Fork Guide Ball
25 5th/Shift Fork
26 Reverse Shift Lever
