4G – 4 PARKING BRAKE

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

D107D501

PARKING BRAKE LEVER

Removal Procedure

1. Remove the parking brake lever cover. Refer to Sec-

tion 9G, Interior Trim.

2. Remove the parking brake cable cover. Refer to Sec-

tion 9G, Interior Trim.

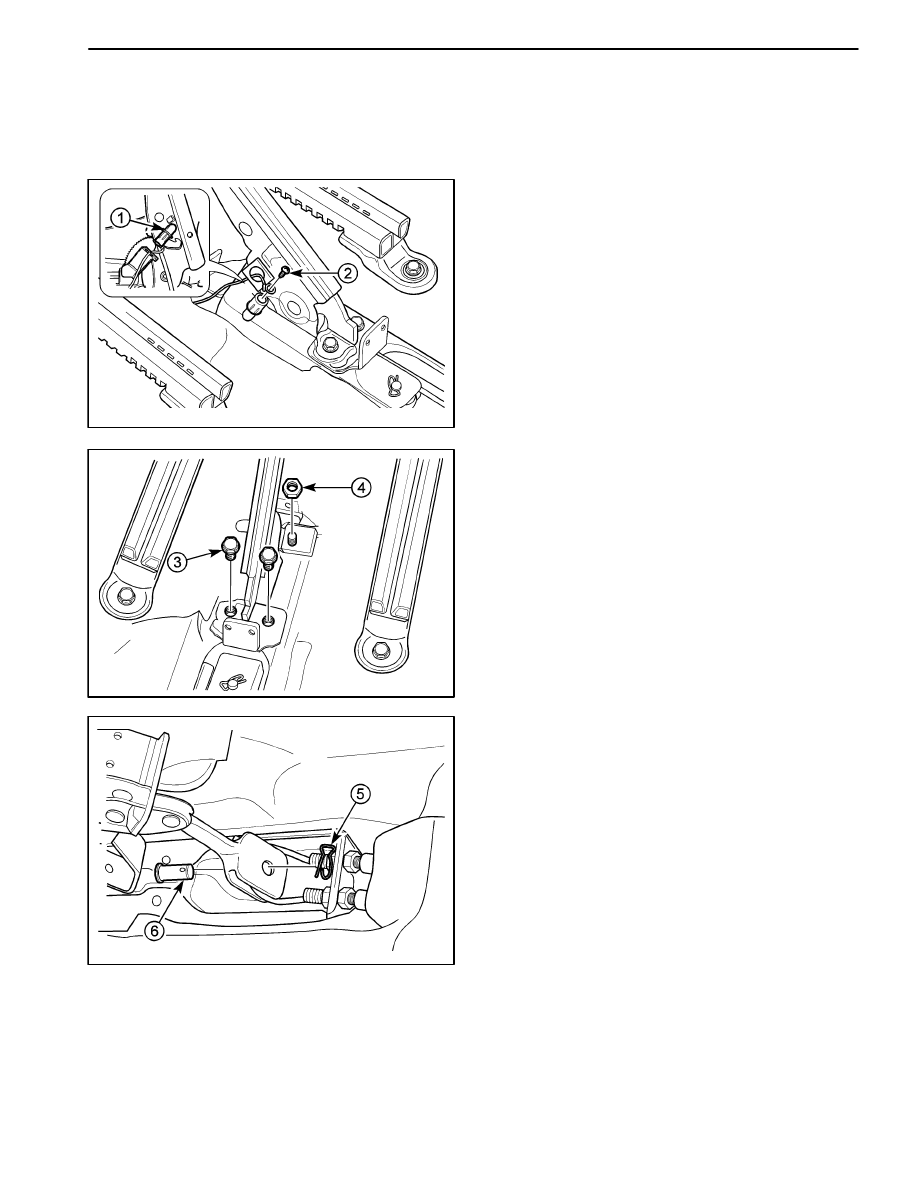

3. Remove the parking brake lever.

D

Disconnect the brake warning lamp switch (1).

D

Remove the brake warning switch lamp screw (2).

Important: The brake warning lamp switch screw should
be removed with the lever fixed.

D107D502

D

Remove the bolts (3).

D

Remove the nut (4).

D107D503

D

Remove the cotter pin (5).

D

Remove the pin (6).

PARKING BRAKE 4G – 5

D17D504A

Installation Procedure

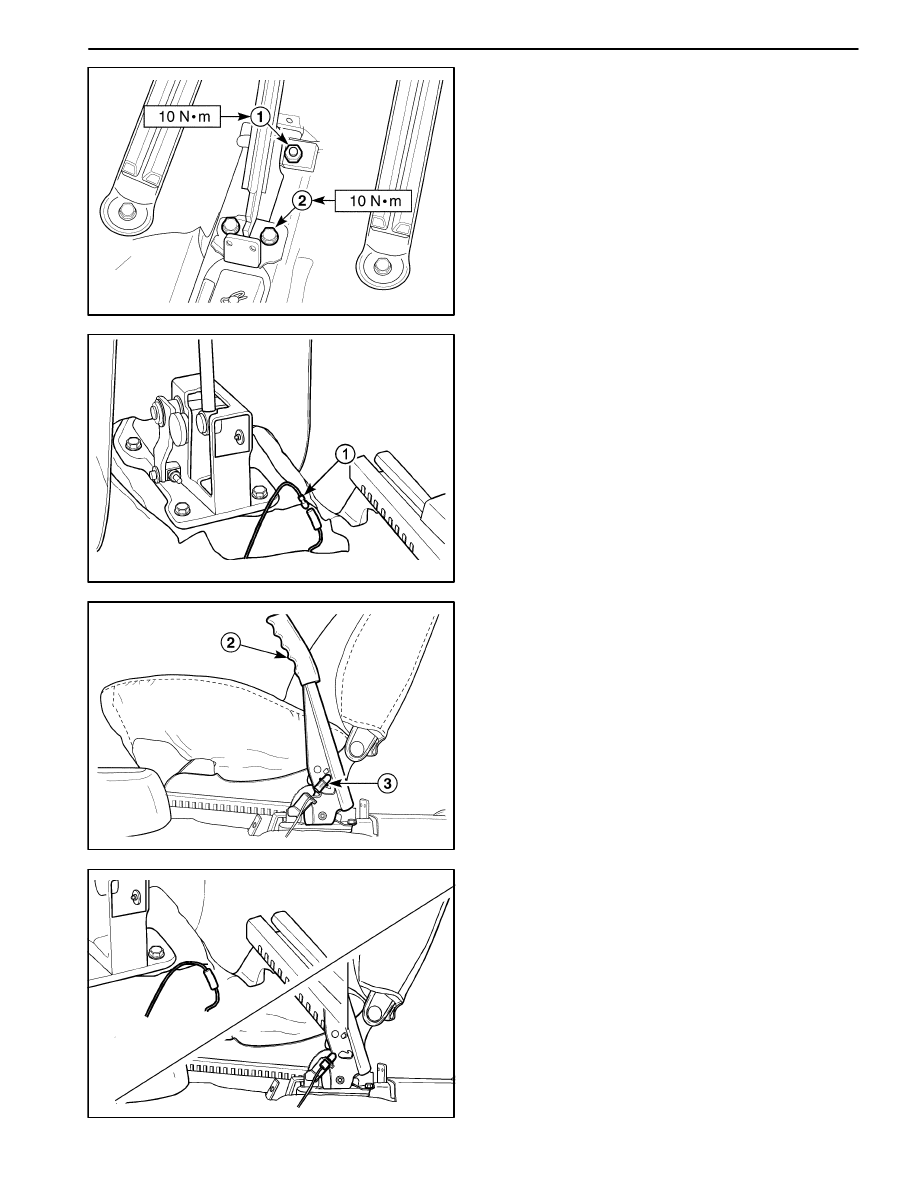

1. Install the parking brake lever with the cotter pin, pin,

bolts, and nut.

Tighten

D

Tighten the parking brake nut to 10 N

S

m (89 lb-in)

(1).

D

Tighten the parking brake bolts to 10 N

S

m (89 lb-in)

(2).

2. Connect the brake warning lamp switch.
3. Install the brake warning lamp switch screw.
4. Install the parking brake cable cover. Refer to Section

9G, Interior Trim.

5. Install the parking brake lever cover. Refer to Section

9G, Interior Trim.

D107D505

PARKING BRAKE WARNING LAMP
SWITCH

Removal Procedure

1. Remove the gear shift lever cover. Refer to Section

5B, Five–Speed Manual Transaxle.

2. Remove the parking brake warning lamp switch.

D

Disconnect the parking brake warning lamp switch
(1).

D107D506

D

Apply the parking brake (2).

D

Remove the parking brake warning lamp switch
carefully (3).

D107D507

Installation Procedure

1. Install the parking brake warning lamp switch.

2. Release the parking brake.

3. Connect the parking brake warning lamp switch.

4. Install the gear shift lever cover. Refer to Section 5B,

Five–Speed Manual Transaxle.

4G – 6 PARKING BRAKE

D107D508

PARKING BRAKE CABLE

Removal Procedure

1. Remove the parking brake lever. Refer to “Parking

Brake Lever” in this section.

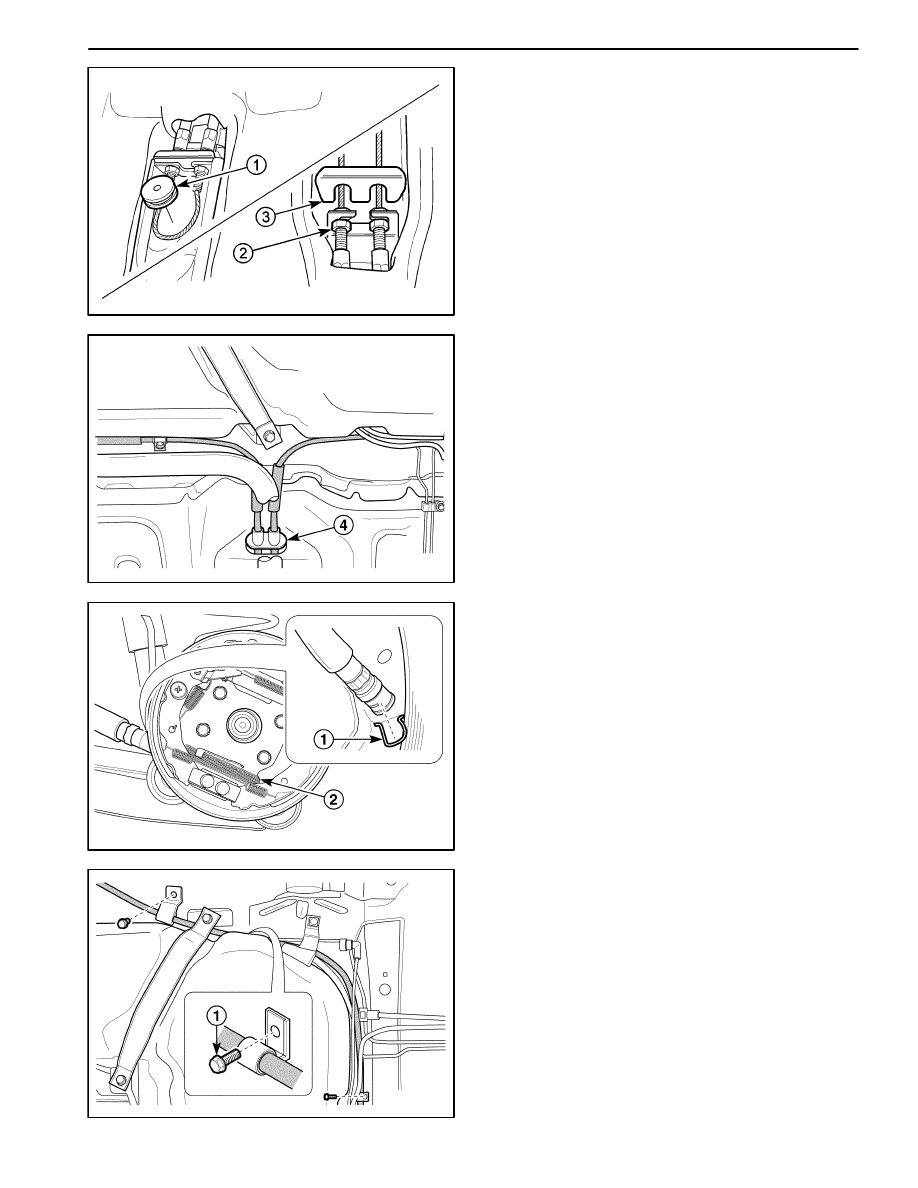

2. Remove the parking brake cable.

D

Remove the cable pulley (1).

D

Loosen the adjustment nuts (2).

D

Remove the strengthener (3).

D107D509

D

Remove the grommet (4).

D107D510

3. Remove the rear brake drum assembly. Refer to Sec-

tion 2D, Rear Suspension.

4. Disconnect the parking brake cable from the rear

brake drum assembly.

D

Remove the clip from the brake plate (1).

D

Disconnect the parking brake cable from the trailing
shoe (2). Refer to Section 4E, Rear Drum Brake.

D107D511

5. Remove the parking brake cable.

D

Remove the clamp bolts fastening the brake cable
(RH Rear Brake Side) (1).

D

Remove the fuel filter. Refer to Section 1F, Engine
Controls.

PARKING BRAKE 4G – 7

D107D512

D

Remove the clamp bolts fastening the brake cable
(LH Rear Brake Side) (2).

D17D513A

D17D514A

Installation Procedure

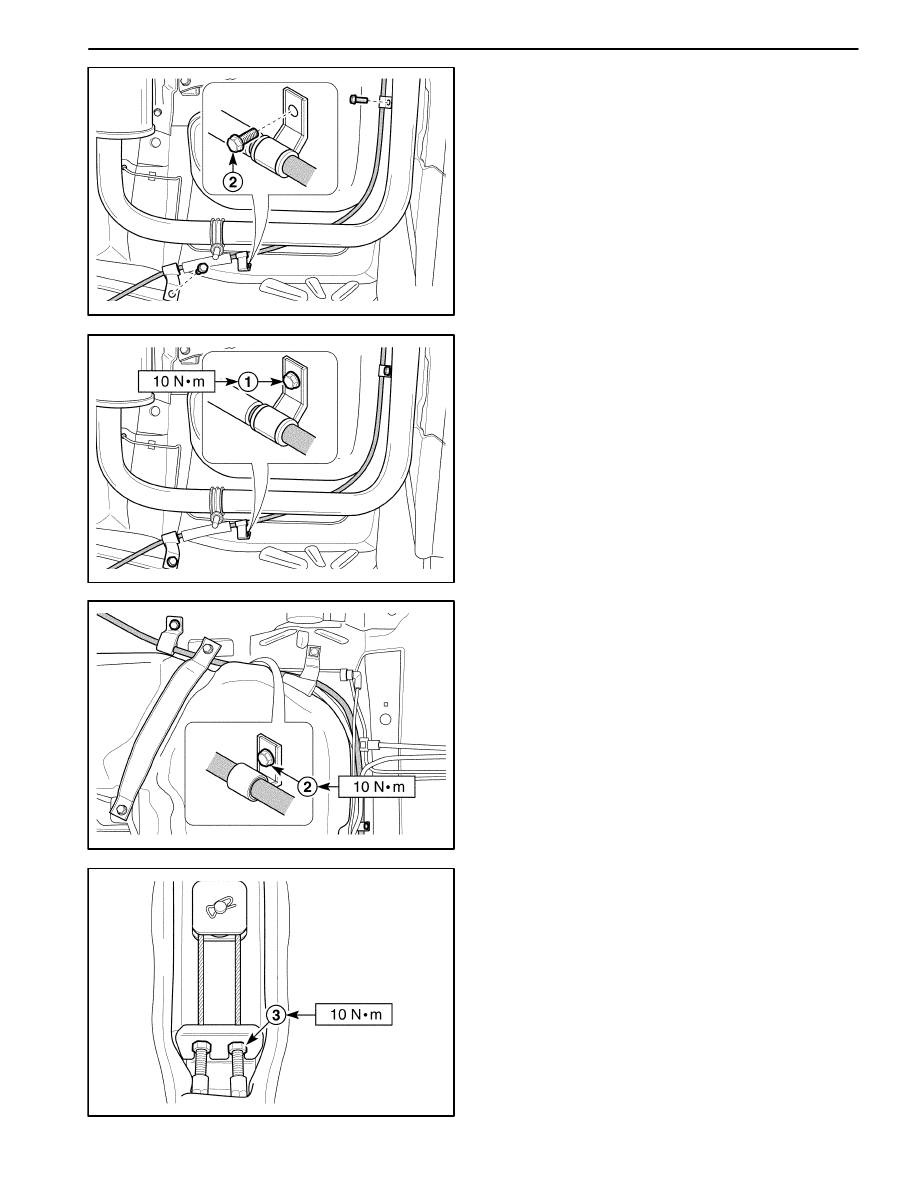

1. Install the fuel filter.

2. Install the parking brake cable with the clamp bolts.

Tighten

Tighten the parking brake cable clamp bolts to 10 N

S

m

(89 lb-in) (1, 2).

D17D515A

3. Connect the parking brake cable to the rear brake

drum assembly. Refer to Section 4E, Rear Drum
Brake.

4. Install the rear brake drum assembly. Refer to Sec-

tion 2D, Rear Suspension.

5. Install the grommet and the strengthener.

6. Install the cable pulley with the adjustment nuts.

Tighten

Tighten the adjustment nuts to 10 N

S

m (89 lb-in) (3).

7. Install the parking brake lever. Refer to “Parking Brake

Lever” in this section.
