Daewoo Matiz (2003 year). Manual - part 151

ANTILOCK BRAKE SYSTEM 4F – 53

DTC 0601 – Left Front Dump Shorted or Drive Open

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to OFF.
2. Remove the fuse Ef1 in the engine fuse block.
3. Check for an open in fuse Ef1.
Is the fuse open?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

Go to Step 3

ÑÑÑÑÑÑ

Go to Step 2

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the fuse Ef1.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Disconnect the EBCM harness connector.
2. Turn the ignition switch to ON.
3. Use a digital voltmeter (DVM) to measure the

voltage between ground and terminal 18 of the
EBCM connector.

Is the voltage within the specified value?

ÑÑÑÑÑ

10.5 v

13.5 v

ÑÑÑÑÑÑÑ

Go to Step 5

ÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 18 of
the EBCM connector and engine fuse block Ef1 out-
put.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the voltage between termi-
nal 18 and terminal 19 of the EBCM connector.
Is the voltage within the specified value?

ÑÑÑÑÑ

10.5 v

13.5 v

ÑÑÑÑÑÑÑ

Go to Step 7

ÑÑÑÑÑÑ

Go to Step 6

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the open between terminal 19 of the EBCM
connector and ground G101.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the EBCM.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

4F – 54 ANTILOCK BRAKE SYSTEM

D17E305B

DIAGNOSTIC TROUBLE CODE (DTC) 0602

LEFT FRONT DUMP OPEN OR DRIVER SHORTED

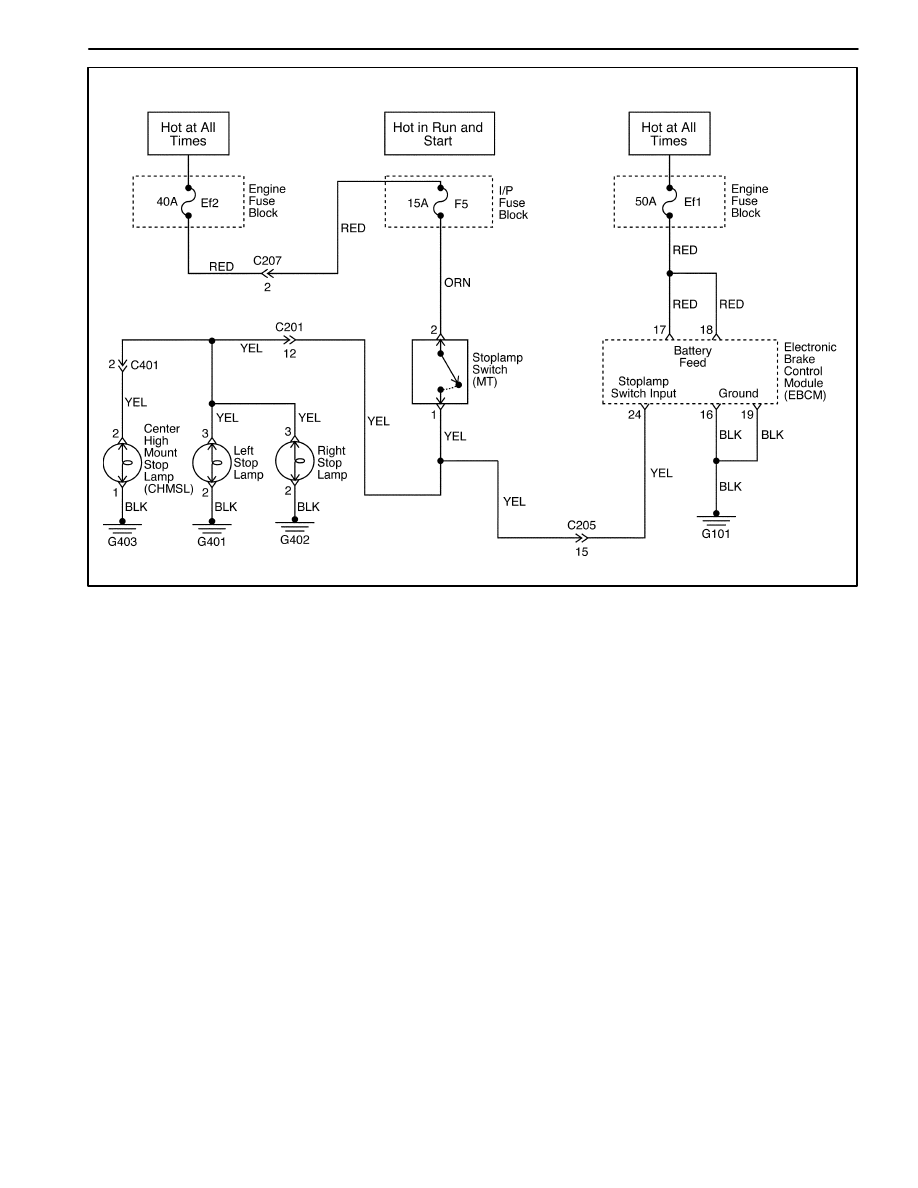

Circuit Description

EBCM proceeds the self–test about the dump valve or
the motor driver, if the EBCM senses the brake signal.

Diagnosis

If the EBCM proceeds the self–test about the dump
valve or the motor driver and senses the fault, the
EBCM may make the fault code.

Cause(s)

EBCM internal fault (Left front dump voltage open or
ground shorted).

Warning Lamp Operation

ABS warning lamp ON.

ABS warning lamp OFF if the ignition switch ON/OFF.

Fail Action

This is a critical operational fault. The ABS is disabled
and the ABS warning lamp is turned on. The proportion-
ing is operation.

ANTILOCK BRAKE SYSTEM 4F – 55

DTC 0602 – Left Front Dump Open or Driver Shorted

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to OFF.
2. Remove the fuse Ef1 in the engine fuse block.
3. Check for an open in fuse Ef1.
Is the fuse open?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

Go to Step 3

ÑÑÑÑÑÑ

Go to Step 2

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the fuse Ef1.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Disconnect the EBCM harness connector.
2. Turn the ignition switch to ON.
3. Use a digital voltmeter (DVM) to measure the

voltage between ground and terminal 18 of the
EBCM connector.

Is the voltage within the specified value?

ÑÑÑÑÑ

10.5 v

13.5 v

ÑÑÑÑÑÑÑ

Go to Step 5

ÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 18 of
the EBCM connector and engine fuse block Ef1 out-
put.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the voltage between termi-
nal 18 and terminal 19 of the EBCM connector.
Is the voltage within the specified value?

ÑÑÑÑÑ

10.5 v

13.5 v

ÑÑÑÑÑÑÑ

Go to Step 7

ÑÑÑÑÑÑ

Go to Step 6

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the open between terminal 19 of the EBCM
connector and ground G101.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the EBCM.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

4F – 56 ANTILOCK BRAKE SYSTEM

D17E305B

DIAGNOSTIC TROUBLE CODE (DTC) 0651

LEFT FRONT ISOLATION SHORTED OR DRIVER OPEN

Circuit Description

EBCM proceeds the self–test about the dump valve or
the motor driver, if the EBCM senses the brake signal.

Diagnosis

If the EBCM proceeds the self–test about the dump
valve or the motor driver and senses the fault, the
EBCM may make the fault code.

Cause(s)

EBCM internal fault (Left front isolation voltage
shorted or ground open).

Warning Lamp Operation

ABS warning lamp ON.

ABS warning lamp OFF if the ignition switch ON/OFF.

Fail Action

This is a critical operational fault. The ABS is disabled
and the ABS warning lamp is turned on. The proportion-
ing is operation.
