9A-14  BODY WIRING SYSTEM

AIR CONDITIONER

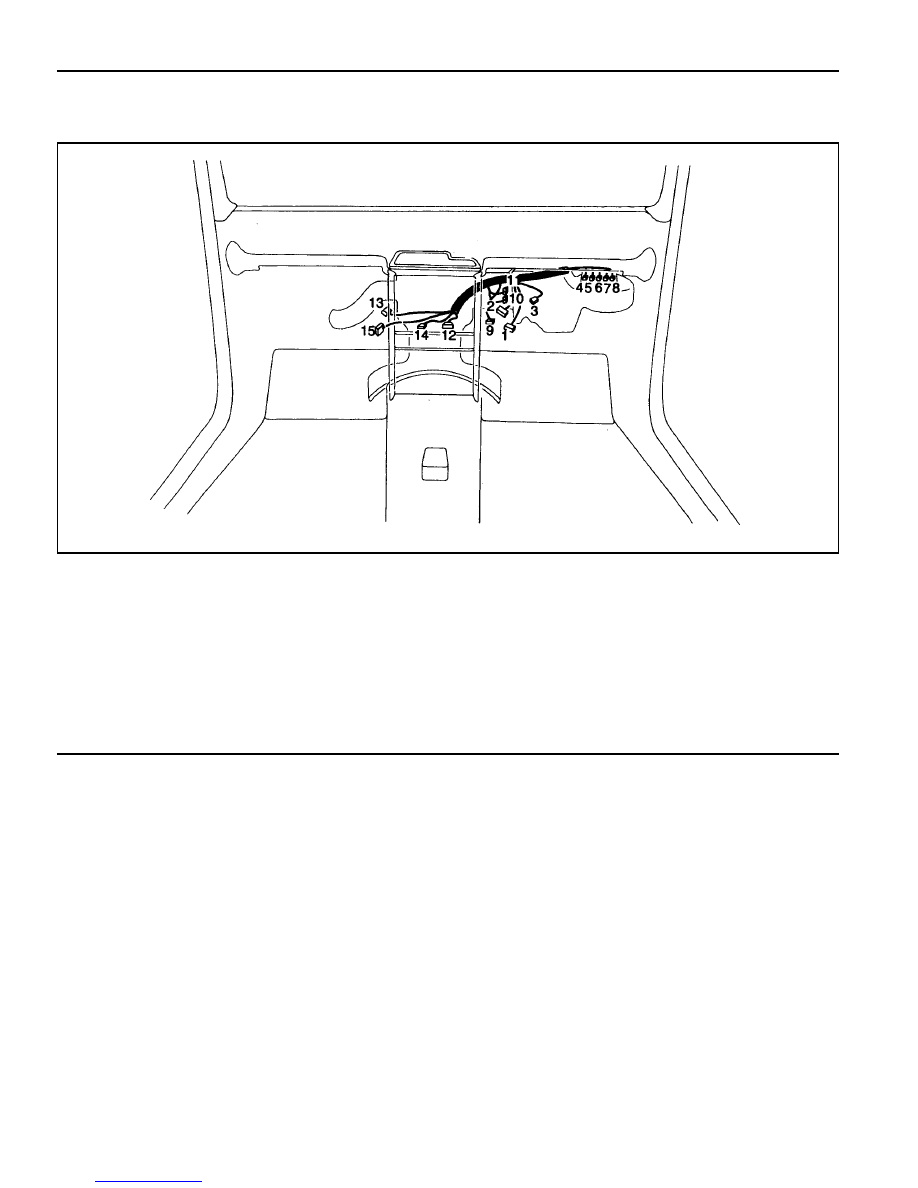

Semi A/C

1 Main Wiring Connector
2 Floor Fan Switch
3 A/C Diode
4 HI Relay
5 MH Relay
6 ML Relay
7 LO Relay
8 A/C Relay

9 Mix Actuator

10 Auto Amp

11 Auto Amp

12 Floor Switch
13 Mode Switch
14 PTC
15 In-Car Sensor Connector

BODY WIRING SYSTEM  9A-15

1 Mode Actuator
2 In-Car Sensor
3 Blower Relay

4 High Speed Relay
5 Intake Actuator
6 Temperature Actuator

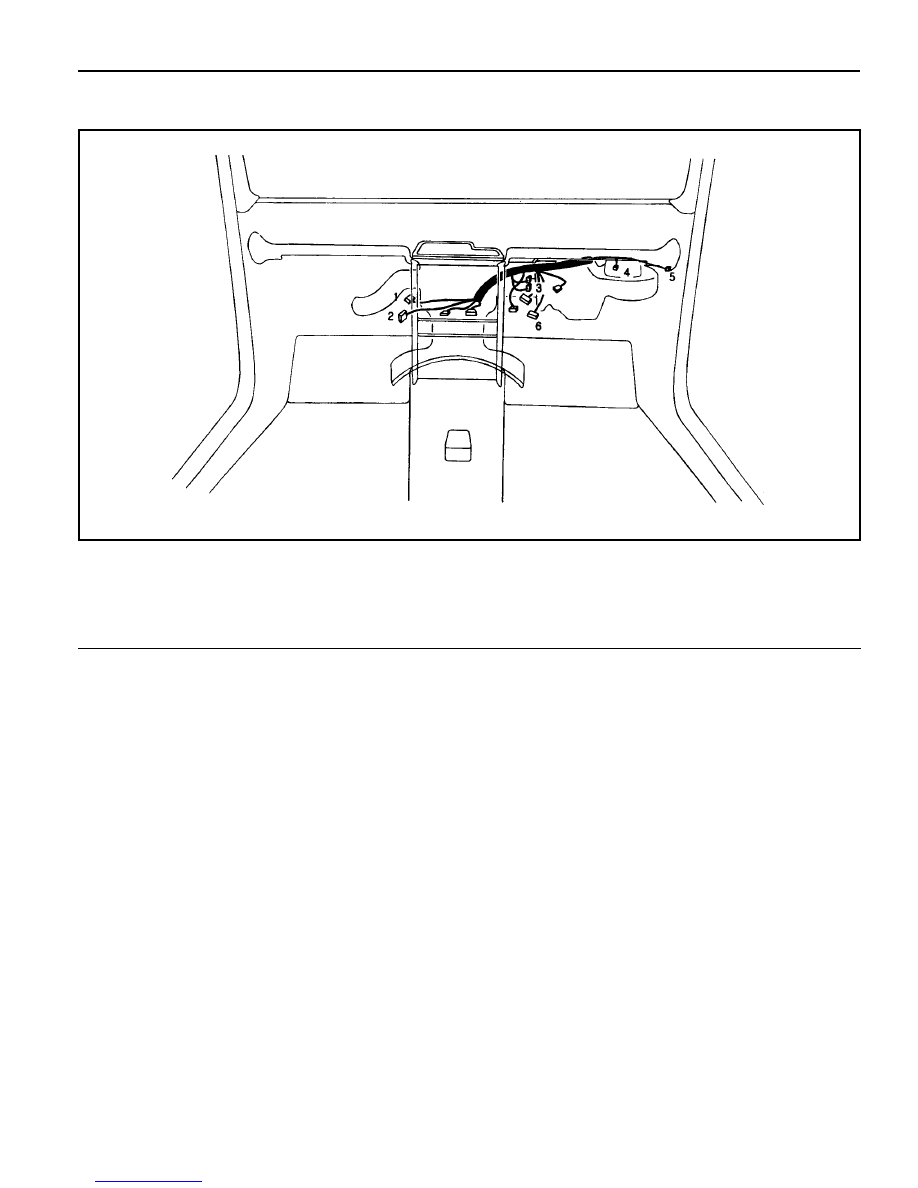

Full A/C

9A-16  BODY WIRING SYSTEM

1 Main Wiring Connector
2 Sun Roof Wiring Connector
3 Front Room Lamp

4 Sun Roof
5 Center Room Lamp

ROOF

BODY WIRING SYSTEM  9A-17

1 Main Wiring
2 Tweeter Speaker
3 Outside Mirror Motor
4 Power Window Motor(Main)
5 LH Front Speaker

6 Power Window Switch(Main)
7 Door Cylinder Switch
8 Door Lamp
9 Door Lock Actuator

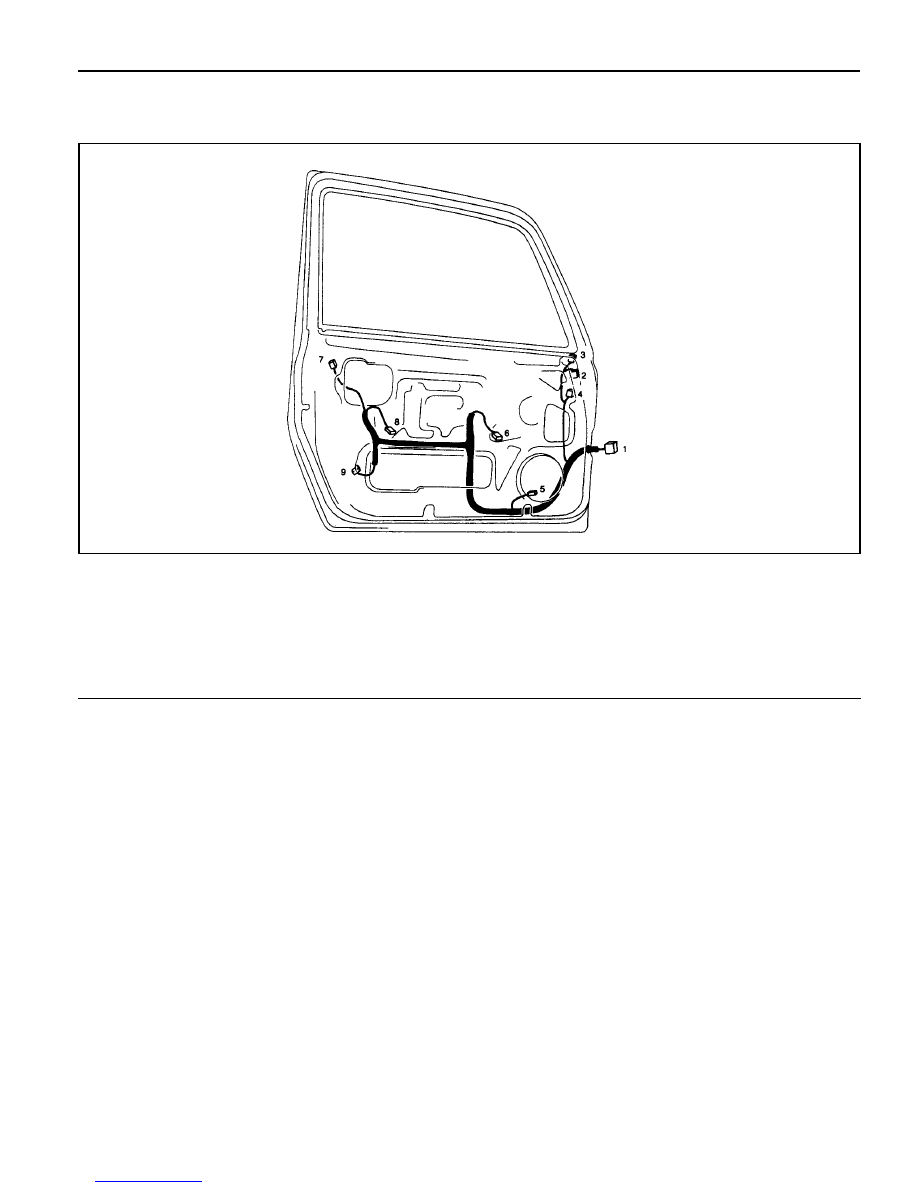

DOOR

Dirver's Door
