9A-10  BODY WIRING SYSTEM

LOCATION OF CONNECTORS BY WIRING HARNESS

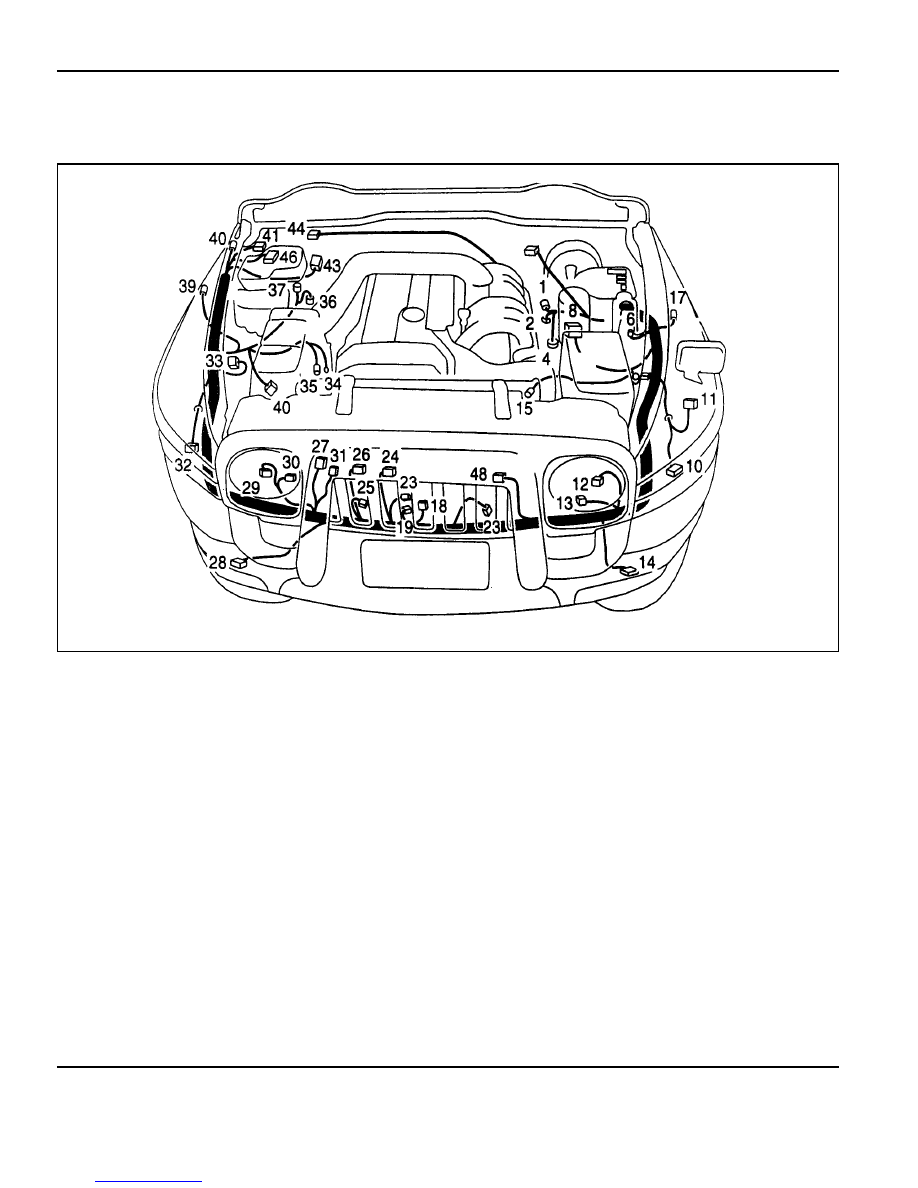

ENGINE ROOM

1 Brake Fluid Leveling Sensor
2 Constar Plug Solenoid Valve
4 Locking Hub
6 Octane Selector (Gasoline, E20 Only)
8 Fusiblink Box
9 Ground

10 Turn Signal Lamp (LH) & Tail Lamp

11 Black Out Lamp (DOM)

12 LH Head Lamp
13 LH Head Lamp Leveling Device
14 LH Front Fog Lamp
15 Compressor
17 Front Wheel Speed Sensor
18 LH Condenser Fan Motor
19 Resistor
22 Ambient Sensor
23 LH Horn
24 Cooling Fan Motor Relay
25 RH Horn

26 Thermos Switch 2 (E20 Only)
27 RH Condenser Fan Motor
28 RH Front Fog Lamp
29 RH Head Lamp
30 RH Head Lamp Leveling Deivce
31 Hood Switch
32 Turn Signal Lamp (RH) & Tail Lamp
33 Ground 2
34 Alternator
35 Alternator Extension Wiring Connector
36 Receiver Drier
37 Washer Motor
39 Front Wheel Speed Sensor
40 Side Repeater
41 Main Wiring Connector2 (ABS 5.3)
43 Main Wiring Connector1
44 Main Wiring Connector2 (ABS 5.3)
46 ABS 5 ECU (ABS 5.3)
47 Engine Room Relay Box
48 Thermo Sensor 2 (E20, E23 only)

BODY WIRING SYSTEM  9A-11

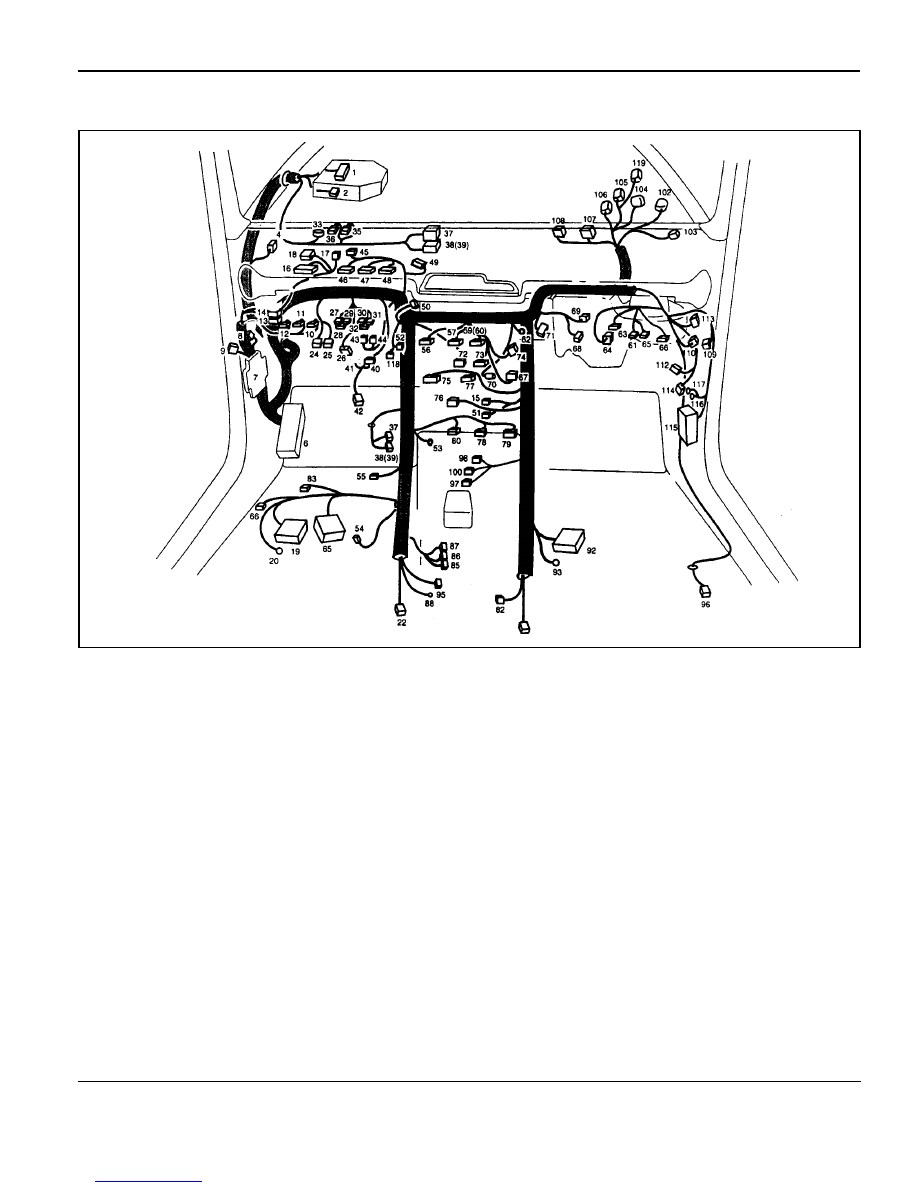

MAIN

1 Engine Wiring Connector (LH)
2 Engine Wiring Connector (LH)
4 LH Side Repeater
6 Relay Box
7 Fuse Box
8 Joint Connector
9 Door Wiring Connector (Driver's)

10 Head Lamp Leveling Device Switch

11 Outside Mirror Switch

12 Rear Washer & Wiper Switch
13 Ground
14 Power Window Control Unit
15 Door Lock Relay
16 Cluster1
17 Sun Roof
18 Roof Wiring connector
19 T.C.C.U
20 Ground
22 Floor Wiring Connector
23 Floor Wiring Connector
24 Clutch Switch1 (M/T)

25 Clutch Switch2 (M/T)
26 Stop Lamp Switch
27 Multifunction Switch1
28 Multifunction Switch2
29 Ignition Switch
30 Auto Cruise Switch
31 Multifunction Switch3
32 Immobilizer Antenna Connector (4pin)
33 Diagnosis Connector
37 Transmission Wiring Connector
38 Transmission Wiring Connector (A/T)
39 Transmission Wiring Connector (M/T)
41 REKES Unit
42 Kick Down Switch (A/T)
43 Black Out Switch
44 Black Out Switch
45 Sun Sensor
46 Cluster
47 Cluster
48 Cluster

9A-12  BODY WIRING SYSTEM

49 Joint Connector
50 Ground
51 Joint Connector
52 Mode Actuator
53 Audio Ground
54 Seat Belt Switch
55 Joint Connector
56 Hazard Switch
57 Defogger Switch
59 Rear Fog Lamp Relay
60 Unlock Switch
61 -
62 Ground
63 Joint Connector
64 Resistor
65 Seat Warmmer Connector
66 T.O.D (E32 Only)
67 Blower Relay
68 Water Sensor
69 Thermo Amp
70 Antenna Feeder Cable
71 A/C Wiring Connector
72 A/C Switch
73 Control Amp
74 Blower Fan Switch
75 Audio
76 Cigarette Lighter
77 Audio
78 Buzzer
79 Chime
80 Accelerator Sensor (ABD 5.3 only)

82 ECS Unit Connector
83 T.C.U (A/T BTRA Only)
85 STICS
86 STICS
87 STICS
88 Ground
92 ABD 5 ECU
93 ABD 5 ECU Ground
95 Parking Brake Switch
96 O

2

 Sensor

97 Shift Lock Solenoid
98 P/W Mode Switch

100 "P" Position Switch
102 RH Engine Wiring Connector
103 Combination Connector
104 O

2

 Sensor (E20, E23)

105 Engine Wiring Connector (ABD 5.3)
106 ABD 5 Modulator (ABD 5.3)
107 Front Wiper Motor
108 Siren
109 Engine Main Wiring connector
110 Intake Actuator
112 Antenna
113 Door Wiring Connector (Passenger's)
114 Blower
115 MSE ECU Connector
116 Ground
117 Ground
118 4WD Switch
119 EGR Solenoid Connector (Diesel Only)

BODY WIRING SYSTEM  9A-13

3 Door Switch
4 Wheel Speed Sensor (Rear Right)
5 Wheel Speed Sensor (Rear Left)
6 Main Wiring Connector
7 Main Wiring Connector
8 RH Rear Speaker
9 Tail Gate Switch

10 RH Rear Combination Lamp

11 LH Rear Speaker

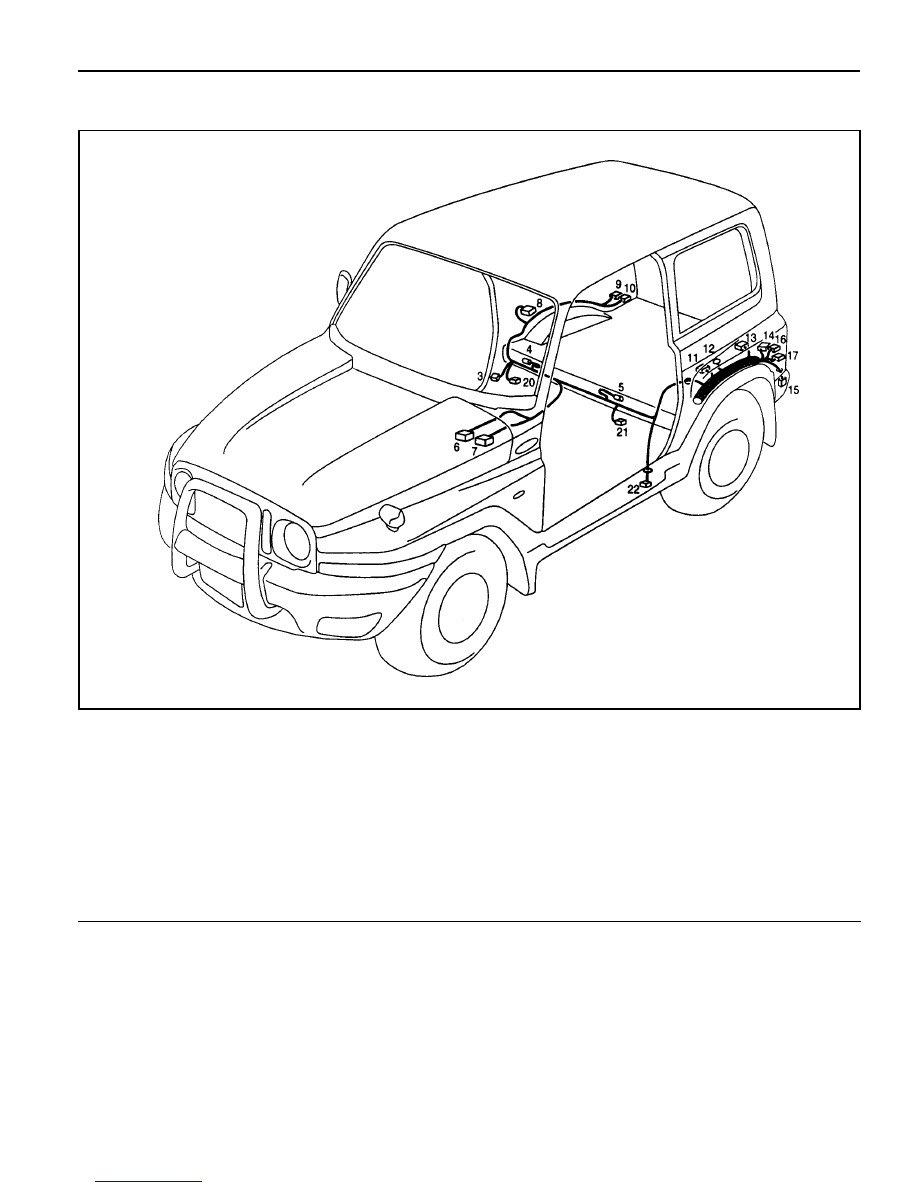

FLOOR AND REAR

12 Ground
13 Luggage Room Lamp
14 LH Rear Combination Lamp
15 Rear Bumper Wiring Connector
16 Tail Gate Wiring Connector
17 Tail Gate Wiring Connector
20 RH Rear Damper
21 LH Rear Damper
22 Door Switch
