LF45/55 series

Inspection and adjustment

FRONT AXLE, 152N

2-13

Adjusting steering rod
1.

Place the wheel to which the steering rod is
connected in the “straight ahead” position.
This can be done using wheel alignment
equipment or by measuring the distance
from the wheel rim to the spring leaves at
the front and rear of the wheel. The
distances at the front and rear of the wheel
must be equal.

2.

Unscrew the clamping bracket bolt on the
steering rod.

3.

Take the steering rod off the steering-rod
arm, see “Removal and installation”.

4.

Set the mark on the input shaft of the
steering box and the mark on the steering
box to the specified angle on the basis of
the graph, see “Technical data”.

5.

Set the steering rod to the correct length by
screwing the ball end in or out.
Make sure that the threaded end of the ball
joint is not pushed too far out of the steering

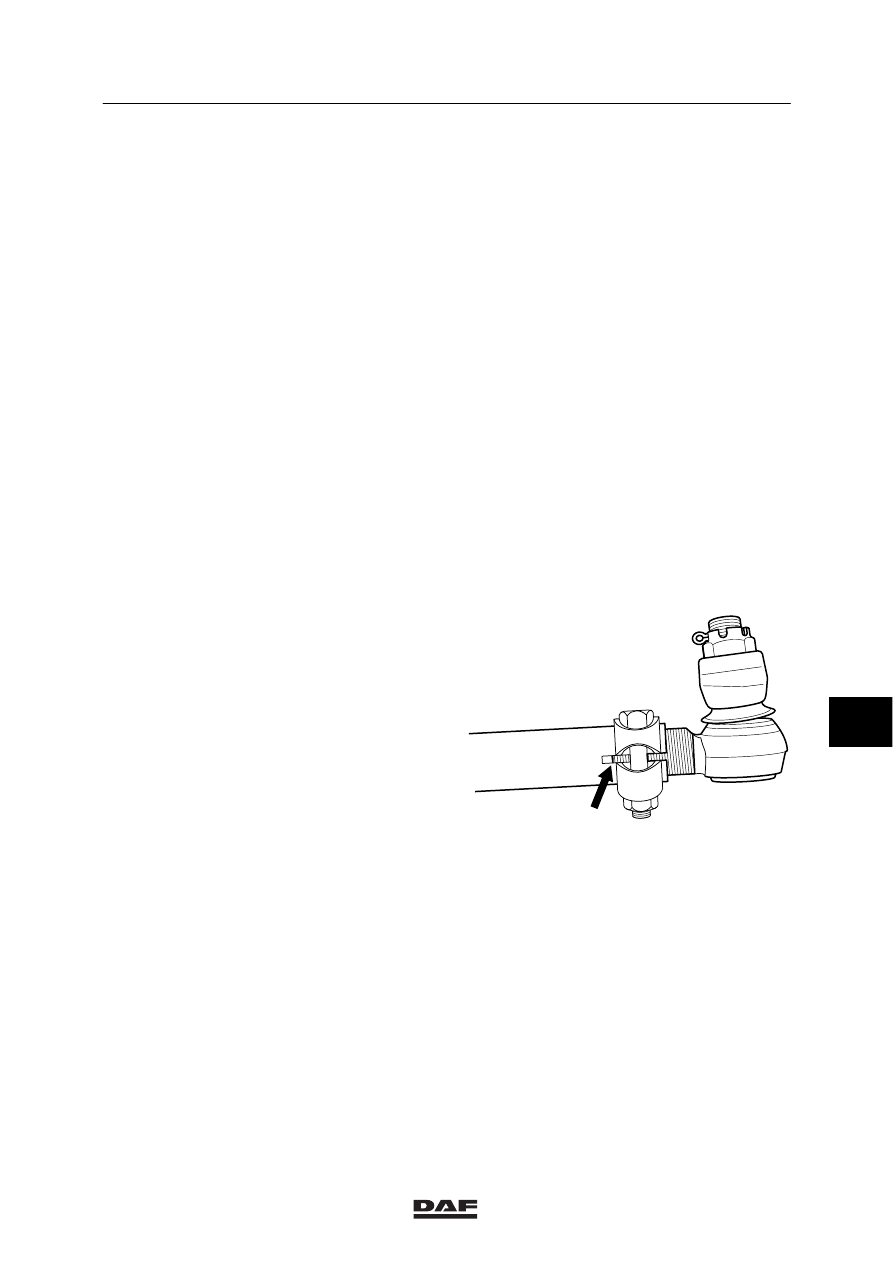

rod. The clamping bracket must always fully
engage the screw thread of the ball joint
(see drawing).

Note:
If the length is not correct because the ball
end can only be rotated one full turn, get as
close as possible to the correct length. It is
preferable that the steering rod is too long
rather than too short.

6.

Fit the steering rod in the steering-rod arm,
see “Removal and installation”.

7.

Clean and check the clamping bracket bolt.
If the bolt is corroded or damaged, it must
be replaced.
Replace the self-locking nut.

8.

Tighten the clamping bracket attachment
bolt to the specified tightening torque, see
“Technical data”.

S7 00 026

8

ᓻ 200322

7

FRONT AXLE, 152N

Inspection and adjustment

LF45/55 series

2-14

9.

Check the position of the steering wheel
when it is in the “straight ahead” position. If
necessary, correct the position by changing
the position of the steering wheel on the
steering shaft.

Note:
If the vehicle is unloaded or fully loaded, the
steering wheel may not be in the central
position.

If the vehicle is fitted with an
airbag, observe the warnings and
safety instructions applicable to
working on an airbag system.

2.7 CHECKING STEERING BALL JOINT

Checking dust cover
1.

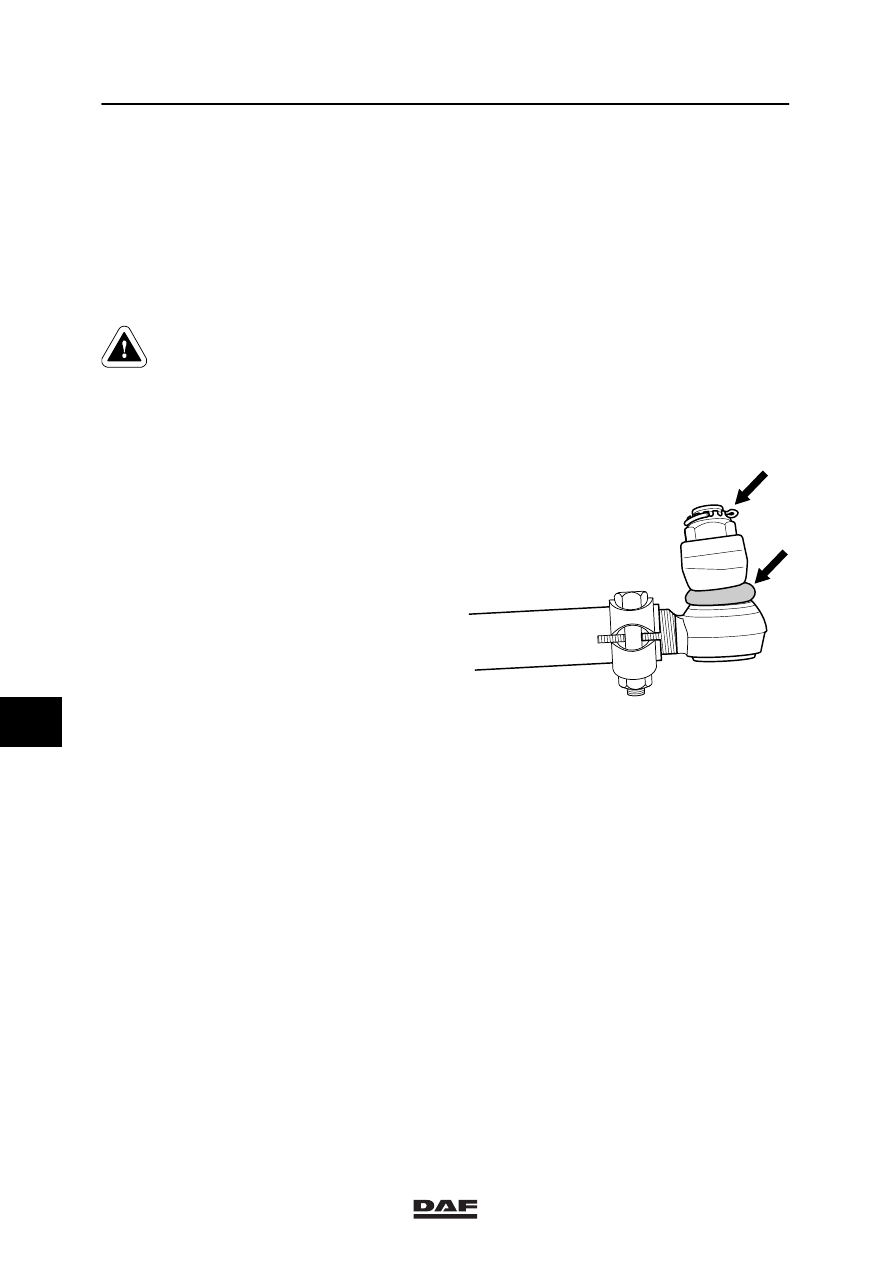

Check that the dust cover of the steering
ball joint and its seal is not damaged.
Replace the steering ball joint if they are
damaged.

2.

If applicable, check for the presence of the
split pin and its condition.

S7 00 540

8

ᓻ 200322

7

LF45/55 series

Inspection and adjustment

FRONT AXLE, 152N

2-15

Checking axial steering ball joint play
1.

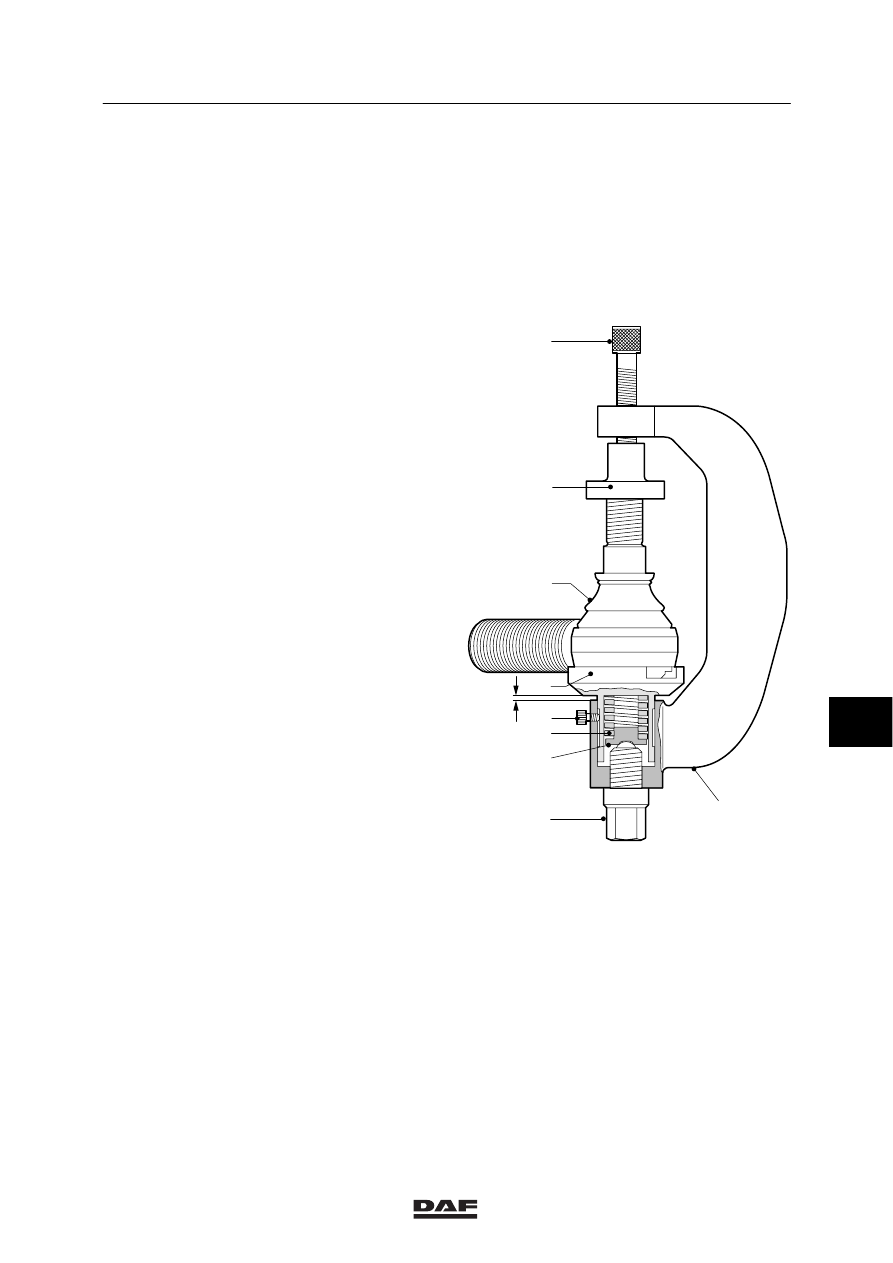

Check the axial steering ball joint play using
the special tool (DAF no. 1329426).

2.

Jack up the axle until the wheels are clear
of the floor. Put the axle on stands.

3.

Make sure that the castle nut split pin (if
present) does not come into contact with
the ends of the threaded end.

4.

Screw the thrust washer (8) onto the
threaded spindle.

5.

Fit the spring retainer (3), spring (4) and
thrust sleeve (6) in the bracket (1).
Fit the locking screw (5). It should be
possible to move the thrust sleeve (6)
freely.

Note:
Fit the correct thrust sleeve (6).
The thrust sleeve (6) must abut the rim of
the steering ball joint (7).

6.

Unscrew the thrust bolt (2) until the flange
of the thrust sleeve (6) abuts the bracket
(A=0 mm).

7.

Fit the special tool to the steering ball joint
(7) and turn the threaded spindle (9) by
hand until the special tool is tight around the
steering ball joint (7).

8.

Tighten the thrust bolt (2) until its head
abuts the bracket (1).

9.

Measure the play “A” between the thrust
sleeve and the bracket using a feeler
gauge.
Compare the measurement taken with the
maximum permissible steering ball joint
play, see “Technical data”.
If necessary, replace the steering ball joint.

9

8

7

6

5

4

3

2

A

1

S700426

8

ᓻ 200322

7

FRONT AXLE, 152N

Inspection and adjustment

LF45/55 series

2-16

2.8 CHECKING FRONT AXLE HOUSING

General
If the vehicle has been involved in a collision or
if abnormal deviations are measured when the
wheel alignment is checked, it is advisable to
check the axle housing.

A number of the measurements below can also
be carried out using alignment equipment.
Consult the alignment equipment manual for this
purpose.

The special tools required cannot be obtained
from DAF and must be manufactured by
yourself.

S7 00 119

Checking front axle housing
1.

Take the front axle off the vehicle and
remove both swivel axles, see “Removal
and installation”.

2.

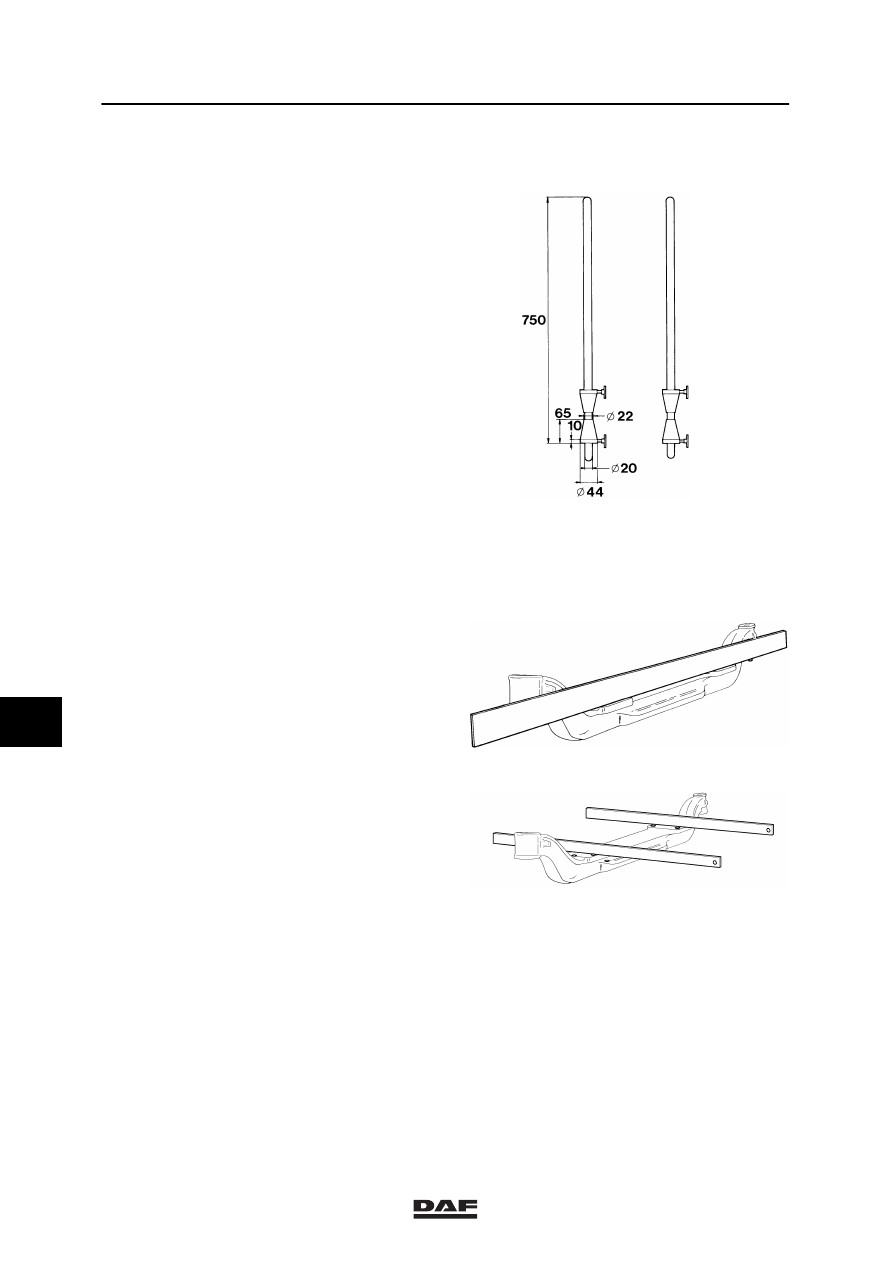

Place a straight edge across the spring
seats of the front axle housing and check
whether they are aligned.

S7 00 151

3.

Place a straight edge across both spring
seats and check whether they are parallel
with each other.

S7 00 152

8

ᓻ 200322
