2. REMOVAL AND INSTALLATION
2.1 REMOVING AND INSTALLING STEERING PUMP, VERSION WITHOUT
STEERED TRAILING SWIVEL AXLE
Removing steering pump, version without
steered trailing swivel axle
Note:
When replacing a worn steering pump, it is
advisable to fully drain the steering oil and
replace the steering oil reservoir and built-in
filter.
In extreme cases, the steering pump may have
been worn to such an extent that metal particles
from the pump have entered the steering box.
Check the steering box for internal wear using
the test equipment case.
1.
Clean the pipe connections.
2.
Place a receptacle under the steering
pump.
3.
Take the pipes off the steering pump and
plug the pipe and pump openings. The filter
is fitted in the return pipe, which means that
if any dirt enters, it will immediately get into
the system.
4.
Remove the electronic unit in the case of a
4 cylinder engine.
5.

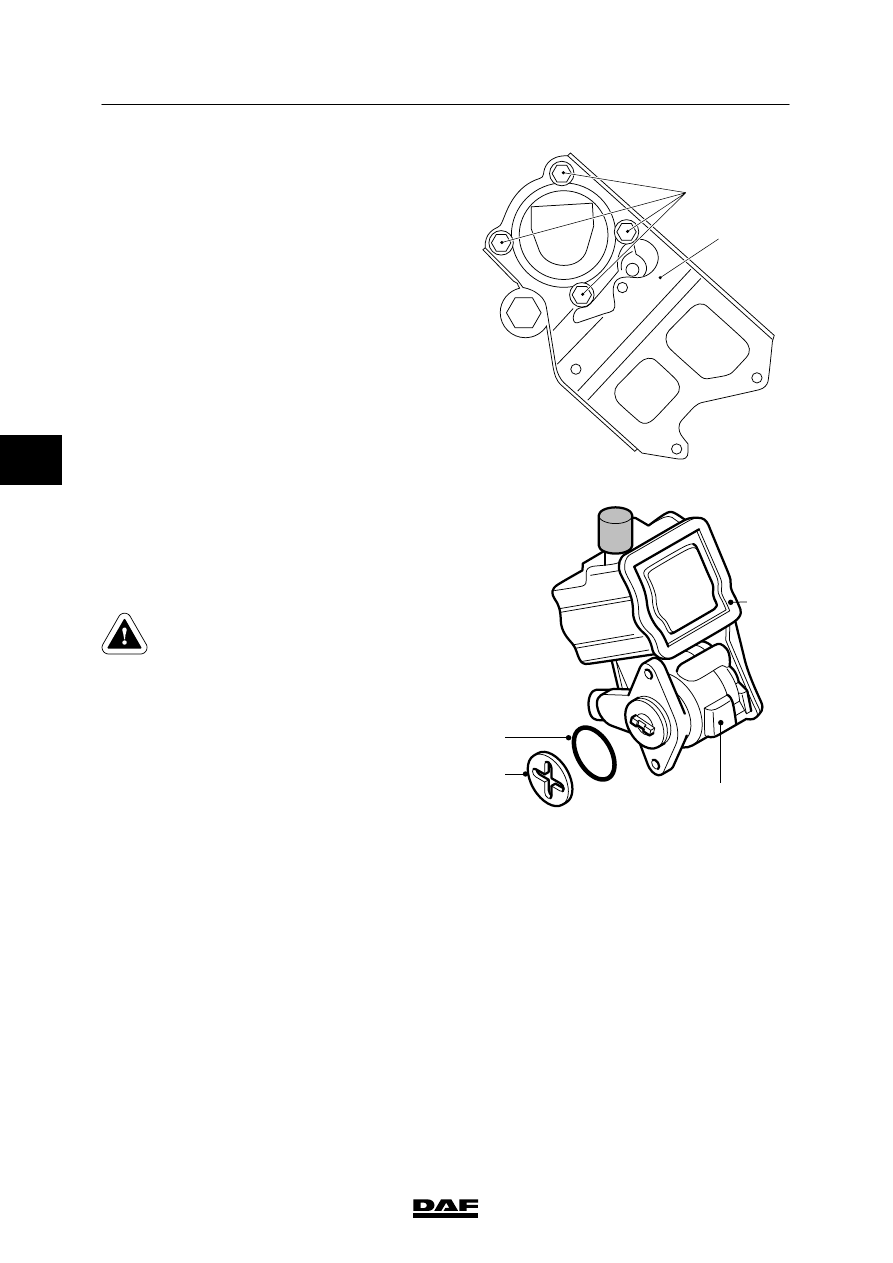

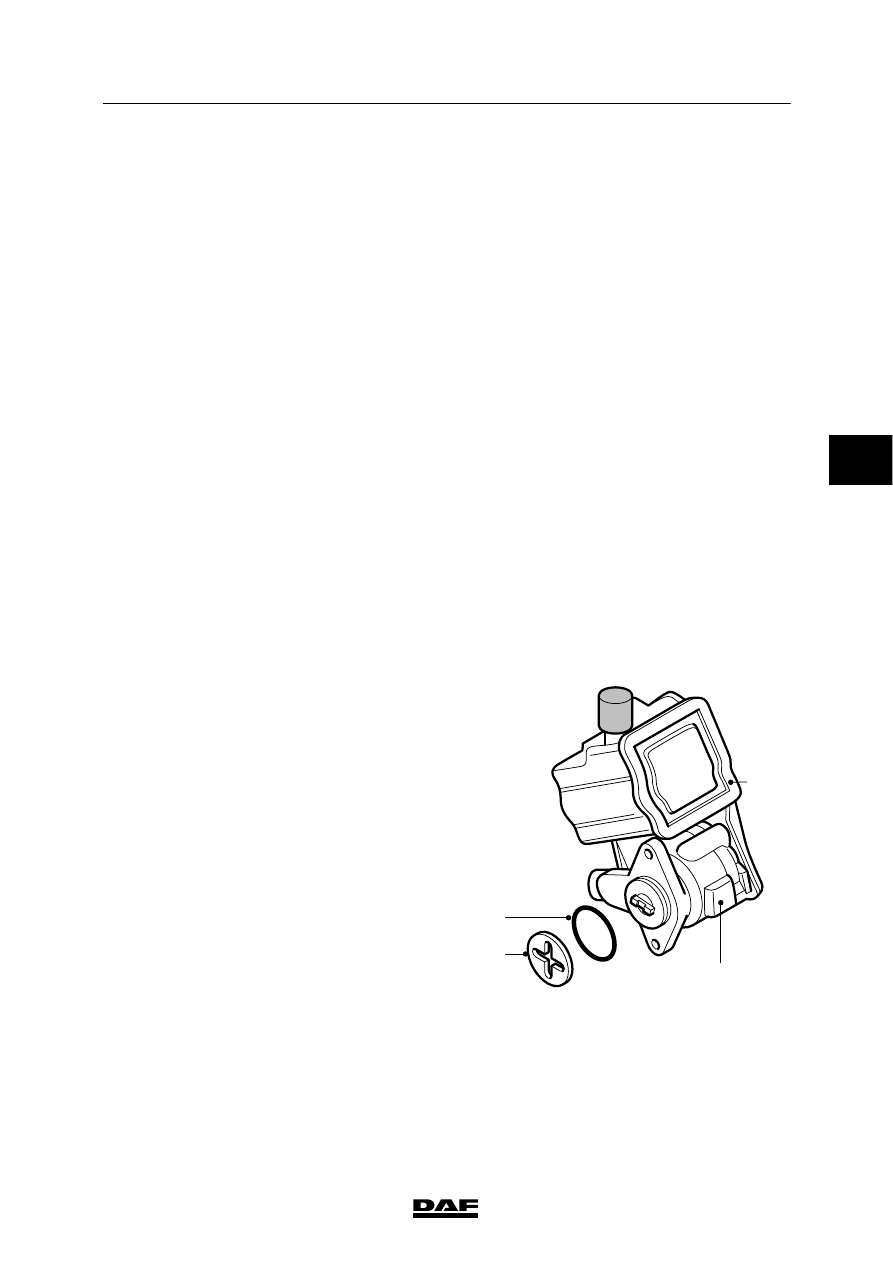

Remove the attachment bolts and take the
steering pump (3) and the carrier (1) off the
compressor.
6.

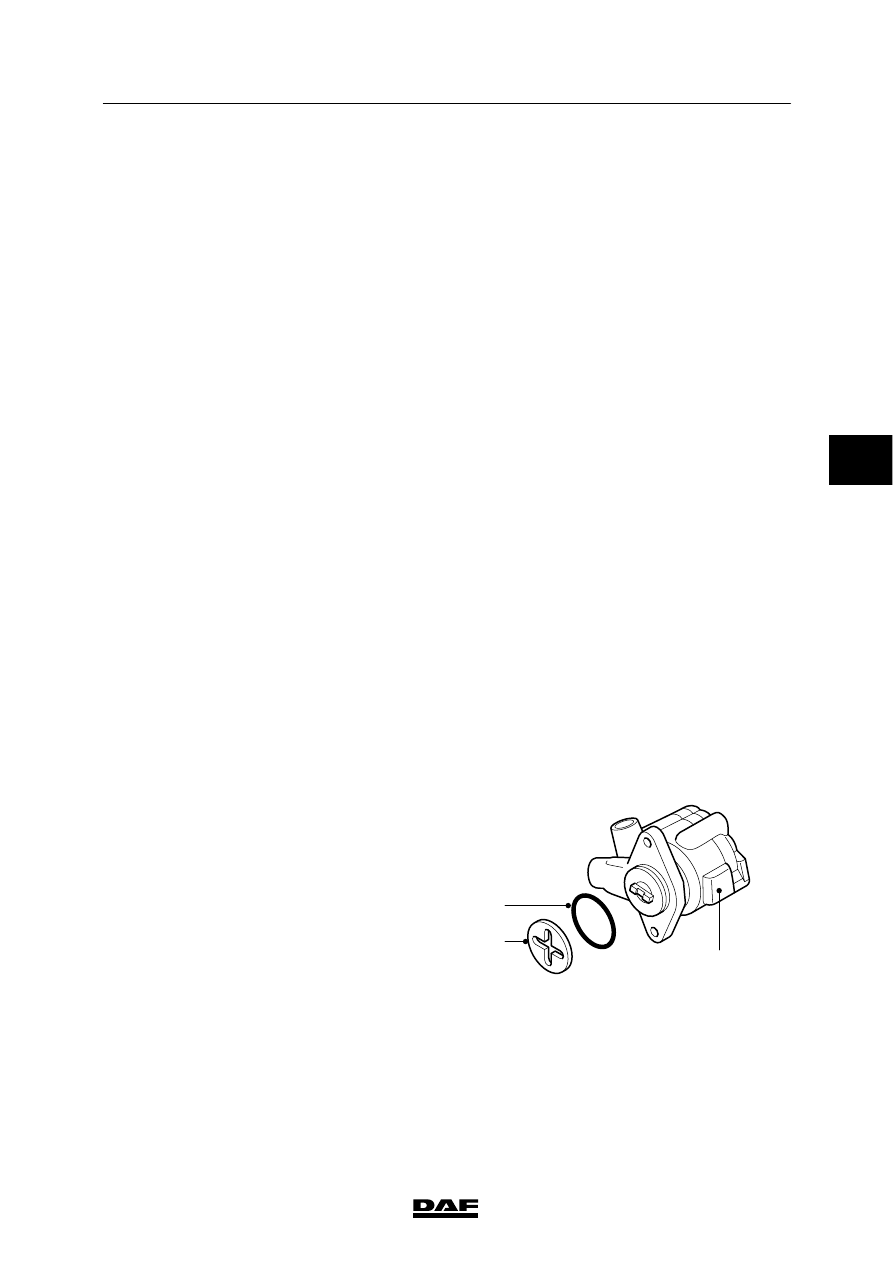

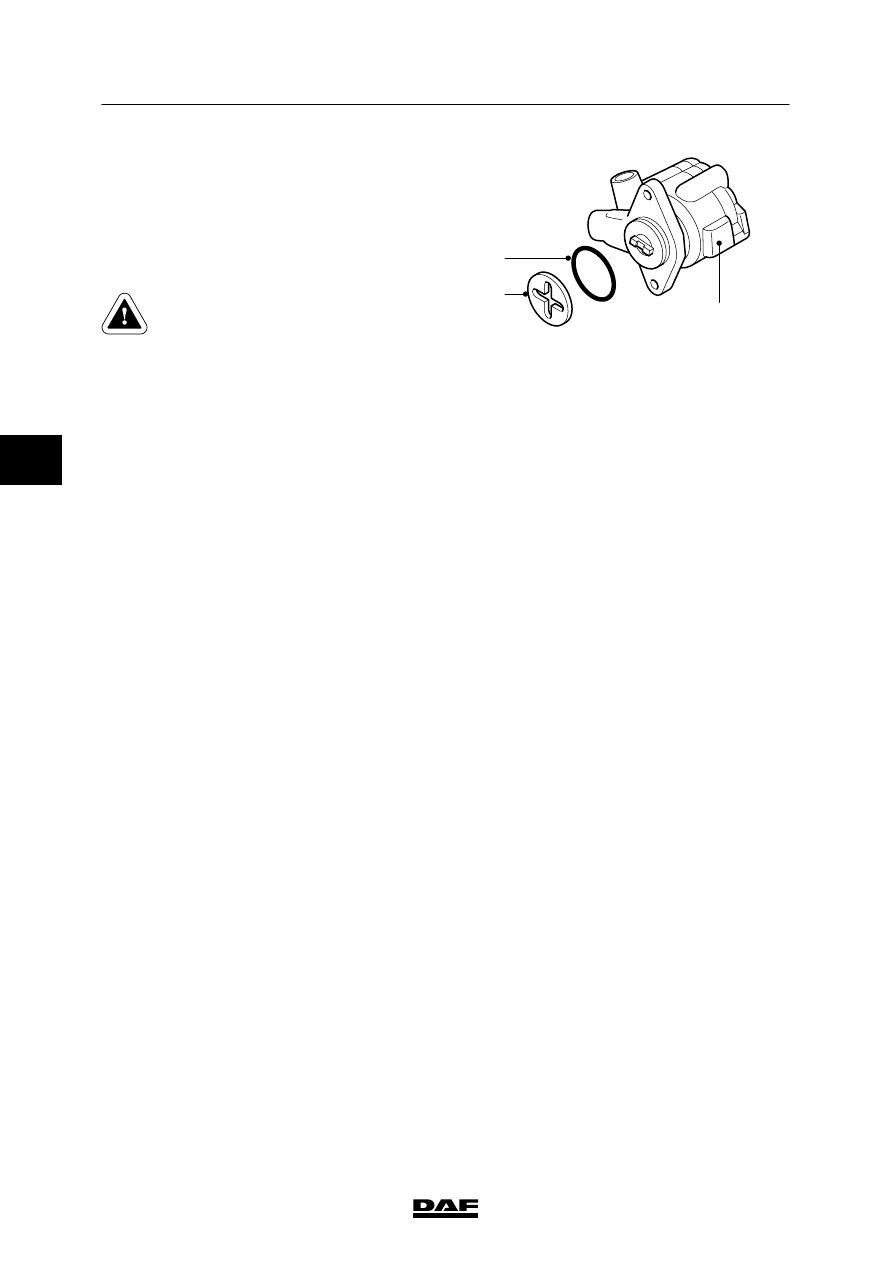

Take the reservoir (4) off the pump (3).
