DAF LF45, LF55 Series. Manual - part 354

5

LF45/55 series

Connection of accessories

CONNECTION OF ACCESSORIES

1-11

Pin pattern for wiring harness

connector 713:

GL

713

B1

B12

A13

A1

Pin no.

Wire no.

Description

A1

3503

Sensor, fuel level

A2

3402

Parking brake

A3

5104

Reversing buzzer

A4

4517

Differential lock valve

A5

-

A6

3406

Brake lining wear signal

A7

1217

Reversing switch

A8

2036

Direction indicator, left

A9

2037

Direction indicator, right

A10

2170

Rear light, left

A11

2169

Rear light, right

A12

2152

Fog lights, rear

A13

4601

Stop lights

B1

1356

ABS, drawn vehicle

B2

4591

Reversing buzzer, dashboard switch

B3

1110

Power supply before contact, drawn vehicle

B4

1240

Power supply after contact

B5

5051

Fuel filter heating system

B6

3659

Alarm

B7

2009

Direction indicator, left, drawn vehicle

B8

2008

Direction indicator, right, drawn vehicle

B9

3408

Differential lock dashboard switch

B10

3428

ABS warning, drawn vehicle

B11

3412

Cab lock

B12

2155

Superstructure lighting

6

 200440

5

CONNECTION OF ACCESSORIES

Connection of accessories

LF45/55 series

1-12

Pin pattern for wiring harness

connector 714:

BN

714

A1

A8

B8

B1

Pin no.

Wire no.

Description

A1

3639

Air pressure sensor, power supply, circuit 2

A2

3638

Air pressure sensor, earth, circuit 1

A3

3639

Air pressure sensor, power supply, circuit 1

A4

3640

Air pressure sensor signal, circuit 1

A5

3020

Vehicle speed sensor, earth

A6

3021

Vehicle speed sensor, power supply

A7

3018

Vehicle speed sensor signal, “real time”

A8

3019

Vehicle speed sensor signal, “coded”

B1

4030

Range-change protection, gearbox

B2

3660

Alarm

B3

4721

Neutral switch, gearbox

B4

4596

Activates PTO valve

B5

5049

‘Water in fuel’ sensor

B6

1264

Alarm battery

B7

3638

Air pressure sensor, earth, circuit 2

B8

3641

Air pressure sensor signal, circuit 2

Pin pattern for wiring harness

connector 809:

ZT

809

2

1

Pin no.

Wire no.

Description

1

2170

Rear light, left

2

M

Earth

6

 200440

5

LF45/55 series

Connection of accessories

CONNECTION OF ACCESSORIES

1-13

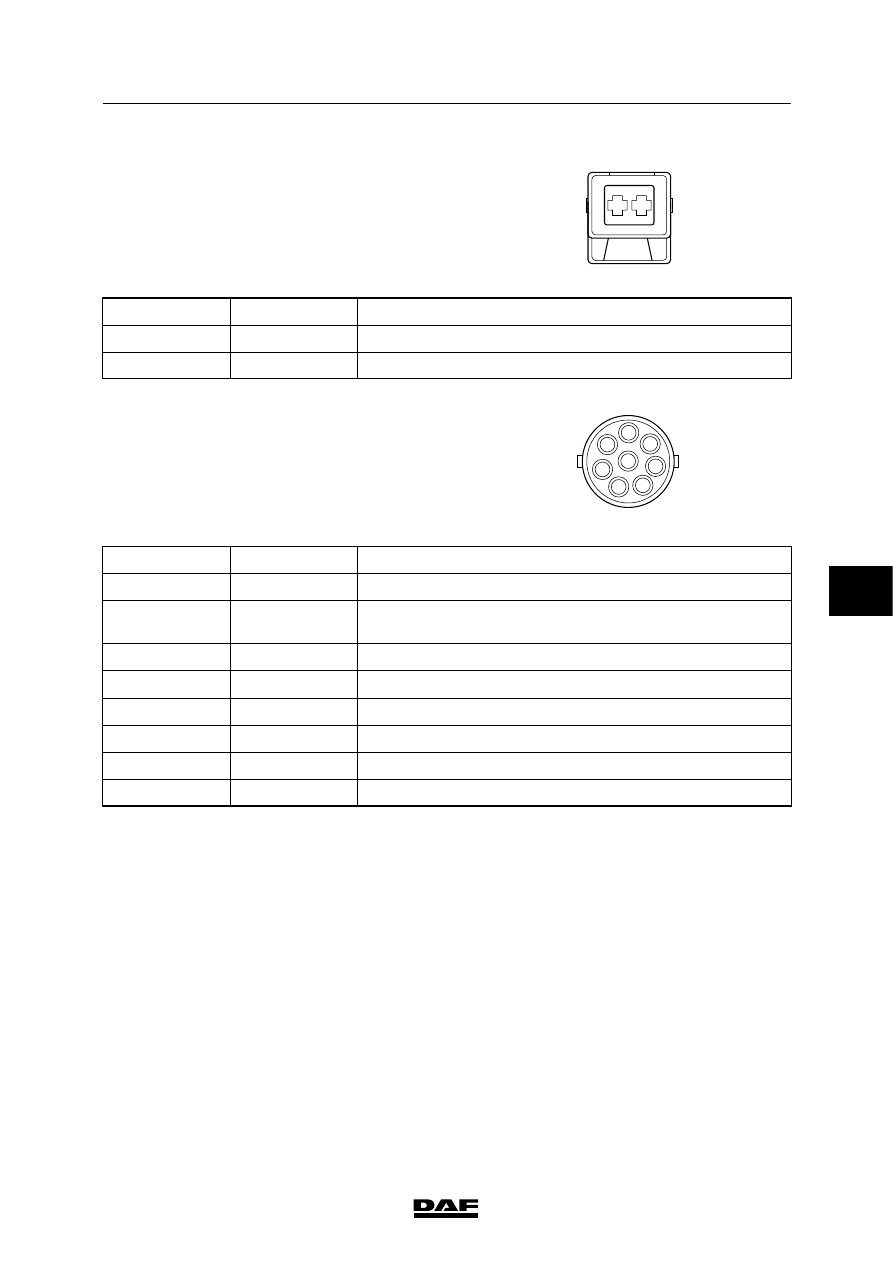

Pin pattern for wiring harness

connector 810:

ZT

810

2

1

Pin no.

Wire no.

Description

1

2169

Rear light, right

2

M

Earth

Pin pattern for wiring harness

connector A070:

ZT

A070

1

8

2

3

6

7

4

5

Pin no.

Wire no.

Description

1

1110

Power supply before contact

2

2155

2169

FA work lamp

Rear light, right, FT

3

4601

“Stop light” signal

4

4591

“Reversing light” signal

5

1264

Alarm, power supply

6

3659

Alarm, superstructure/drawn vehicle

7

3660

Alarm, superstructure/drawn vehicle

8

M

Earth

Note:

On FT vehicles pin 2 for possible superstructure

lighting is occupied by wire 2169.

6

 200440

5

CONNECTION OF ACCESSORIES

Connection of accessories

LF45/55 series

1-14

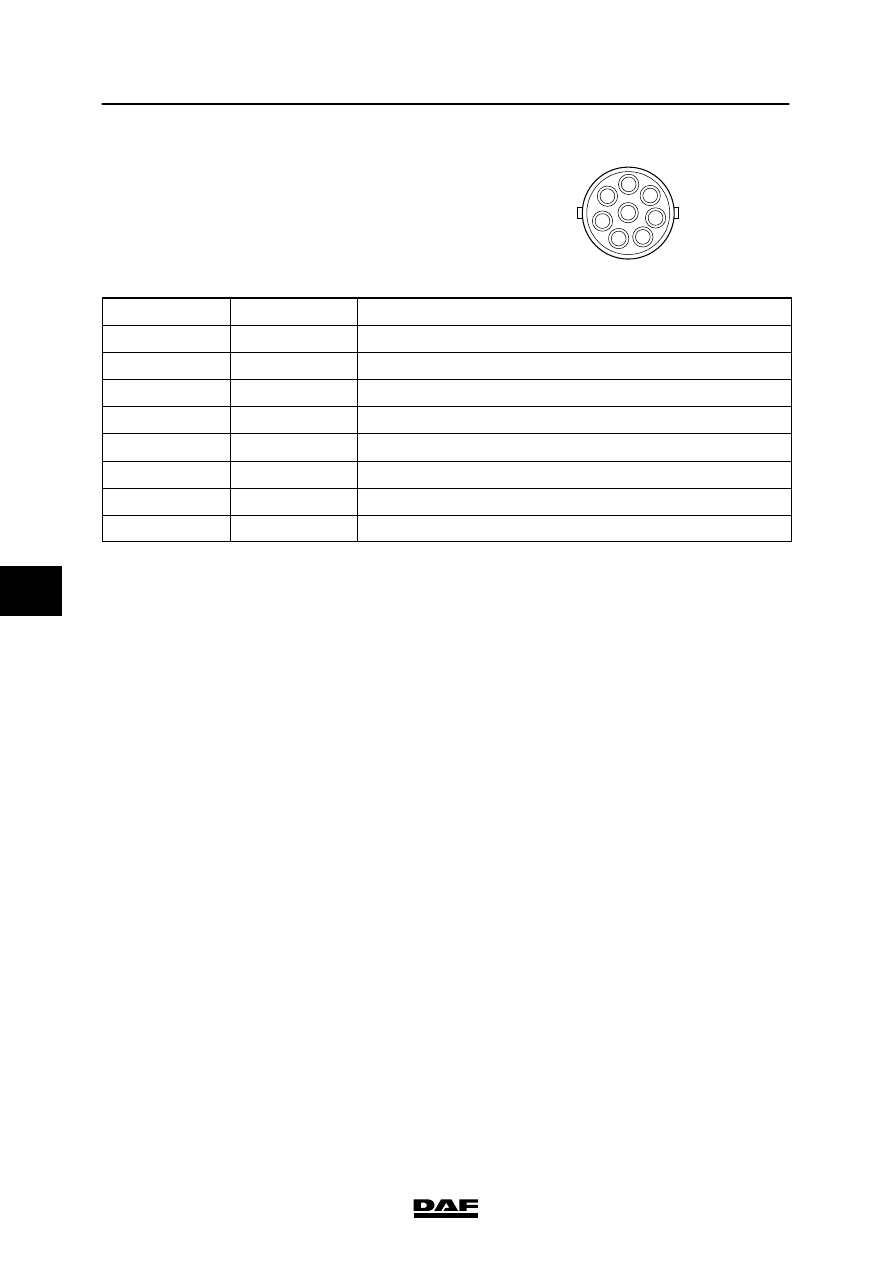

Pin pattern for wiring harness

connector 824:

ZT

824

1

8

2

3

6

7

4

5

Pin no.

Wire no.

Description

1

X002

Power supply before contact

2

1240

Power supply after contact

3

3435

“Engine is running” signal (via the VIC unit)

4

3412

Cab lock (via the VIC unit)

5

3700E

V-CAN, high

6

3701E

V-CAN, low

7

M

Earth

8

M

Earth

6
