DAF LF45, LF55 Series. Manual - part 305

©

 200416

4-3

Removal and installation

BE ENGINE INLET/EXHAUST SYSTEM

ΛΦ45/55 series

4

3

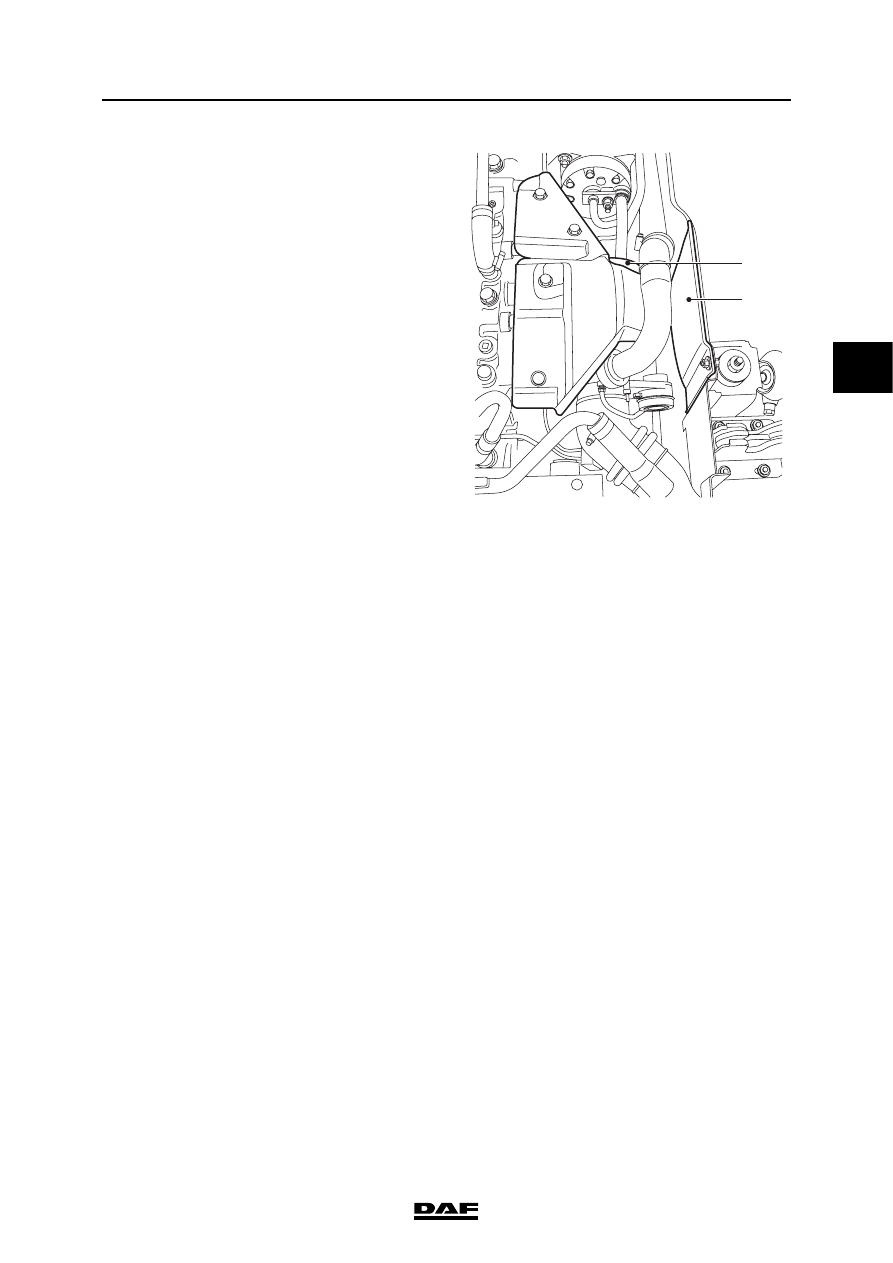

13. Fit the exhaust pipe to the turbocharger.

14. Fit the charge pipes to the exhaust pipe.

15. Fit the heat shield (1) to the oil filter.

16. Install the engine encapsulation (2).

1

i400857

2

BE ENGINE INLET/EXHAUST SYSTEM

4-4

©

 200416

Removal and installation

3

ΛΦ45/55 series

4

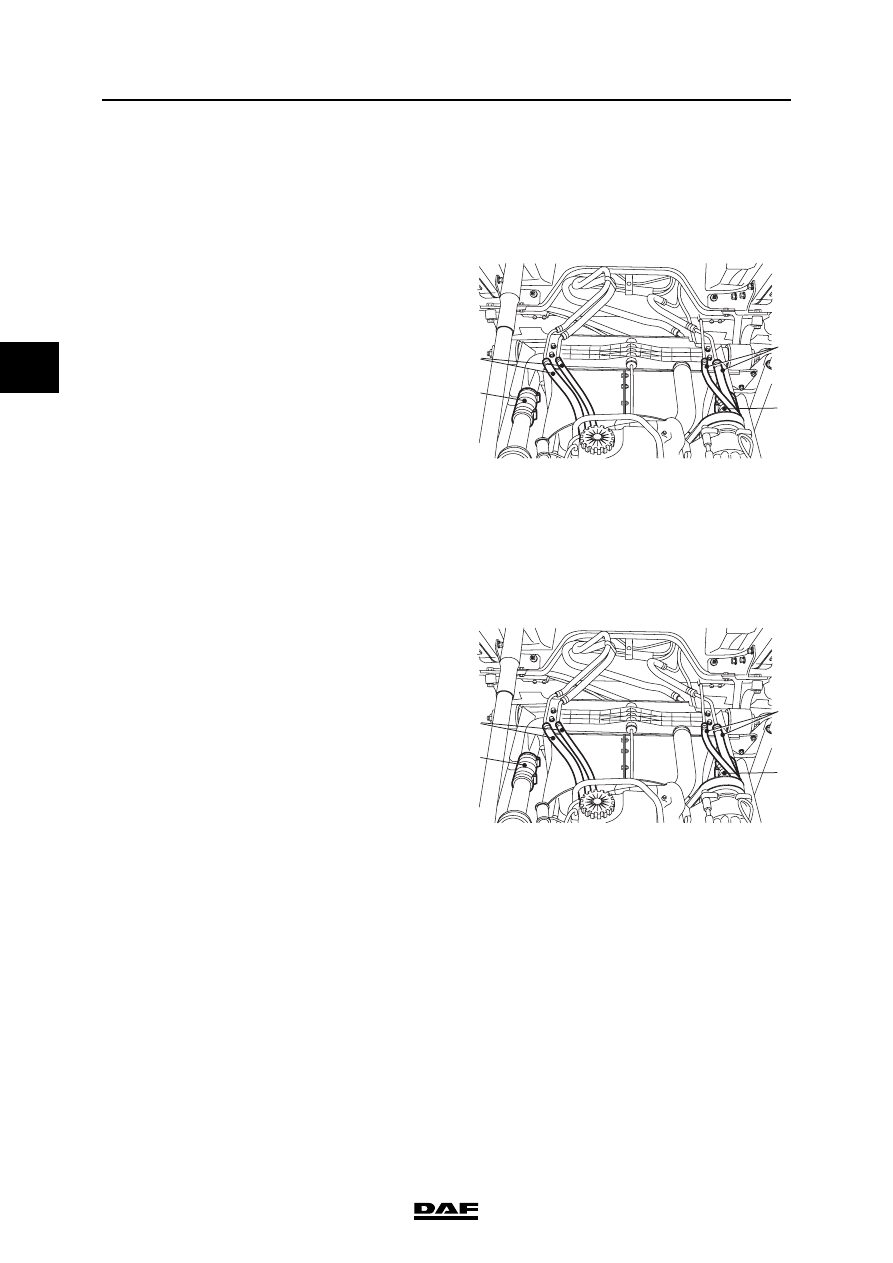

4.2 REMOVAL AND INSTALLATION OF AIR COOLER

Removing the air cooler
1.

Disconnect the earth lead from the battery

terminal.

2.

If the vehicle has air conditioning, loosen the

support of the refrigerant pipes (2) on the

radiator and remove the condenser from the

air cooler supports.

3.

Loosen the support of the coolant pipes (1)

on the radiator.

4.

Remove the charge pipes (3) from the air

cooler and plug the openings.

5.

Disconnect the air cooler.

6.

Remove the air cooler.

Installing the air cooler
1.

Clean the outside of the air cooler with

compressed air.

2.

Install the air cooler and tighten the air cooler

attachments.

3.

Fit the charge pipes (3) to the air cooler.

4.

Fit the bracket of the coolant pipes (1) on the

radiator.

5.

If the vehicle has air conditioning, fit the

condenser in the air cooler supports and

tighten the support of the refrigerant pipes

(2) on the radiator.

6.

Connect the battery terminals.

7.

Start the engine and check for leakage.

i400822

2

3

1

3

i400822

2

3

1

3

©

 200416

4-5

Removal and installation

BE ENGINE INLET/EXHAUST SYSTEM

ΛΦ45/55 series

4

3

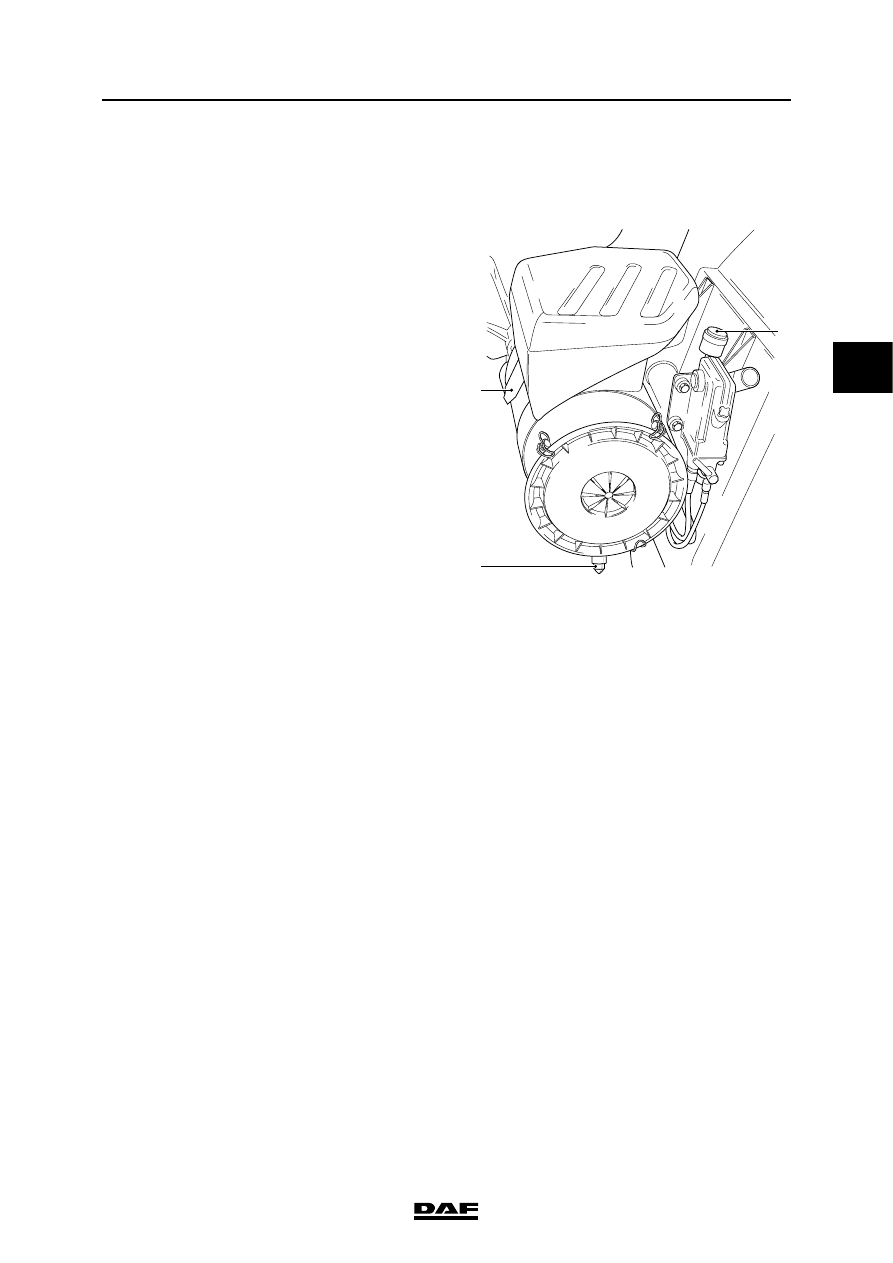

4.3 REMOVAL AND INSTALLATION, AIR FILTER ELEMENT

Removing the air filter element
1.

Loosen all clamping brackets on the air filter

cover.

2.

Remove the air filter cover.

3.

Remove the air filter element.

4.

Clean the inside of the air filter housing and

the air filter cover.

5.

Clean the rubber sealing valves (1 and 2) on

the filter housing. Check the sealing valve for

damage.

Installing the air filter element
1.

Fit the air filter element in the air filter

housing.

2.

Fit the air filter cover.

3.

Install all the clamping brackets.

4.

Reset the air filter indicator (3) by pressing

the knob on the indicator.

I4 00 535

3

1

2

BE ENGINE INLET/EXHAUST SYSTEM

4-6

©

 200416

Removal and installation

3

ΛΦ45/55 series

4

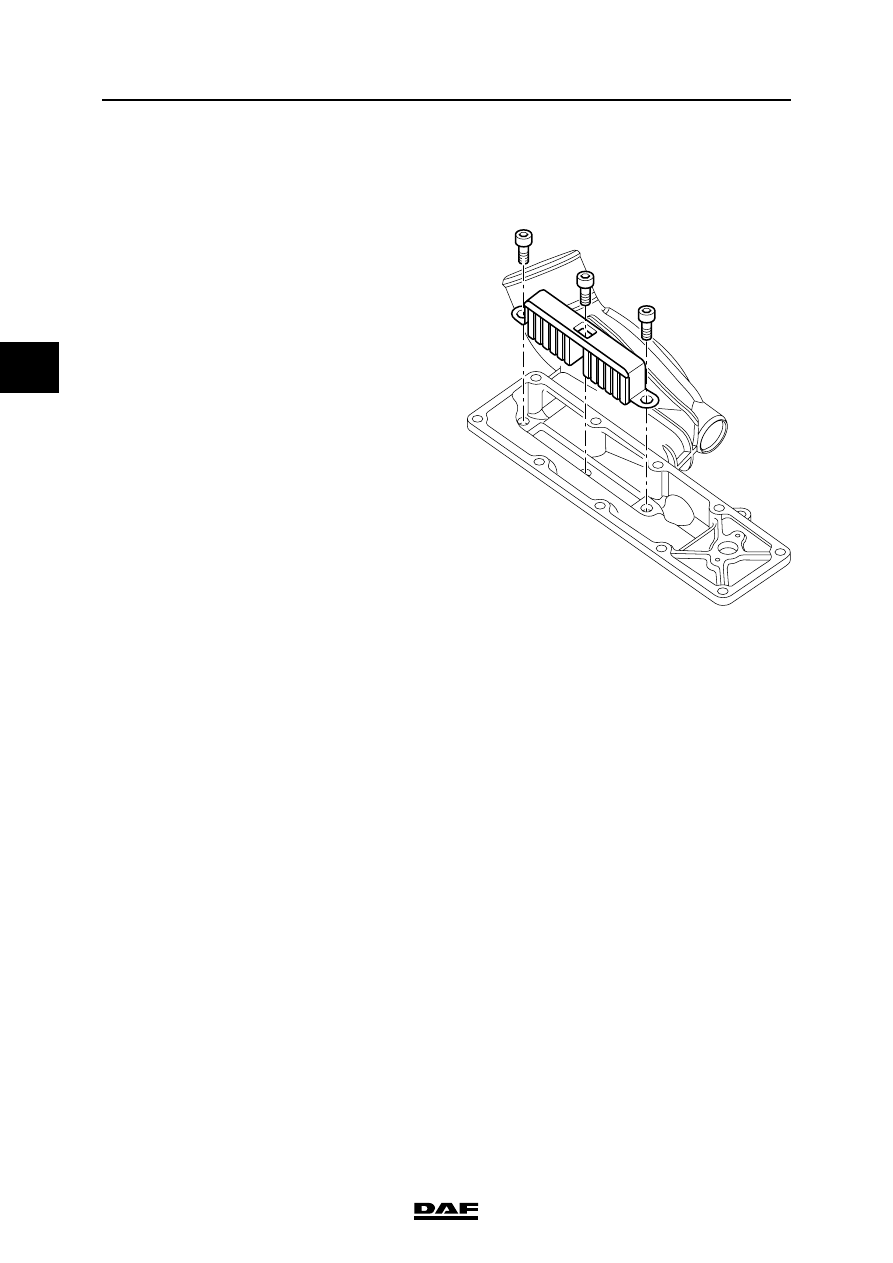

4.4 REMOVAL AND INSTALLATION, GLOW PLUG

Removing the glow plug
1.

Remove the inlet manifold.

2.

Remove the attachment bolts from the glow

plug and remove the glow plug.

Installing the glow plug
1.

Fit the glow plug and tighten the attachment

bolts to the specified torque. See "Technical

data".

2.

Fit the inlet manifold.

M201155
