SEALER LOCATIONS
SPECIFICATIONS
SPECIFICATIONS - BODY SEALING LOCATIONS
INDEX
DESCRIPTION
FIGURE

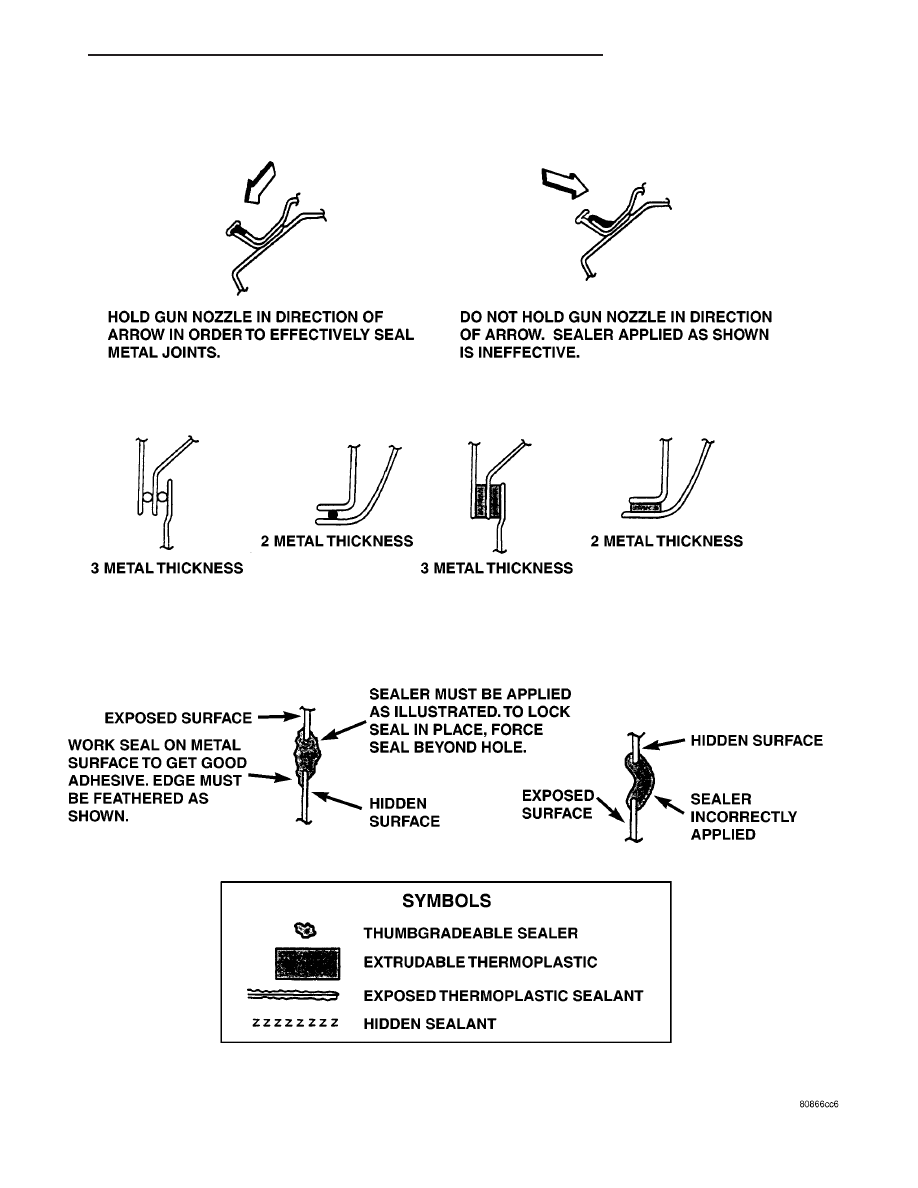

METHODS OF APPLYING AUTO BODY SEALANT
5

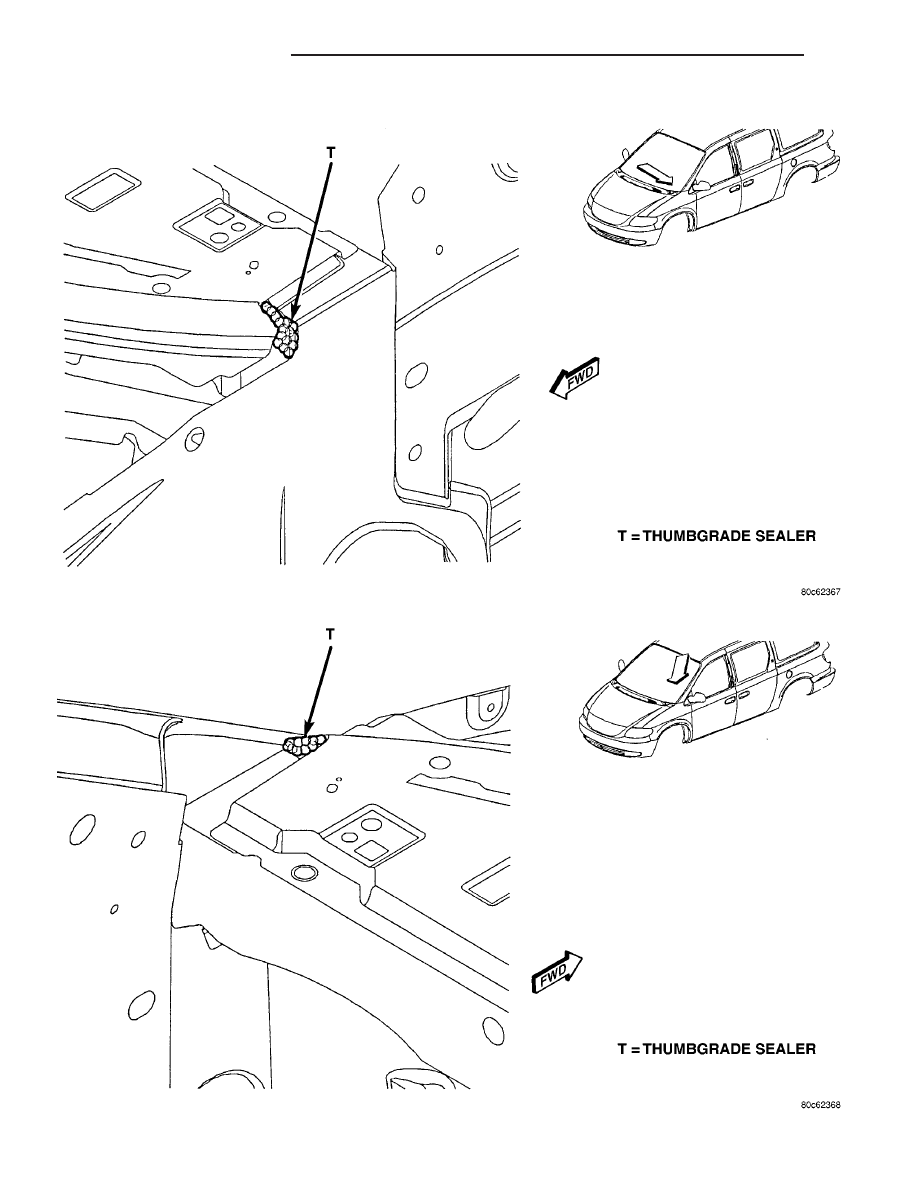

LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES
6
COWL SIDE - LEFT AND RIGHT SIDES
7
SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES
8
UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES
9
ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES
10
SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES
11
QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES
12
LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES
13
LOWER SILL LIFT GATE OPENING - LEFT AND RIGHT SIDES
14
C-PILLAR CAN - LEFT AND RIGHT SIDES
15
SHOCK TOWER AREA - LEFT AND RIGHT SIDES
16
OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES
17
CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES
18
A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES
19
REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES
20
REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES
21
UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES
22
UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES
23
REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES
24
LIFTGATE PANEL OPENING - UNDERSIDE
25
D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES
26
REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES
27
UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES
28
FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES
29
REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT
SIDES
30
TAIL LAMP CAN - LEFT AND RIGHT SIDES
31
B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES
32
FRONT FLOOR PAN & RISER
33
FLOOR PAN SEAMS - LEFT AND RIGHT SIDES
34
FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES
35
FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES
36
LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY
37
UNDERBODY - LEFT AND RIGHT SIDES
38
