FRONT DOOR OUTER BELT
MOLDING

REMOVAL

(1) Remove the side view mirror. (Refer to 23 -

BODY/EXTERIOR/SIDE

VIEW

MIRROR

-

REMOVAL)

(2) Remove door trim panel.
(3) Roll door glass down.
(4) Using a hook tool, disengage interlocking lip at

the base of the inward edge of the belt molding (Fig.
1).

(5) Remove belt molding from door.

INSTALLATION

(1) Place belt molding in position on door (Fig. 1).

NOTE: Make sure end of applique is against outer
belt.

(2) Engage interlocking lip at the base of the

inward edge of the belt molding on door panel.

(3) Install door trim panel.

FRONT DOOR WEATHERSTRIP

REMOVAL

(1) Open front door.
(2) Using fork tool (C-4829), remove push pin fas-

teners attaching front door weatherstrip to end
frames and bottom of door (Fig. 2).

(3) Pull

weatherstrip

from

retaining

channel

around window frame.

(4) Remove weatherstrip from vehicle.

INSTALLATION

(1) Position weatherstrip on door.
(2) Install push pin fasteners attaching front door

weatherstrip to end frames and bottom of door (Fig.
2).

(3) Install weatherstrip into retaining channel

around window frame.

(4) Close front door.

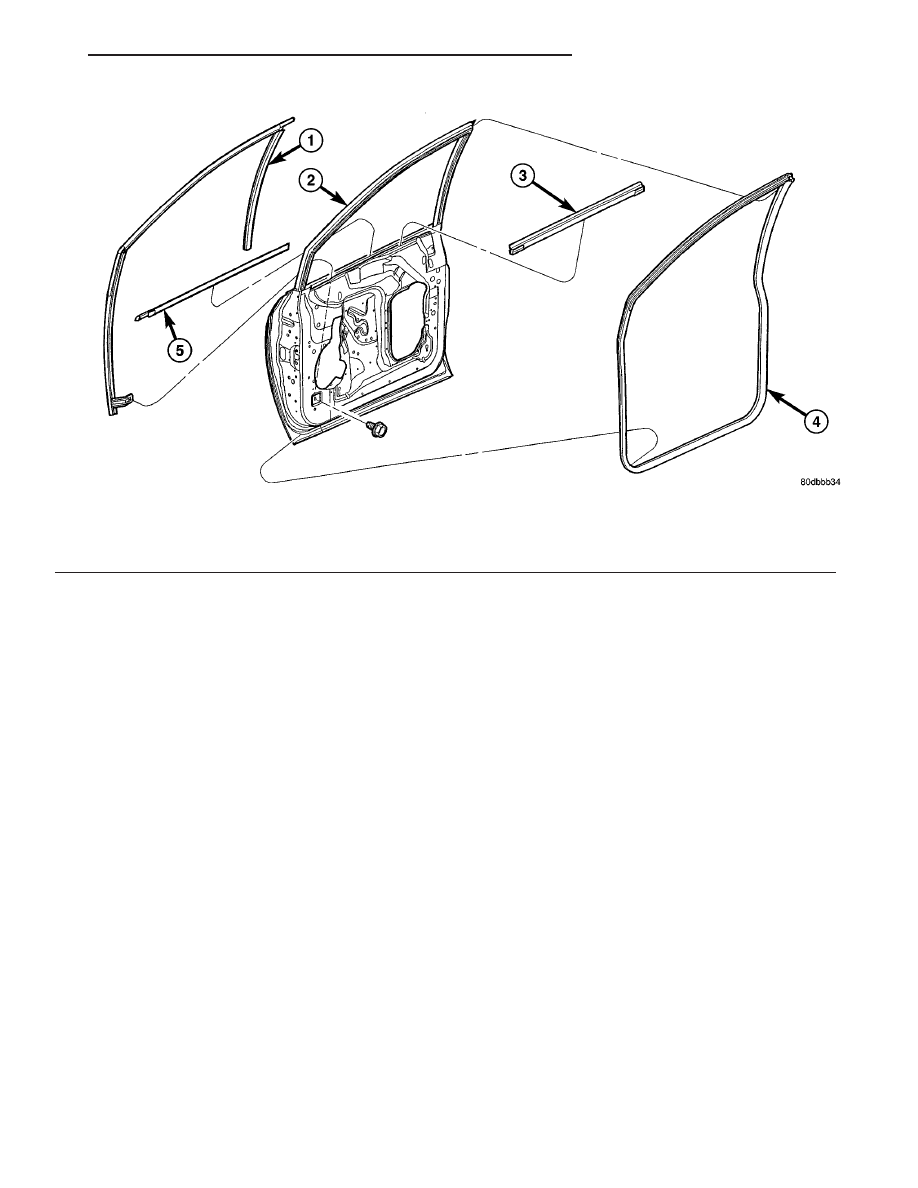

Fig. 1 FRONT DOOR WEATHERSTRIP

1 - DOOR GLASS RUN WEATHERSTRIP
2 - FRONT INNER DOOR
3 - DOOR BELT OUTER WEATHERSTRIP

4 - DOOR MOUNTED WEATHERSTRIP
5 - DOOR OUTER BELT WEATHERSTRIP

RS

WEATHERSTRIP/SEALS

23 - 195

FRONT DOOR GLASS RUN WEATHERSTRIP (Continued)

SLIDING DOOR
WEATHERSTRIP

REMOVAL

(1) Open sliding door.
(2) Remove door opening sill plate.
(3) Loosen B-pillar trim covers.
(4) Loosen quarter panel trim panels.
(5) From splice at the bottom center of door open-

ing, pull weatherstrip from pinch flange around door
opening.

INSTALLATION

(1) Place splice at the bottom center of door open-

ing, pushing weatherstrip onto pinch flange around
door opening.

(2) Tighten quarter panel trim panels.
(3) Tighten B-pillar trim covers.
(4) Install door opening sill plate.
(5) Close sliding and check alignment.

FRONT DOOR INNER BELT
MOLDING

REMOVAL

(1) Remove door trim panel.
(2) Peel upper corner seals away form inner belt

molding to clear removal path.

(3) Pull inner belt molding upward to disengage

retaining channel in bottom of molding from door
panel flange (Fig. 1).

(4) Remove inner belt molding from vehicle.

INSTALLATION

(1) Place inner belt molding in position on door

(Fig. 1).

(2) Push inner belt molding downward to engage

retaining channel onto door panel flange.

(3) Install upper corner seals in proper location.
(4) Install door trim panel.

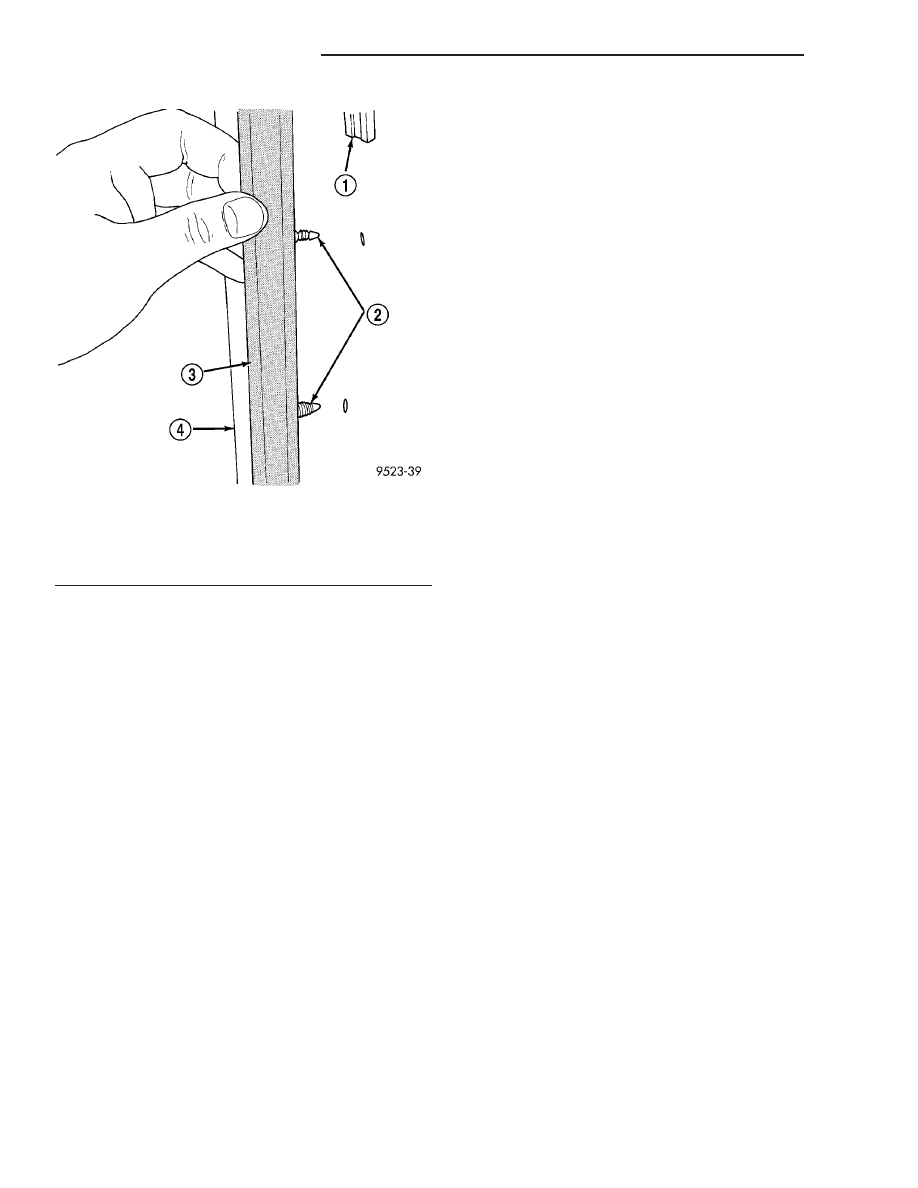

Fig. 2 Front Door Weatherstrip

1 - RETAINING CHANNEL
2 - PUSH-IN FASTENER
3 - WEATHERSTRIP
4 - FRONT DOOR

23 - 196

WEATHERSTRIP/SEALS

RS

FRONT DOOR WEATHERSTRIP (Continued)

BODY STRUCTURE

TABLE OF CONTENTS

page

page

GAP AND FLUSH

SPECIFICATIONS - GAP AND FLUSH

MEASUREMENTS

. . . . . . . . . . . . . . . . . . . . 197

OPENING DIMENSIONS

SPECIFICATIONS - BODY OPENING

DIMENSIONS

. . . . . . . . . . . . . . . . . . . . . . . . 200

SEALER LOCATIONS

SPECIFICATIONS

SPECIFICATIONS - BODY SEALING

LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 203

SPECIFICATIONS - BODY SEALING

LOCATIONS - FOLD-IN-FLOOR ONLY . . . . . 231

STRUCTURAL ADHESIVE LOCATIONS

SPECIFICATIONS

SPECIFICATIONS - STRUCTURAL

ADHESIVE LOCATIONS . . . . . . . . . . . . . . . . 240

SPECIFICATIONS - STRUCTURAL

ADHESIVE LOCATIONS - FOLD-IN-FLOOR
ONLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

WELD LOCATIONS

SPECIFICATIONS

SPECIFICATIONS - WELD LOCATIONS

. . . . 256

SPECIFICATIONS - WELD LOCATIONS -

FOLD-IN-FLOOR . . . . . . . . . . . . . . . . . . . . . 383

SUNROOF

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 407

DIAGNOSIS AND TESTING

SUNROOF DIAGNOSIS AND TESTING

. . . . 407

DRAIN TUBE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 410

GLASS PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 411

ADJUSTMENTS

SUNROOF GLASS PANEL ADJUSTMENT

. . 411

SUNROOF ASSEMBLY

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 411

SUNSHADE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 411

WIND DEFLECTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 412

WATER CHANNEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 412

SUNROOF MOTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 412

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . 413

SUNROOF SWITCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 414

GAP AND FLUSH

SPECIFICATIONS - GAP AND FLUSH
MEASUREMENTS

INDEX

DESCRIPTION

FIGURE

GAP & FLUSH MEASUREMENTS

1

RS

BODY STRUCTURE

23 - 197

Fig. 1 GAP & FLUSH MEASUREMENTS

23 - 198

BODY STRUCTURE

RS

GAP AND FLUSH (Continued)
