INSTALLATION

(1) Place grab handle into position (Fig. 78).
(2) Connect lamp wire connector, if equipped.
(3) Using 2-way locating pins press on grab handle

until it snaps into place.

(4) Install attaching screws.
(5) Tug on handle to insure clips are properly

installed.

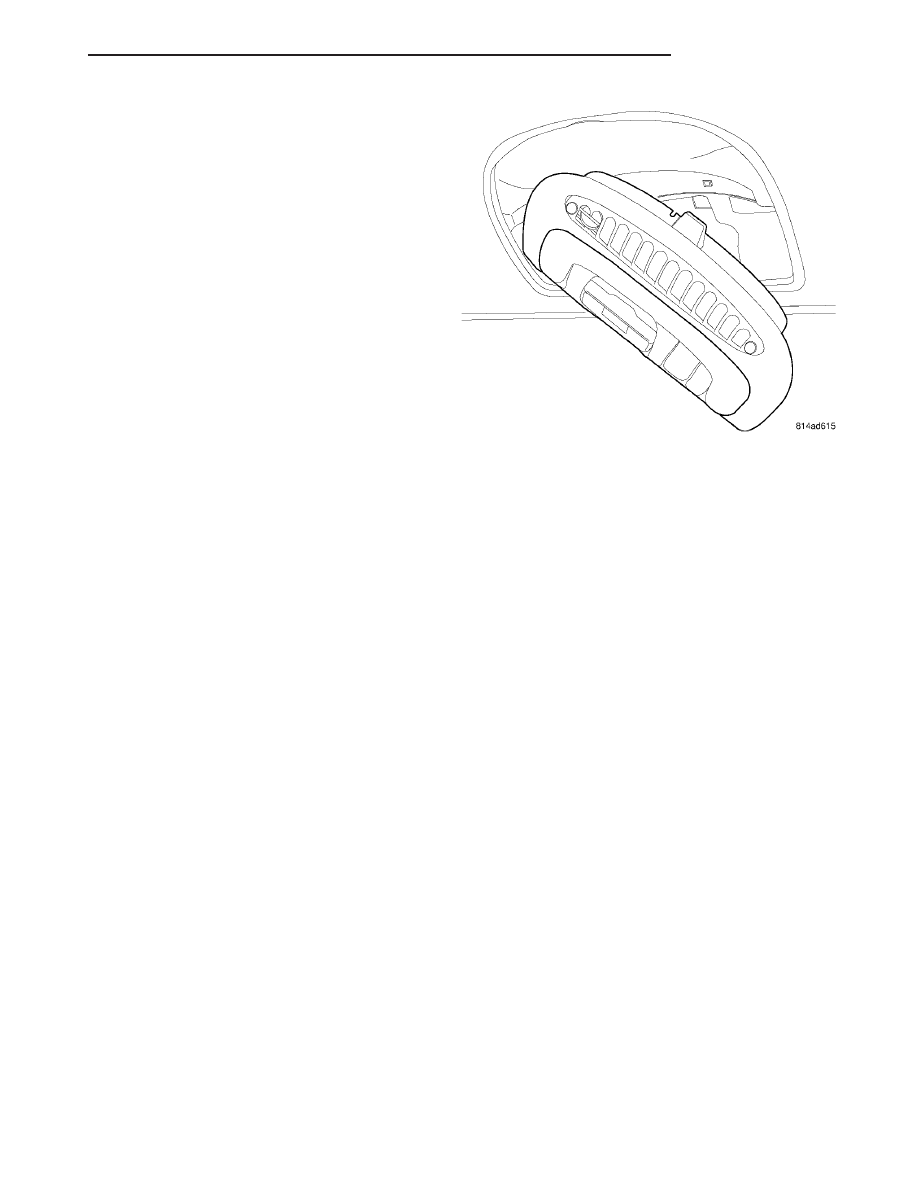

Fig. 78 GRAB HANDLE

INTERIOR

23 - 123

HANDLE-GRAB (Continued)

PAINT

TABLE OF CONTENTS

page

PAINT

SPECIFICATIONS - COLOR CODE CHARTS

. . 124

BASE COAT/CLEARCOAT FINISH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 125

PAINT CODE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 125

PAINTED TOUCH-UP

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 125

FINESSE SANDING/BUFFING & POLISHING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 125

PAINT

SPECIFICATIONS - COLOR CODE CHARTS

EXTERIOR COLORS

EXTERIOR COLOR

DAIMLERCHRYSLER

COLOR CODE

EXTERIOR COLOR

DAIMLERCHRYSLER

COLOR CODE

ATLANTIC BLUE

PEARL COAT

ZBJ

LINEN GOLD PEARL

COAT

CYG

BRIGHT SILVER

METALLIC CLEAR

COAT

WS2

MAGNESIUM PEARL

COAT

BPK

BRILLIANT BLACK

CRYSTAL PEARL

COAT

AXR

MIDNIGHT BLUE

PEARL COAT

BB8

BUTANE BLUE

METALLIC CLEAR

COAT

ABE

SATIN JADE PEARL
COAT

AP4

DEEP MOLTEN RED

PEARL COAT

BR8

STONE WHITE CLEAR
COAT

SW1

INFERNO RED TINTED
PEARL COAT

WEL

INTERIOR COLORS

INTERIOR COLOR

DAIMLERCHRYSLER

COLOR CODE

INTERIOR COLOR

DAIMLERCHRYSLER

COLOR CODE

J = DARK KHAKI/

LIGHT GRAYSTONE

MEDIUM SLATE

GRAY

23 - 124

PAINT

BASE COAT/CLEARCOAT
FINISH

DESCRIPTION

On most vehicles a two-part paint application

(basecoat/clearcoat) is used. Color paint that is
applied to primer is called basecoat. The clearcoat
protects the basecoat from ultraviolet light and pro-
vides a durable high-gloss finish.

CAUTION: Do not use abrasive chemicals or com-
pounds on painted surfaces. Damage to finish can
result.
Do not use harsh alkaline based cleaning solvents
on painted surfaces. Damage to finish or color can
result.

PAINT CODE

DESCRIPTION

Exterior vehicle body colors are identified on the

Body Code plate. (Refer to VEHICLE DATA/VEHI-
CLE

INFORMATION/BODY

CODE

PLATE

DESCRIPTION). The paint code is also identified on
the Vehicle Safety Certification Label which is
located on the drivers door shut face. The first digit
of the paint code listed on the vehicle indicates the
sequence of application, i.e.: P = primary coat, Q =
secondary coat. The codes listed in the Color Code
Chart are used for manufacturing purposes.

PAINTED TOUCH-UP

DESCRIPTION

When a painted metal surface has been scratched

or chipped, it should be touched up as soon as possi-
ble to avoid corrosion. For best results, use Mopar

Scratch Filler/Primer, Touch Up Paints and Clear Top
Coat. (Refer to VEHICLE DATA/VEHICLE INFOR-
MATION/BODY CODE PLATE - DESCRIPTION).

WARNING: USE AN OSHA APPROVED RESPIRATOR
AND SAFETY GLASSES WHEN SPRAYING PAINT
OR SOLVENTS IN A CONFINED AREA. PERSONAL
INJURY CAN RESULT.

TOUCH UP PROCEDURE

(1) Scrape loose paint and corrosion from inside

scratch or chip.

(2) Clean affected area with Mopar

t Tar/Road Oil

Remover, and allow to dry.

(3) Fill the inside of the scratch or chip with a coat

of filler/primer. Do not overlap primer onto good sur-
face finish. The applicator brush should be wet
enough to puddle-fill the scratch or chip without run-
ning. Do not stroke brush applicator on body surface.
Allow the filler/primer to dry hard.

(4) Cover the filler/primer with color touch up

paint. Do not overlap touch up color onto the original
color coat around the scratch or chip. Butt the new
color to the original color, if possible. Do not stroke
applicator brush on body surface. Allow touch up
paint to dry hard.

(5) On vehicles without clearcoat, the touch up

color can be lightly finesse sanded (1500 grit) and
polished with rubbing compound.

(6) On vehicles with clearcoat, apply clear top coat

to touch up paint with the same technique as
described in Step 4. Allow clear top coat to dry hard.
If desired, Step 5 can be performed on clear top coat.

WARNING: AVOID PROLONGED SKIN CONTACT
WITH PETROLEUM OR ALCOHOL – BASED CLEAN-
ING SOLVENTS. PERSONAL INJURY CAN RESULT.

FINESSE SANDING/BUFFING &
POLISHING

DESCRIPTION

Minor acid etching, orange peel, or smudging in

clearcoat or single-stage finishes can be reduced with
light finesse sanding, hand buffing, and polishing. If
the finish has been finesse sanded in the past,
it cannot be repeated. Finesse sanding opera-
tion should be performed by a trained automo-
tive paint technician.

CAUTION:

not

remove

clearcoat

finish,

equipped. Basecoat paint must retain clearcoat for
durability.
