lowing these procedures is very important to safety
of individuals performing diagnostic tests.

4.2.2

VEHICLE PREPARATION FOR
TESTING

Make sure the vehicle being tested has a fully

charged battery. If it does not, false diagnostic
codes or error messages may occur.

4.2.3

SERVICING SUB-ASSEMBLIES

Some components of the body system are in-

tended to be serviced as an assembly only. Attempt-
ing to remove or repair certain system sub-
components may result in personal injury and/or
improper system operation. Only those compo-
nents with approved repair and installation proce-
dures in the service manual should be serviced.

4.2.4

DRBIII

SAFETY INFORMATION

WARNING: EXCEEDING THE LIMITS OF THE
DRBIII

T

MULTIMETER

IS

DANGEROUS.

READ ALL DRBIII

T

INSTRUCTIONS BEFORE

USING

THE

MULTIMETER.

FAILURE

TO

FOLLOW

THESE

INSTRUCTIONS

CAN

RESULT IN PERSONAL INJURY OR DEATH.

Follow the vehicle manufacturer’s service speci-
fications at all times.

Do not use the DRBIII

t if it has been damaged.

Do not use the test leads if the insulation is
damaged or if metal is exposed.

To avoid electrical shock, do not touch the test
leads, tips, or the circuit being tested.

Choose the proper range and functions for the
measurement. Do not try voltage or current
measurement that may exceed the rated capac-
ity.

Do not exceed the limits shown in the table
below:

FUNCTION

INPUT LIMIT

Volts

0 - 500 peak volts AC

Ohms (resistance)*

0 -1.12 megohms

Frequency Measured
Frequency Generated

0 -10 kHz

Temperature

-58 - 1100°F
(-50 - 600°C)

* Ohms cannot be measured if voltage is present.
Ohms can be measured only in a non-powered
circuit.

Voltage between any terminal and ground must
not exceed 500v DC or 500v peak AC.

Use caution when measuring voltage above 25v
DC or 25v AC.

Use the low current shunt to measure circuits up
to 10A. Use the high current clamp to measure
circuits exceeding 10A.

When testing for the presence of voltage or
current, make sure the meter is functioning
correctly. Take a reading of a known voltage or
current before accepting a zero reading.

When measuring current, connect the meter in
series with the load.

Disconnect the live test lead before disconnect-
ing the common test lead.

When using the meter function, keep the DRBI-
II

t away from spark plug or coil wires to avoid

measuring error from outside interference.

4.3

WARNINGS

4.3.1

VEHICLE DAMAGE WARNINGS

Before disconnecting any control module, make

sure the ignition is

9off9. Failure to do so could

damage the module.When testing voltage or conti-
nuity at any control module, use the terminal side
(not the wire end) of the connector. Do not probe a
wire through the insulation; this will damage it
and eventually cause it to fail because of corrosion.
Be careful when performing electrical tests so as to
prevent accidental shorting of terminals. Such mis-
takes can damage fuses or components. Also, a
second code could be set, making diagnosis of the
original problem more difficult.

4.3.2

ROAD TESTING A COMPLAINT
VEHICLE

Some complaints will require a test drive as part

of the repair verification procedure. The purpose of
the test drive is to try to duplicate the diagnostic
code or symptom condition.

WARNING:

REASSEMBLE

ALL

COMPO-

NENTS BEFORE ROAD TESTING A VEHI-
CLE. DO NOT TRY TO READ THE DRBIII

T

SCREEN OR OTHER TEST EQUIPMENT
DURING A TEST DRIVE. DO NOT HANG THE
DRBIII

T

OR OTHER TEST EQUIPMENT FROM

THE REARVIEW MIRROR DURING A TEST
DRIVE. HAVE AN ASSISTANT AVAILABLE TO
OPERATE THE DRBIII

T

OR OTHER TEST

EQUIPMENT. FAILURE TO FOLLOW THESE
INSTRUCTIONS CAN RESULT IN PERSONAL
INJURY OR DEATH.

37

GENERAL INFORMATION

5.0

REQUIRED TOOLS AND
EQUIPMENT

DRBIII

t (diagnostic read-out box)

Jumper wires
Ohmmeter
Voltmeter
Test Light
8310 Airbag System Load Tool
8443 SRS Airbag System Load Tool
9001 RF Detector

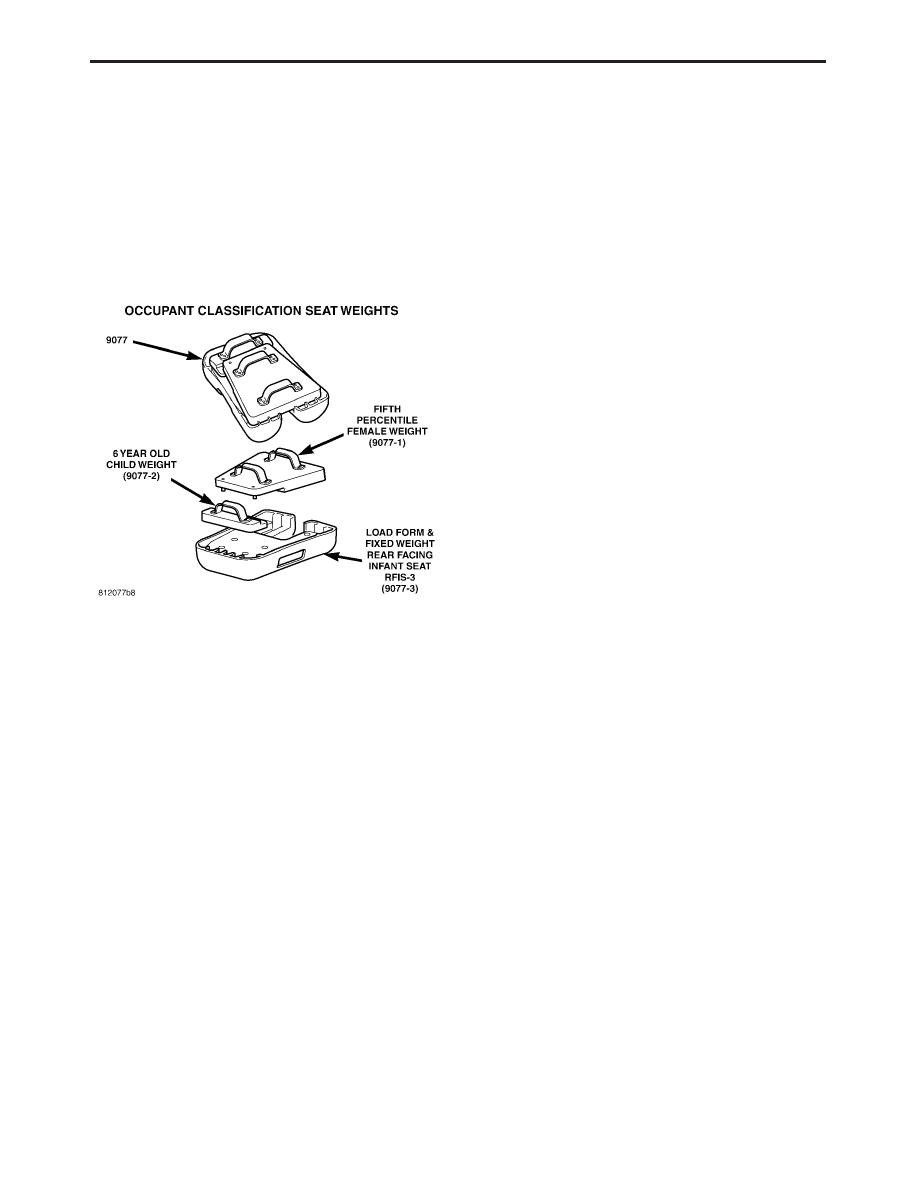

9077 Occupant Classification Seat Weights

6.0

GLOSSARY OF TERMS

ABS

antilock brake system

ACM

airbag control module

AECM

airbag electronic control module
(ACM)

APM

adjustable pedals module

ASDM

airbag system diagnostic module
(ACM)

ATC

automatic temperature control

BCM

body control module

BTS

belt tension sensor

BTSI

brake transmission shift interlock

CAB

controller antilock brake

CMTC

compass/mini-trip computer

CPA

connector positive assurance

DAB

driver airbag

DDM

driver door module

DLC

data link connector

DRL

daytime running lamps

DTC

diagnostic trouble code

DR

driver

EBL

electric back lite (rear window de-
fogger)

EVIC

electronic vehicle information cen-
ter

GCC

Gulf Coast Countries

HE

hall effect

HFM

hands free module

HVAC

heater ventilation, air conditioning

IOD

ignition-off draw

IPM

integrated power module

KNB

knee blocker airbag

LDU

lower drive unit

LHD

left hand drive

MH-
SAPM

memory heated seat adjustable
pedal module

MIC

mechanical instrument cluster

MSAPM

memory seat adjustable pedal mod-
ule

MTC

manual temperature control

MUX

multiplexed

NGC

next generation controller

OAT

outside air temperature

OBD

on board diagnostics

OCM

occupant classification module

OCS

occupant classification system

OCSVR

occupant classification system veri-
fication required

ODO

odometer

ORC

occupant restraint controller

PAB

passenger airbag

PASS

passenger

PCI

Programmable Communication In-
terface (vehicle communication bus)

PCM

powertrain control module

PDC

power distribution center

PDM

passenger door module

38

GENERAL INFORMATION

PLG

power liftgate

PLGM

power liftgate module

PWM

pulse width modulated

RKE

remote keyless entry

SAB

seat airbag

SBT

seat belt tensioner

SDAR

satellite digital audio receiver

SIACM

side impact airbag control module

SKREEM

Sentry Key RemotE Entry Module

SM

seat module

SQUIB

also called initiator (located inside
airbag and seatbelt tensioners)

SRS

supplemental restraint system

TCM

transmission control module

TCS

traction control system

TPMS

tire pressure monitor system

UGDO

universal garage door opener

VFD

vacuum fluorescent display

VTSS

vehicle theft security system

39

GENERAL INFORMATION

NOTES
