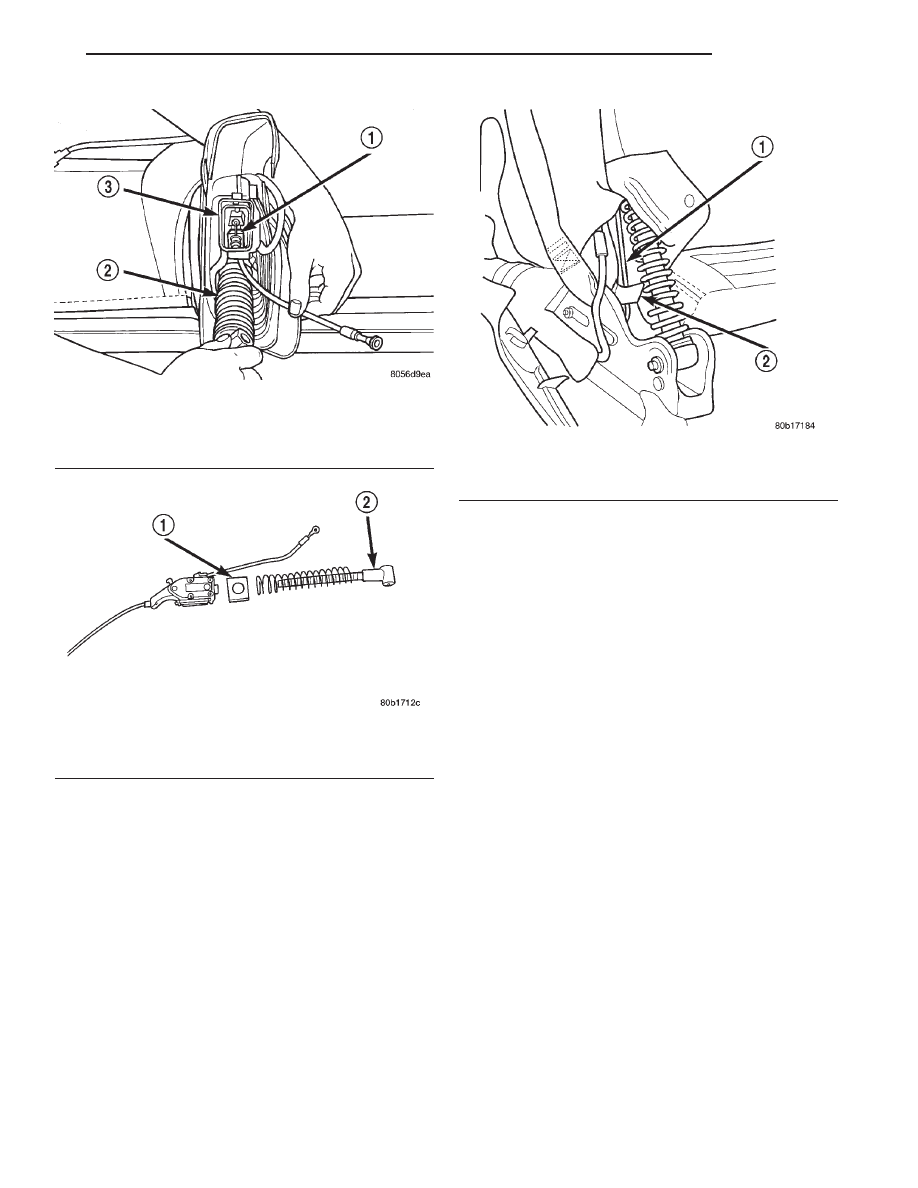

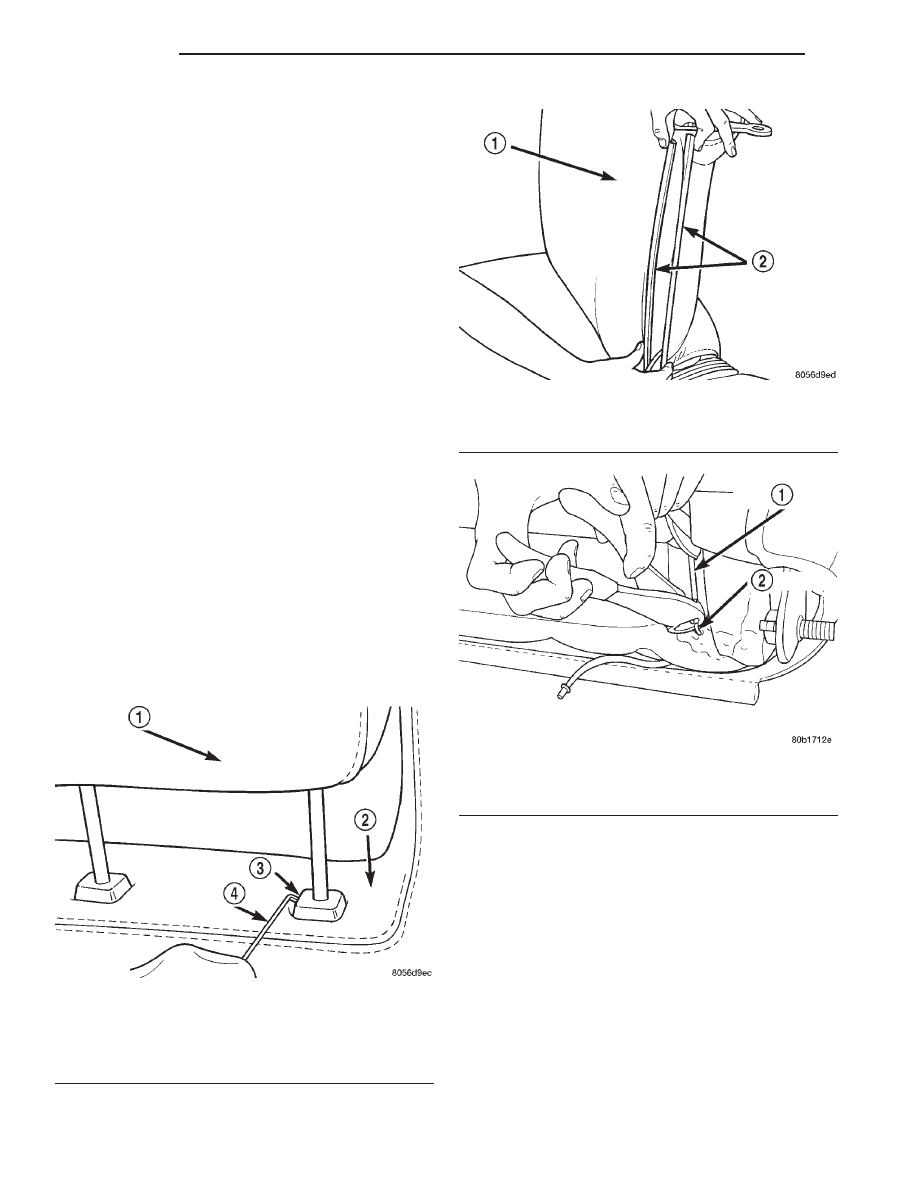

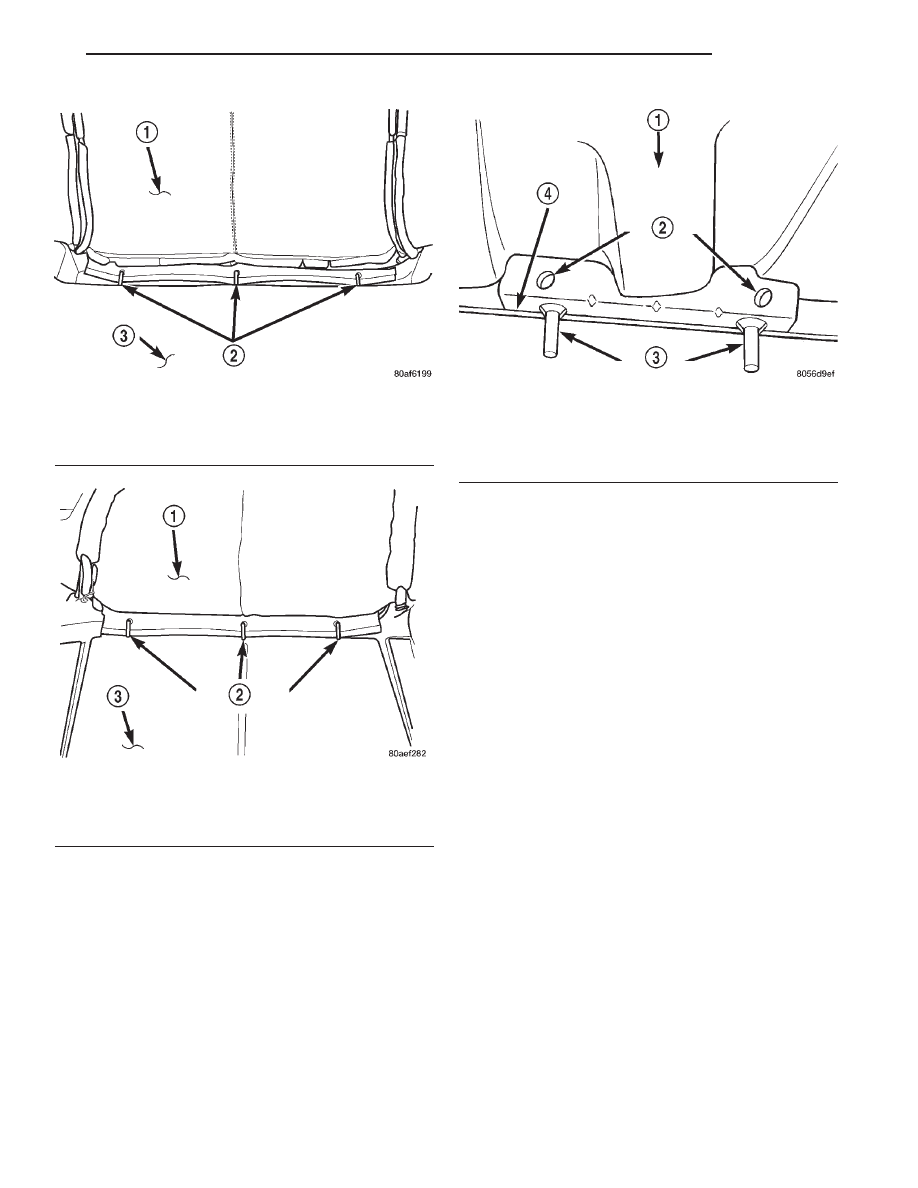

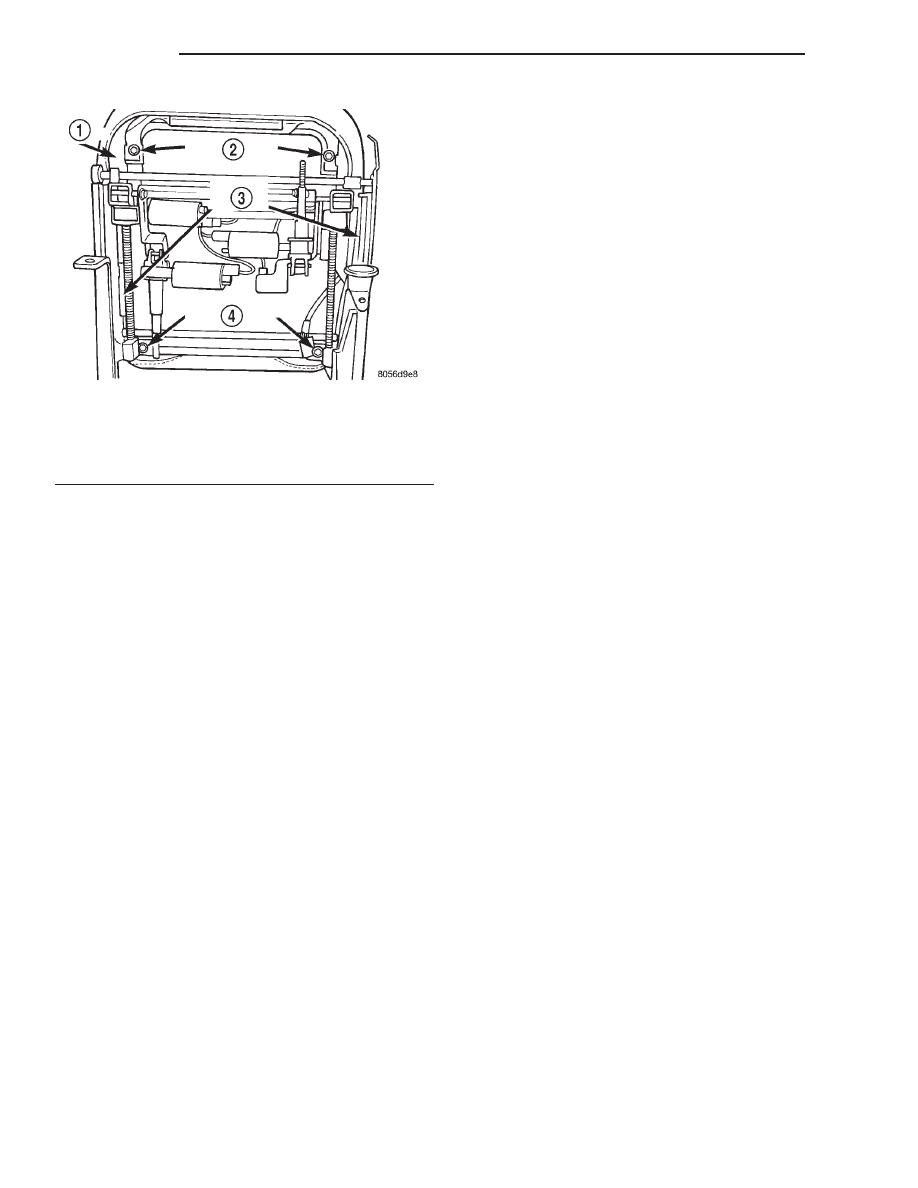

(2) Route recliner cable in front of metal strap at bottom of the seat back frame (Fig. 10). (3) Position seat back to seat frame. bracket located under seat cushion. (5) Install wiring tie strap holding retractor wiring harness to recliner cable. (6) Install bolt attaching recliner lead screw to seat frame. Tighten bolt to 45.3 N·m (33.3 ft. lbs.) (7) Install pivot bolts attaching seat back to seat frame. Tighten bolts to 51.0 N·m (33.3 ft. lbs.) torque. (8) Attach easy-entry rod to seat back, passenger side only. (9) Install easy-entry washer and E-clip, passenger side only. (10) Install seat cushion. (11) Feed recliner cable through hole in seat adjuster and engage cable eyelet to arm on seat (12) Install new recliner cable eyelet clip to arm on seat frame (Fig. 6). (13) Position seat belt buckle washer to bolt on side of seat adjuster. (14) Position seat belt buckle to bolt on side of seat adjuster and install nut. (15) Install new nut to hold seat belt buckle to seat adjuster. (16) Position lower seat belt anchor to bolt on seat adjuster. (17) Verify that seat belt is routed such that it will not be twisted when engaged to the seat belt buckle. (18) Install new nut holding lower seat belt anchor to seat frame (Fig. 6). NOTE: The tighten the lower seat belt anchor and NOTE: Verify that a minimum of three threads (19) Install seat side shield. Verify that side and rear screws go through the rubber bellows. (20) Install seat to vehicle. Refer to procedures found in this section. Fig. 8 Recliner Lead Screw 1 – RECLINER MECHANISM Fig. 9 Recliner Lead Screw 1 – LEAD SCREW SPRING PLATE Fig. 10 Route Recliner Cable 1 – NEW CABLE ROUTING (DRIVER SEAT) JX BODY 23 - 17 REMOVAL AND INSTALLATION (Continued) |
