(14) Install the master cylinder on the vacuum
booster. Install the 2 nuts attaching the master cyl-
inder to the vacuum booster. Tighten the master cyl-
inder mounting nuts to a torque of 28 N·m (250 in.
lbs.).
(15) Remove the clamp from the steering wheel
(Fig. 21).
(16) Install the intermediate shaft onto the steer-
ing column shaft. Install steering column coupler
pinch bolt (Fig. 22) and tighten to a torque of 28 N·m
(21 ft. lbs.). Install the pinch bolt nut retaining pin in
pinch bolt.
(17) Install the reinforcement (Fig. 19) on the vehi-
cle. Install the 8 bolts, attaching the reinforcement
(Fig. 19) to the strut towers. Install the bolt (Fig. 19)
attaching the wiper module to the reinforcement.
(18) Install the in-line resonator and inlet hose
(Fig. 20) on the throttle body and air let hose coming
from the lid of the air cleaner housing.
(19) Install the covers (Fig. 18) over the wiper
module and the cowl. Install and securely tighten the
attaching screws.
(20) Install the wiper arms (Fig. 17) on the pivots.
Install and securely tighten the wiper arm to pivot
attaching nuts. Install the caps on the wiper arms
covering the pivot nuts.
(21) Install the battery ground cable onto the
ground stud on the shock tower.
CAUTION: Do not use automatic transmission fluid.
Use only the proper Mopar Power Steering Fluid or
equivalent when filling the power steering fluid res-
ervoir.
(22) Perform Power Steering Pump Initial Opera-
tion procedure which can be found in the Power
Steering Pump section of this group to properly refill
and bleed power steering system.
(23) Lower vehicle.
(24) Adjust front toe if necessary. Refer to Suspen-
sion, Group 2, for the required procedure.
POWER STEERING FLUID PRESSURE SWITCH
(2.7L ENGINE)
REMOVE
(1) Remove the battery ground cable from the
ground stud on the shock tower and isolate it cable
by installing the cable isolator on the ground stud
(Fig. 34).
(2) Remove the wire harness connector on from the
power steering pressure switch (Fig. 35).
(3) Remove the power steering pressure switch
from the power steering pressure hose (Fig. 35).
INSTALL
(1) Install the power steering pressure switch into
the power steering pressure hose (Fig. 35). Tighten
the pressure switch to a torque of 16 N·m (140 in.
lbs.).
(2) Connect the wire harness connector.
(3) Connect the battery ground cable to the ground
stud located on the strut tower.
POWER STEERING FLUID PRESSURE SWITCH
(3.2L/3.5L ENGINE)
REMOVE
(1) Remove the battery ground cable from the
ground stud on the shock tower and isolate it cable
by installing the cable isolator on the ground stud
(Fig. 36).
(2) Raise the vehicle. See Hoisting in the Lubrica-
tion And Maintenance section of this manual.

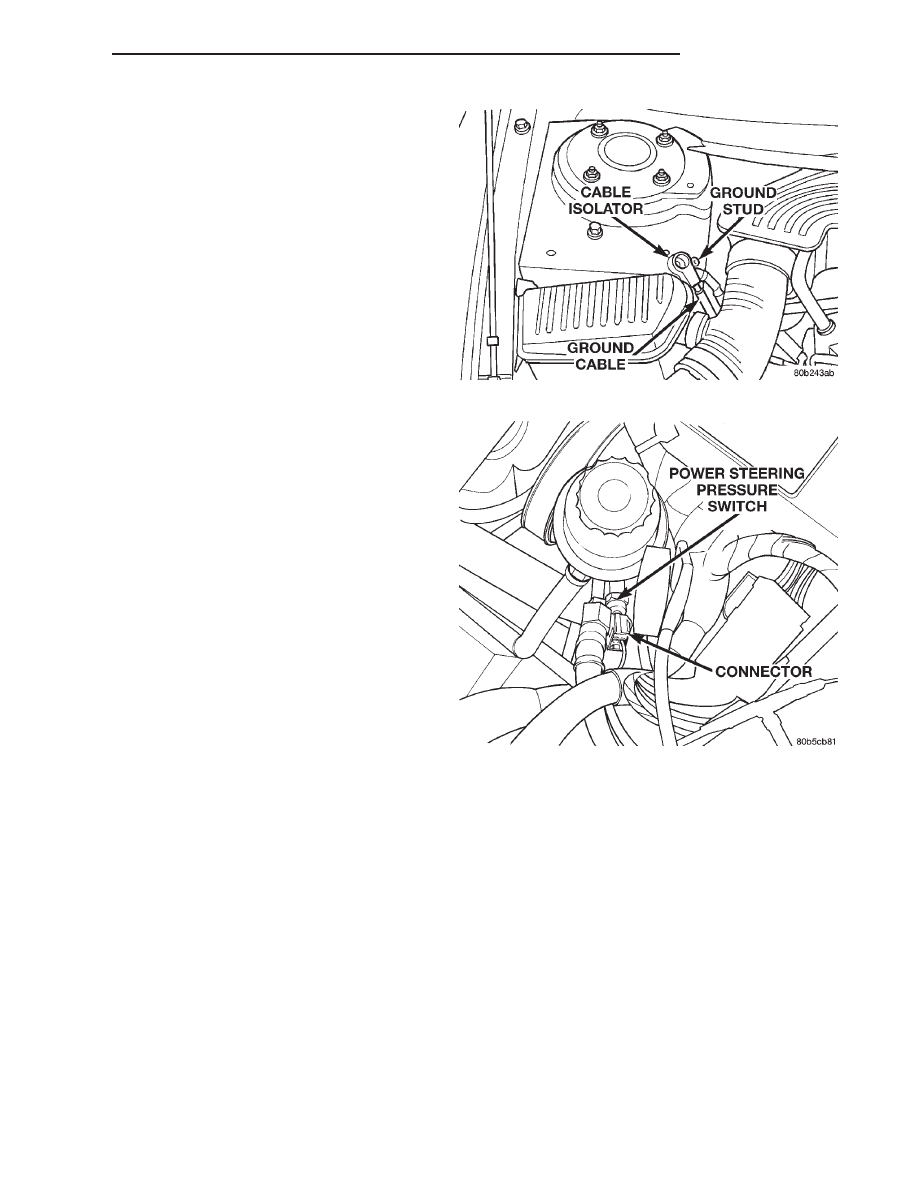

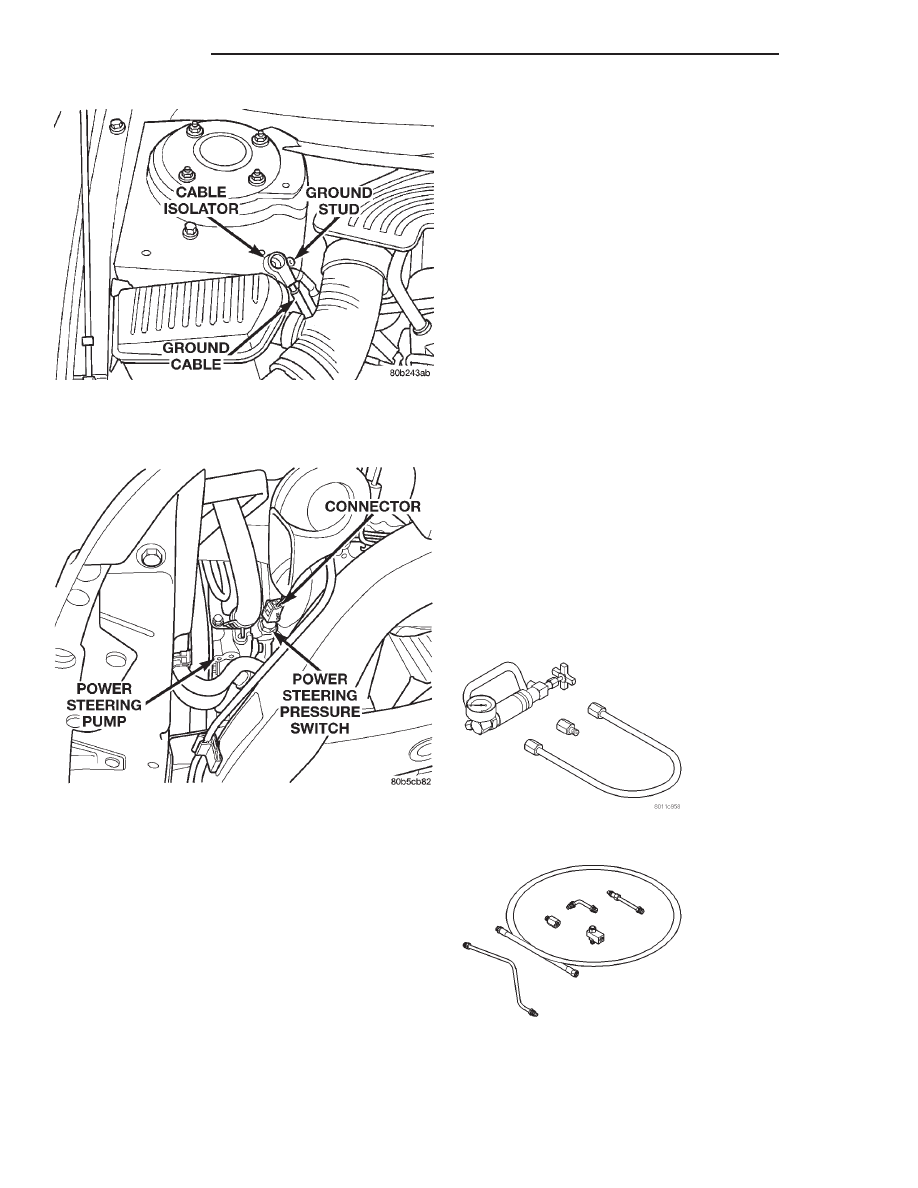

Fig. 34 Correctly Isolated Remote Ground Cable
Fig. 35 Power Steering Pressure Switch Location
300M
STEERING
19 - 17
REMOVAL AND INSTALLATION (Continued)
