Chery Tiggo 5 (T21). Manual - part 529





49–

27

49

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure damaged clips are replaced and C-pillar upper protector assembly is installed in place when

installing C-pillar upper protector assembly.

 C-pillar upper protector assembly and rear door opening weatherstrip should be fitted closely after

installing C-pillar upper protector assembly.

 C-pillar upper protector assembly, C-pillar lower protector assembly and roof headlining should be fitted

closely after installing C-pillar upper protector assembly.

49–

28

49

Sun Visor Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

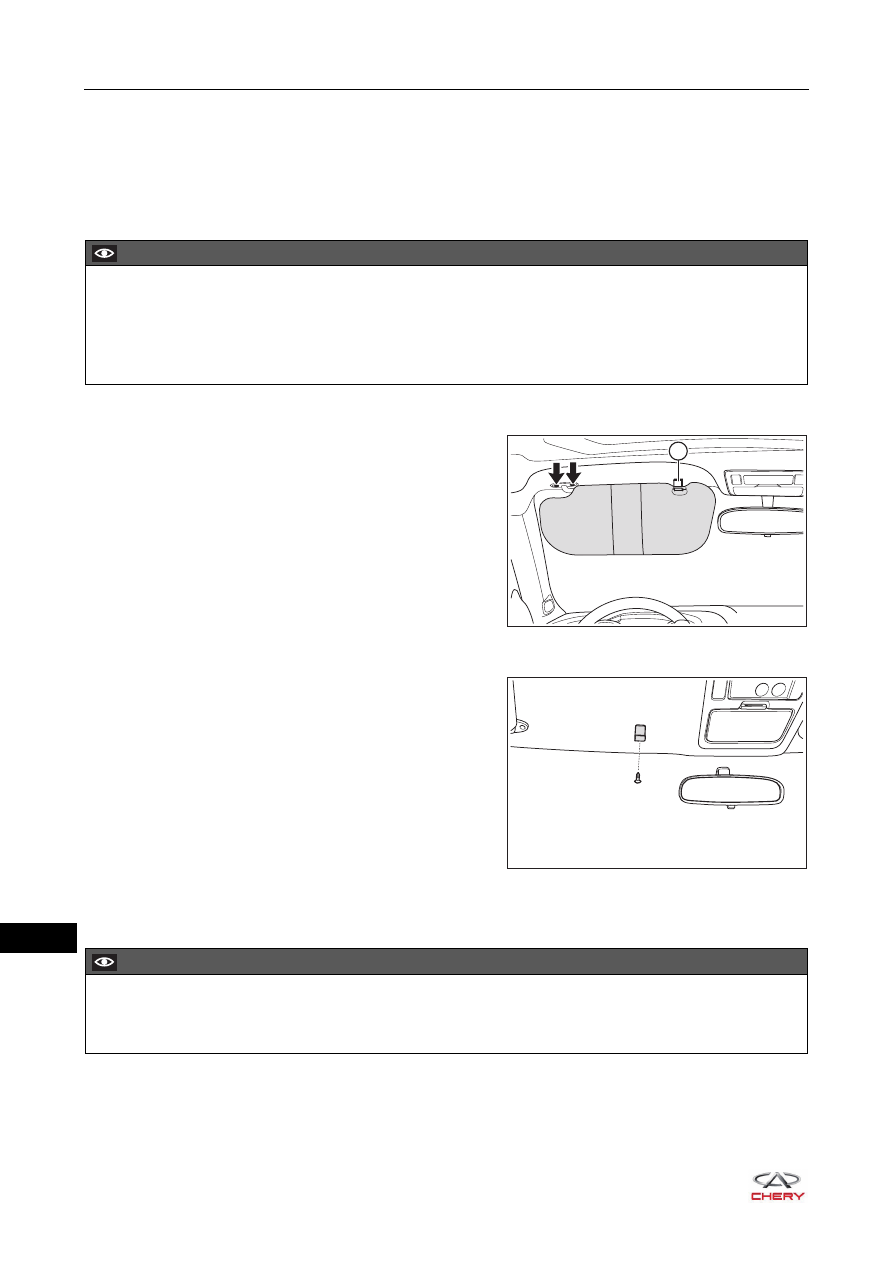

1. Remove the left sun visor assembly.

a. Disengage one side of the sun visor assembly from

holder B (1).

b. Remove 2 fixing screws (arrow) from the sun visor

assembly.

(Tightening torque: 3 ± 0.5 N·m)

c. Remove the left sun visor assembly.

2. Remove the left sun visor holder B.

a. Remove the fixing screw from the sun visor holder B.

(Tightening torque: 3 ± 0.5 N·m)

b. Remove the left sun visor holder B.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the sun visor assembly.
 Appropriate force should be applied when removing the sun visor assembly. Be careful not to operate

roughly.

 Avoid damage to the interior and roof when removing the sun visor assembly.

RT21490210

1

RT21490220

CAUTION

 Make sure to wear safety equipment to prevent accidents when installing the sun visor assembly.
 Avoid damage to the interior and roof when installing the sun visor assembly.

49–

29

49

Passenger Grip Assembly

Removal

HINT:

 Use the same procedures for rear left/rear right side and front right side.

 Procedures listed below are for the front right side.

1. Remove the front right passenger grip assembly.

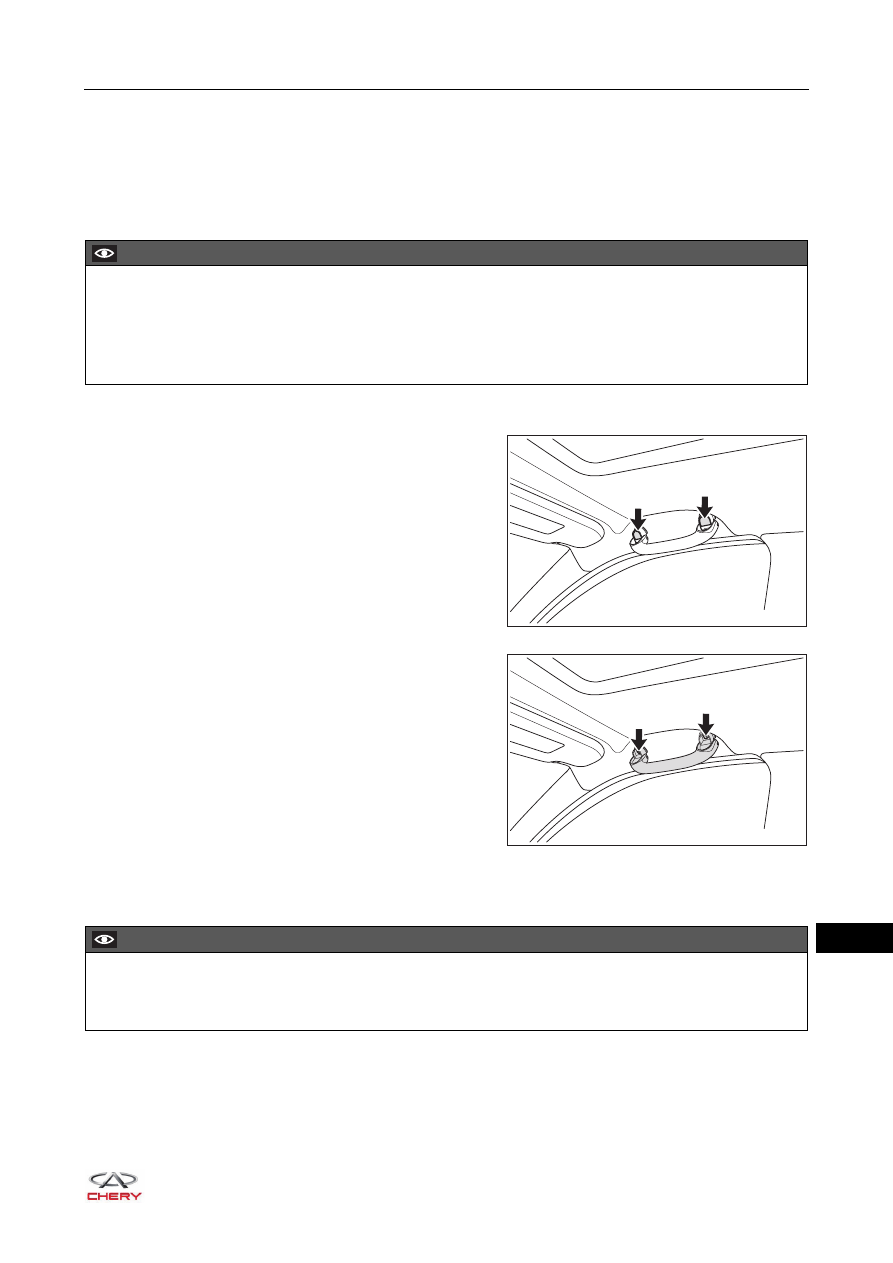

a. Using a screwdriver wrapped with protective tape,

remove the passenger grip covers (arrow).

b. Remove 2 fixing screws (arrow) from the passenger

grip assembly, and remove the front right passenger
grip assembly.

(Tightening torque: 5 ± 1 N·m)

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the passenger grip assembly.
 Appropriate force should be applied when removing the passenger grip assembly. Be careful not to

operate roughly.

 Avoid damage to the interior and roof when removing the passenger grip assembly.

RT21490230

RT21490240

CAUTION

 Make sure to wear safety equipment to prevent accidents when installing the passenger grip assembly.
 Avoid damage to the interior and roof when installing the passenger grip assembly.

49–

30

49

Roof Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

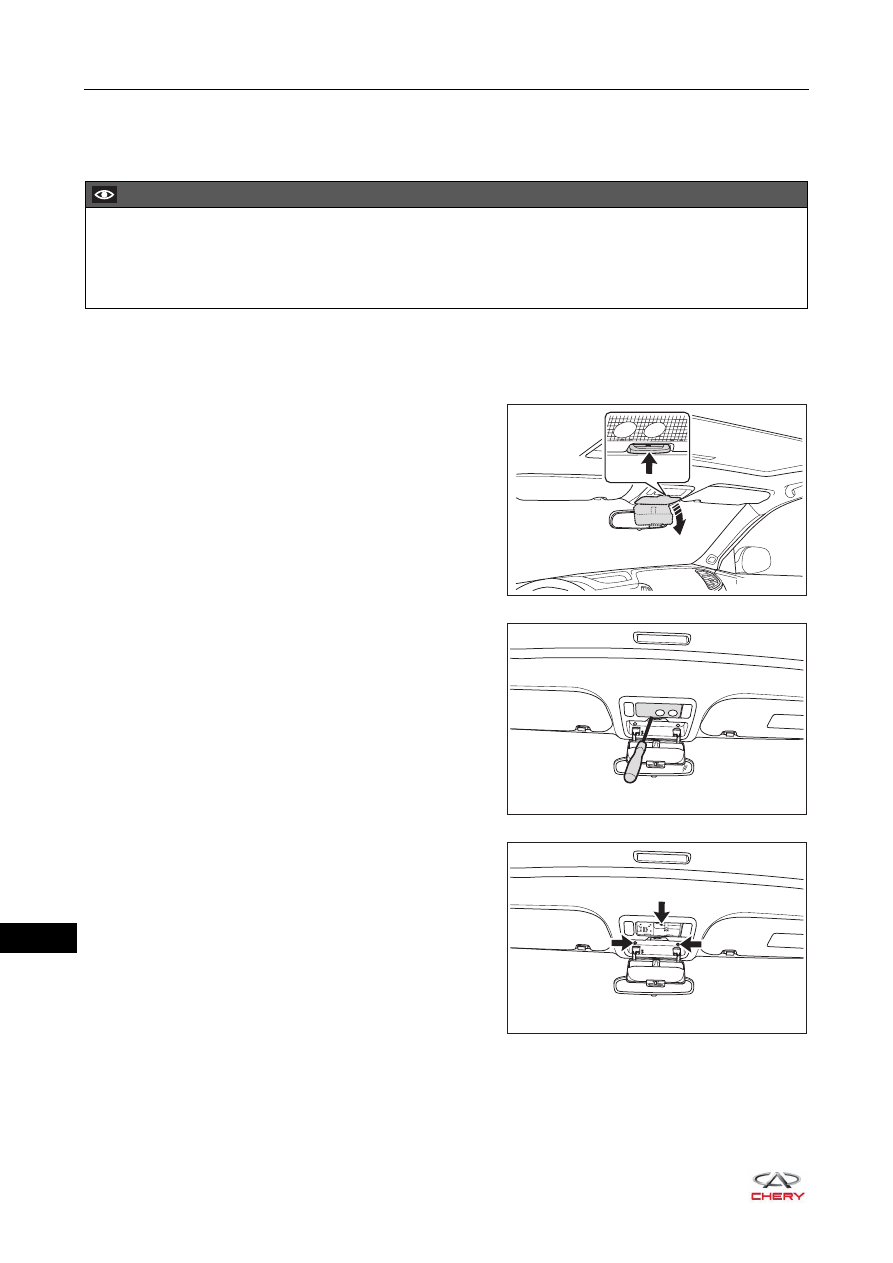

3. Remove the interior front dome light assembly.

a. Open the glasses box in the direction of arrow as

shown in the illustration.

b. Using a screwdriver wrapped with protective tape,

remove the interior front dome light cover.

c. Remove 3 fixing screws (arrow) from the interior front

dome light assembly.

(Tightening torque: 1.5 ± 0.5 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the roof assembly.
 Appropriate force should be applied when removing the roof assembly. Be careful not to operate roughly.
 Avoid damage to the interior and body paint when removing the roof assembly.

RT21490250

RT21490260

RT21490270
