Chery Tiggo 5 (T21). Manual - part 527

49–

19

49

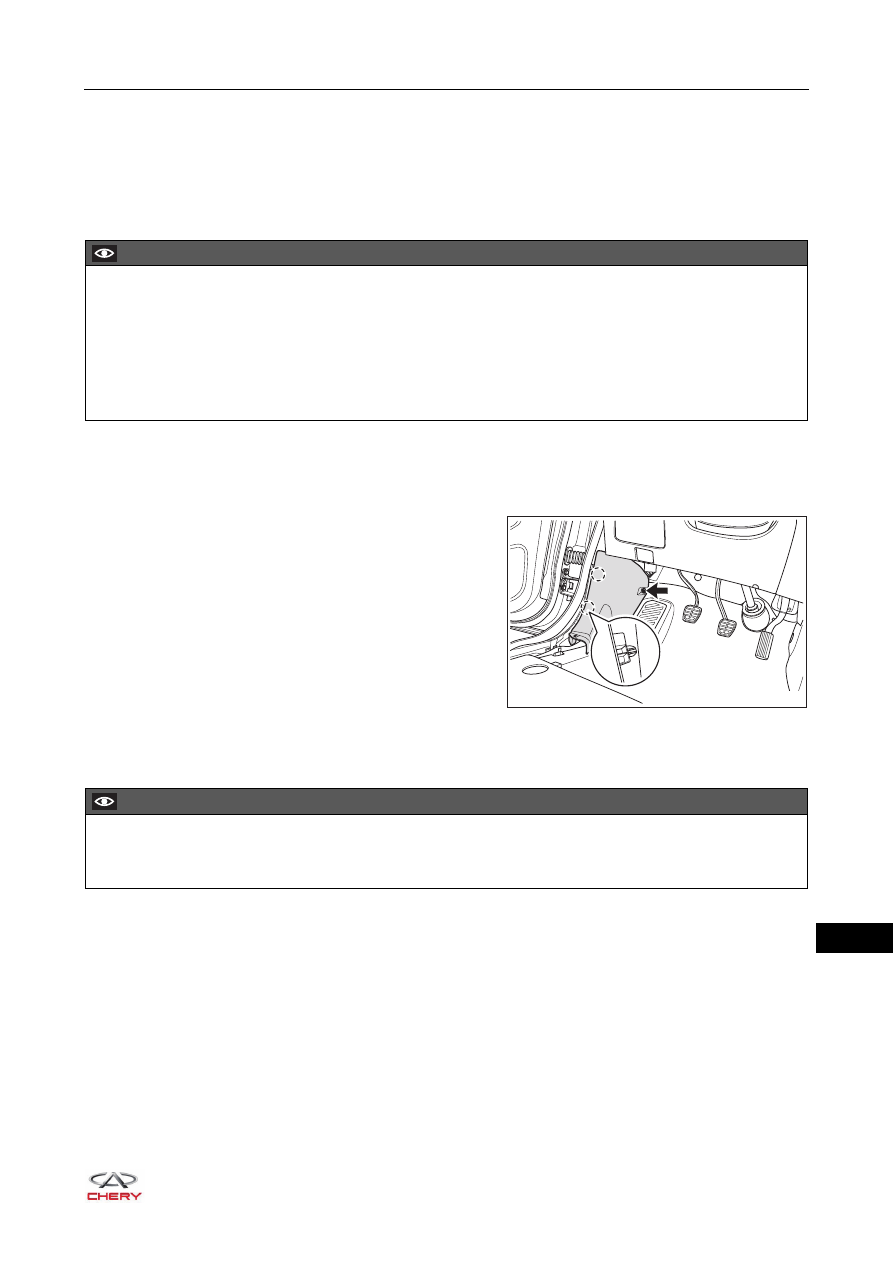

A-pillar Lower Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the front left doorsill pressure plate assembly (

See page 49-11

).

2. Remove the front left door opening weatherstrip (

See page 49-14

).

3. Remove the left A-pillar lower protector assembly.

a. Remove the fixing nut (arrow) from the A-pillar lower

protector assembly.



(Tightening torque: 5 ± 1 N·m)

b. Using an interior crow plate, pry up the claws of



A-pillar lower protector assembly, and remove the



A-pillar lower protector assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the A-pillar lower protector

assembly.

 Appropriate force should be applied when removing the A-pillar lower protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the A-pillar lower protector

assembly.

RT21490110

CAUTION

 A-pillar lower protector assembly and front door opening weatherstrip should be fitted closely after

installing A-pillar lower protector assembly.

49–

20

49

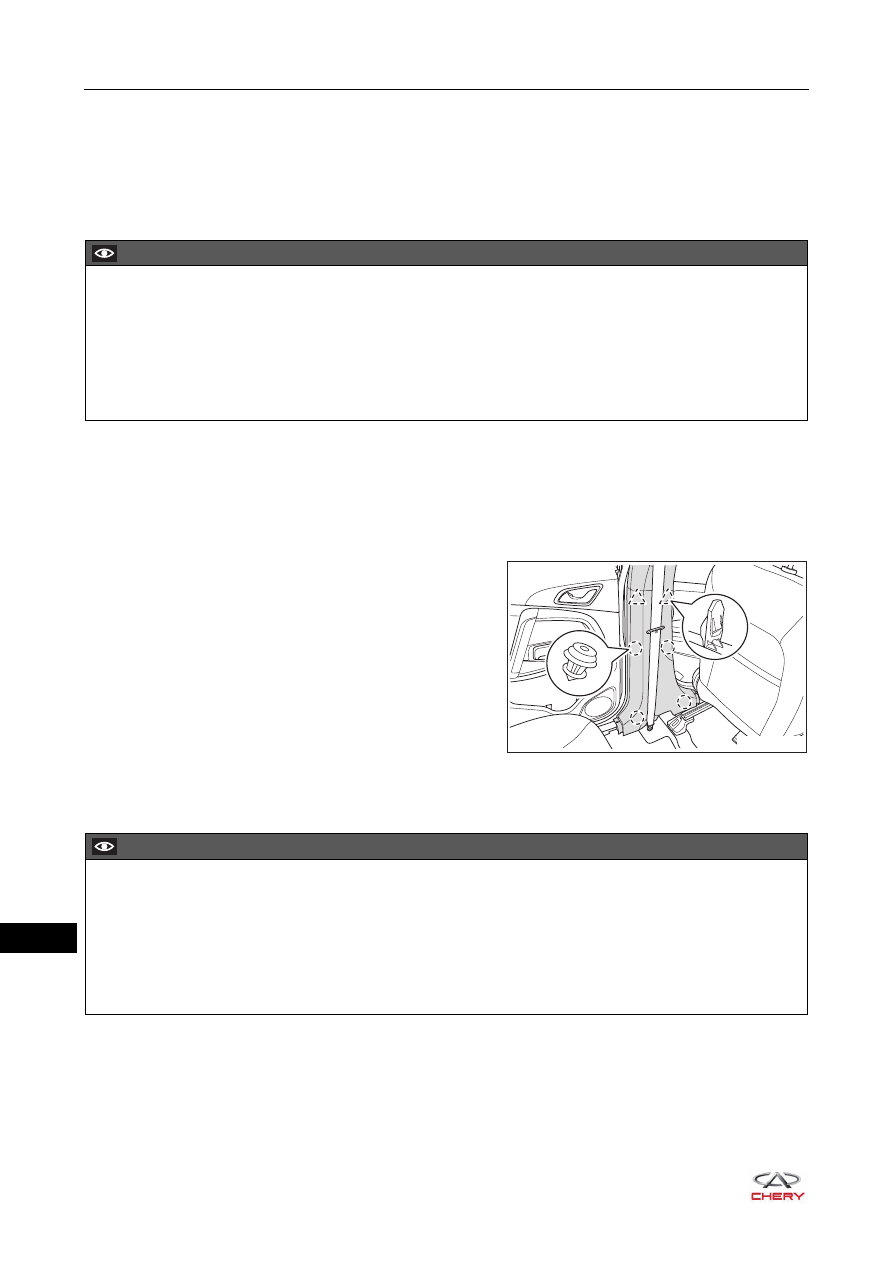

B-pillar Lower Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the front left doorsill pressure plate assembly (

See page 49-11

).

2. Remove the front left door opening weatherstrip (

See page 49-14

).

3. Remove the rear left doorsill pressure plate assembly (

See page 49-12

).

4. Remove the rear left door opening weatherstrip (

See page 49-15

).

5. Remove the left B-pillar lower protector assembly.

a. Using an interior crow plate, pry off the clips from the

B-pillar protector assembly, and remove the left



B-pillar lower protector assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the B-pillar lower protector

assembly.

 Appropriate force should be applied when removing the B-pillar lower protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the B-pillar lower protector

assembly.

RT21490120

CAUTION

 Make sure damaged clips are replaced and B-pillar lower protector assembly is installed in place when

installing B-pillar lower protector assembly.

 B-pillar lower protector assembly and front and rear door opening weatherstrips should be fitted closely

after installing B-pillar lower protector assembly.

 B-pillar lower protector assembly and front and rear doorsill pressure plate assemblies should be fitted

closely after installing B-pillar lower protector assembly.

49–

21

49

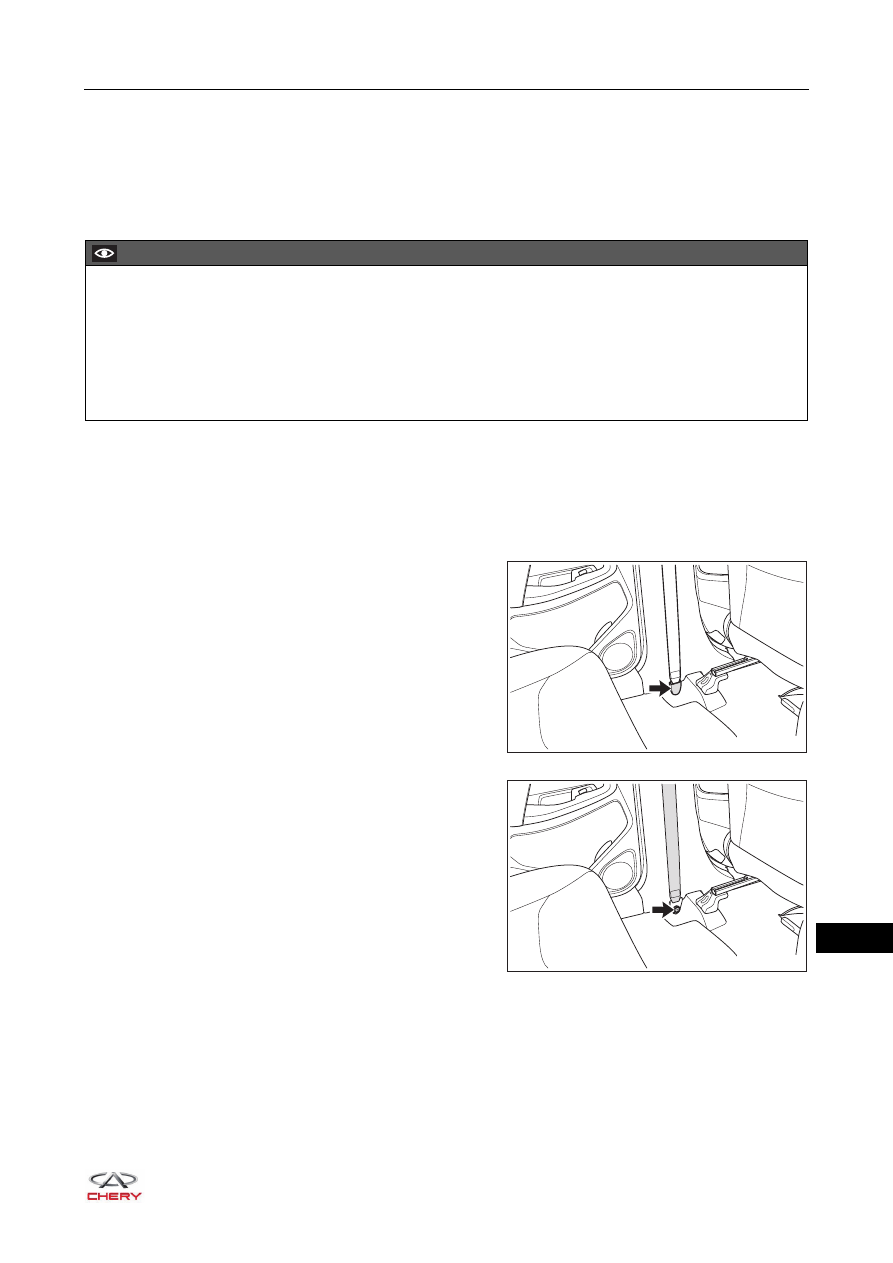

B-pillar Upper Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the front left doorsill pressure plate assembly (

See page 49-11

).

2. Remove the front left door opening weatherstrip (

See page 49-14

).

3. Remove the rear left doorsill pressure plate assembly (

See page 49-12

).

4. Remove the rear left door opening weatherstrip (

See page 49-15

).

5. Loosen the lower part of front seat belt assembly.

a. Using a screwdriver wrapped with protective tape, pry

off the front seat belt assembly lower bolt protective
cap (arrow).

b. Remove the fixing bolt (arrow) from the lower part of

front seat belt assembly.



(Tightening torque: 50 ± 5 N·m)

6. Remove the left B-pillar lower protector assembly (

See page 49-20

).

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the B-pillar upper protector

assembly.

 Appropriate force should be applied when removing the B-pillar upper protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the B-pillar upper protector

assembly.

RT21490330

RT21490340

49–

22

49

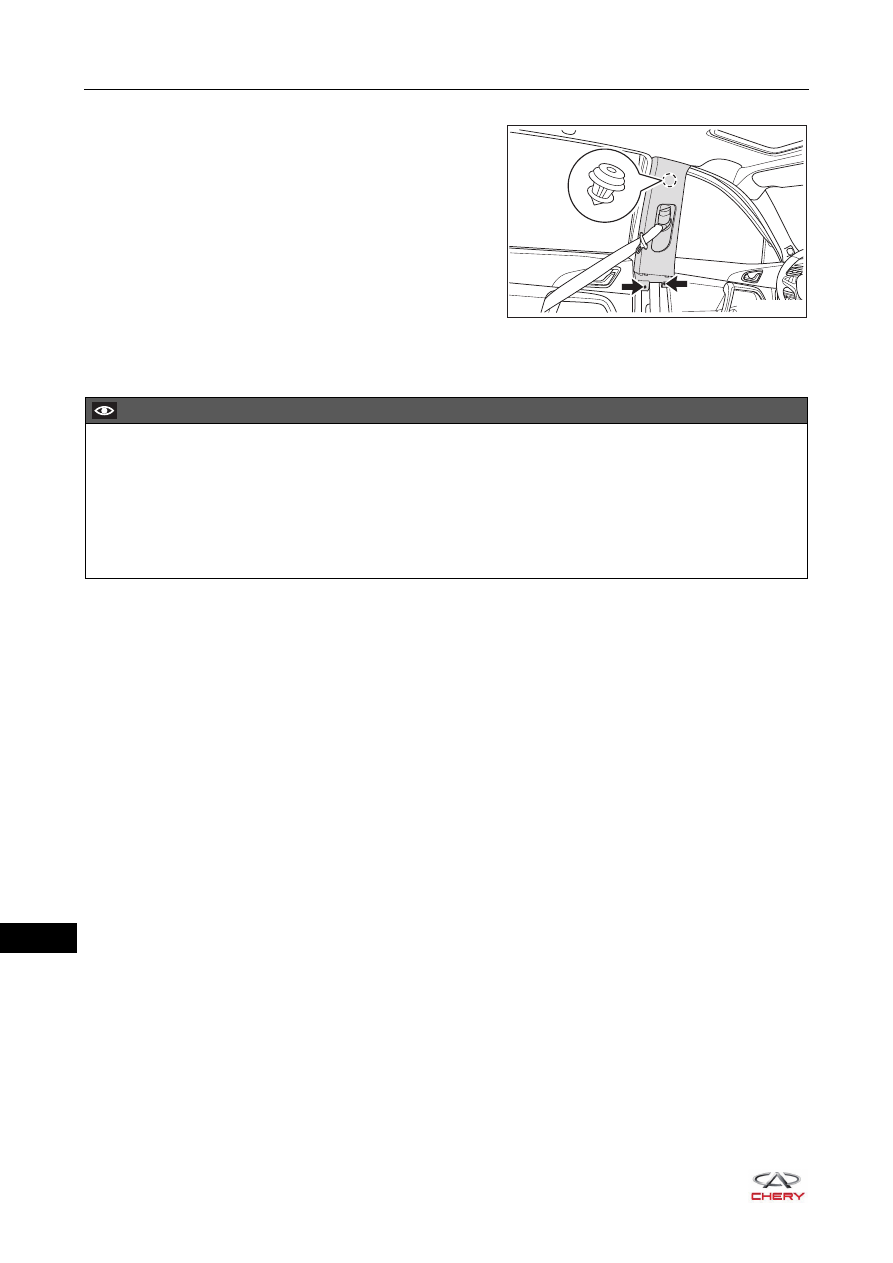

7. Remove the left B-pillar upper protector assembly.

a. Remove 2 fixing screws (arrow) from the B-pillar

upper protector assembly.



(Tightening torque: 1.5 ± 1 N·m)

b. Using an interior crow plate, pry off the clip from the



B-pillar upper protector assembly, pull out the front
seat belt from the B-pillar upper protector assembly,
and remove the left B-pillar upper protector assembly.

Installation

Installation is in the reverse order of removal.

RT21490130

CAUTION

 Make sure damaged clip are replaced and B-pillar upper protector assembly is installed in place when

installing B-pillar upper protector assembly.

 B-pillar upper protector assembly and front and rear door opening weatherstrips should be fitted closely

after installing B-pillar upper protector assembly.

 B-pillar upper protector assembly and B-pillar lower protector assembly and roof headlining should be

fitted closely after installing B-pillar upper protector assembly.
