Chery Tiggo 5 (T21). Manual - part 526

49–

15

49

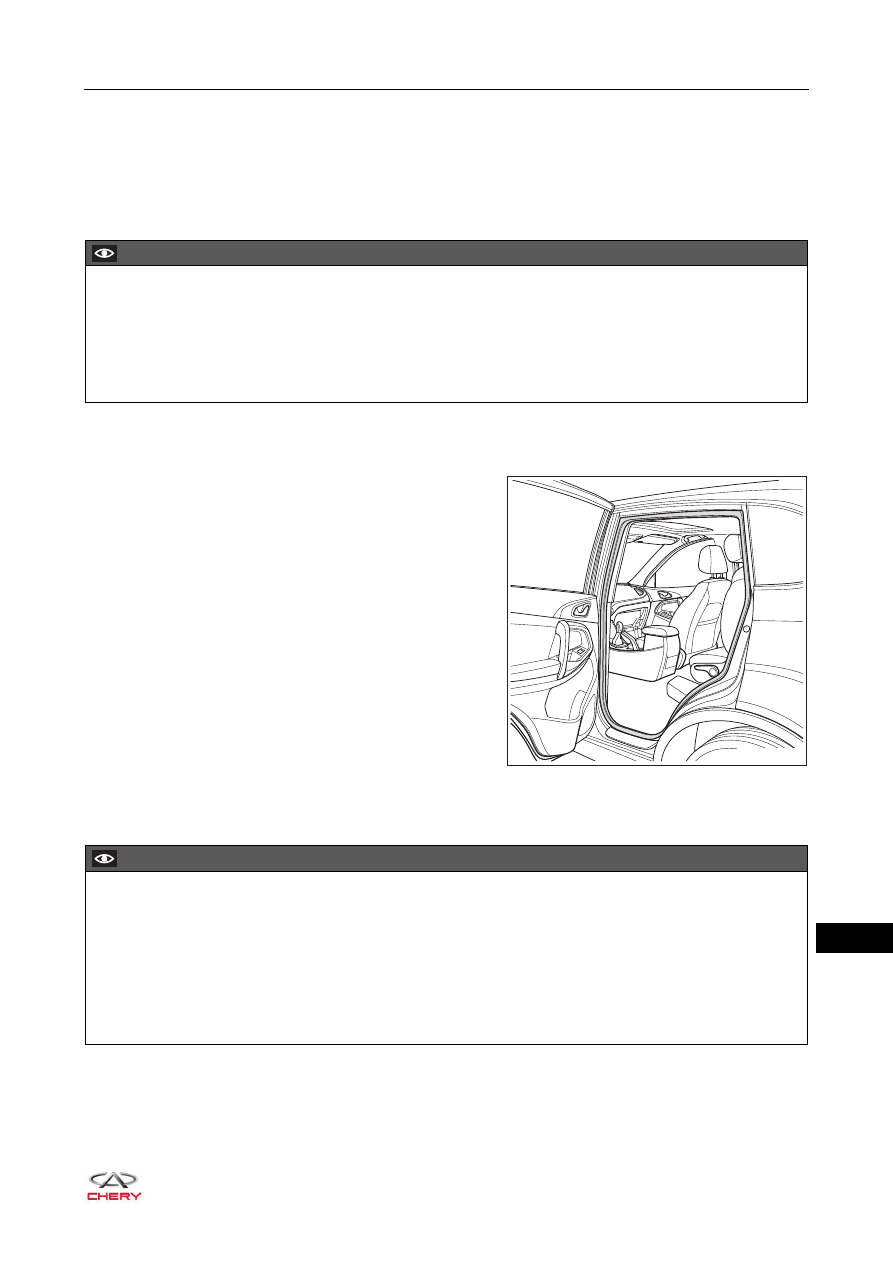

Rear Door Opening Weatherstrip

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the rear left doorsill pressure plate assembly (

See page 49-12

).

2. Remove the rear left door opening weatherstrip.

a. Remove the rear left door opening weatherstrip by

gently pulling it along edges from one corner of the
rear door opening weatherstrip.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the rear door opening

weatherstrip.

 Appropriate force should be applied when removing the rear door opening weatherstrip, and avoid

operating roughly.

 DO NOT damage the rear door opening weatherstrip when removing it.

RT21490190

CAUTION

 The rear door opening weatherstrip and body should be properly fitted with a certain degree of gripping

force and the weatherstrip should not fall off easily when installing the rear door opening weatherstrip.

 When installing the rear door opening weatherstrip, tap all around uniformly with a rubber hammer to

install it in place. The surface of weatherstrip should have no defects, such as tapped dents, deformation
and warpage after installation.

 After installing the rear door opening weatherstrip, do not remove or install it unless it is necessary; or the

weatherstrip holding force of installation may be reduced.

49–

16

49

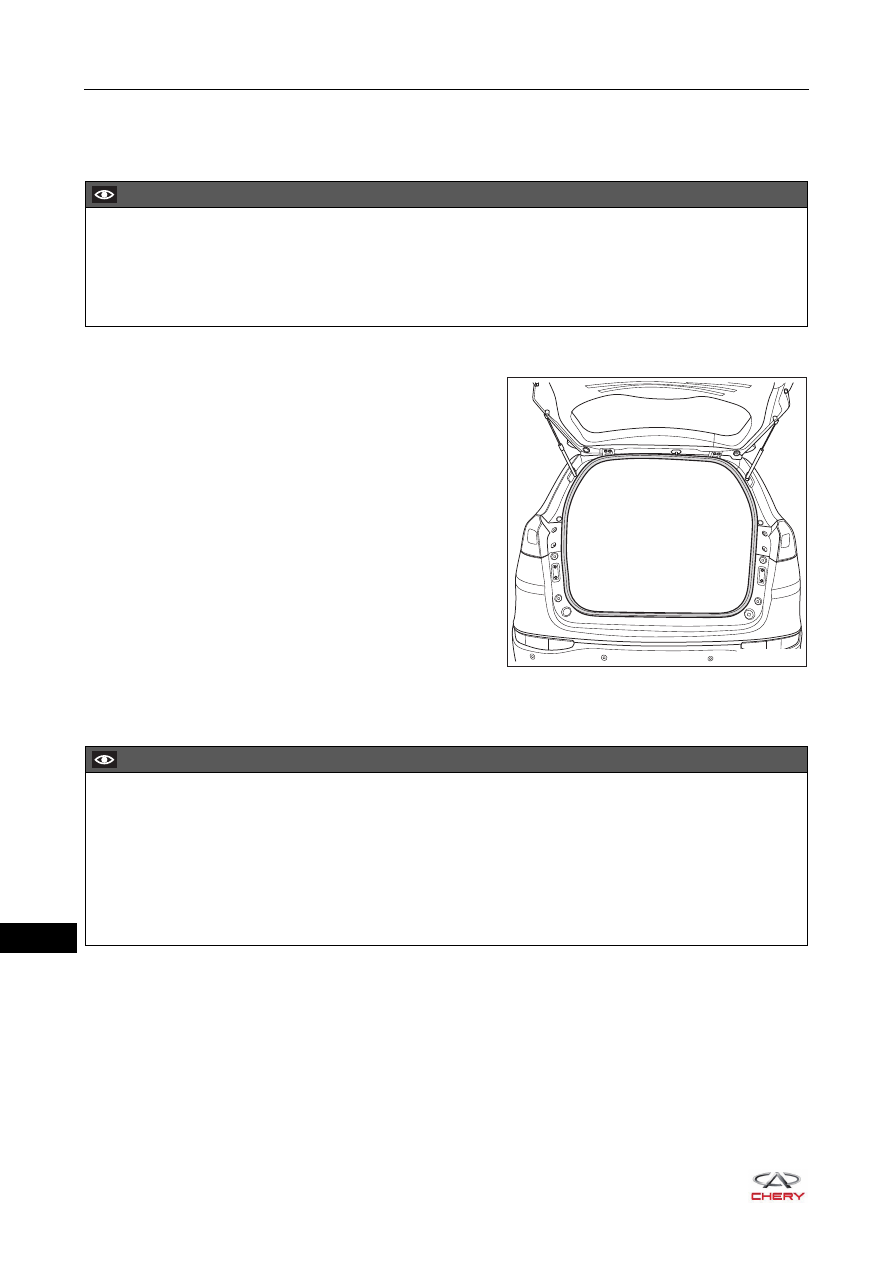

Back Door Weatherstrip

Removal

1. Remove the back door weatherstrip.

a. Remove the back door weatherstrip by gently pulling it

along edges from one corner of the back door
weatherstrip.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the back door weatherstrip.
 Appropriate force should be applied when removing the back door weatherstrip, and avoid operating

roughly.

 DO NOT damage the back door weatherstrip when removing it.

RT21490200

CAUTION

 The back door weatherstrip and body should be properly fitted with a certain degree of gripping force and

the weatherstrip should not fall off easily when installing the back door weatherstrip.

 When installing the back door weatherstrip, tap all around uniformly with a rubber hammer to install it in

place. The surface of weatherstrip should have no defects, such as tapped dents, deformation and
warpage after installation.

 After installing the back door weatherstrip, do not remove or install it unless it is necessary; or the

weatherstrip holding force of installation may be reduced.

49–

17

49

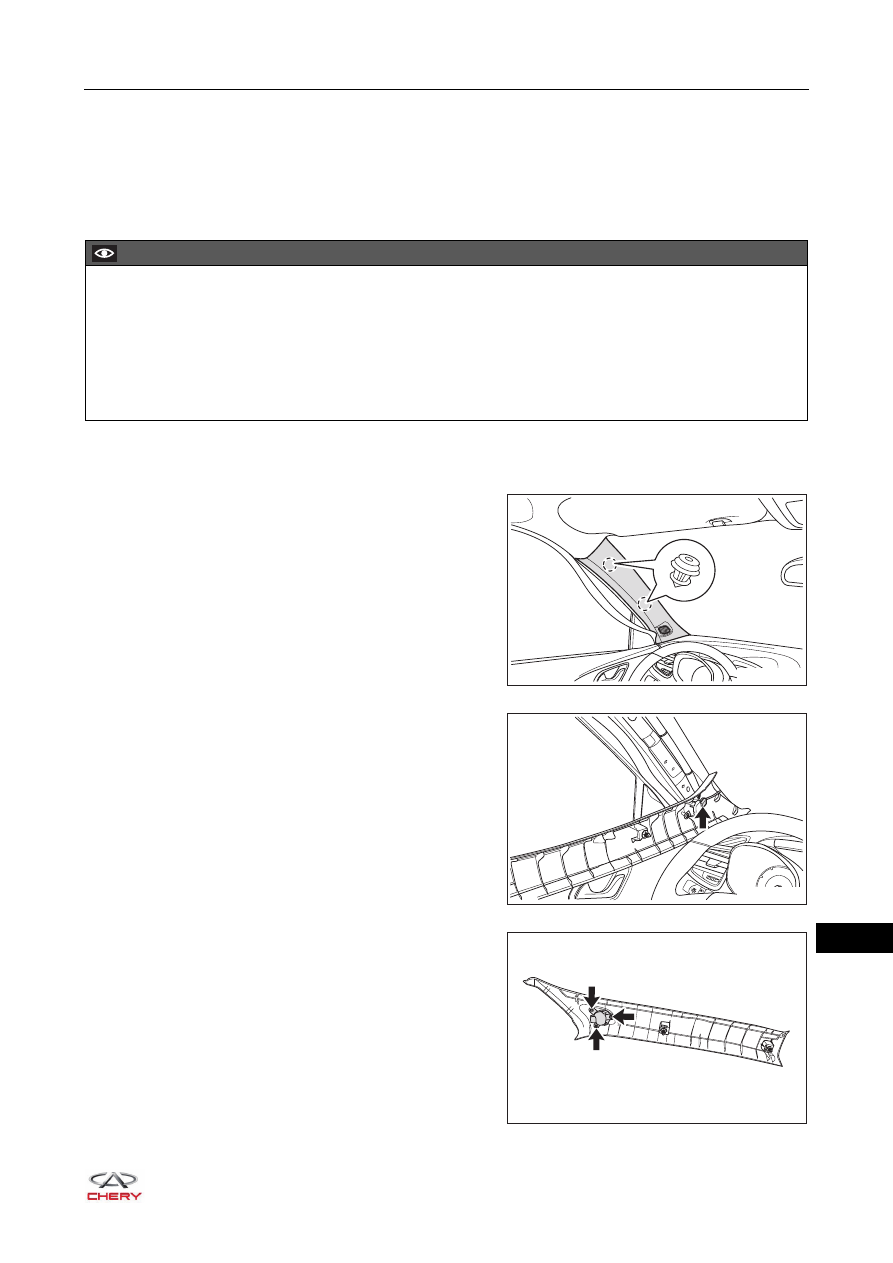

A-pillar Upper Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the front left door opening weatherstrip (

See page 49-14

).

2. Remove the left A-pillar upper protector assembly.

a. Using an interior crow plate, pry off the clips from the

A-pillar upper protector assembly.

b. Disconnect the high pitched speaker connector

(arrow), and remove the left A-pillar protector
assembly.

c. Remove 3 fixing screws (arrow) from the high pitched

speaker assembly.



(Tightening torque: 3 ± 0.5 N·m)

d. Remove the high pitched speaker assembly from the

A-pillar protector assembly.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the A-pillar upper protector

assembly.

 Appropriate force should be applied when removing the A-pillar upper protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the A-pillar upper protector

assembly.

RT21490100

1

2

3

4

5

RT21490101

RT21490102

49–

18

49

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure damaged clips are replaced and A-pillar upper protector assembly is installed in place when

installing A-pillar upper protector assembly.

 A-pillar upper protector assembly and front door opening weatherstrip should be fitted closely after

installing A-pillar upper protector assembly.

 A-pillar upper protector assembly and instrument panel and roof headlining should be fitted closely after

installing A-pillar upper protector assembly.
