49–

31

49

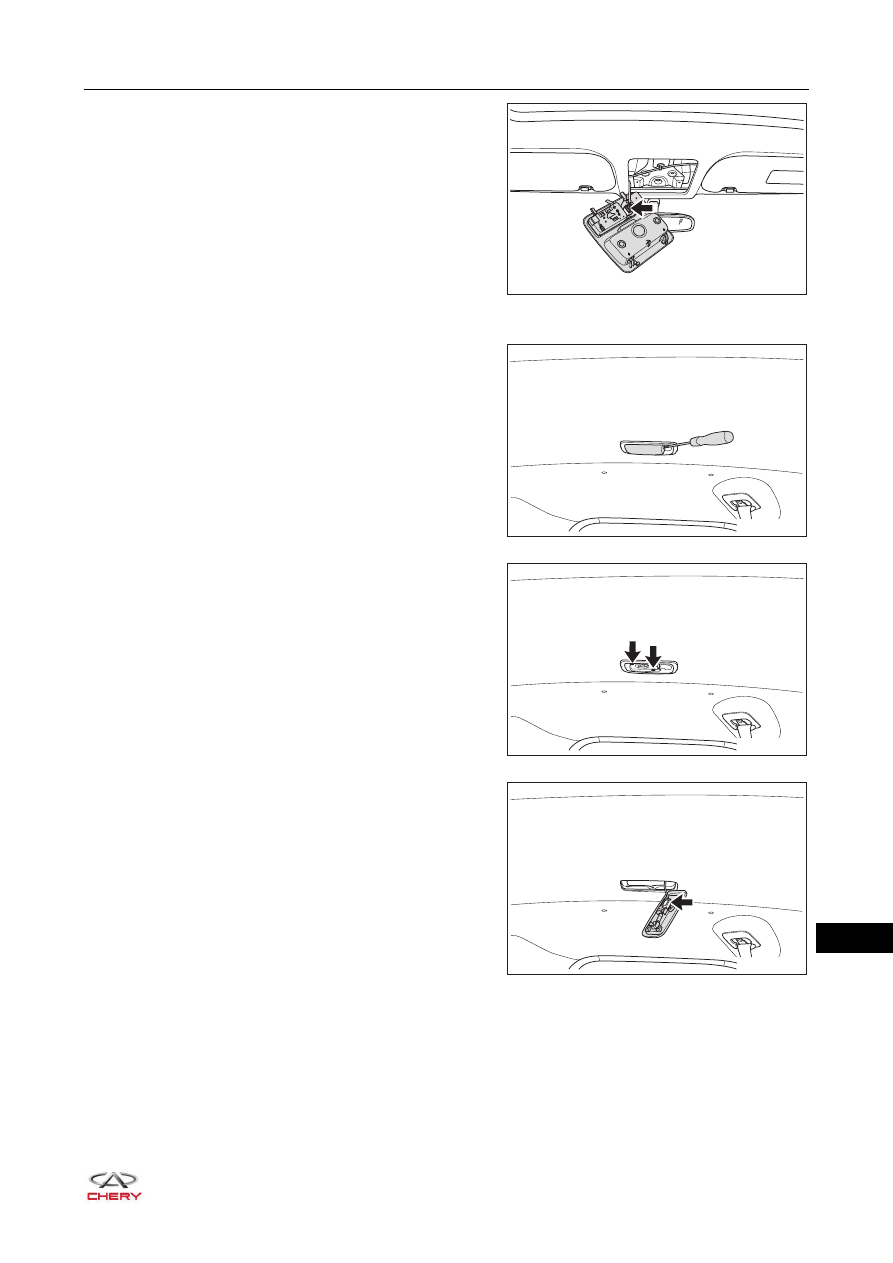

d. Disconnect the interior front dome light connector

(arrow), and remove the interior front dome light
assembly.

4. Remove the interior rear dome light assembly.

a. Using a screwdriver wrapped with protective tape,

remove the interior rear dome light cover.

b. Remove 2 fixing screws (arrow) from the interior rear

dome light assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

c. Disconnect the interior rear dome light connector

(arrow), and remove the interior rear dome light
assembly.

RT21490280

RT21490290

RT21490300

RT21490310

49–

32

49

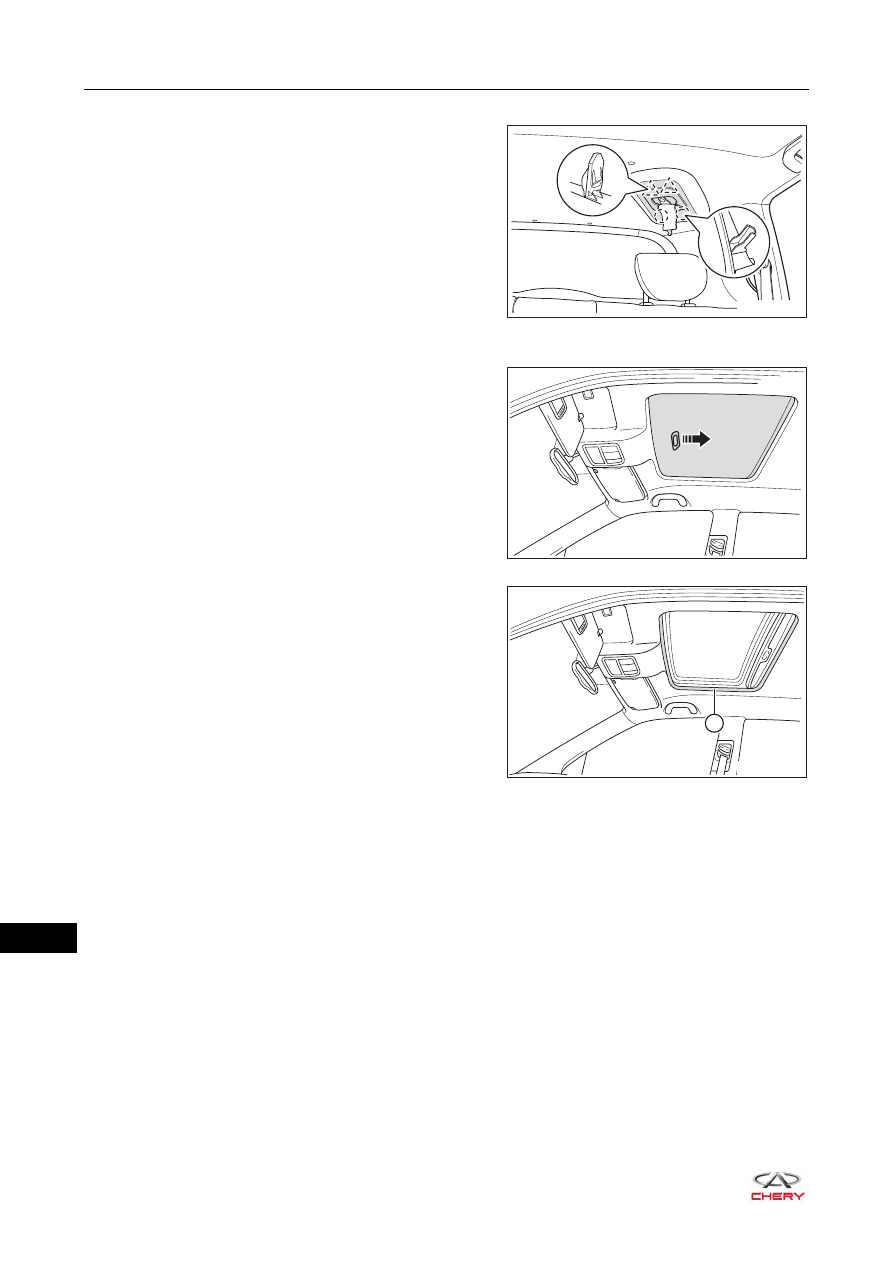

5. Remove the center seat belt outer trim cover.

a. Using a screwdriver wrapped with protective tape, pry

up the clips of center seat belt outer trim cover, and
remove the center seat belt outer trim cover.

6. Remove the sunroof weatherstrip (if equipped).

a. Open the sunroof in the direction of arrow as shown in

the illustration.

b. Remove the sunroof weatherstrip (1) by gently pulling

it along edges from one corner of the sunroof
weatherstrip.

7. Remove the sun visor assembly (

See page 49-28

).

8. Remove the passenger grip assembly (

See page 49-29

).

9. Remove the front doorsill pressure plate assembly (

See page 49-11

).

10.Remove the front door opening weatherstrip (

See page 49-14

).

11.Remove the rear doorsill pressure plate assembly (

See page 49-12

).

12.Remove the rear door opening weatherstrip (

See page 49-15

).

13.Remove the A-pillar upper protector assembly (

See page 49-17

).

14.Remove the B-pillar upper protector assembly (

See page 49-21

).

15.Remove the C-pillar upper protector assembly (

See page 49-26

).

RT21490311

RT21470460

RT21490470

1

49–

33

49

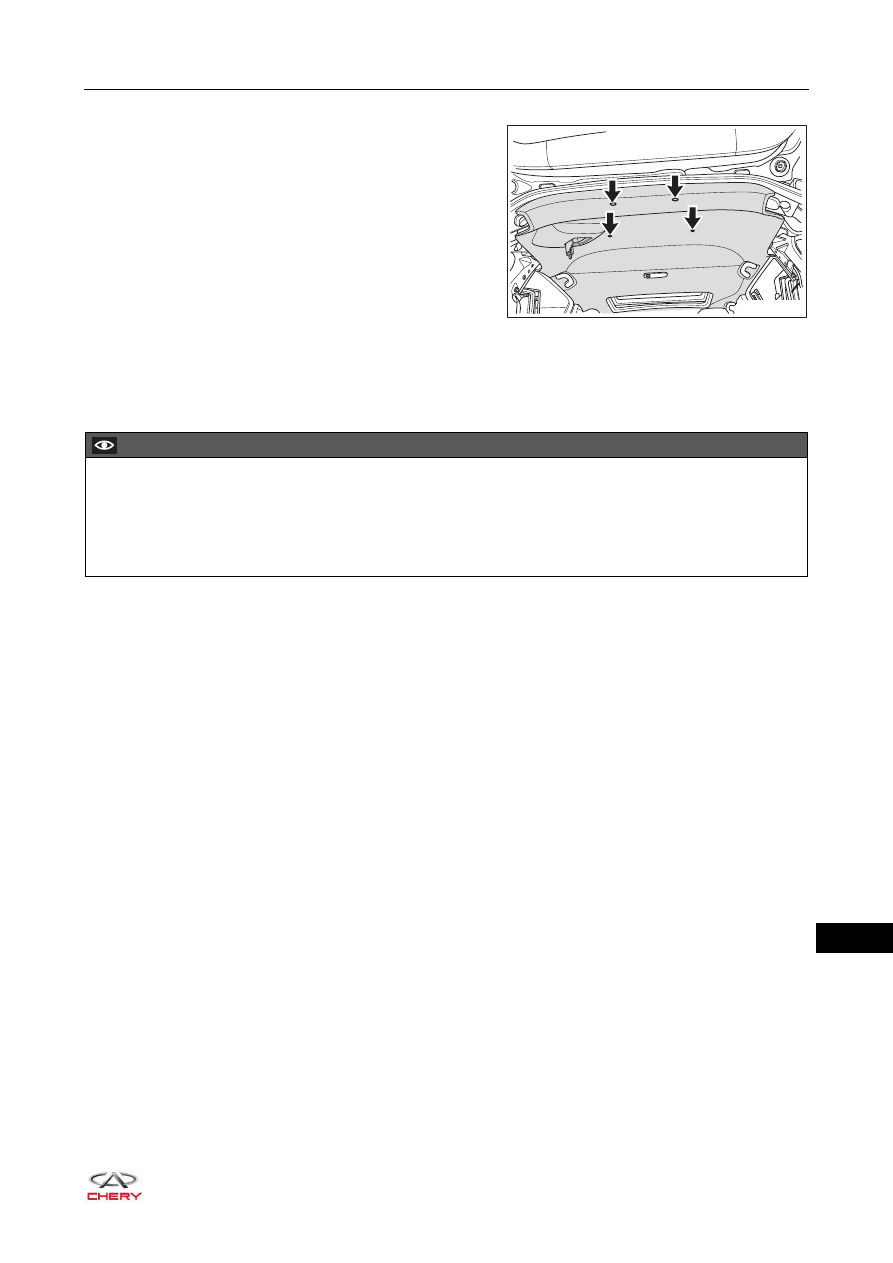

16.Remove the roof assembly.

a. Remove 4 clips (arrow) from the roof assembly.

b. Take out the roof assembly from the back door.

Installation

Installation is in the reverse order of removal.

RT21490320

CAUTION

 Make sure damaged clips are replaced and roof assembly is installed in place when installing roof

assembly.

 Roof assembly and pillar upper protectors should be fitted closely when installing roof assembly.
 Roof assembly and door opening weatherstrips should be fitted closely after installing roof assembly.

49–

34

49

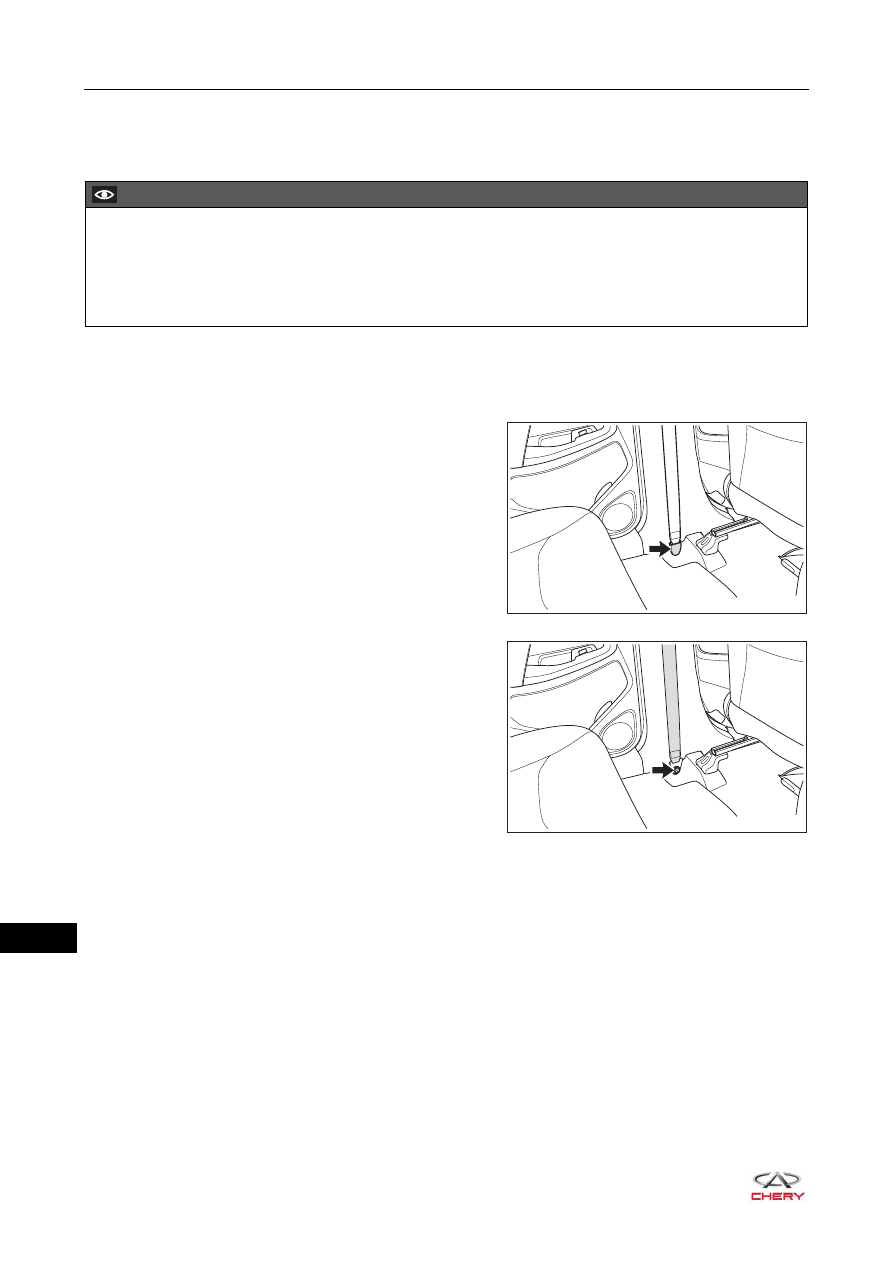

Front Floor Carpet Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Loosen the lower part of front seat belt assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the front seat belt assembly lower bolt protective
cap (arrow).

b. Remove the fixing bolt (arrow) from the lower part of

front seat belt assembly.



(Tightening torque: 50 ± 5 N·m)

4. Remove the auxiliary fascia console assembly (

See page 45-9

).

5. Remove the front seat assembly (

See page 46-12

).

6. Remove the rear seat assembly (

See page 46-25

).

7. Remove the front doorsill pressure plate assembly (

See page 49-11

).

8. Remove the front door opening weatherstrip (

See page 49-14

).

9. Remove the rear doorsill pressure plate assembly (

See page 49-12

).

10.Remove the rear door opening weatherstrip (

See page 49-15

).

11.Remove the A-pillar lower protector assembly (

See page 49-19

).

12.Remove the B-pillar lower protector assembly (

See page 49-20

).

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the front floor carpet assembly.
 Appropriate force should be applied when removing the front floor carpet assembly. Be careful not to

operate roughly.

 Avoid damage to the interior and body paint when removing the front floor carpet assembly.

RT21490330

RT21490340
