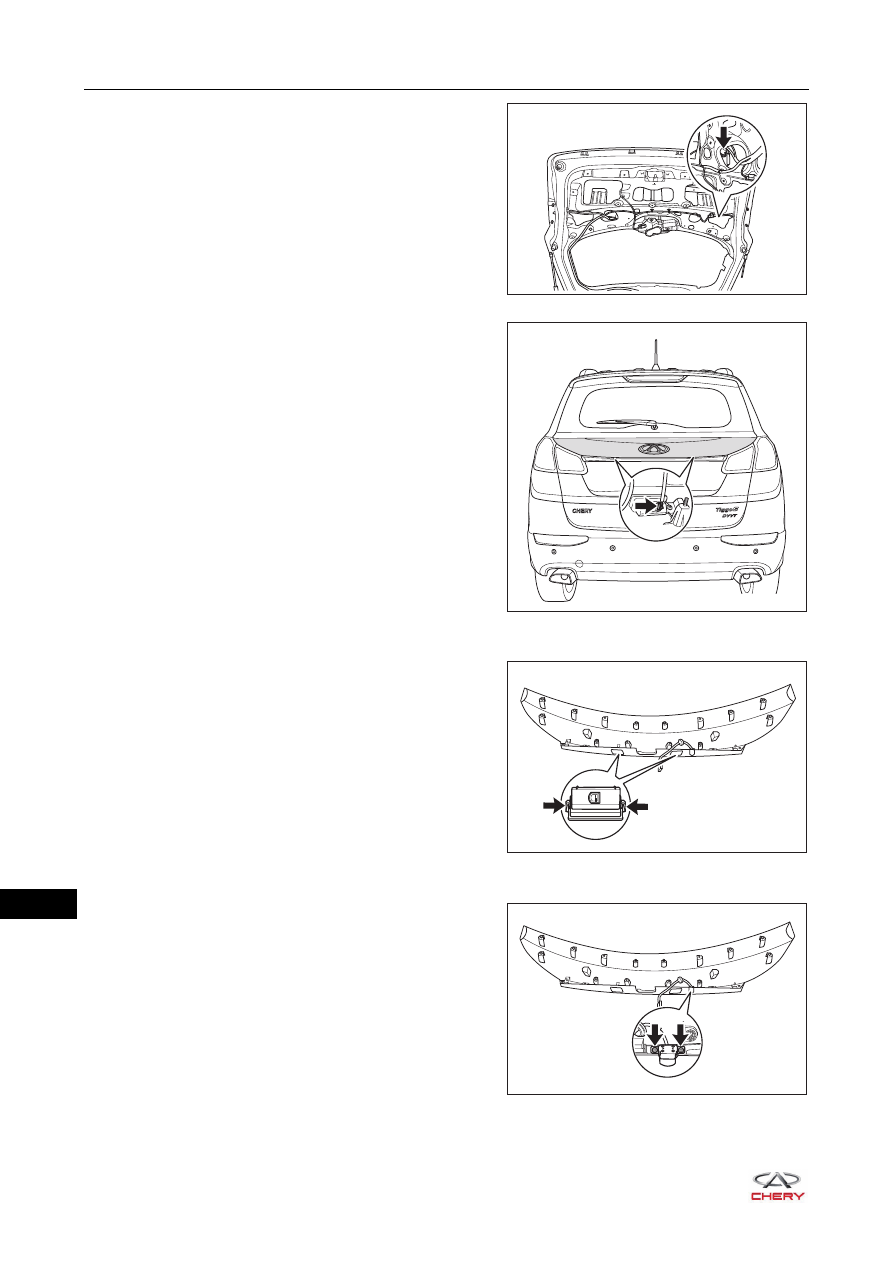

d. Disconnect the camera connector (arrow).

e. Disconnect the license plate light connector (arrow),

and remove the back door upper trim board assembly.

5. Remove the license plate light.

a. Press the claws on license plate light in the direction

of arrow as shown in the illustration.

b. Remove the license plate light from the back door

upper trim board assembly.

6. Remove the camera.

a. Remove 2 fixing screws (arrow) from the camera, and

remove the camera.

(Tightening torque: 6 ± 0.5 N·m)

b. Remove the camera from the back door upper trim

board assembly.

RT21370260

RT21370290

RT21480610

RT21480600

48–

48

48

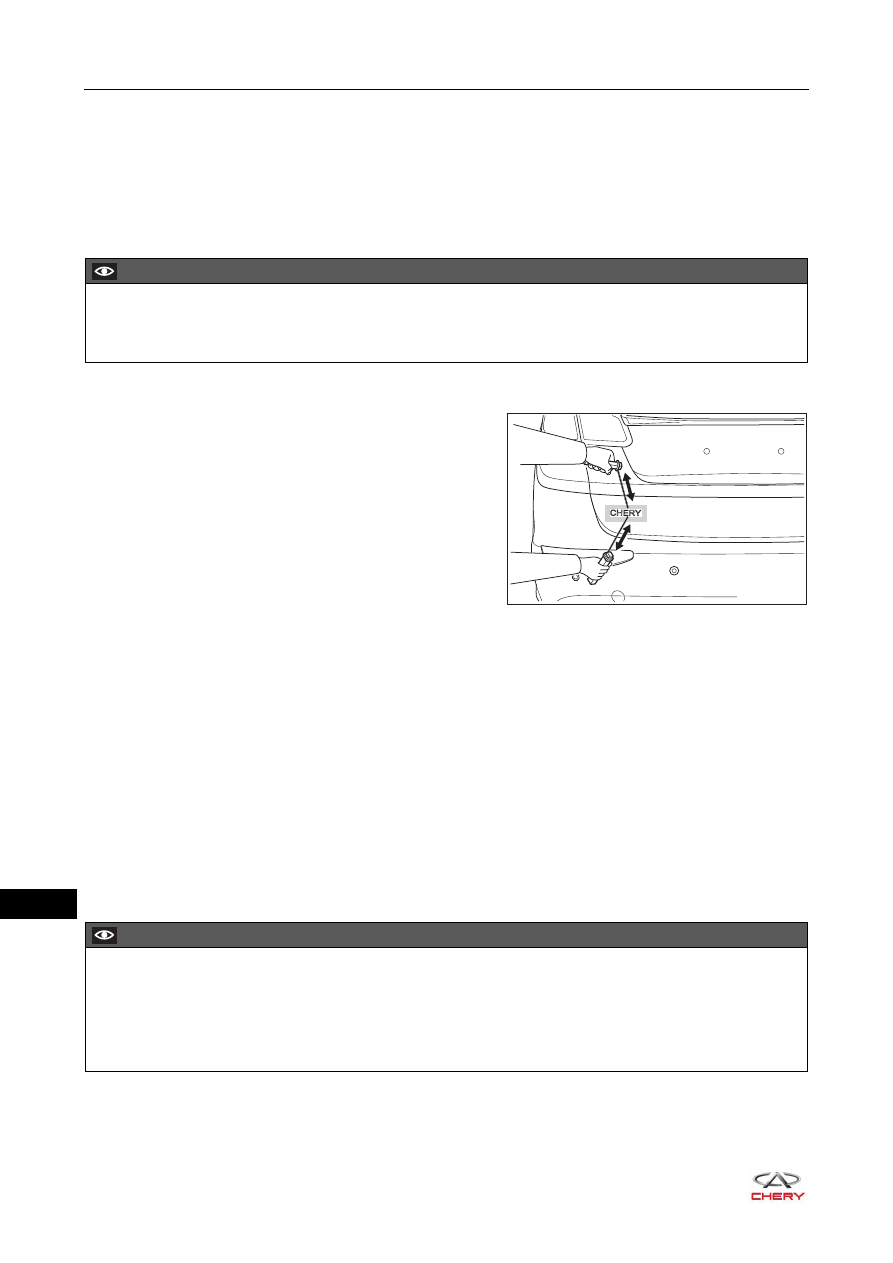

Name Plate

Removal

HINT:

 Use the same operation procedures for rear name plate "CAC", name plate "DVVT", name plate "Tiggo5"

and name plate "CHERY".

 Procedures listed below are for name plate "CHERY".

1. Remove the name plate "CHERY".

a. Attach protective tape around the name plate

"CHERY".

b. Insert a piano wire between body and name plate

"CHERY".

c. Tie both piano wire ends to objects (such as wooden

blocks) that can serve as handles.

d. Pull the piano wire to remove the double-sided tape

that holds the name plate on the body.

e. Remove the name plate "CHERY".

Installation

1. Clean the body surface.

a. Using a heat light, heat body surface, and remove double-sided tape on the body.
b. Wipe off all tape adhesive residues with cleaner.

2. Clean name plate "CHERY" (if name plate "CHERY" is to be reused).

a. Using a heat light, heat name plate, and remove double-sided tape on name plate "CHERY".
b. Wipe off all tape adhesive residues with cleaner.
c. Apply new double-sided tape to name plate "CHERY".

3. Install name plate "CHERY".

a. Using a heat light, heat body and name plate "CHERY".
b. Remove release paper from name plate "CHERY" and install name plate "CHERY" in place.

CAUTION

 If name plate "CHERY" is to be reused, be careful not to damage it.
 When removing name plate "CHERY", prevent the interior and body paint from being scratched.

RT21480550

CAUTION

 DO NOT overheat the body and name plate.
 DO NOT remove release paper on name plate in advance.
 DO NOT touch name plate adhesive surface with hands.
 After removing release paper, prevent foreign matter from attaching on outside adhesive.

48–

49

48

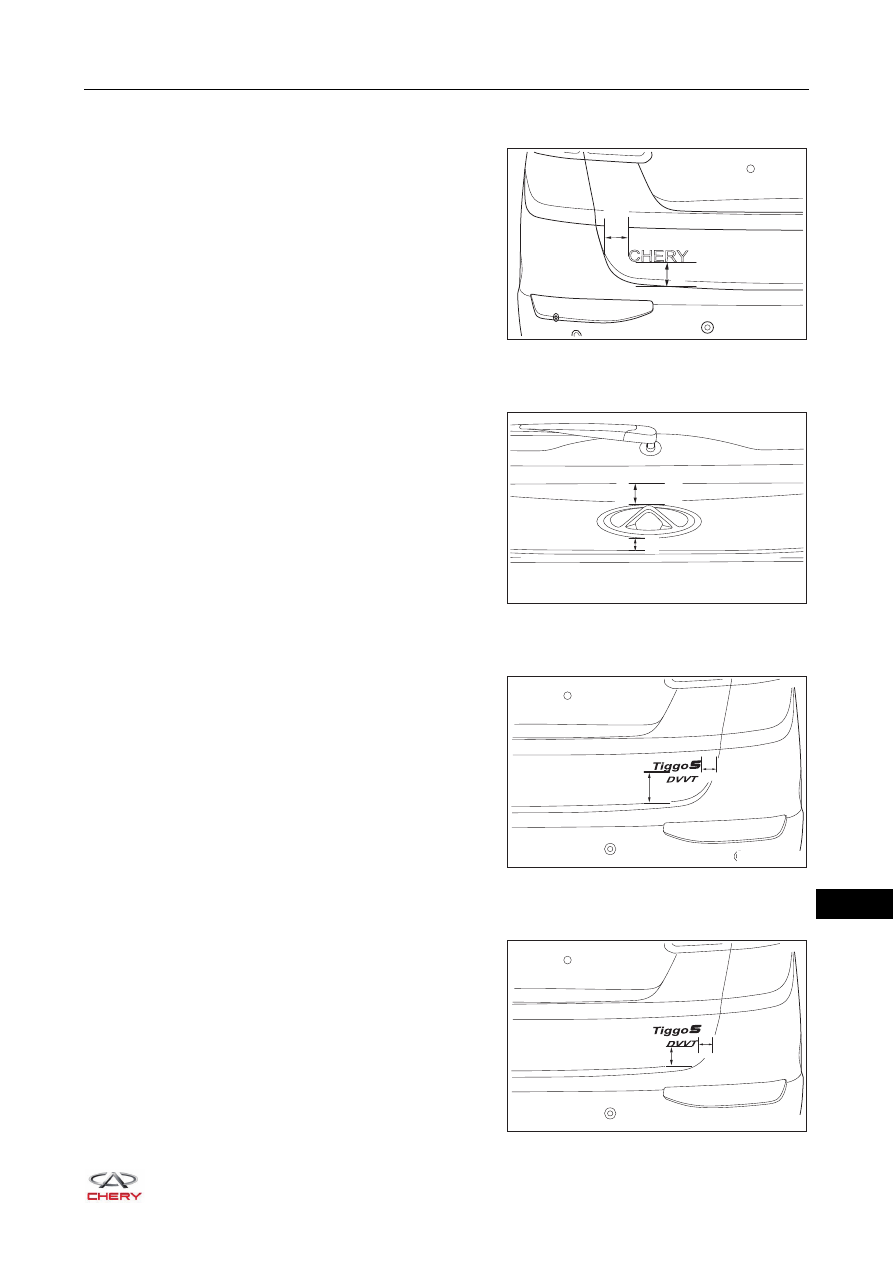

4. Installation distance ranges for name plate "CHERY" are as follows:

a. When attaching name plate "CHERY", keep it horizontal and centered.
b. Vertical distance "a" between left side of name plate

"CHERY" and left side of back door door is 3.3 ± 2 mm.

c. Vertical distance "b" between lower side of name

plate "CHERY" and lower side of back door door is
10.1 ± 2 mm.

5. Installation distance ranges for rear name plate "CAC" are as follows:

a. When attaching rear name plate "CAC", keep it horizontal and centered.
b. Vertical distance "a" between upper side of name

plate "CAC" and upper side of back door upper trim
board is 3.0 ± 2 mm.

c. Vertical distance "b" between lower side of name plate

"CAC" and lower side of back door upper trim board is
4.4 ± 2 mm.

6. Installation distance ranges for name plate "Tiggo5" are as follows:

a. When attaching "Tiggo5" name plate, keep it horizontal and centered.
b. Vertical distance "a" between lower side of name plate

"Tiggo5" and lower side of back door door is 9.0 ± 2 mm.

c. Vertical distance "b" between right side of name

plate "Tiggo5" and right side of back door door is
3.7 ± 2 mm.

7. The installation distance ranges for the name plate "DVVT" are as follows:

a. When attaching "DVVT" name plate, keep it horizontal and centered.
b. Vertical distance "a" between lower side of name plate

"DVVT" and lower side of back door door is 5.8 ± 2 mm.

c. Vertical distance "b" between right side of name plate

"DVVT" and right side of back door door is 3.0 ± 2 mm.

RT21480560

a

b

RT21480570

a

b

a

b

RT21480580

a

b
