INTERIOR

GENERAL INFORMATION

Description

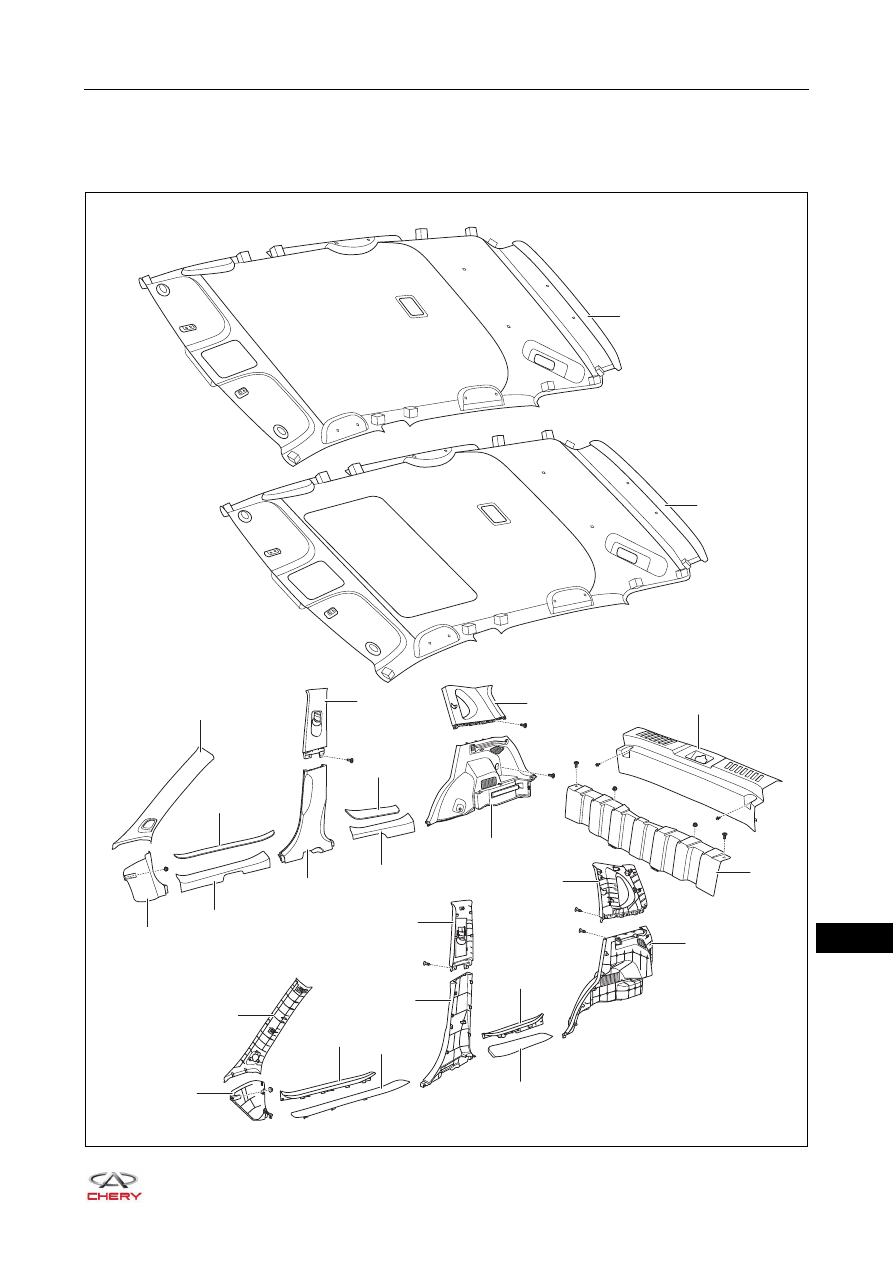

RT21490010

11

7

1

2

4

6

8

9

3

5

17

21

22

13

16

14

18

12

10

19

20

23

24

15

×2

×3

×3

×3

×5

×5

49–

4

49

1 - Roof Assembly (w/o Sunroof)

2 - Roof Assembly (w/ Sunroof)

3 - Right A-pillar Upper Protector Assembly

4 - Right A-pillar Lower Protector Assembly

5 - Front Right Door Scuff Plate Assembly

6 - Front Right Doorsill Pressure Plate Assembly

7 - Right B-pillar Upper Protector Assembly

8 - Right B-pillar Lower Protector Assembly

9 - Rear Right Door Scuff Plate Assembly

10 - Rear Right Doorsill Pressure Plate Assembly

11 - Right C-pillar Upper Protector Assembly

12 - Right C-pillar Lower Protector Assembly

13 - Back Doorsill Pressure Plate Assembly

14 - Back Door Baffle Plate Assembly

15 - Left C-pillar Upper Protector Assembly

16 - Left C-pillar Lower Protector Assembly

17 - Rear Left Doorsill Pressure Plate Assembly

18 - Rear Left Door Scuff Plate Assembly

19 - Left B-pillar Upper Protector Assembly

20 - Left B-pillar Lower Protector Assembly

21 - Front Left Doorsill Pressure Plate Assembly

22 - Front Left Door Scuff Plate Assembly

23 - Left A-pillar Upper Protector Assembly

24 - Left A-pillar Lower Protector Assembly

49–

5

49

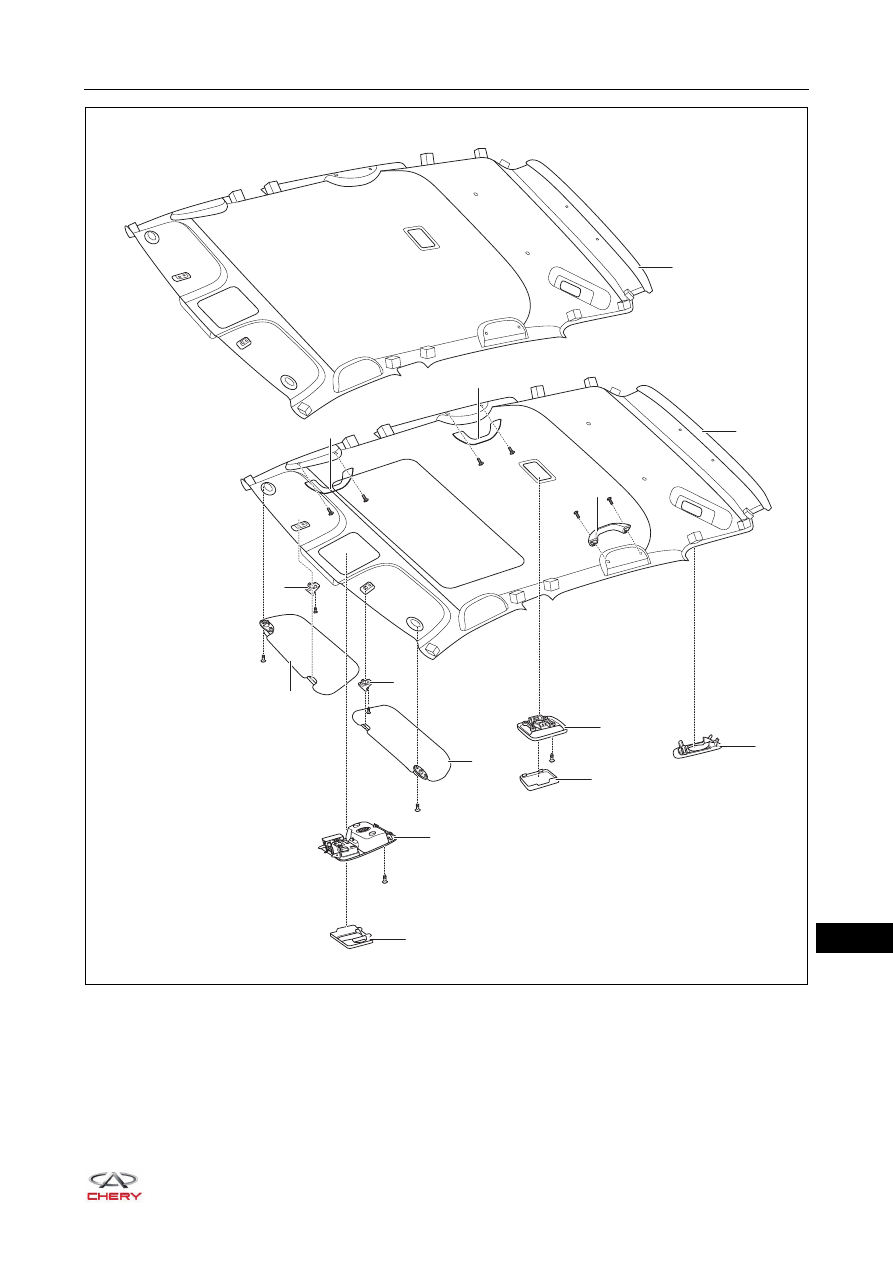

RT21490020

8

9

2

1

6

7

5

3

4

12

13

10

14

11

×2

×2

×3

×2

49–

6

49

1 - Roof Assembly (w/o Sunroof)

2 - Roof Assembly (w/ Sunroof)

3 - Rear Right Passenger Grip Assembly

4 - Front Right Passenger Grip Assembly

5 - Rear Left Passenger Grip Assembly

6 - Right Sun Visor Holder B

7 - Right Sun Visor Assembly

8 - Left Sun Visor Holder B

9 - Left Sun Visor Assembly

10 - Interior Front Dome Light Assembly

11 - Interior Front Dome Light Cover

12 - Interior Rear Dome Light Assembly

13 - Interior Rear Dome Light Cover

14 - Center Seat Belt Outer Trim Cover
