48–

38

48

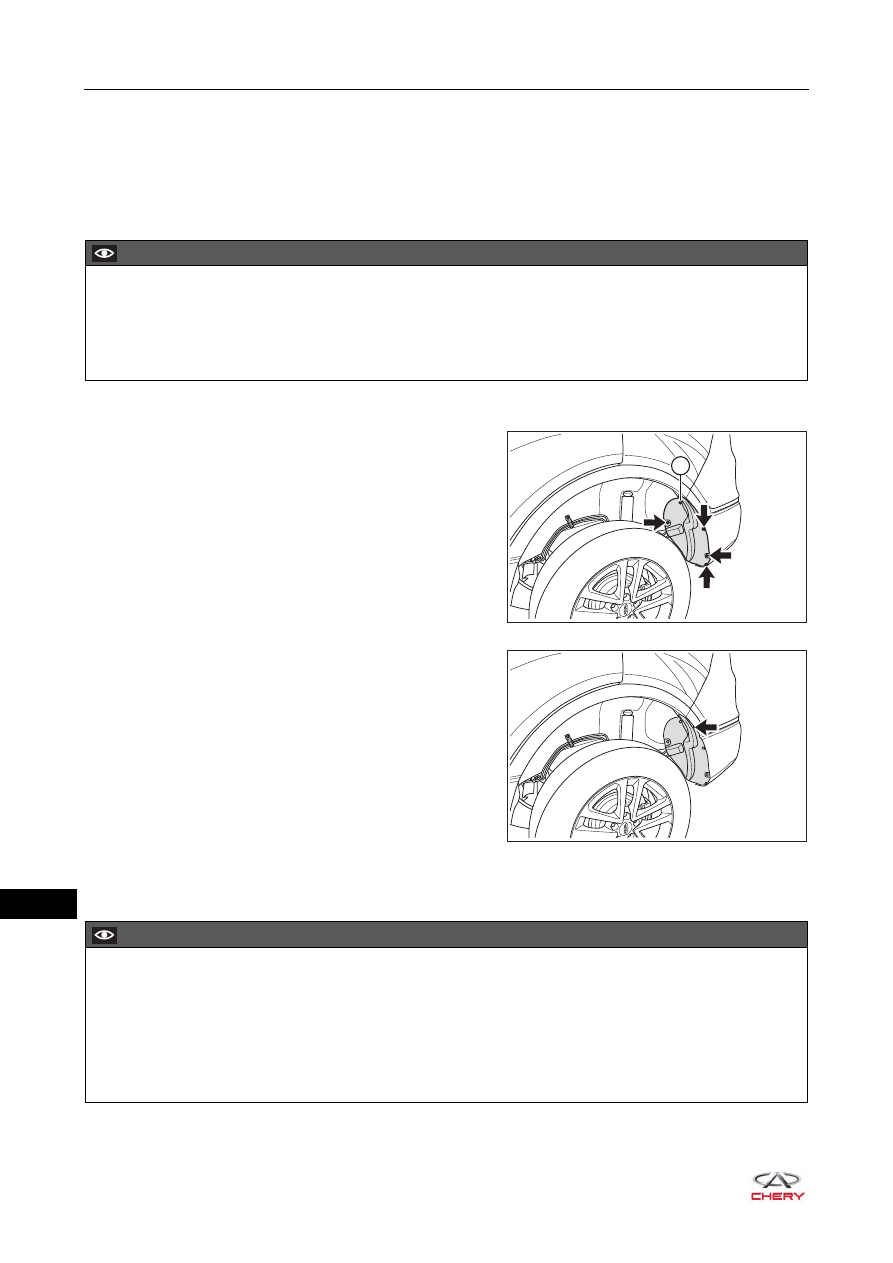

Rear Wheel House Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the rear left wheel house protector assembly.

a. Remove 4 plastic clips (arrow) from the rear left wheel

house protector assembly.

b. Remove the fixing screw (1) from the inner part of rear

left wheel house protector assembly.



(Tightening torque: 3 ± 1 N·m)

c. Remove the fixing screw (arrow) from the outer part of

rear left wheel house protector assembly.



(Tightening torque: 3 ± 1 N·m)

d. Remove the rear left wheel house protector assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear wheel house protector

assembly.

 Try to prevent body paint surface from being scratched when removing rear wheel house protector

assembly.

1

RT21480470

RT21480480

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing rear wheel house protector

assembly.

 Try to prevent body paint surface from being scratched when installing rear wheel house protector

assembly.

 Make sure damaged clips are replaced and rear wheel house protector assembly is installed in place

when installing rear wheel house protector assembly.

48–

39

48

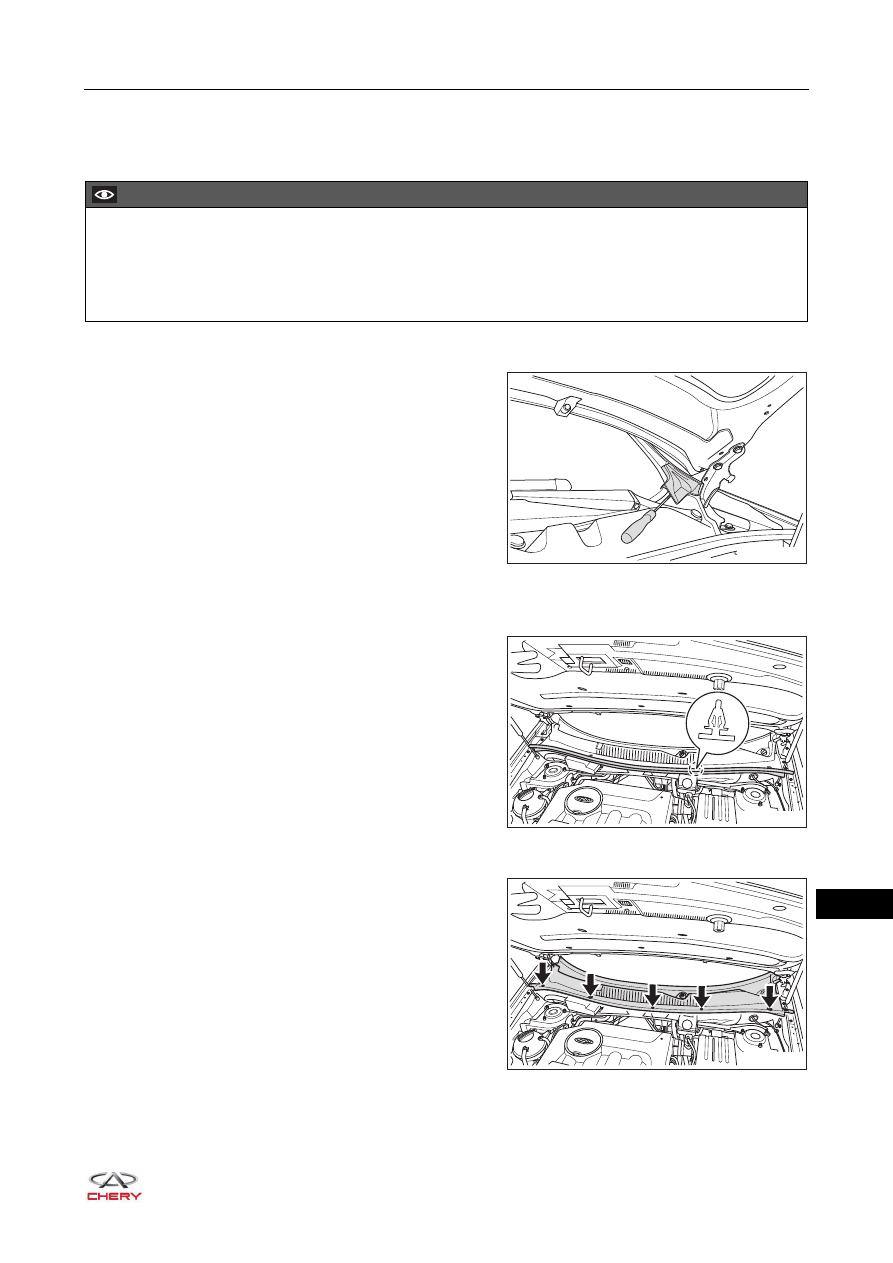

Front Windshield Lower Garnish Assembly

Removal

1. Remove the front windshield lower garnish left cover plate (take left side as an example).

a. Using a screwdriver wrapped with protective tape, pry

up the claws on front windshield lower garnish left
cover plate.

b. Remove the front windshield lower garnish left cover

plate.

2. Remove the front wiper arm assembly (

See page 36-24

).

3. Remove the front windshield lower garnish weatherstrip.

a. Remove the clip from the front windshield lower

garnish weatherstrip.

b. Remove the front windshield lower garnish

weatherstrip.

4. Remove the front windshield lower garnish assembly.

a. Remove 5 fixing screws (arrow) from the front

windshield lower garnish assembly, and remove the
front windshield lower garnish assembly.



(Tightening torque: 3 ± 1 N·m)

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front windshield lower garnish

assembly.

 Try to prevent body paint surface from being scratched when removing front windshield lower garnish

assembly.

RT21480490

RT21480500

RT21480510

48–

40

48

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front windshield lower garnish

assembly.

 Try to prevent body paint surface from being scratched when installing front windshield lower garnish

assembly.

48–

41

48

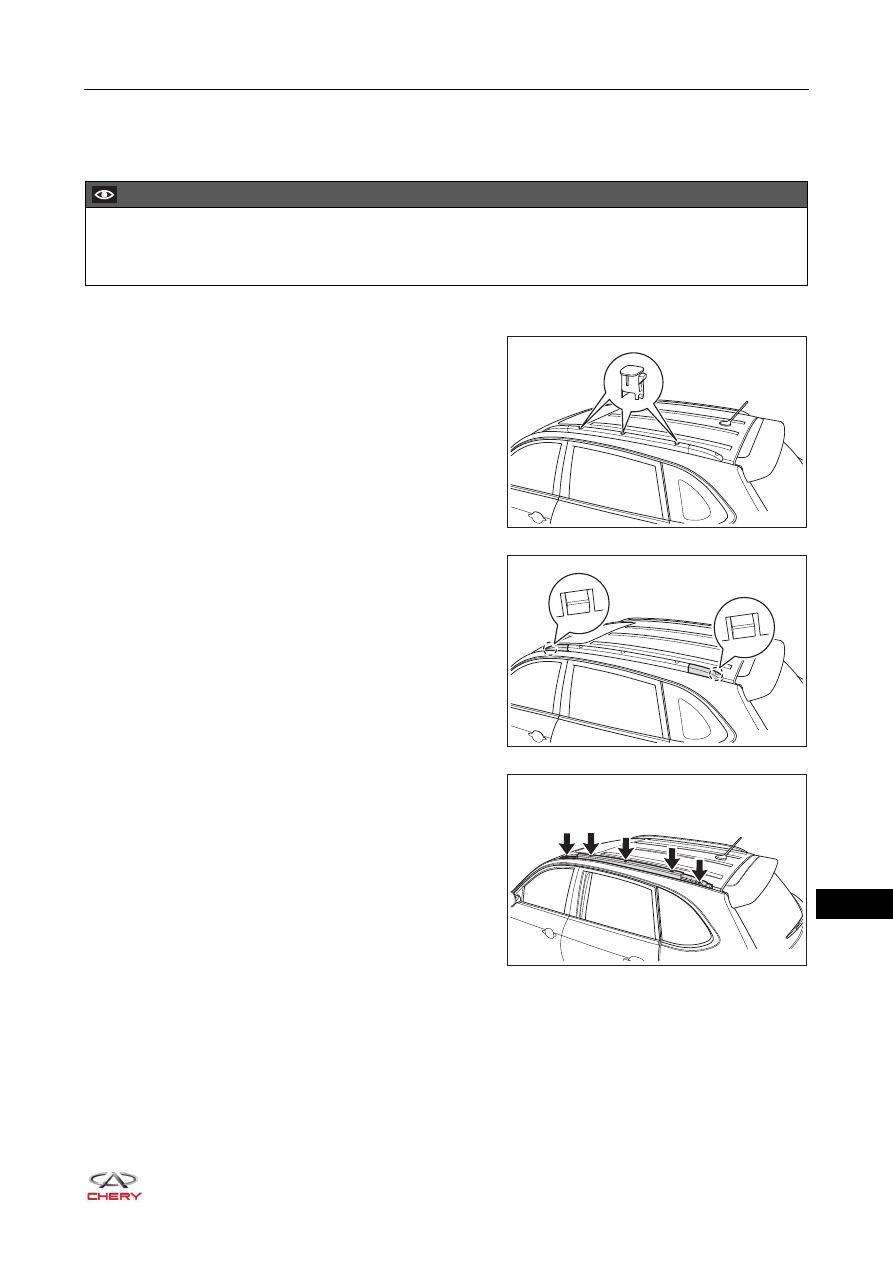

Roof Rack Assembly

Removal

1. Remove the roof rack assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on roof rack center trim cover and
remove the roof rack center trim cover.

b. Using a screwdriver wrapped with protective tape, pry

up the claws on roof rack front/rear trim cover and
remove the roof rack front/rear trim cover.

c. Remove 5 fixing bolts (arrow) from the roof rack

assembly, and remove the roof rack assembly.



(Tightening torque: 9 ± 1 N·m)

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing roof rack assembly.
 Try to prevent body paint surface from being scratched when removing roof rack assembly.

RT21480520

RT21480521

RT21480530
