Rear Bumper Mounting Bracket Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear bumper assembly (

See page 48-30

).

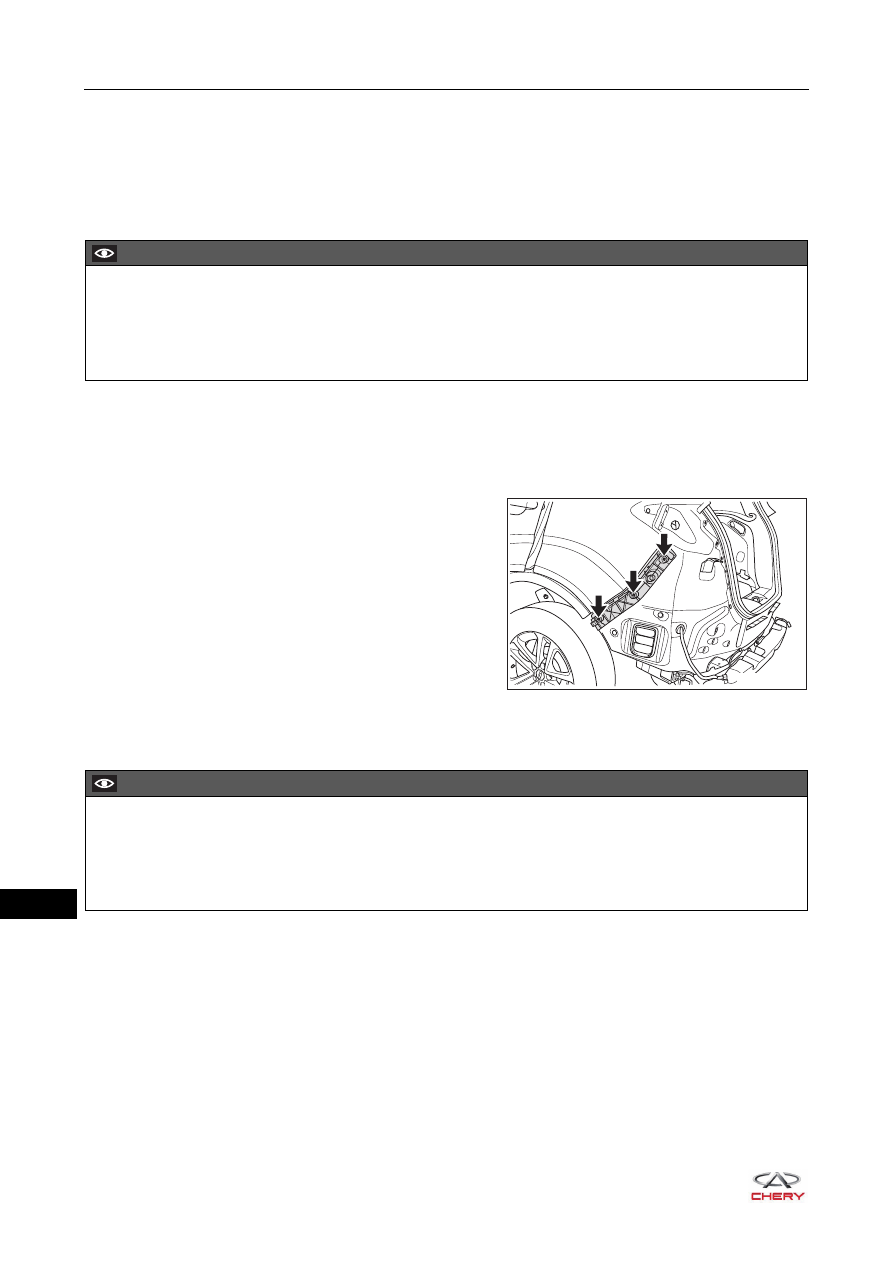

4. Remove the rear bumper left mounting bracket assembly.

a. Remove 3 fixing screws (arrow) from the rear bumper

left mounting bracket assembly.



(Tightening torque: 3 ± 1 N·m)

b. Remove the rear bumper left mounting bracket

assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear bumper mounting bracket

assembly.

 Try to prevent body paint surface from being scratched when removing rear bumper mounting bracket

assembly.

RT21480430

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing rear bumper mounting bracket

assembly.

 Try to prevent body paint surface from being scratched when installing rear bumper mounting bracket

assembly.

48–

35

48

Rear Bumper Crossmember Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear bumper assembly (

See page 48-30

).

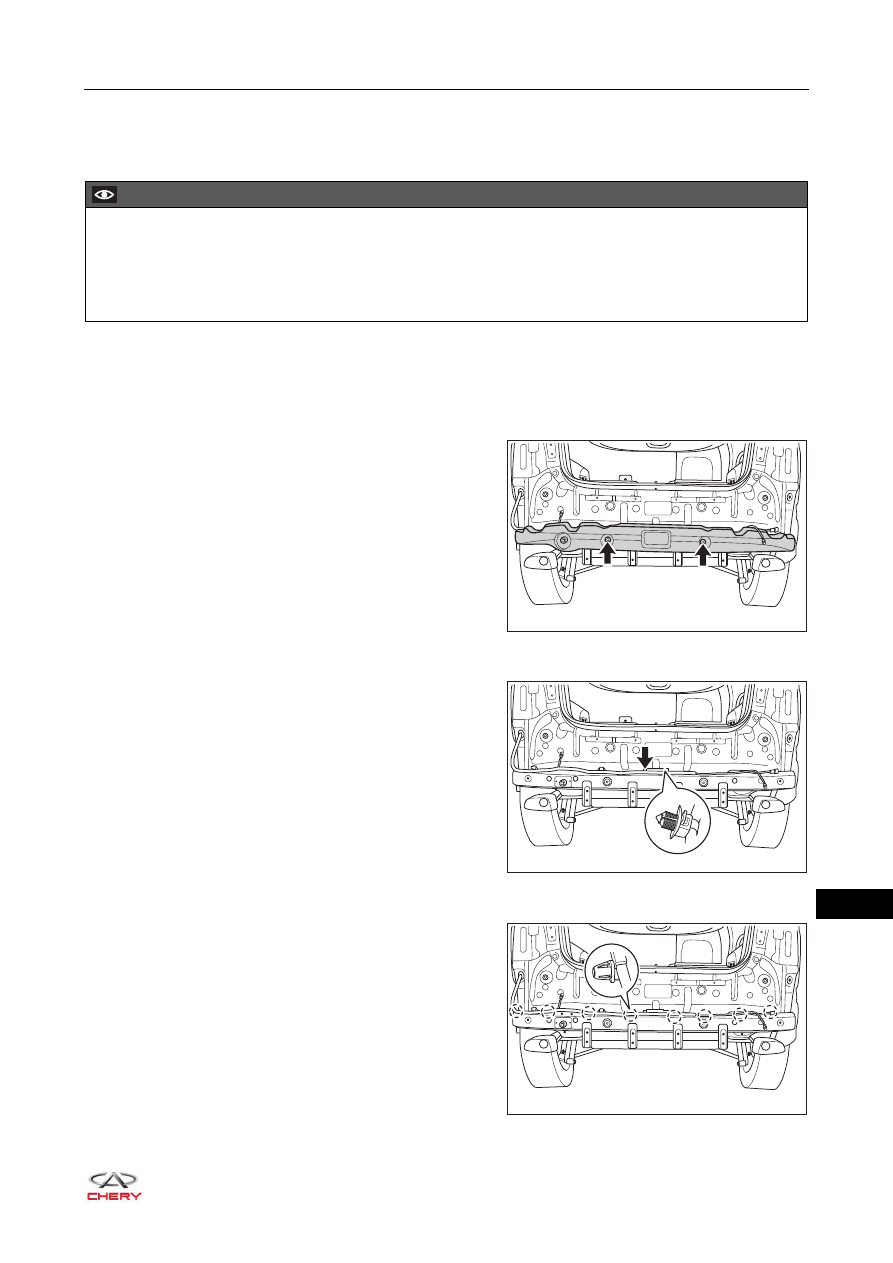

4. Remove the rear bumper energy absorber.

a. Remove 2 fixing bolts (arrow) from the rear bumper

energy absorber, and remove the rear bumper energy
absorber.



(Tightening torque: 1.5 ± 0.5 N·m)

5. Remove the back door handle sensor.

a. Disconnect the back door handle sensor (arrow).
b. Using a screwdriver wrapped with protective tape, pry

up the clip and remove the back door handle sensor.

6. Remove the rear bumper crossmember assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the wire harness clips.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear bumper crossmember

assembly.

 Try to prevent body paint surface from being scratched when removing rear bumper crossmember

assembly.

RT21480441

RT21480440

RT21480451

48–

36

48

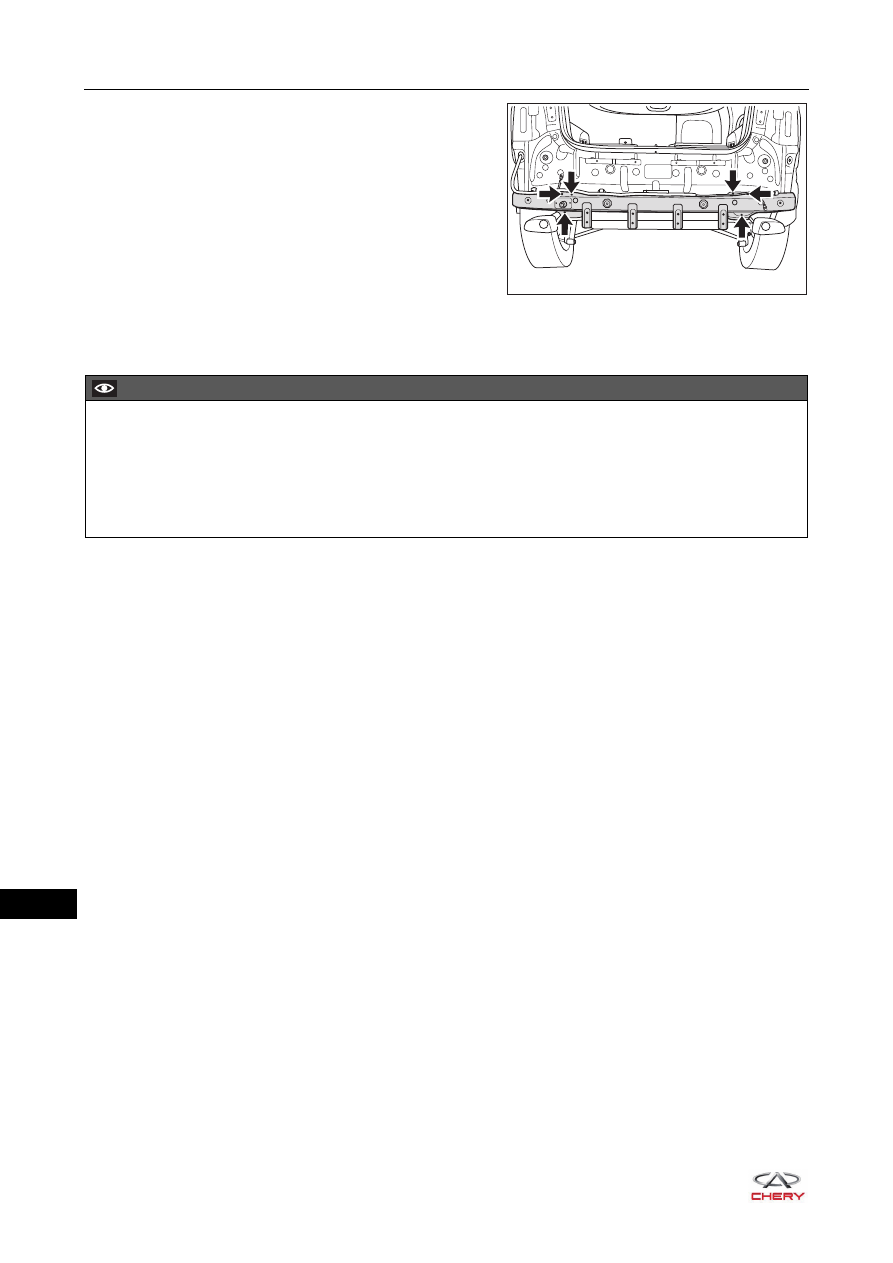

b. Remove 6 fixing bolts (arrow) from the rear bumper

crossmember assembly.



(Tightening torque: 23 ± 2 N·m)

c. Remove the rear bumper crossmember assembly.

Installation

Installation is in the reverse order of removal.

RT21480450

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing rear bumper crossmember

assembly.

 Try to prevent body paint surface from being scratched when installing rear bumper crossmember

assembly.

 Front bumper crossmember assembly should not be loose, shaking and deformed after installing it.

48–

37

48

Front Wheel House Protector Assembly of Rear Wheel

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

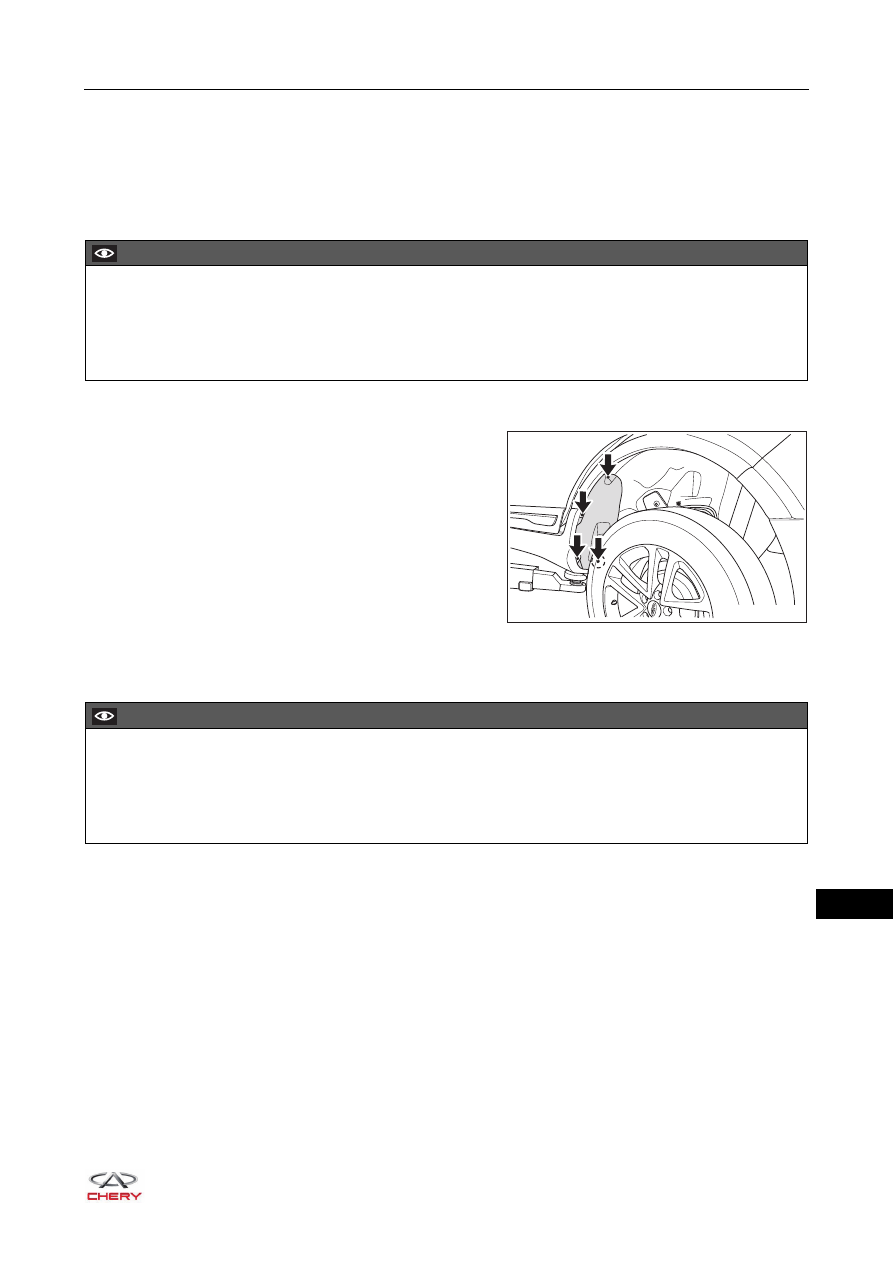

1. Remove the front wheel house protector assembly of rear left wheel.

a. Remove 4 fixing screws (arrow) from front wheel

house protector assembly of rear left wheel.



(Tightening torque: 3 ± 1 N·m)

b. Remove the front wheel house protector assembly of

rear left wheel.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front wheel house protector

assembly of rear wheel.

 Try to prevent body paint surface from being scratched when removing front wheel house protector

assembly of rear wheel.

RT21480460

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front wheel house protector

assembly of rear wheel.

 Try to prevent body paint surface from being scratched when installing front wheel house protector

assembly of rear wheel.
