Rear Woofer Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear left door protector assembly (

See page 47-36

).

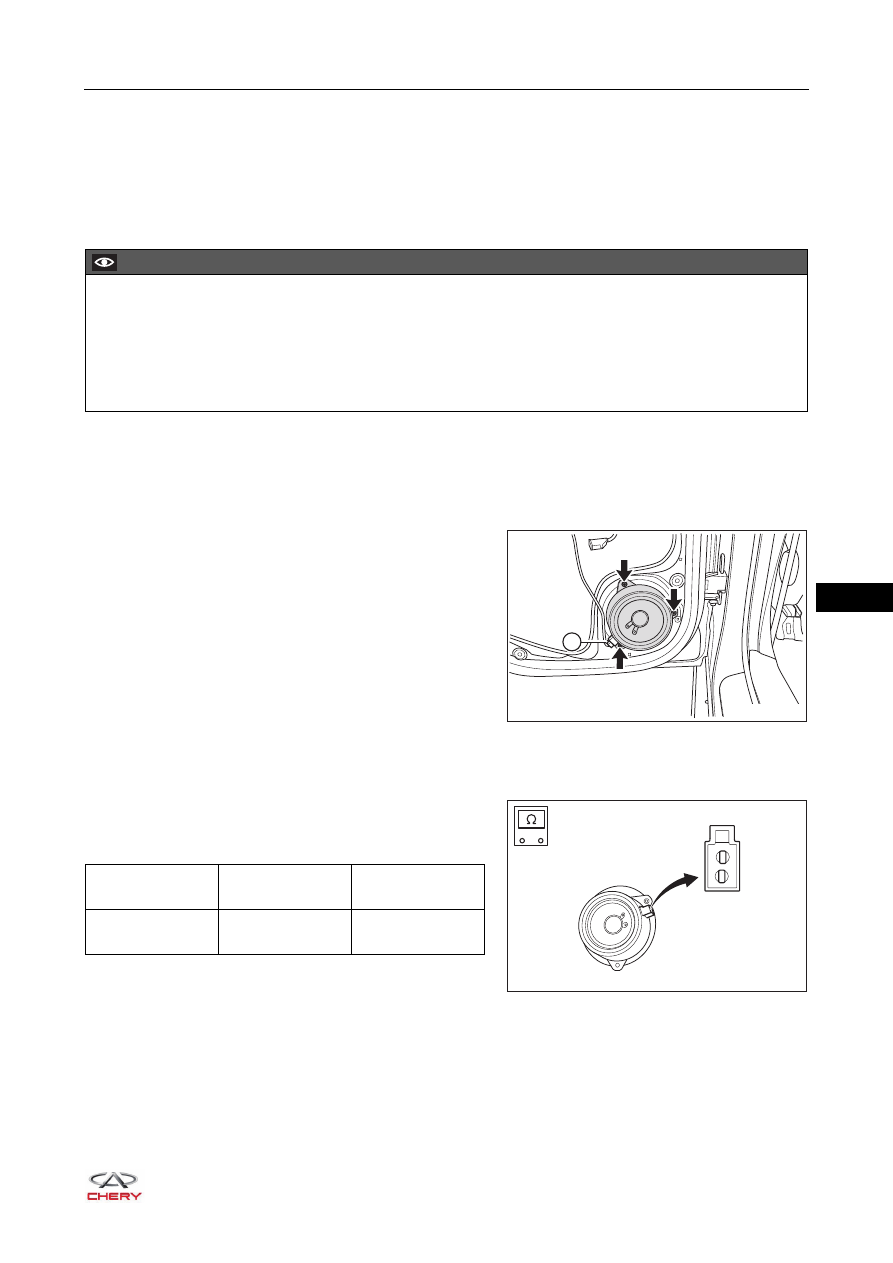

4. Remove the rear left woofer assembly.

a. Disconnect the rear woofer connector (1).
b. Remove 3 fixing screws (arrow) from rear woofer

assembly, and then remove the rear woofer assembly.



(Tightening torque: 2.5 ± 0.5 N·m)

Inspection

1. Check rear woofer assembly.

a. Using a digital multimeter, measure resistance of rear

woofer assembly according to the table below.
Standard Resistance

If result is not as specified, replace the rear woofer
assembly.

2. Check cone paper of rear woofer assembly for damage or deformation. Replace if necessary.
3. Check rear woofer connector for damage and terminals for bend or poor connection. Replace if necessary.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear woofer assembly.
 Appropriate force should be applied when removing rear woofer assembly. Be careful not to operate

roughly.

 Never touch the cone paper and other components of rear woofer assembly during removal; otherwise it

will affect sound effect or damage rear woofer assembly.

1

RT21390060

RT21390050

-

+

1

2

Multimeter

Connection

Condition

Specified

Condition

Terminal 1 -

Terminal 2

Always

Approximately

3.6 Ω

39–

18

39

Installation

Installation is in the reverse order of removal.

CAUTION

 Operate carefully to prevent components from being damaged when installing rear woofer assembly.
 Be sure to tighten fixing screws to specified torque when installing rear woofer assembly.
 Install connector in place when installing rear woofer assembly.
 Check rear woofer for proper operation after installing rear woofer assembly.

39–

19

39

Antenna Assembly (w/ Antenna Amplifier)

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the roof assembly (

See page 49-30

).

HINT:
It is not necessary to completely remove the roof assembly during removal, but it is necessary to lower the
rear part of roof assembly so that antenna can be removed.

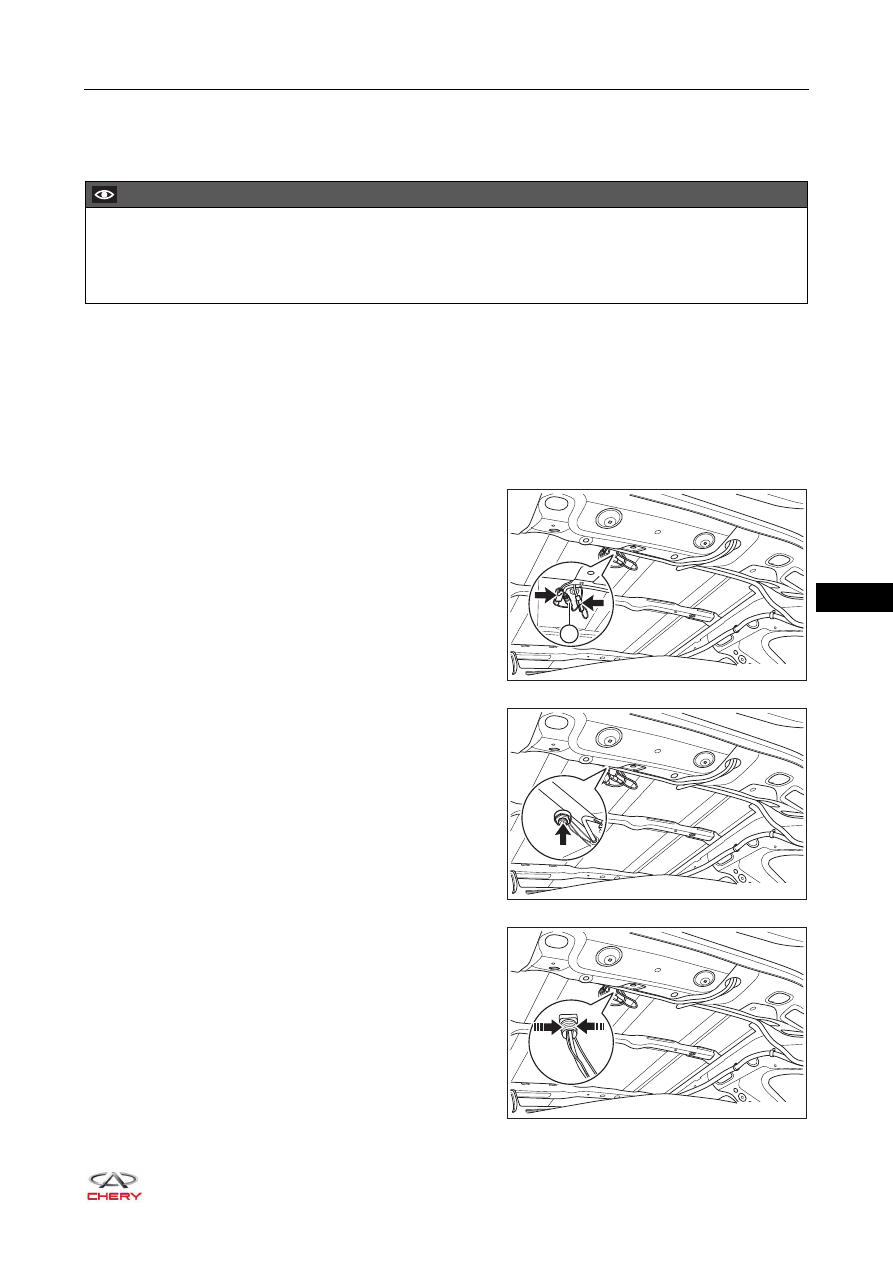

4. Remove the antenna assembly (w/ antenna amplifier).

a. Disconnect the antenna (1) and connectors (arrow)

from antenna assembly.

b. Remove the fixing nut (arrow) from antenna assembly.



(Tightening torque: 5 ± 1 N·m)

c. Detach the attachment part between antenna

assembly and body in the direction of arrow as shown
in the illustration.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing antenna assembly.
 Appropriate force should be applied when removing antenna assembly. Be careful not to operate

roughly.

RT21390080

1

RT21390090

RT21390100

39–

20

39

d. Remove the antenna assembly from roof.

Inspection

1. Check antenna assembly.

a. Check antenna assembly for wear, cracks, deformation or damage. Replace if necessary.
b. Check antenna assembly for looseness or disengagement. Replace if necessary.
c. Check terminals on antenna connector for deformation or bend. Replace if necessary.

Installation

Installation is in the reverse order of removal.
HINT:

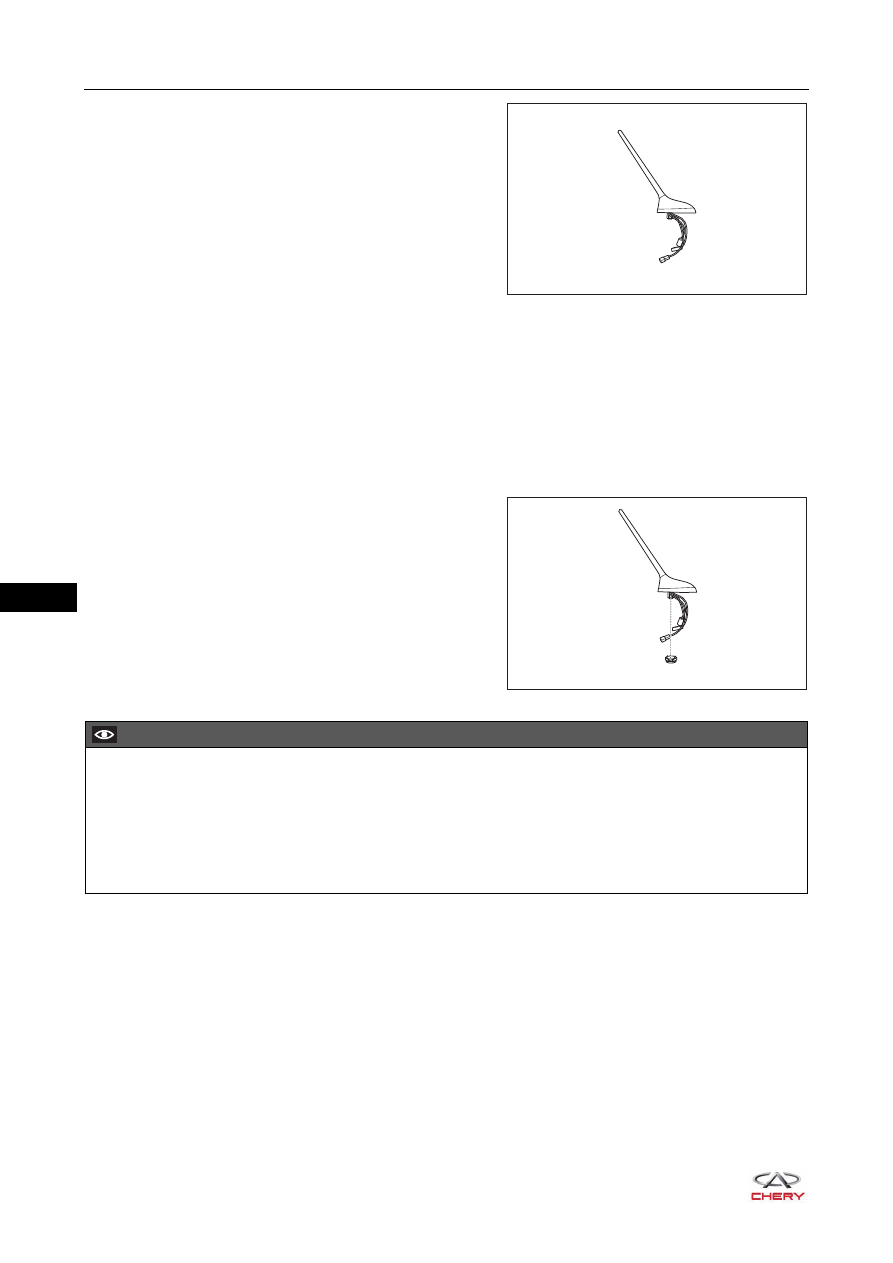

When installing antenna assembly, align the boss at end of
antenna assembly with the groove on fixing nut as shown in
the illustration, and then firmly install the antenna assembly.

RT21390110

RT21390120

CAUTION

 Operate carefully to prevent components from being damaged when installing antenna assembly.
 Always insert dowel pin into body positioning hole and set it in place when installing antenna assembly.
 Be sure to tighten fixing nuts to the specified torque when installing antenna assembly.
 Install each connector and antenna in place when installing antenna assembly.
 Check audio system for proper operation after installing antenna assembly.
