g. Disconnect the engine compartment wire harness

connectors E-069 and E-039.

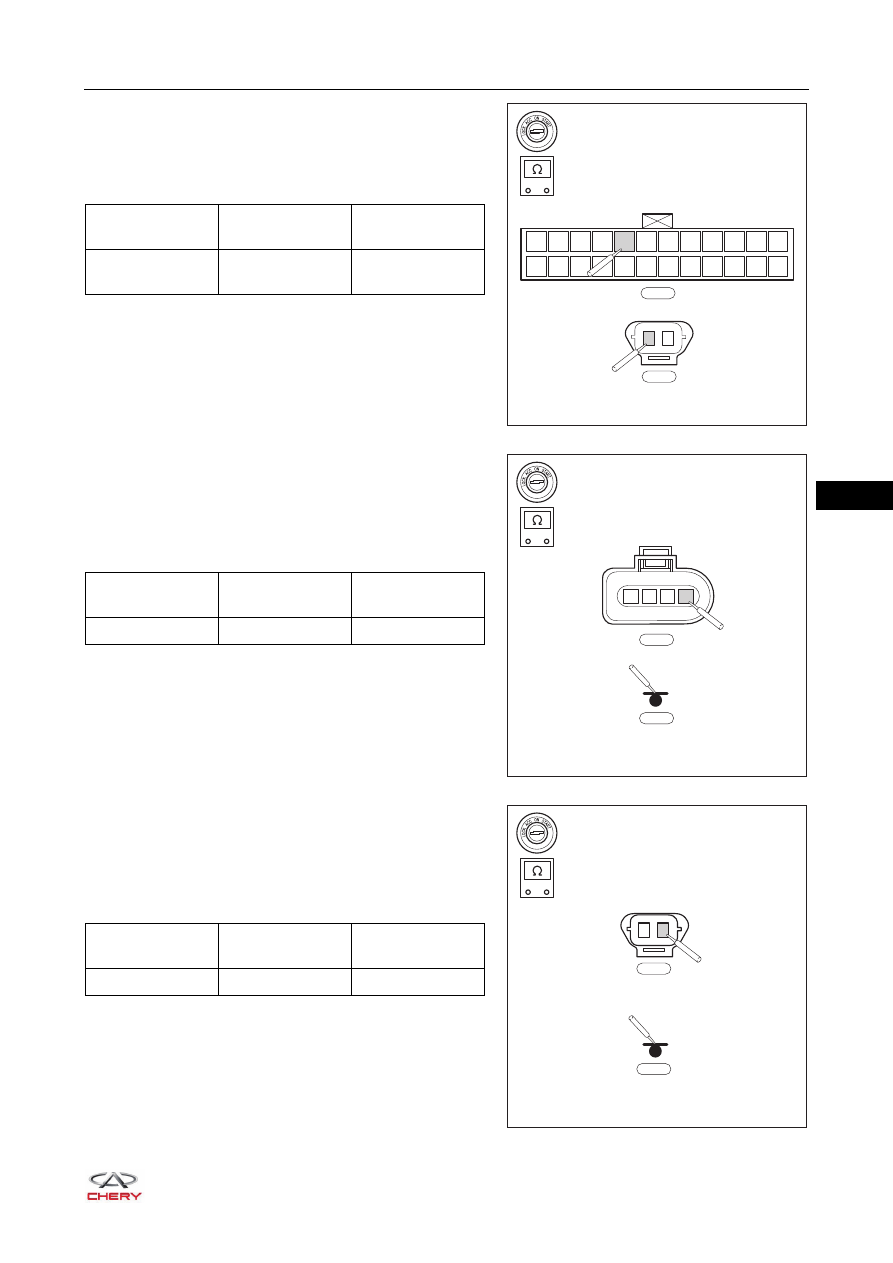

h. Using a digital multimeter, check for continuity between

engine compartment wire harness connectors E-069 and
E-039 according to the value(s) in the table below.

i. Disconnect the engine compartment wire harness

connector E-077 and ground E-078.

j. Using a digital multimeter, check for continuity between

engine compartment wire harness connector E-077 and
ground E-078 according to the value(s) in the table
below.

k. Disconnect the engine compartment wire harness

connector E-040 and ground E-032.

l. Using a digital multimeter, check for continuity between

engine compartment wire harness connector E-040 and
ground E-032 according to the value(s) in the table
below.

-

+

RT21360480

E-069

F12

F24

F11

F23

F10

F22

F9

F21

F8

F20

F7

F19

F6

F18

F5

F17

F4

F16

F3

F15

F2

F14

F1

F13

E-039

1

2

Multimeter

Connection

Condition

Specified

Condition

E-069 (F8) -

E-039 (1)

Always

Continuity

-

+

RT21360490

E-077

4

3

2

1

E-078

Multimeter

Connection

Condition

Specified

Condition

E-077 (4) - E-078

Always

Continuity

-

+

RT21360500

E-032

E-040

1

2

Multimeter

Connection

Condition

Specified

Condition

E-040 (2) - E-032

Always

Continuity

36–

20

36

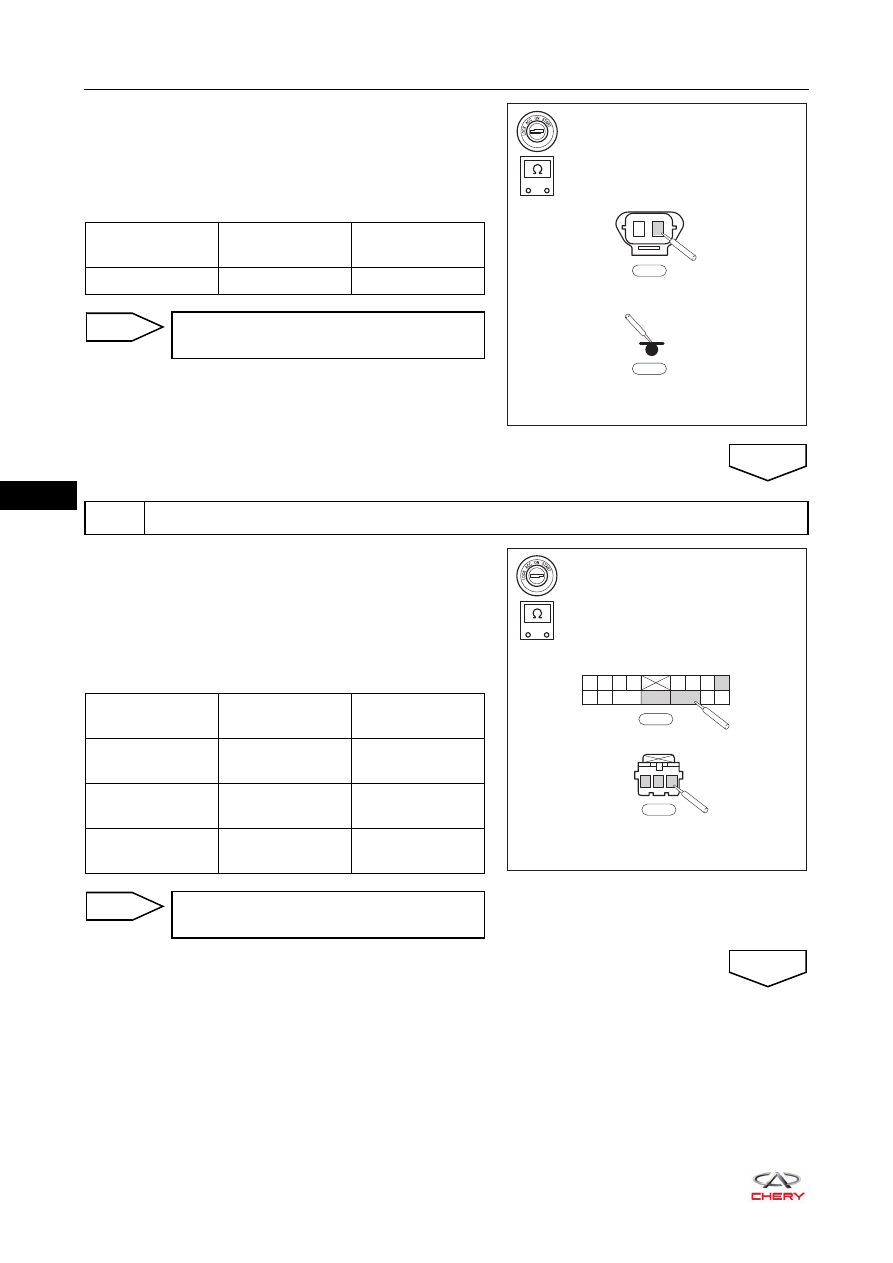

m. Disconnect the engine compartment wire harness

connector E-039 and ground E-032.

n. Using a digital multimeter, check for continuity between

engine compartment wire harness connector E-039 and
ground E-032 according to the value(s) in the table
below.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the back door wire harness connectors T-004

and T-007.

d. Using a digital multimeter, check for continuity between

back door wire harness connectors T-004 and T-007
according to the value(s) in the table below.

-

+

RT21360510

E-032

E-039

1

2

Multimeter

Connection

Condition

Specified

Condition

E-039 (2) - E-032

Always

Continuity

Repair or replace engine compartment
wire harness and connector

NG

9

Check back door wire harness and connector

OK

-

+

RT21360520

1

9

10

11

12

13

14

15

2

3

4

5

6

7

8

T-004

1 2 3

T-007

Multimeter

Connection

Condition

Specified

Condition

T-004 (1) - T-007

(2)

Always

Continuity

T-004 (12) - T-007

(3)

Always

Continuity

T-004 (11) - T-007

(1)

Always

Continuity

Repair or replace back door wire harness
and connector

NG

OK

36–

21

36

a. Connect all connectors.
b. Connect the negative battery cable.
c. Turn ignition switch ON.
d. Use the X-431 3G diagnostic tester (the latest software) to record and clear the DTCs stored in Body

Control Module (BCM).

e. Turn ignition switch to LOCK and wait for a few seconds.
f. Turn ignition switch ON.
g. Use the X-431 3G diagnostic tester (the latest software) to read DTCs stored in Body Control Module

(BCM) again.

h. Read DTCs.

10

Reconfirm DTCs

Result

Precede to

DTCs B101471, B101571, B101671, B101713,
B101771, B101813, B101871 are output

NG

No DTCs are output

OK

Replace Body Control Module (BCM)

NG

System operates normally

OK

36–

22

36

ON-VEHICLE SERVICE

Wiper Switch Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the instrument cluster (

See page 38-42

).

4. Remove the wiper switch assembly.

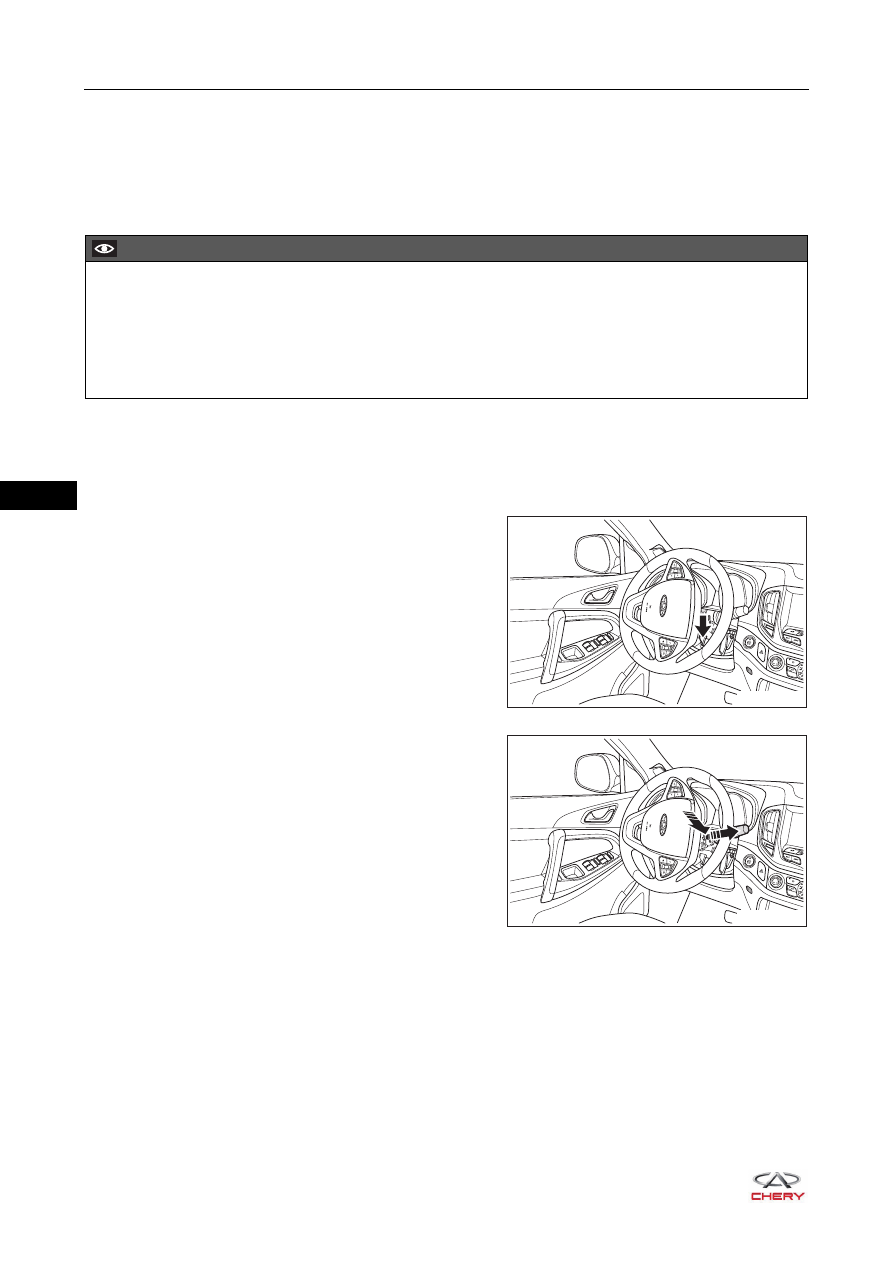

a. Disconnect the wiper switch assembly connector

(arrow).

b. Using a screwdriver wrapped with protective tape,

press the claws of wiper switch assembly and remove
the wiper switch assembly by gently sliding outward.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing wiper switch assembly.
 Appropriate force should be applied when removing wiper switch assembly. Be careful not to operate

roughly.

 Try to prevent interior and body paint surface from being scratched when removing wiper switch

assembly.

RT21360020

RT21360030
