Chery Tiggo 5 (T21). Manual - part 227





18–

97

18

a. Turn ignition switch to LOCK and disconnect the negative

battery cable.

b. Disconnect the wire harness connector E-030.
c. Check if terminals 3 and 35 of wire harness connector

E-030 is short to power.

a. Using X-431 3G diagnostic tester, select Read Code.
b. Check if DTC P0960, P0962 or P0963 still exists.

4

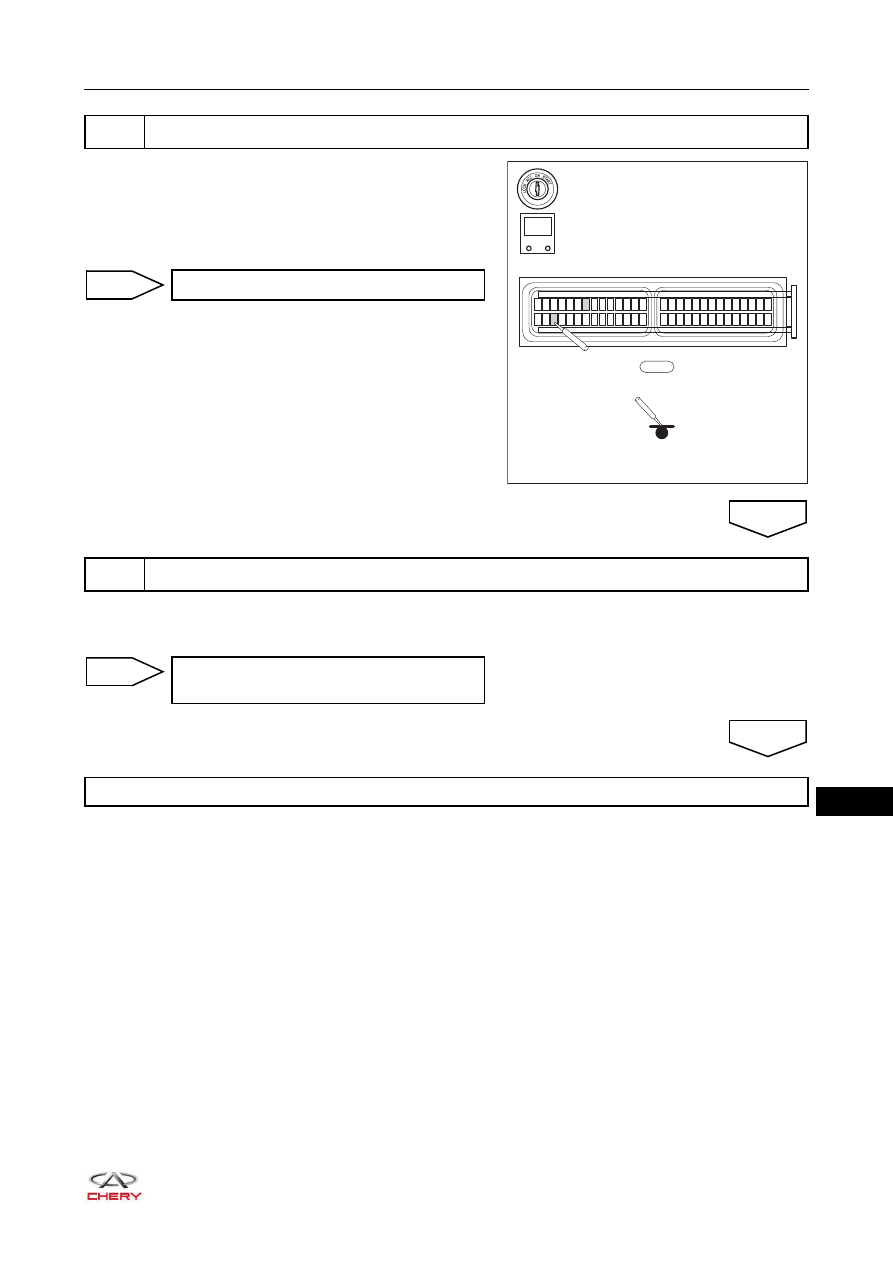

Check if transmission wire harness connector E-030 is short to power

RT21181250

E-030

29 30 31 32 33 34 35 36 37 38 39 40 41 42

1 2 3 4 5 6 7 8 9 10 11 12 13 14

43 44 45 46 47 48 49 50 51 52 53 54 55 56

15 16 17 18 19 20 21 22 23 24 25 26 27 28

-

+

V

Repair or replace failed circuit

NG

5

Check for DTC

OK

Replace solenoid and wire harness
assembly

NG

System is normal

OK

18–

98

18

DTC

P0964

Pressure Control Solenoid 'B' Control Circuit Open

DTC

P0966

Pressure Control Solenoid 'B' Control Circuit Low

DTC

P0967

Pressure Control Solenoid 'B' Control Circuit High

18–

99

18

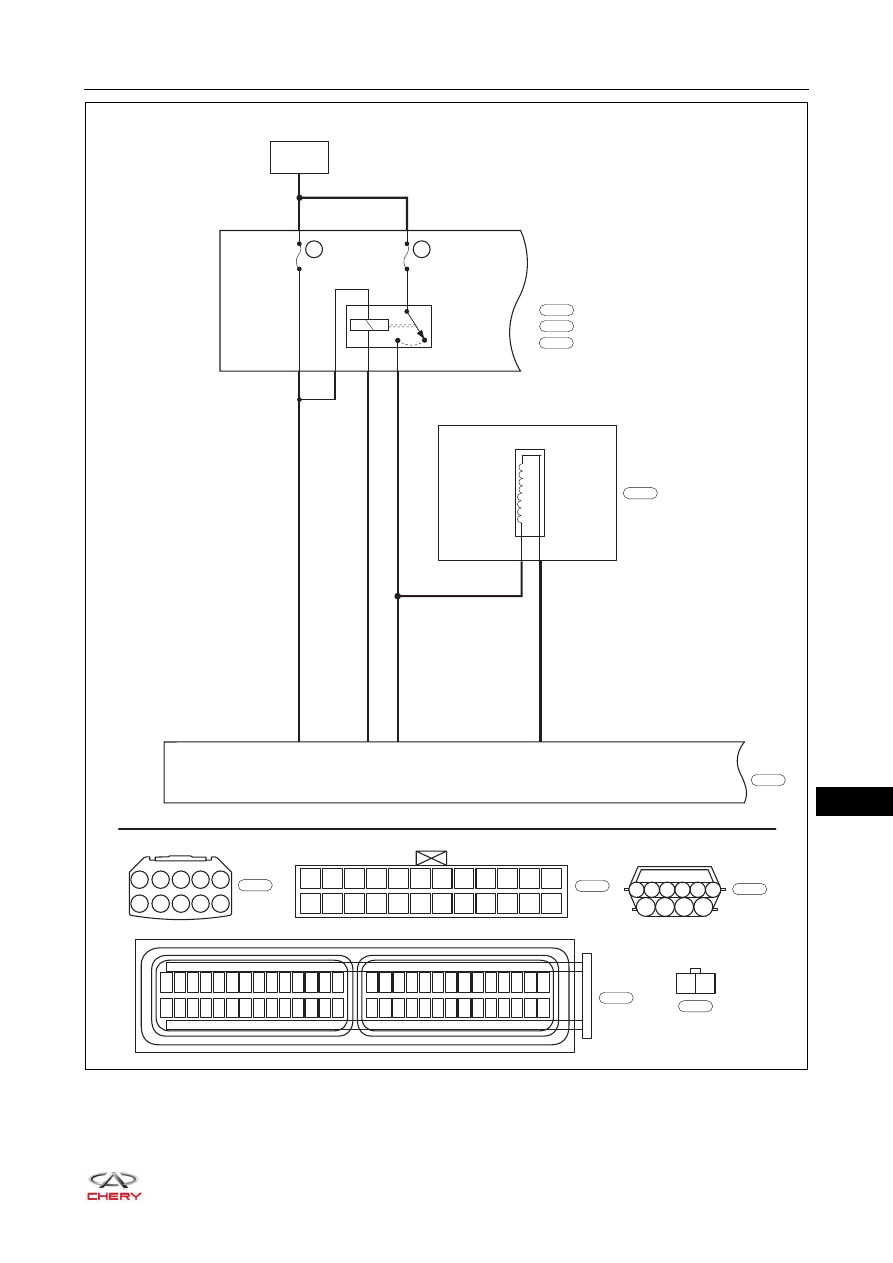

ET21180190

SECONDAR

Y

 CONTROL



PRESSURE SOLENOID

BATTERY

TCU

TCU
RELAY
ERLY12

A2

J2

F16

85

30

86

87

31

56

3

35

RL

R

WR

RL

R

6

R

10

EF19

10A

EF46

20A

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

J2

J1

F12

F24

F11

F23

F10

F22

F9

F21

F8

F20

F7

F19

F6

F18

F5

F17

F4

F16

F3

F15

F2

F14

F1

F13

29 30 31 32 33 34 35 36 37 38 39 40 41 42

1 2 3 4 5 6 7 8 9 10 11 12 13 14

43 44 45 46 47 48 49 50 51 52 53 54 55 56

15 16 17 18 19 20 21 22 23 24 25 26 27 28

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

CONNECTOR B

Gr

E-076

W

E-069

B

E-066

B

E-030

E-069

E-076

E-052

E-030

E-066

F15

6

5

4

3

2

1

7

8

9

10

Gr

E-052

18–

100

18

DTC Confirmation Procedure:

Confirm that battery voltage is between 11 and 14 V before performing the following procedures.
 Turn ignition switch to LOCK.
 Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC), and make it

communicate with vehicle electronic module by the data network.

 Turn ignition switch to ON.
 Using X-431 3G diagnostic tester to record and clear the DTCs stored in the TCU.
 Turn ignition switch to LOCK and wait for a few seconds.
 Turn ignition switch to ON, and then select "Read Code".
 If DTC is detected, the malfunction indicated by the DTC is current. Go to the diagnosis procedure - Step 1.
 If DTC is not detected, the malfunction indicated by the DTC is intermittent. Please refer to Intermittent

DTC Troubleshooting.

Diagnosis Procedure

HINT:
After the fault is eliminated, verify DTC and symptom again.

a. Turn ignition switch to LOCK.
b. Disconnect the wire harness connector.

DTC Code

DTC Definition

DTC Detection

Condition

DTC Set

Condition

Possible Cause

P0964

Pressure Control
Solenoid 'B' Control
Circuit Open

Start engine and wait
for at least 3 seconds

When the
solenoid output
feedback voltage
is normal, oil
pressure control
solenoid B
feedback current
is less than the
standard value

 Solenoid circuit

open circuit or
short circuit

 Oil pressure

control solenoid B
failure

P0966

Pressure Control
Solenoid 'B' Control
Circuit Low

The solenoid
output feedback
voltage is
normal, oil
pressure control
solenoid B
feedback current
is higher than the
standard max
value

P0967

Pressure Control
Solenoid 'B' Control
Circuit High

The solenoid
output feedback
voltage is
normal, oil
pressure control
solenoid B
feedback current
is less than the
standard value

1

Check wire harness connector
