CHERY A520 SERVICE MANUAL                                                    CHASSIS



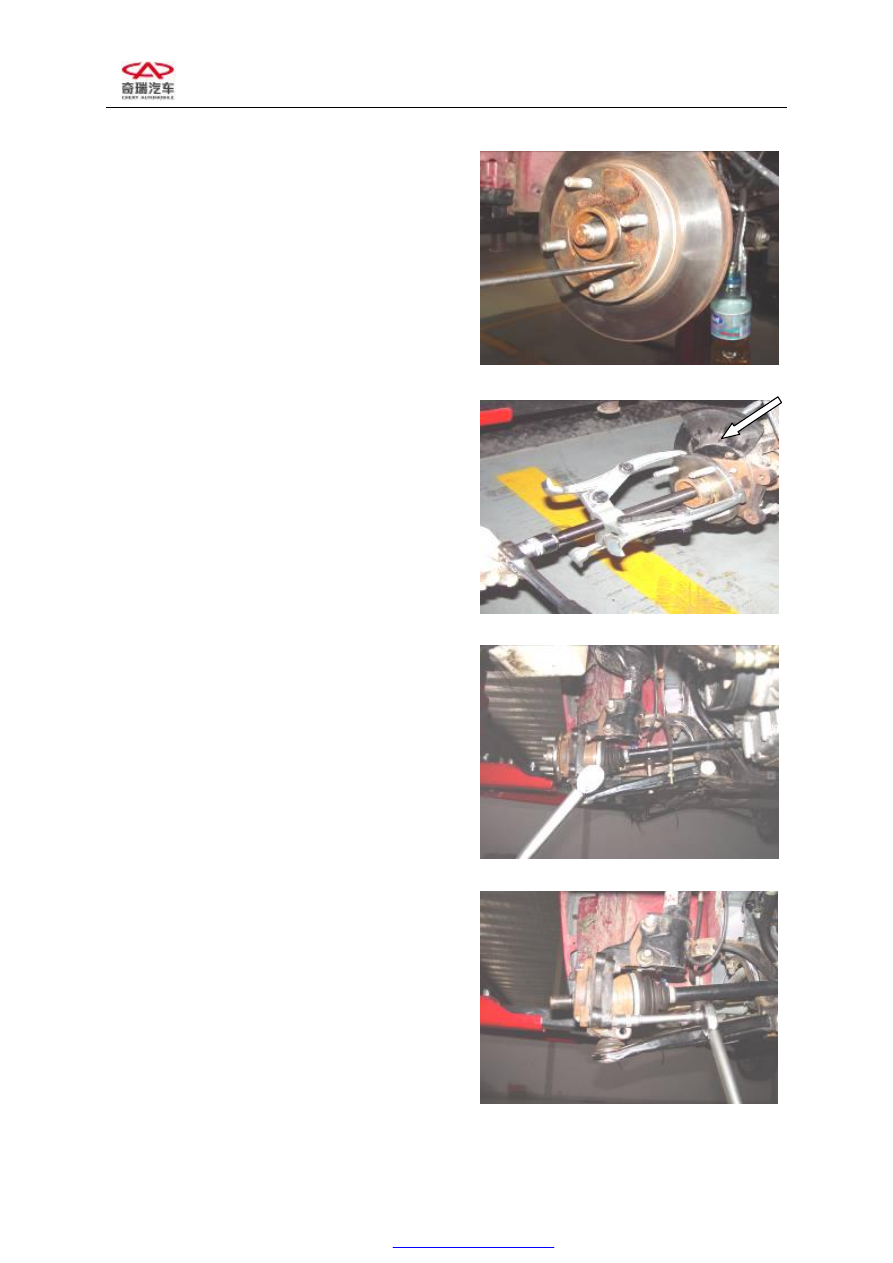

6)



Use  cross-head  screwdriver  to  screw  off
the  fastening  screw  of  brake  disc,  and  lift
down  the  brake  disc.  Check  the  thickness
of brake disc, and replace the brake disc if
its  thickness  is  less  than  the  specified
minimum thickness.

Note:  When  replacing  the  brake  disc,  please
replace it in pair.

Torque: 7-9 N.m



7)



Use 3-arm hub puller to pull out the wheel
hub. Dismount the fastening bolt of splash
shield, and remove the splash shield.



8)



Use  torque  wrench  and  18#  sleeve  to
dismount the  bolts  connecting  the steering
knuckle and control arm.

Torque: 110±5N.m



9)



Use  torque  wrench  and  17#  sleeve  to
dismount  the  bolts  (3  pieces)  that  connect
the  ABS  wheel-speed  sensor  unit  and
steering knuckle.

Torque:















CHERY A520 SERVICE MANUAL                                                    CHASSIS



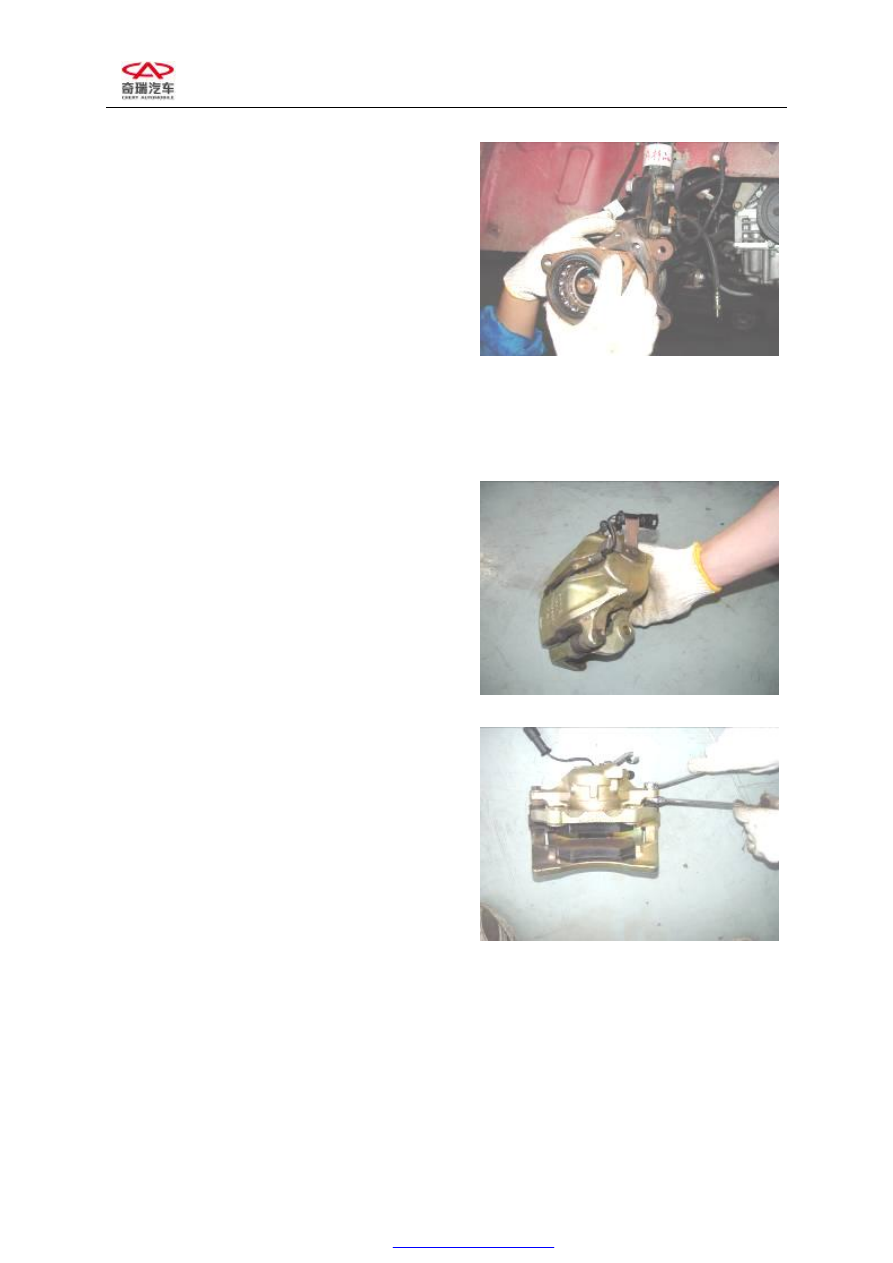

10)



Disassemble  the  connectors  of  the  ABS
wheel-speed  sensor  unit  and  wire  harness,
and  take  out  the  ABS  wheel-speed  sensor
unit.



3.3 Assembly of front wheel brake

The  assembly  sequence  is  opposite  to
disassembly sequence.



3.4 disassembly of front-wheel brake caliper

1)



Remove  the  thickness  monitoring  harness
of friction wafer from the bracket.



2)



Use  a  13#  and  a  15#  open  end  wrench  to
dismount  the  fastening  bolt  of  brake
caliper bracket.

Torque: 22-23N.m













CHERY A520 SERVICE MANUAL                                                    CHASSIS

10



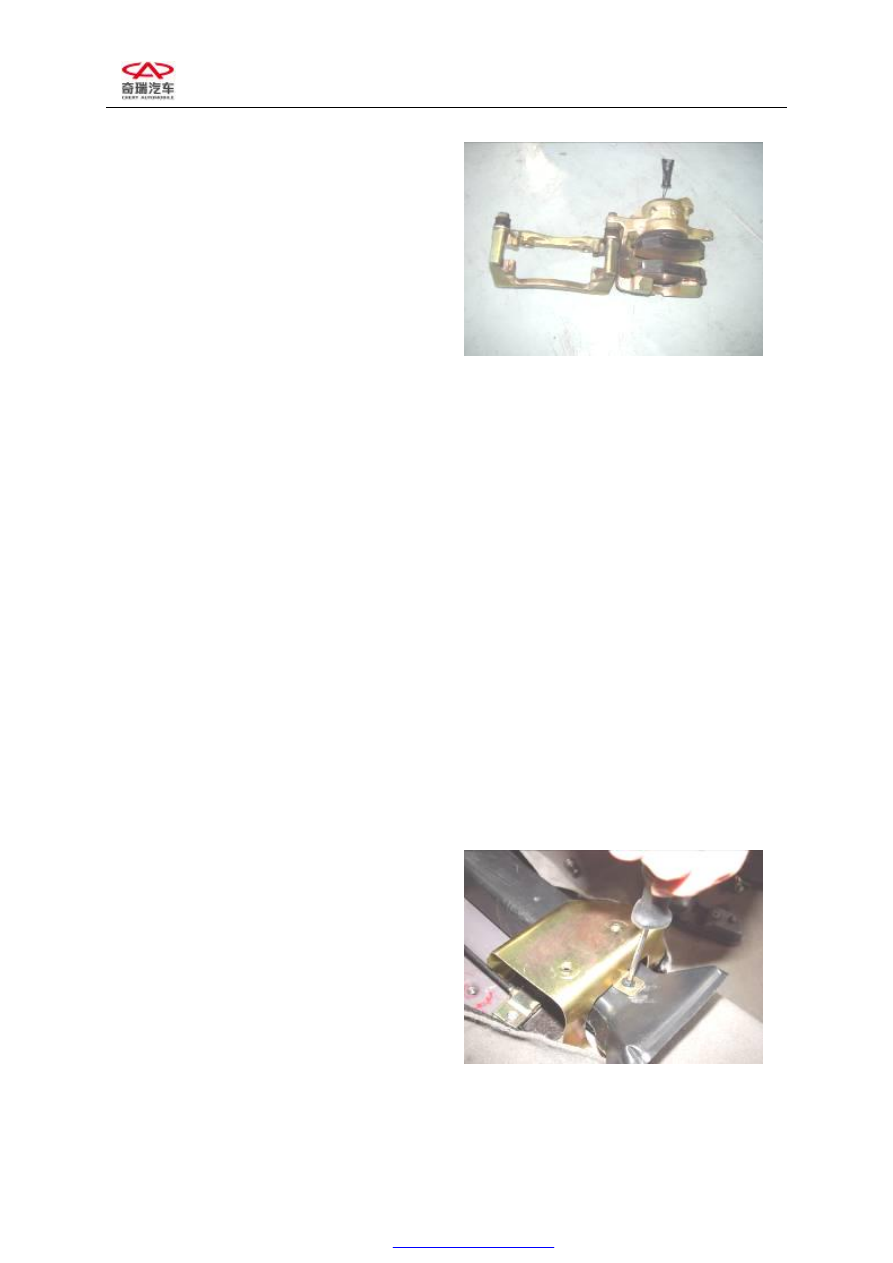

3)

Uplift  the  fixing  bracket  of  brake
caliper, and take out the brake lining.

Check  the  thickness  of  friction  wafer,  and
replace it if it cannot meet the requirement.

Note:  When  replacing  friction  wafer,  please
replace it in pair.



4)

Disassemble  the  brake  cylinder.  The
disassembly  sequence  is  as  the  same  as
that of the rear brake cylinder.

3.5 Assembly of brake caliper

The  assembly  sequence  is  opposite  to
disassembly sequence.



SECTION

IV

REPLACEMENT

OF

HANDBRAKE CONTROL CABLE

Needed  tools:  flat-tip  screwdriver,  ratchet
wrench,  ratchet  rod,  10#,  13#  sleeves,
carry-on  wrenches,  torque  wrench  and  vice
clamp.

4.1 Disassembly sequence:

1)

Use  screwdriver  to  pry  out the  edges of
central  armrest  box,  and  dismount  the
central armrest box.



2)

Use  cross-head  screwdriver  to  loosen
the  fixed  screws  connecting  the  rear  air
outlet and bracket.











CHERY A520 SERVICE MANUAL                                                    CHASSIS

11


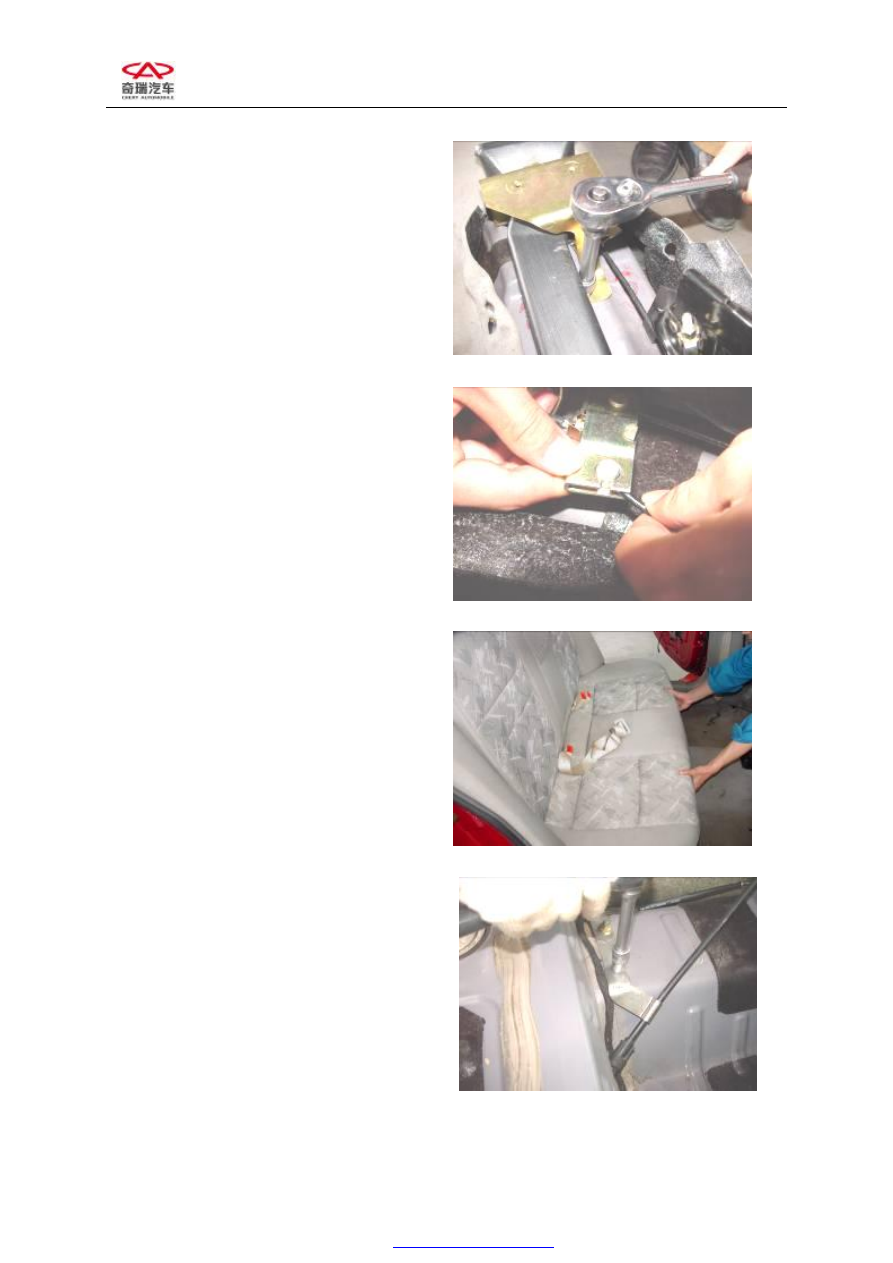

3)

Use ratchet wrench and 10#, 13# sleeves
to  loosen  the  fastening  bolts  connecting
bracket  and  floor  plate,  and  dismount
the bracket.



4)

Remove  the  brake  cable  from  the  cable
connection.



5)

Uplift  the  backseats  and  uncover  the
carpet.

Note:  When  uncovering  the  carpet,  if  the
scuff  plate  stands  in  the  way,  you  should
dismantle the scuff plate firstly.



6)

Unbolt  the  clamp  nuts  connecting  the
brake  cable  bracket  and  floor  plate,  and
remove  the  brake  cable  from  the
bracket.
