2.2 PCV valve’s function:

Under the low speed condition, the vacuum of intake manifold

is very high, which keep the valve closed, and only a small opening
exists  to  allow  the  gas  pass  through. Therefore  it  won’t  change  the
mixture  rate.  Under  high  speed  condition,  the  vacuum  of  intake
manifold decreases, and the spring forces the valve to open to allow
more gas in the crankcase flow into intake manifold.

The  PCV  valve  is  designed  to  open  fully  enough  to  allow  the

gas  exhaust  from  the  crankcase  under  high  speed  or  low  speed
conditions.




【17】.    Fuel supply system of the carburetor engine

1.  Fuel supply system of the carburetor engine.

1.1  Description
of

the

fuel

supply system.
The  fuel  in  the
tank  flows  into
oil

filter

pumped  by  the
fuel  pump  and
goes

into

carburetor  after
being

filtered

through

fuel

pump.

amount  of  fuel
returns  to  the
tank

through

return pipe.










1.2 Removal and assembly of the fuel pump:
——Remove two M8 lock nuts.
——Take out the fuel pump.
——Remove the fuel pump sealing gasket.
——pull out the push rod.

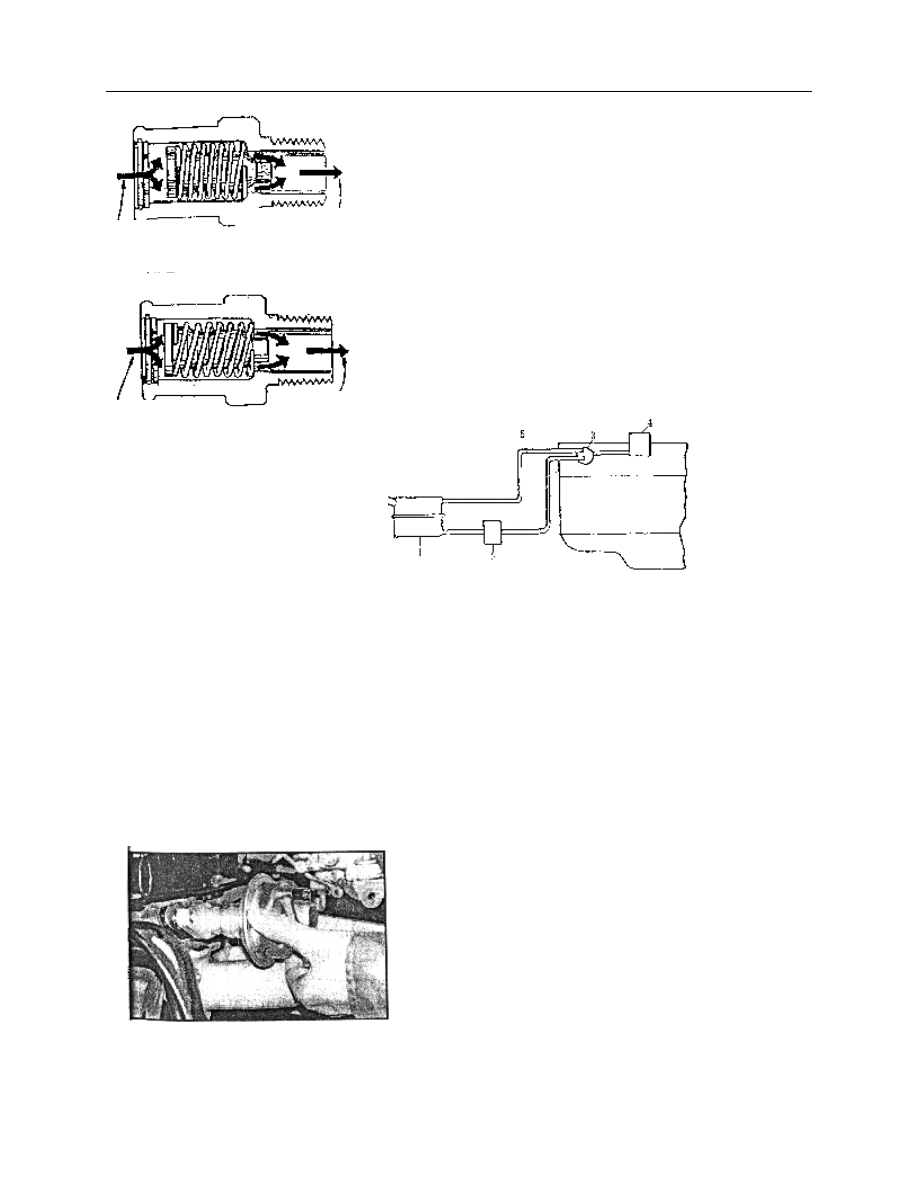

From crankcase

From crankcase

The operation condition of low speed-high vacuity

To intake manifold

The operation condition of high speed- low vacuity
                                Fig.109

To intake manifold

Engine

Fig.110 schematic drawing of fuel supply system for engine
1.  Gasoline tank 2. Gasoline filter 3. Gasoline pump
4. Carburetor        5. Return pipe

Fig. 111

——Remove the studs of same length.
Assembly:
——Submerge  the  push  rod  into  the  engine  oil  or  pour  engine
oil  into  the  rod’s  hole  of  the  cylinder  head  and  install  the  push
rod  into  the  hole.  The  gap  between  push  rod  and  hole  is
0.035-0.055mm.
——Screw in the studs into the threaded  hole and tighten with
the nuts.
——Install  fuel  pump  with  the  manufacturer  mark  and  part
number forward.
——Tighten  the  lock  nuts  with  hands.  Tightening  torque  is
14-18Nm.

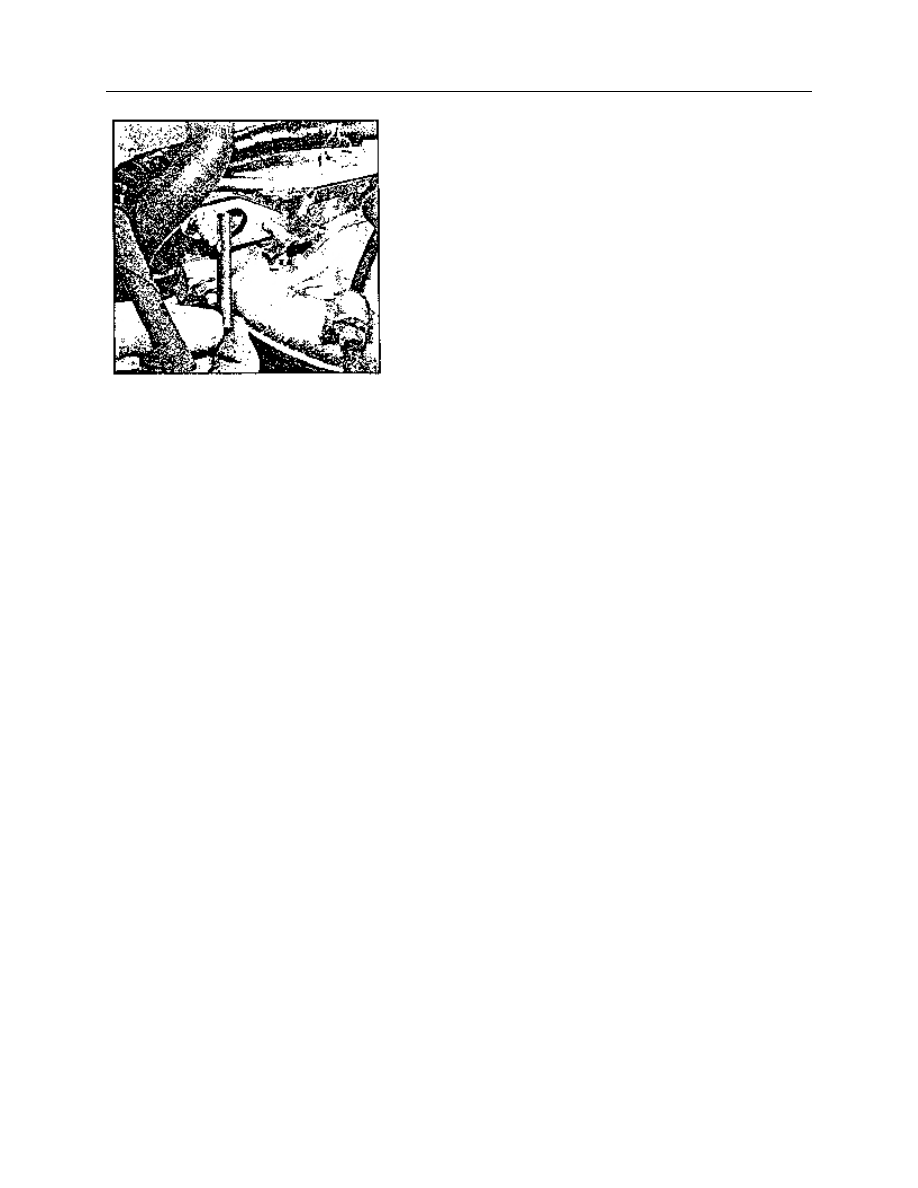

 Fig.112

18】  Engine electrical system.
The electrical system includes battery, alternator, starter, breakerless distributor, ignition controller, spark plug,
high-power  ignition  coil,  high  pressure  assembly,  water  temperature  sensor,  oil  pressure  switch,  electric  fan,
thermo switch, and idle speed solenoid valve of carburetor.

1.  Alternator.
Output voltage:

14V

Rated output current:

90A

B+Output    D+ to the charging indicator filling-in bit

——Battery  is  not  permitted  to  be  connected  to  alternator  with
the polarities reversed.
——Insure  that  the  ground  wire  between  the  alternator  and
chassis are tightly connected.
——It  is  forbidden  to  ground  the  power  supply  wire  while  the
alternator  is  under  working  condition,  the  wiring  harness  will  be
burn away.

——While  the  alternator  is  under  working  condition,  it  is  not
allowed  to disconnect the alternator connector B  from battery,  or
the voltage caused will damage the transistor or other elements.
——To test the diodes, the voltage applied should be not beyond
40V.
——During  servicing  the  alternator,  apply  enough  No.2  lithium
base  grease  into  the  alternator  sealing  bearing  for  the  operation
period before the next service.
——The  electronic  regulator  needs  no  service  and  may  only  be
replaced if damaged.


——The alternator type is: JFZ1913—4 and JFZ1813—ZB.

——The  alternator  bracket  for  vehicle  is  quite  different  from  the
one for independent assembly. The former is applied on the engine
equipped with A/C compressor.
——The left figure is the alternator bracket for the vehicle.
——The corresponding alternators are not exchangeable.

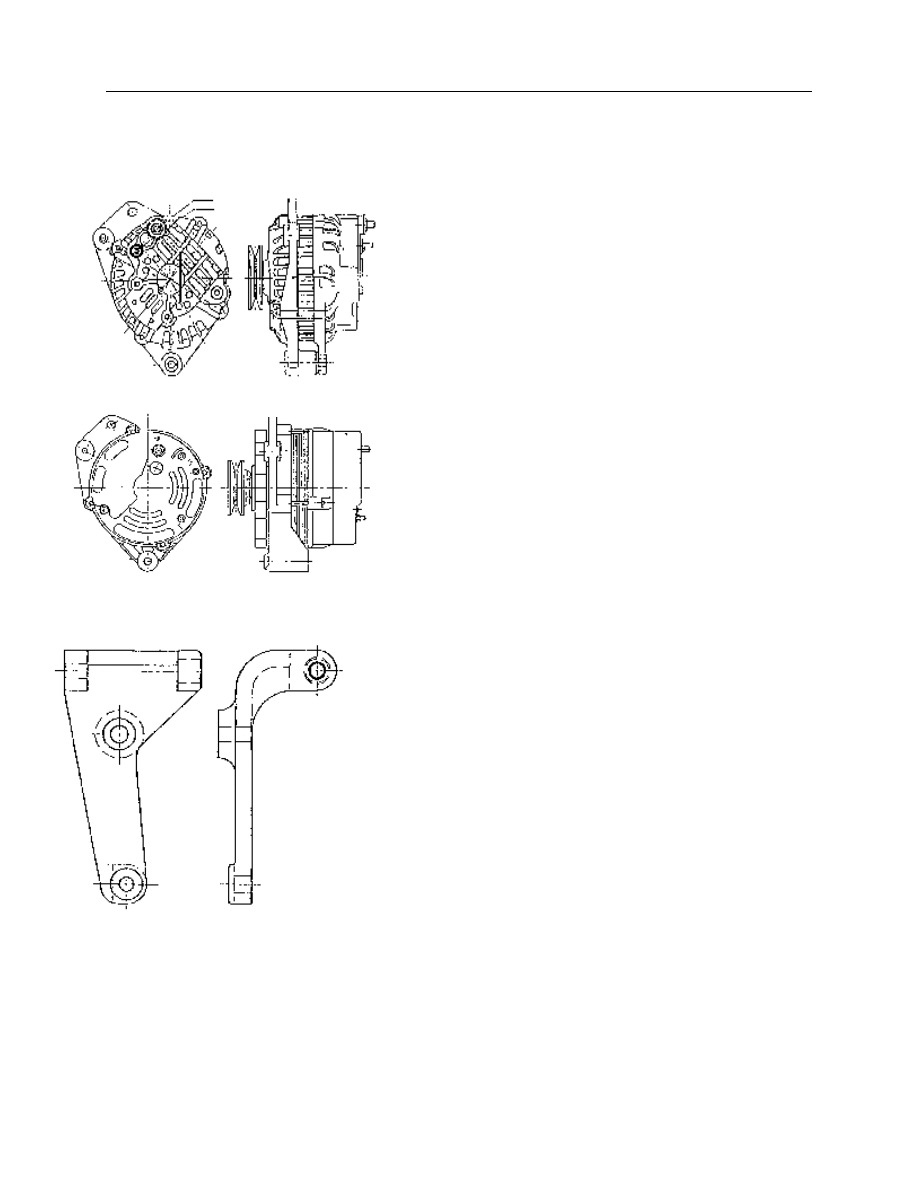

Alternator assembly

Fig. 118

Alternator
assembly

Fig.119

The  alternator
bracket

Fig. 120

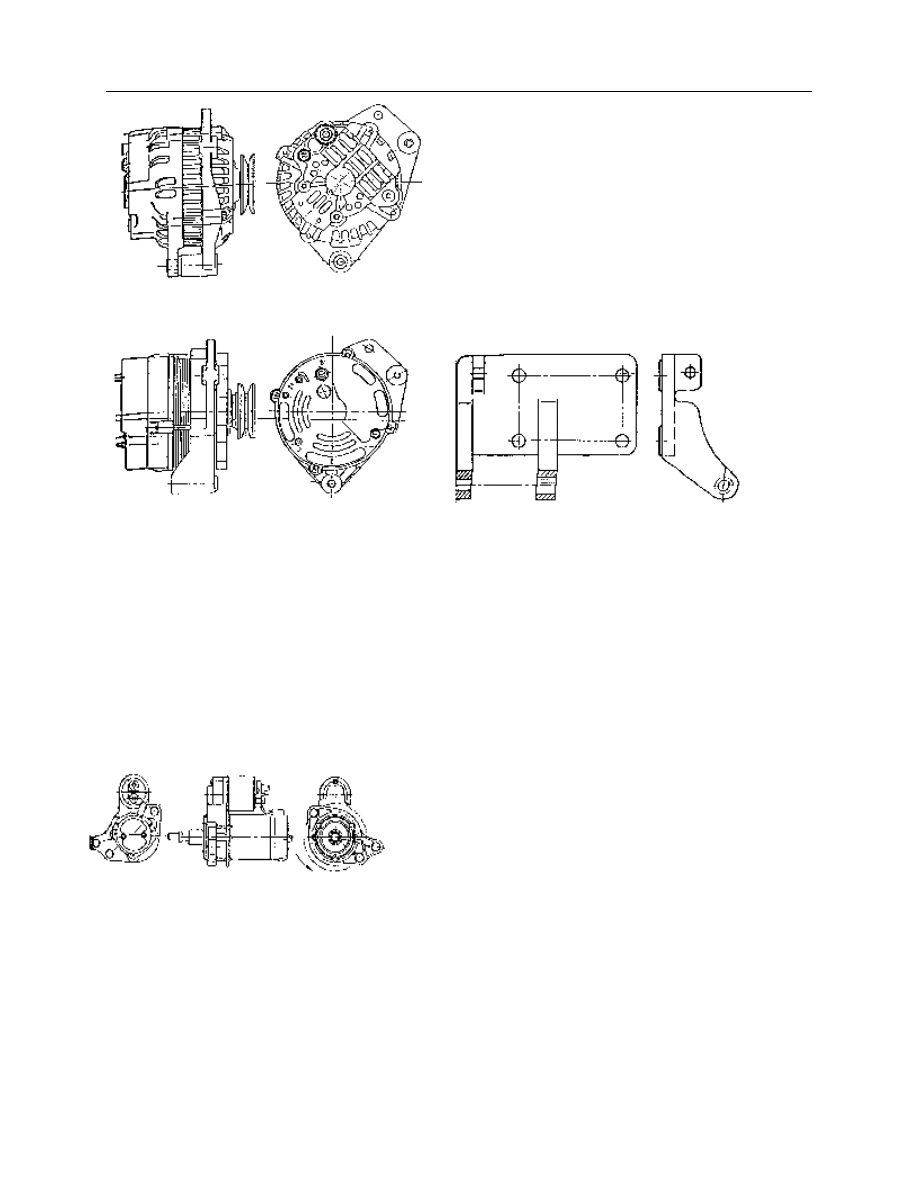

The JFZ1913—4 alternator for independent assembly.








The JFZ18D13 ZB alternator for independent assembly
























The alternator bracket for independent assembly










2.

Starter.

Rated output:



0.95kW

Speed range:



1000-1800r/min

Voltage:



12V

Type:





        QDY1258

SD6RA78

——The  flywheel  gear  ring  for  vehicle  and  the  one  for
independent engine assembly is different and also the starter gear
modulus is different, so different starters need to be applied.
——The left figure indicates SD6RA78.
——The tightening torque for bolt installation is 40±4Nm.





Fig. 121

Fig. 123

Fig. 124

Fig. 122
