Saturn Transmission. Manual - part 9

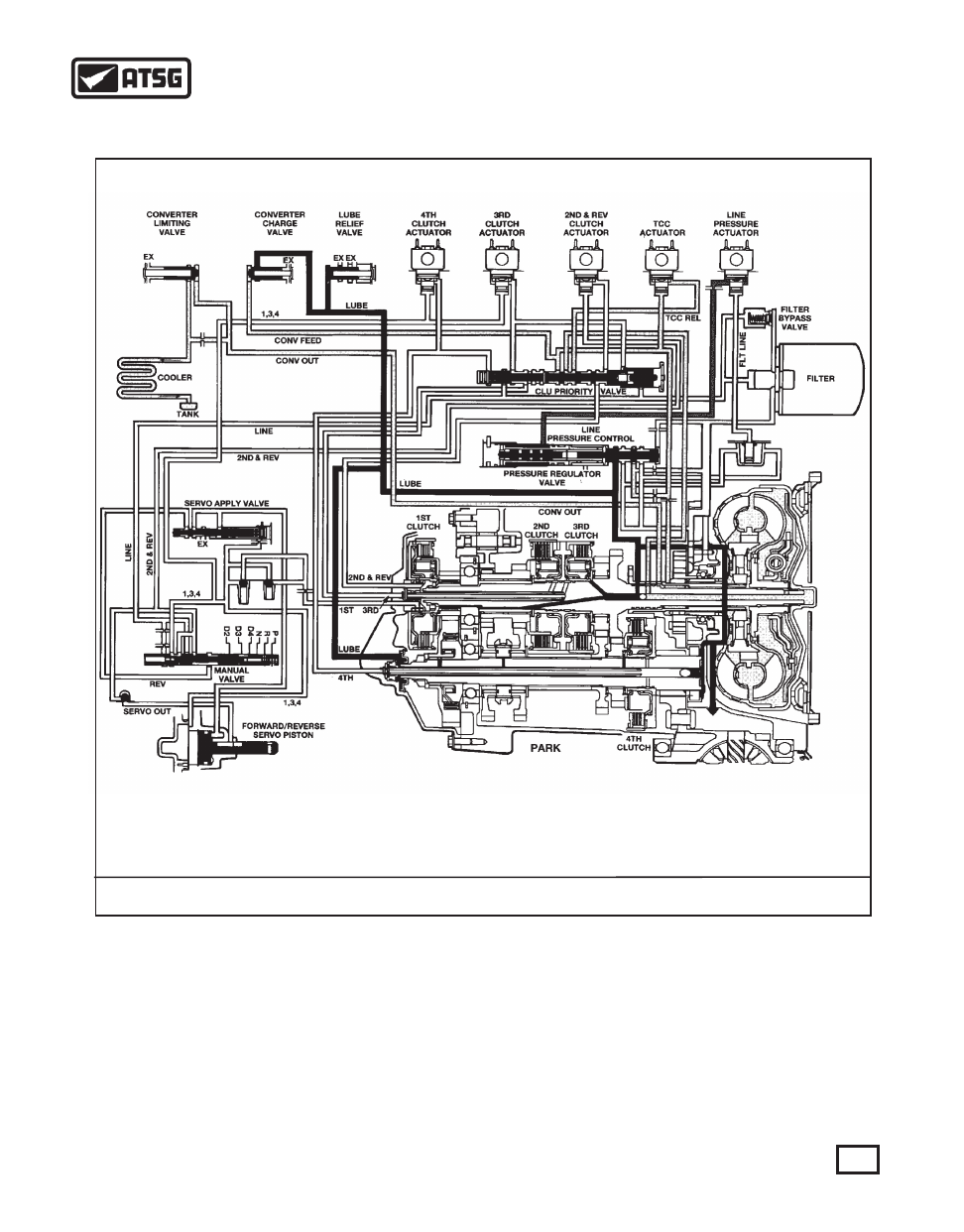

PARK OPERATION (2ND DESIGN)

Figure 53

39

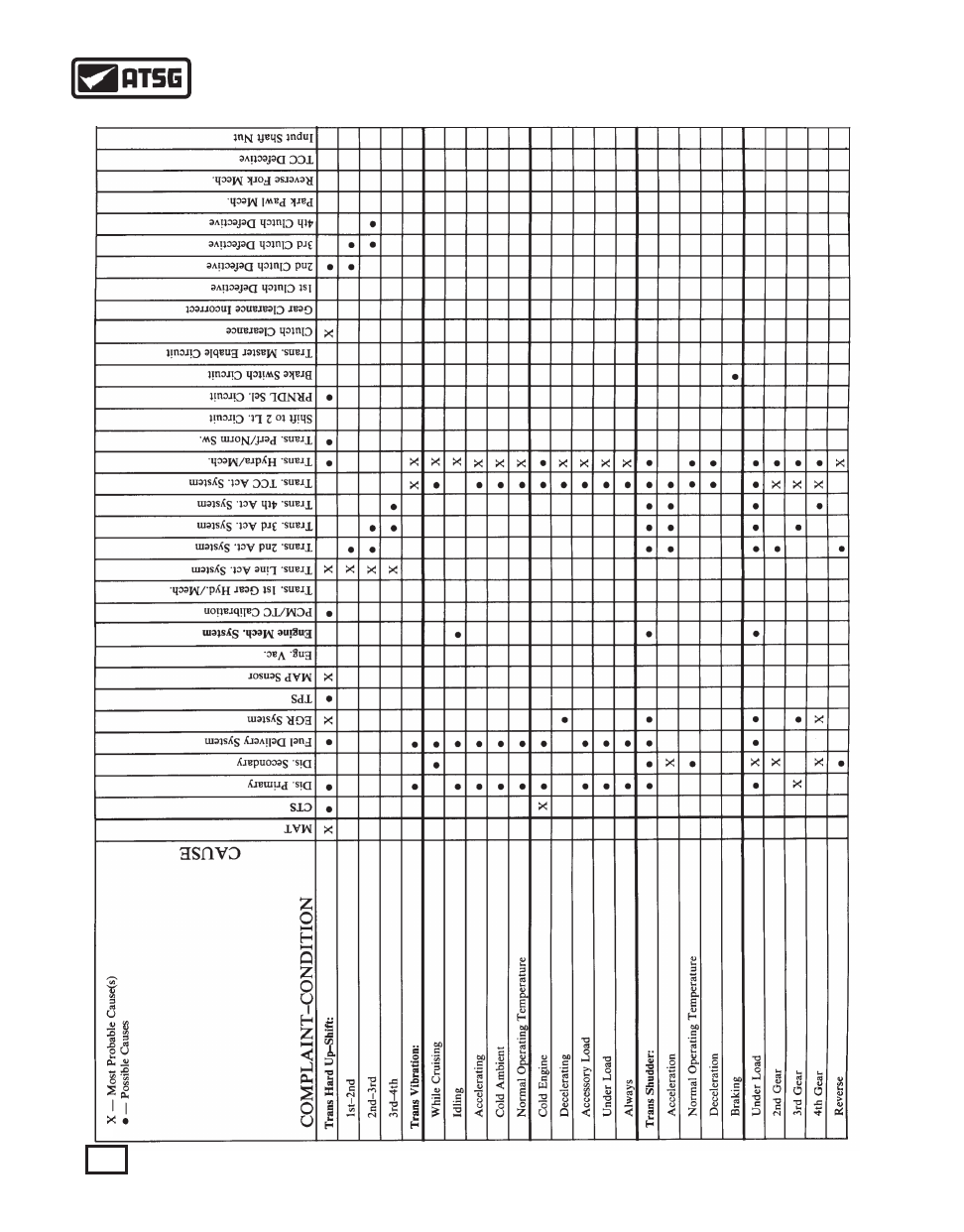

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

40

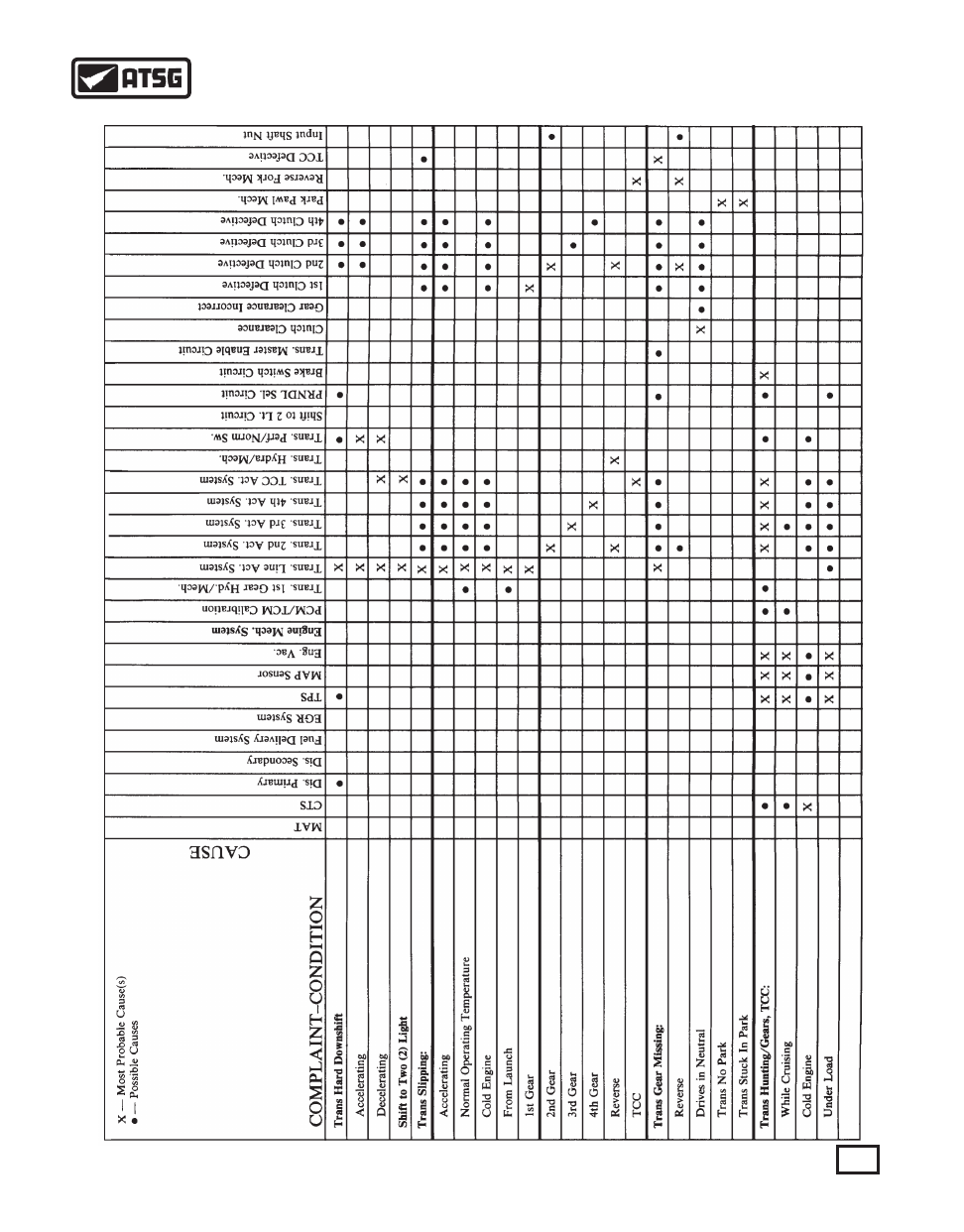

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

41

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 54

Figure 56

Figure 57

O Ring

Spiral

Ring

Figure 55

Figure 58

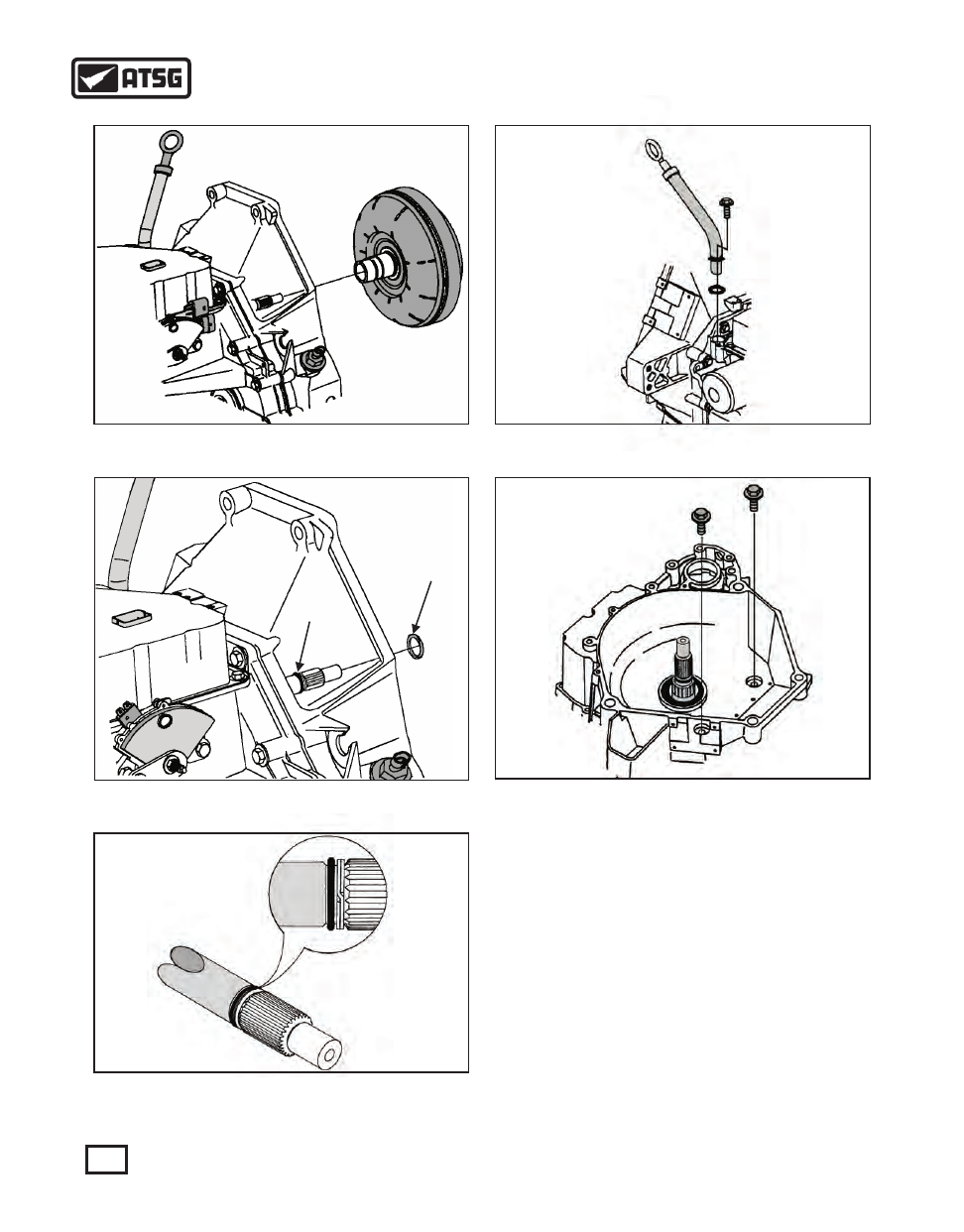

TRANSAXLE DISASSEMBLY
   1. Remove the torque converter (See Figure 54).
   2. Remove the O ring from behind the retaining spiral
       ring. DO NOT REMOVE THE SPIRAL RING as
       damage to the ring may occur (See Figures 55
       and 56).
   3. Remove the filler tube retaining bolt using an 8mm
       socket and pull the tube from the case as shown in
       Figure 57).
   4. Remove the two 10mm bolts from the front of the
       converter housing  as shown in Figure 58.
   5. Using a suitable oil filter wrench, remove the
       external filter from the case and DISCARD the
       filter (See Figure 59).
       NOTE: Never INSTALL this filter with a filter
       wrench, hand tighten only. Also, never install a
       filter that has been damaged during removal.

42

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Note: The spiral

ring was eliminated

on late 1997 & up
