94 23 19 Removing and installing halogen bulb - as
of MY 2005

- Preliminary work
- Removing halogen bulb
- Installing halogen bulb
- Subsequent work

Preliminary work

Preliminary work

Remove main headlight. → 941519 Removing and installing headlight - section on "Removing"

Removing halogen bulb

Removing cap of main headlight

Fastening screws for cap

1. Unscrew four fastening screws -1- from the cap.

4021

Releasing cap

2. Release cap once at the top and twice at the bottom -a- and remove from the main

headlight.

Removing halogen bulb

Installation Location:

Installation position

A

- Halogen bulb

B

- High beam bulb

Diagnostic system: reading out fault memory and activating systems

Removing cap of main headlight

4022

Disengaging securing clip

1. Disengage securing clip.

Pulling off electrical connector

2. Pull electrical connector off bulb and remove bulb.

Removing high beam halogen bulb

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing halogen bulb

4023

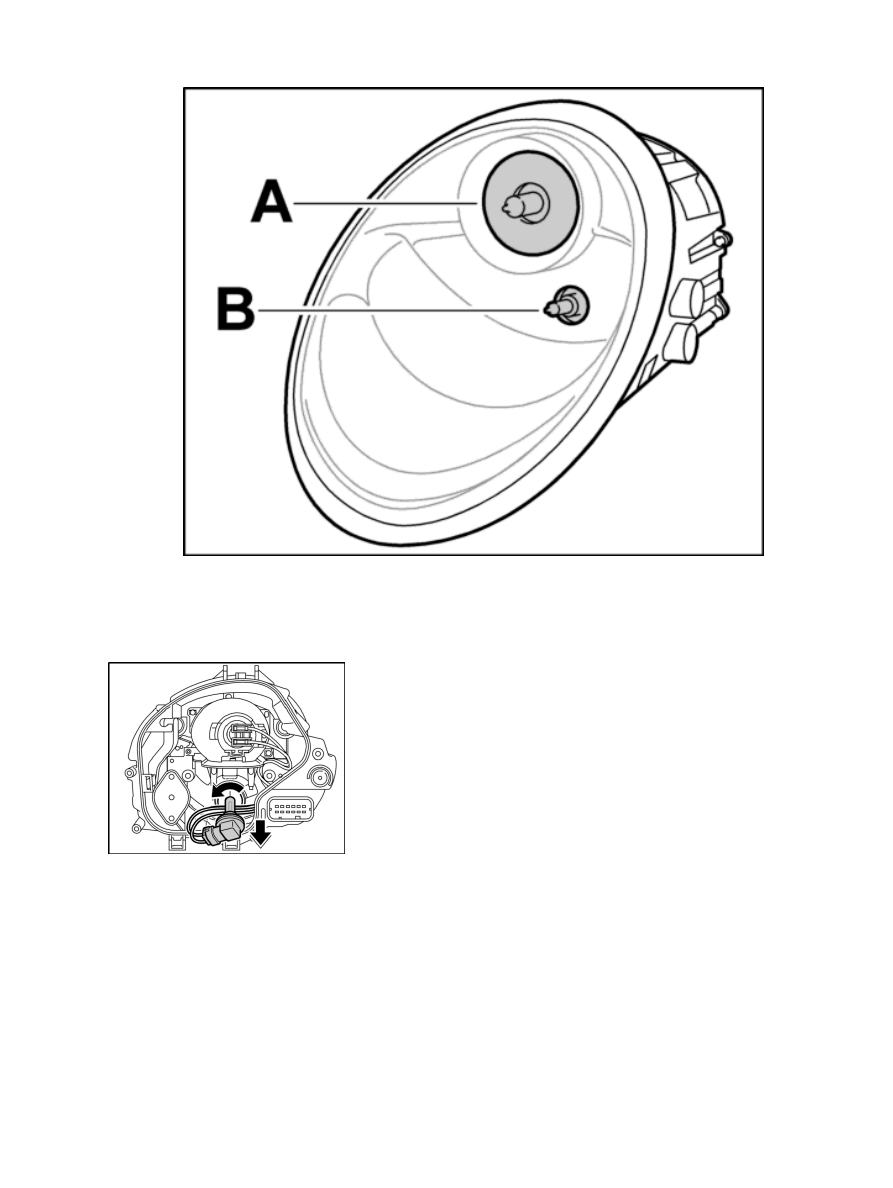

Installation position

A

- Halogen bulb

B

- High beam bulb

Unscrewing bayonet lock

1. Unscrew high beam bulb, bayonet lock counter-clockwise.

Diagnostic system: reading out fault memory and activating systems

Removing high beam halogen bulb
