→ Load the Roof Transport System and/or add-on modules so that the load does not project beyond the

sides of the roof surface!

→ Select the distances between several add-on modules fitted next to each other so that the transported

items cannot bump against each other during the journey!

→ Secure load adequately to prevent it from shifting during the journey!

ATTENTION

Damage to the vehicle and/or Roof Transport System

due to non-observance of the total height of the vehicle.

•

→ Observe total height of vehicle when entering car parks, underground car parks and tunnels etc.!

→ Completely remove load and Roof Transport System from the vehicle when not in use!

→ Completely remove the load and Roof Transport System from the vehicle roof before washing the

vehicle in automatic car washes!

ATTENTION

Damage to the vehicle roof and/or Roof Transport System

due to incorrect fitting and use

•

→ Always take care when fitting or removing both brackets for the adapter. If necessary, have a second

person help!

Removing the roof transport system

Removing the Roof Transport System

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Warning notes

2693

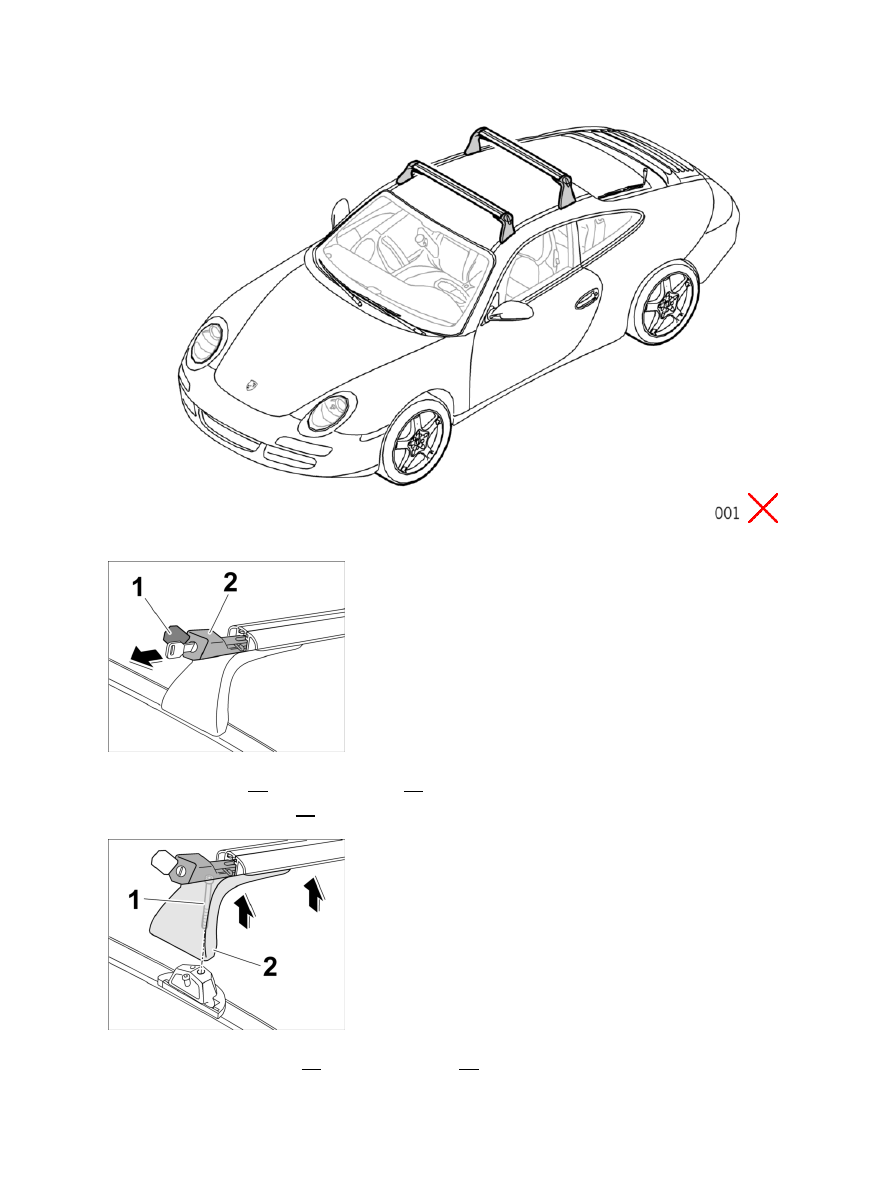

Installation position of Roof Transport System

Opening cover flaps

1. Open cover flaps -1- on the lock handles -2- .

2. Unlock the lock handles -2- and pull out of the support tubes as far as the stop.

Removing bracket

3. Unscrew fastening screw -1- and remove bracket -2- .

Diagnostic system: reading out fault memory and activating systems

Removing the Roof Transport System

2694

Removing adapter with base

4. Unscrew fastening screw -1- and remove adapter -2- together with base

-3-

 .

Screw plug for base plate

5. Screw the screw plug -A- into the base plate to protect against

corrosion.

6. Close flaps in the roof joint cover

strips.

Removing base plate of roof transport system

Removing base plate of Roof Transport System

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Removing base plate of roof transport system

2695

Installation position of base plate for Roof Transport System

1. Remove roof joint cover strip. → 663619 Removing and installing roof joint cover strip - section on

"Removing"

2. Remove A-pillar trim. → 705719 Removing and installing A-pillar trim - chapter on "Removing"

3. Remove C-pillar trim panel. → 706819 Removing and installing C-pillar trim - removing

Disengaging the metal strut

4. Disengage metal strut of roof liner -1- from plastic clips

-2-

 .

Installing base plate of Roof Transport System

5. Unscrew fastening nut -1- from the inside and remove base plate -2- from roof

channel.

6. Remove residual adhesive -3- and clean contact surface of base plate -2- .

Diagnostic system: reading out fault memory and activating systems

Removing base plate of Roof Transport System
