Porshe 911 (997). Manual - part 632

-arrow B-

 .

2. Press -arrow C- electrical plug connection -2- and pull off -arrow D- the plug -2- .

3. Remove trim panel for mirror triangle -1- .

Removing seal for mirror triangle

Seal for mirror triangle

1. Pull out seal for mirror triangle from cable cutout opening for door mirror.

Disconnecting electrical plug connection

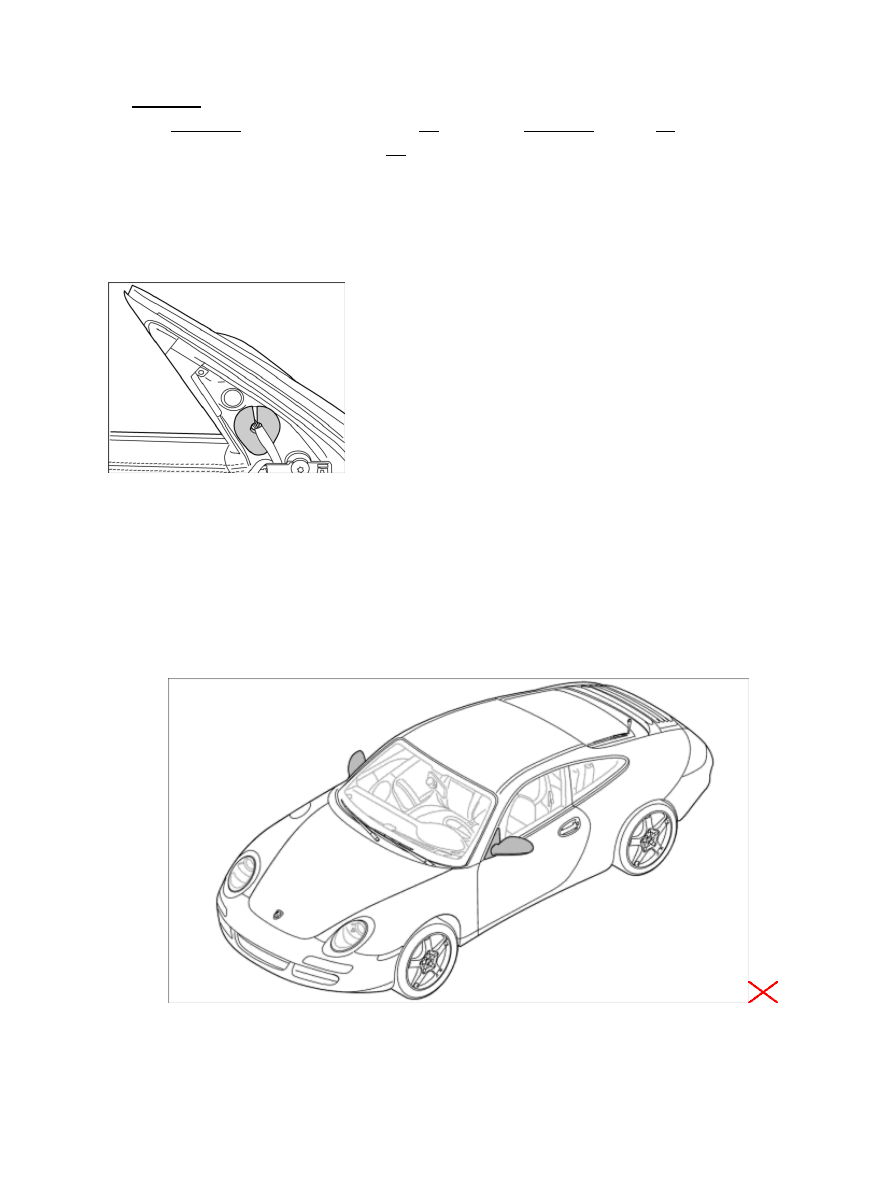

Installation Location:

Overview, removing and installing rear-view mirror

Diagnostic system: reading out fault memory and activating systems

Removing trim panel for mirror triangle

2685

Pulling off electrical plug

1. Disconnect the plug connection of the mirror housing -3- .

Removing rear-view mirror

Installation Location:

Overview, removing and installing rear-view mirror

Removing rear-view mirror

1. Unscrew fastening screws -4- and remove mirror housing -5- .

Diagnostic system: reading out fault memory and activating systems

Disconnecting electrical plug connection

2686

Installing rear-view mirror

Installing rear-view mirror

Installation Location:

Overview, removing and installing rear-view mirror

Installing rear-view mirror

1. Position mirror housing -5- and tighten with M6 fastening screws -4- . Tightening torque → Final

tightening: 5.6 (3.9) Nm (ftlb.)

Locking electrical plug connection

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing rear-view mirror

2687

Overview, removing and installing rear-view mirror

1. Connect the plug connection of the mirror housing -3- .

Locking plug connection

Fitting seal for mirror triangle

Seal for mirror triangle

1. Stick seal for mirror triangle at cable cutout opening on door mirror to the basic door

frame.

Diagnostic system: reading out fault memory and activating systems

Locking electrical plug connection

2688
