Installing base plate of roof transport system

Installing base plate of Roof Transport System

Installation Location:

Removing base plate of Roof Transport System

Note

Contact surface of roof channel and base plate of Roof Transport System must be free of dirt and grease.

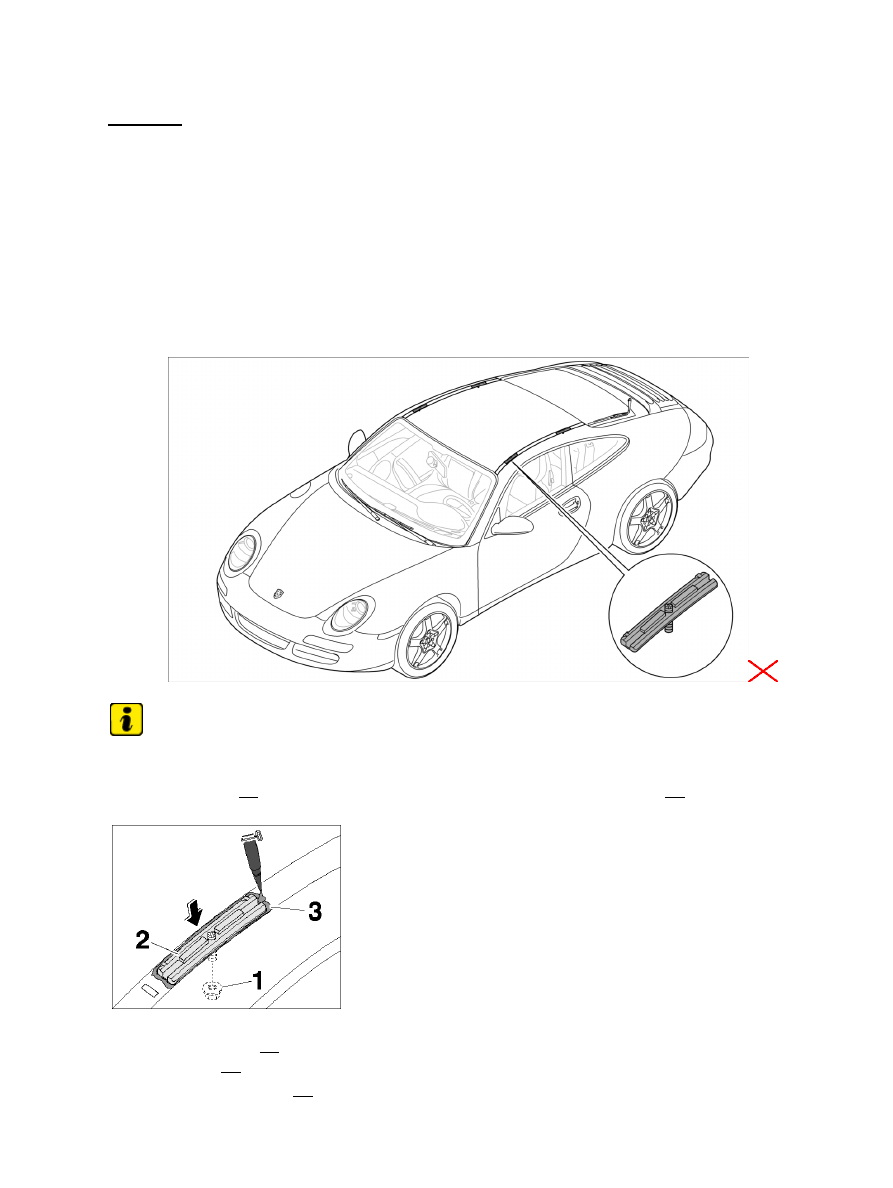

1. Apply adhesive -3- → SEALING MATERIAL on the underside of the base plate -2- .

Installing base plate of Roof Transport System

2. Position base plate -2- of Roof Transport System in and parallel to the roof channel. Screw in

fastening nut -1- from inside and tighten. → Tightening torque: 23 (17 ftlb.) Nm

3. Lightly spread adhesive -3- with a brush.

Diagnostic system: reading out fault memory and activating systems

 Installing base plate of roof transport system

2697

4. Patch new sealing face and damage to top-coat paint in area of base plate with same colour as the

vehicle.

Engaging headliner at the sides

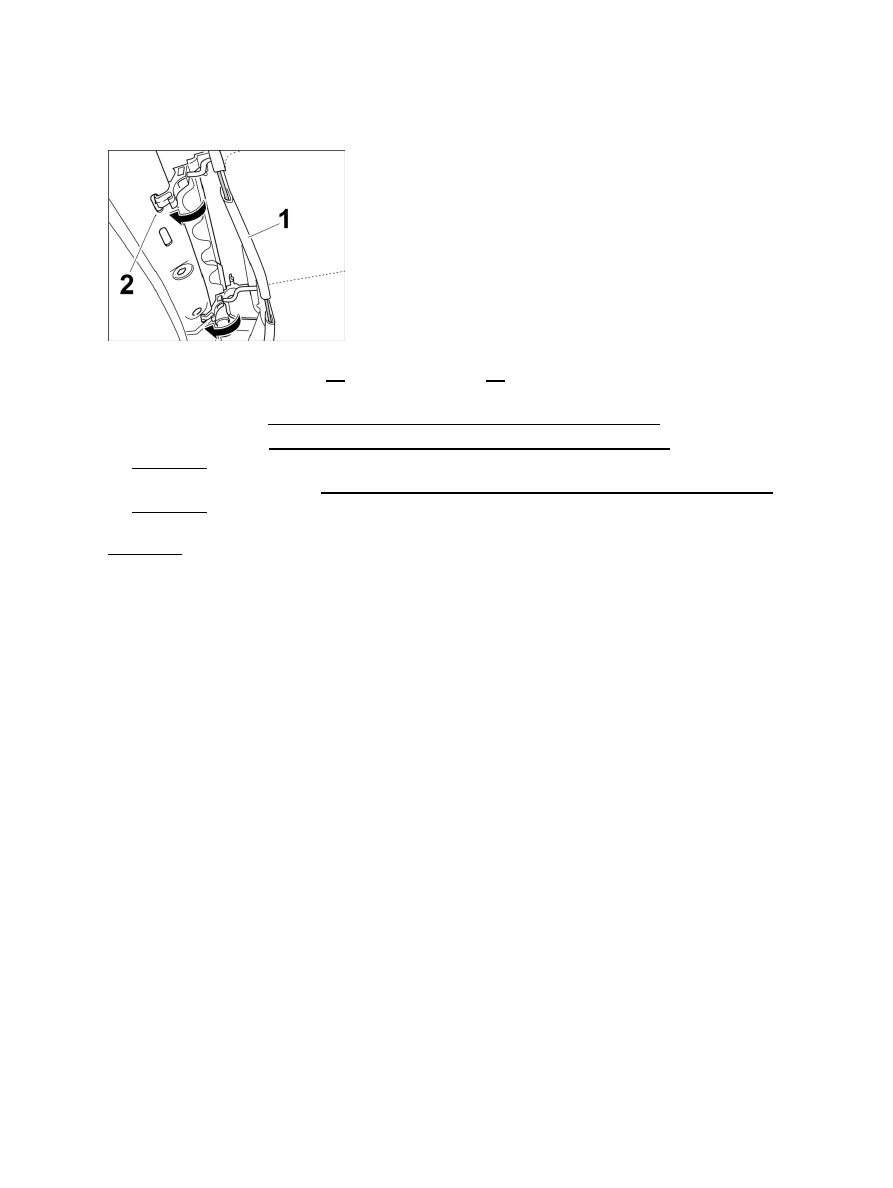

5. Push metal strut of roof liner -1- into the plastic clips -2-

.

6. Install C-pillar trim. → 706819 Removing and installing C-pillar trim - installing

7. Install A-pillar trim. → 705719 Removing and installing A-pillar trim - chapter on

"Installing"

8. Install roof joint cover strip. → 663619 Removing and installing roof joint cover strip - section on

"Installing"

Installing the roof transport system

Installing the Roof Transport System

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing base plate of Roof Transport System

2698

Installation position of Roof Transport System

Opening flaps of roof joint cover strip

1. Open flaps in the roof joint cover

strips.

2. Unscrew the screw plug -A- from the base plate and keep in a safe place.

Diagnostic system: reading out fault memory and activating systems

Installing the Roof Transport System

2699

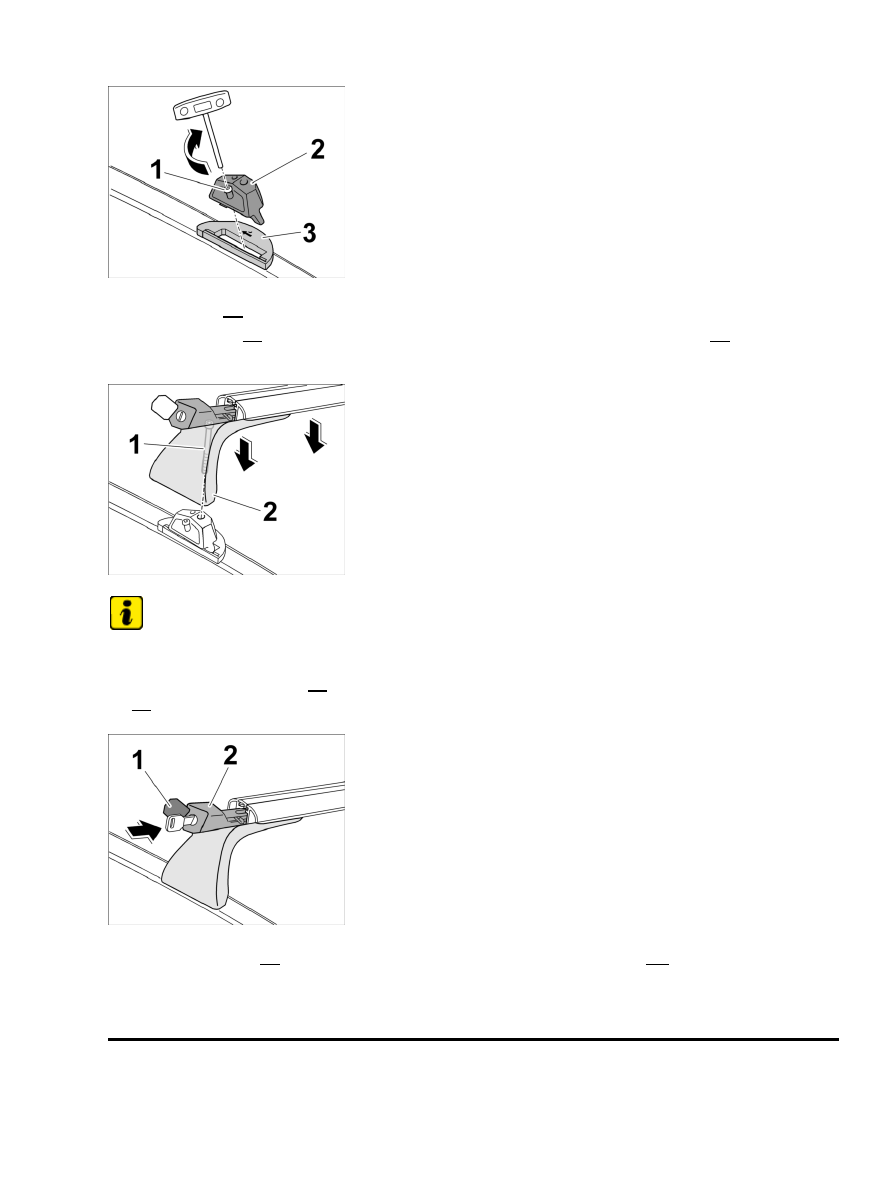

Installing adapter with base

3. Position base -3- in the cut-out of the roof joint cover strip.

4. Position adapter -2- , align with the base and secure to vehicle with the fastening screw -1-

.

Installing bracket

Note

Observe marking (front/rear) on underside of support tube.

5. Carefully position bracket -2- on the adapter and tighten with fastening screw

-1-

 .

Closing cover flap

6. Insert lock handles -2- into the support tube ends, lock them and push in caps -1 - of lock

cylinder.

For further information on the Roof Transport System see: → 669200  Roof Transport System
