Overview, rear lid

Removing hinge

1. Unscrew fastening screws -21- from the hinge -17- .

Removing the mount

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing hinge

1901

Overview, rear lid

Removing the mount

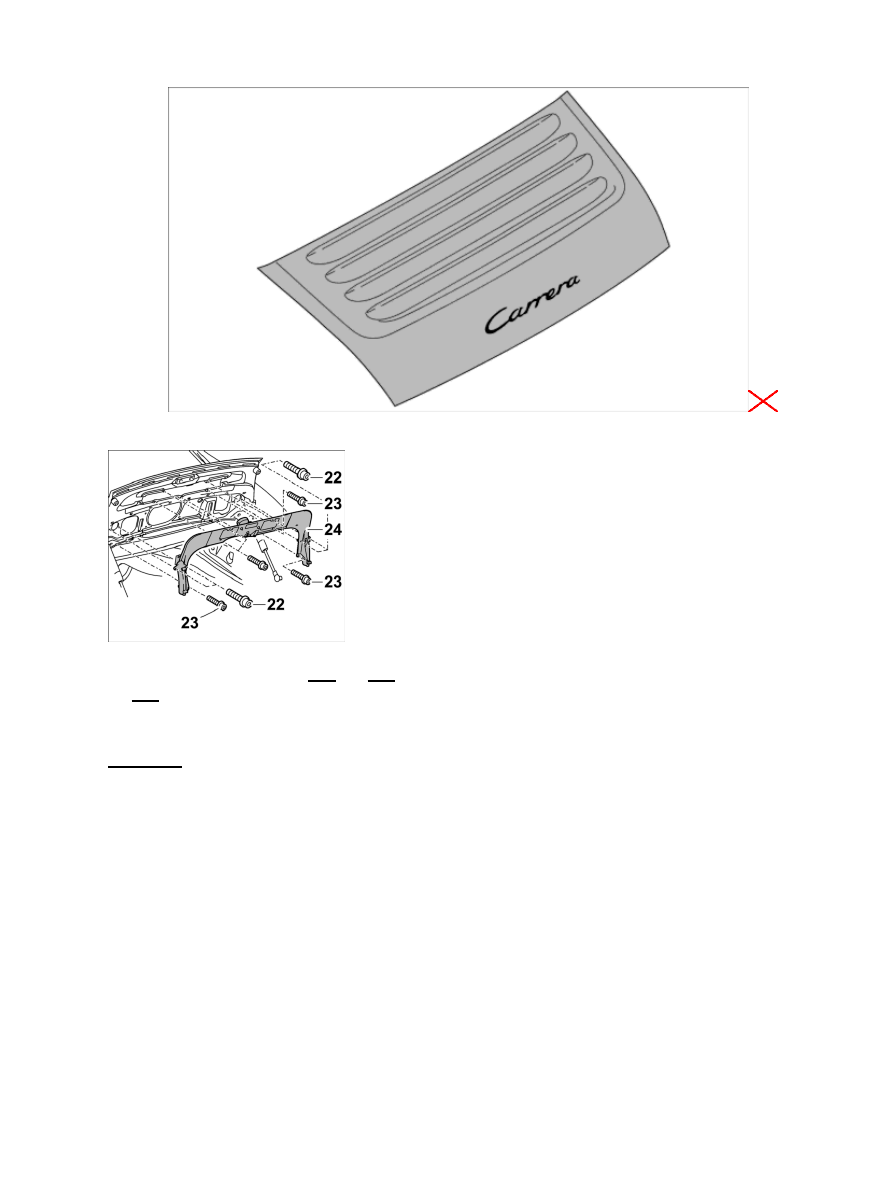

1. Unscrew fastening screws -22- and -23- from the actuating element

-24-

 .

2. Remove wiring harness for rear spoiler. →   Removing and installing wiring harness for rear spoiler

Assembling rear lid

Fitting mount

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing the mount

1902

Overview, rear lid

1. Install wiring harness for rear spoiler. →   Removing and installing wiring harness for rear spoiler

Installing mount

2. Position the mount -24- on the rear cover and screw in using the fastening screws M6 -22, 23- .

Tightening torque → : 7 ftlb.

Fitting hinge

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fitting mount

1903

Overview, rear lid

Fitting hinge

1. Position hinge -17- and screw in using the M6 fastening screws -21- . Tightening torque → : 7.1

ftlb.

Mounting the lower part of the spoiler

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fitting hinge
