Porshe 911 (997). Manual - part 437

Overview, rear lid

Mounting the lower part of the spoiler

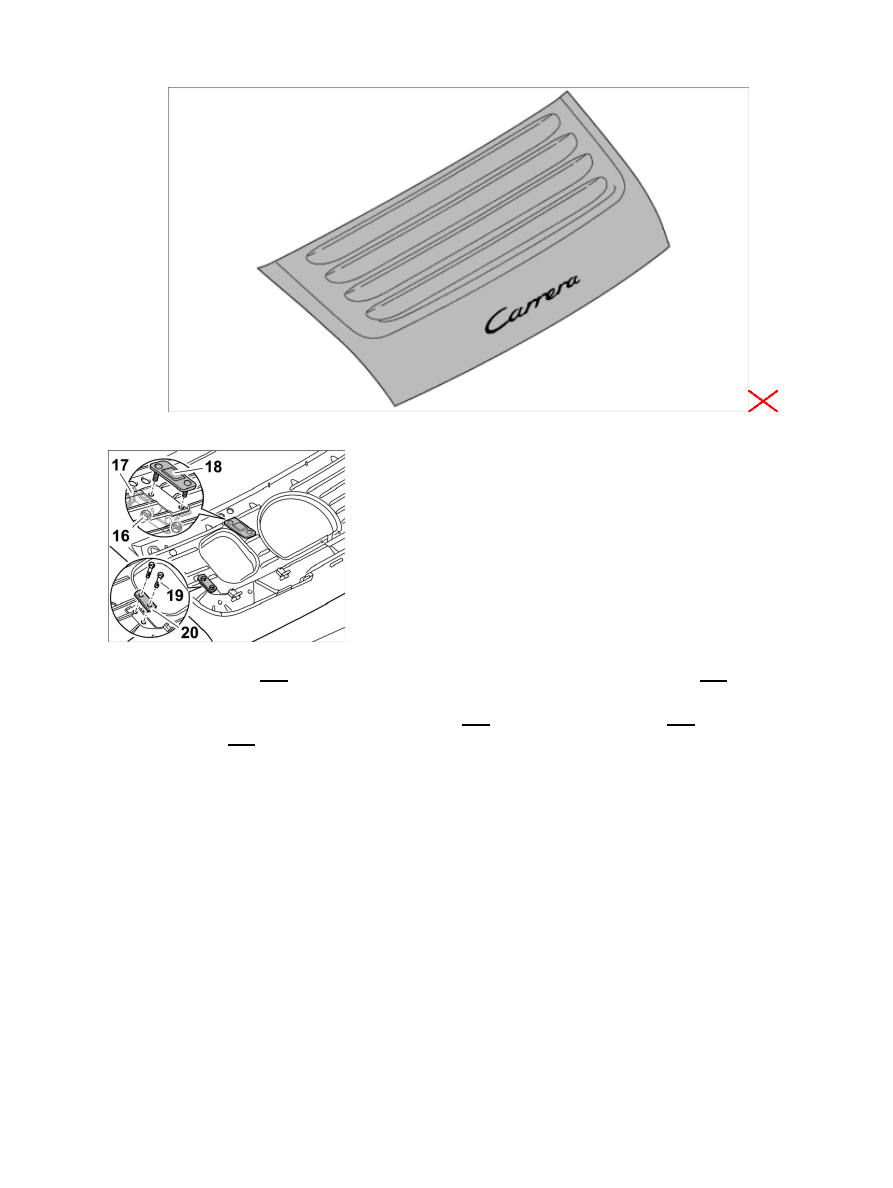

1. Position the spacer -20- on the lower part of the spoiler. Tighten M6 fastening screws -19- . Tightening

torque → : 7 ftlb.

2. Position the upper part of the spoiler on the hinge -17- . Using the threaded plate -18- and the M6

fastening nuts -16- , screw in the upper part of the spoiler securely. Tightening torque → : 7 ftlb.

Mounting the folding wall on the lid

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Mounting the lower part of the spoiler

1905

Overview, rear lid

Mounting the folding wall on the lid

1. Position the fastening rail -14- on the folding wall -15- and the rear

lid.

2. Put new clamping washers -13- on the pegs of the fastening rail.

Mounting the folding wall on the upper part of the spoiler

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Mounting the folding wall on the lid

1906

Overview, rear lid

Mounting the folding wall on the upper part of the spoiler

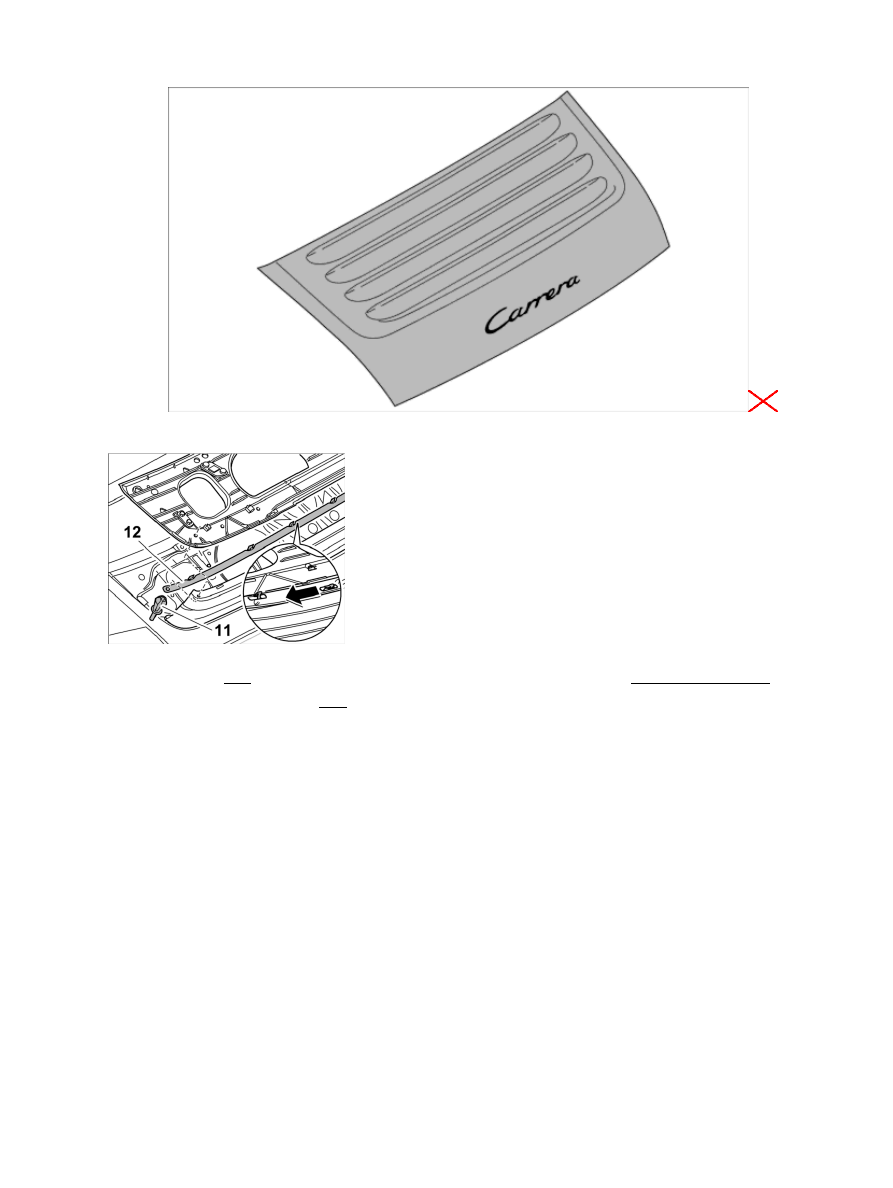

1. Insert the rail -12- with the folding wall into the lower part of the spoiler in -direction of arrow- .

2. Press in the expanding rivet -11- .

Mounting upper part of spoiler

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Mounting the folding wall on the upper part of the spoiler

1907

Overview, rear lid

Mounting upper part of spoiler

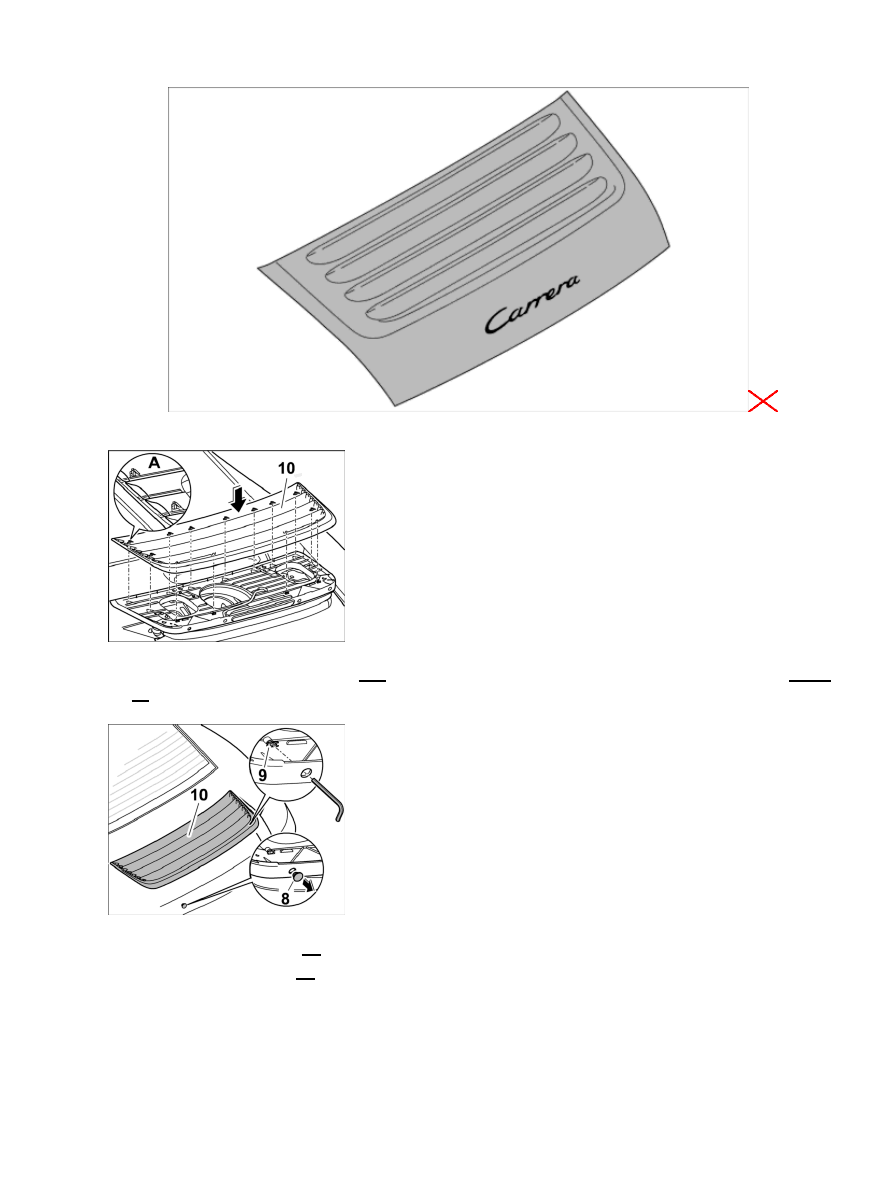

1. Place the upper part of the spoiler -10- on the lower part of the spoiler. Ensure that the locking tabs -Lupe

A-

 have engaged.

Securing upper part of spoiler

2. Tighten clamping screws -9- . Tightening torque → : 2 ftlb. ±1 ftlb.

3. Push in the plastic plugs -8- .

Diagnostic system: reading out fault memory and activating systems

Mounting upper part of spoiler

1908
