Main illustration for cowl panel cover

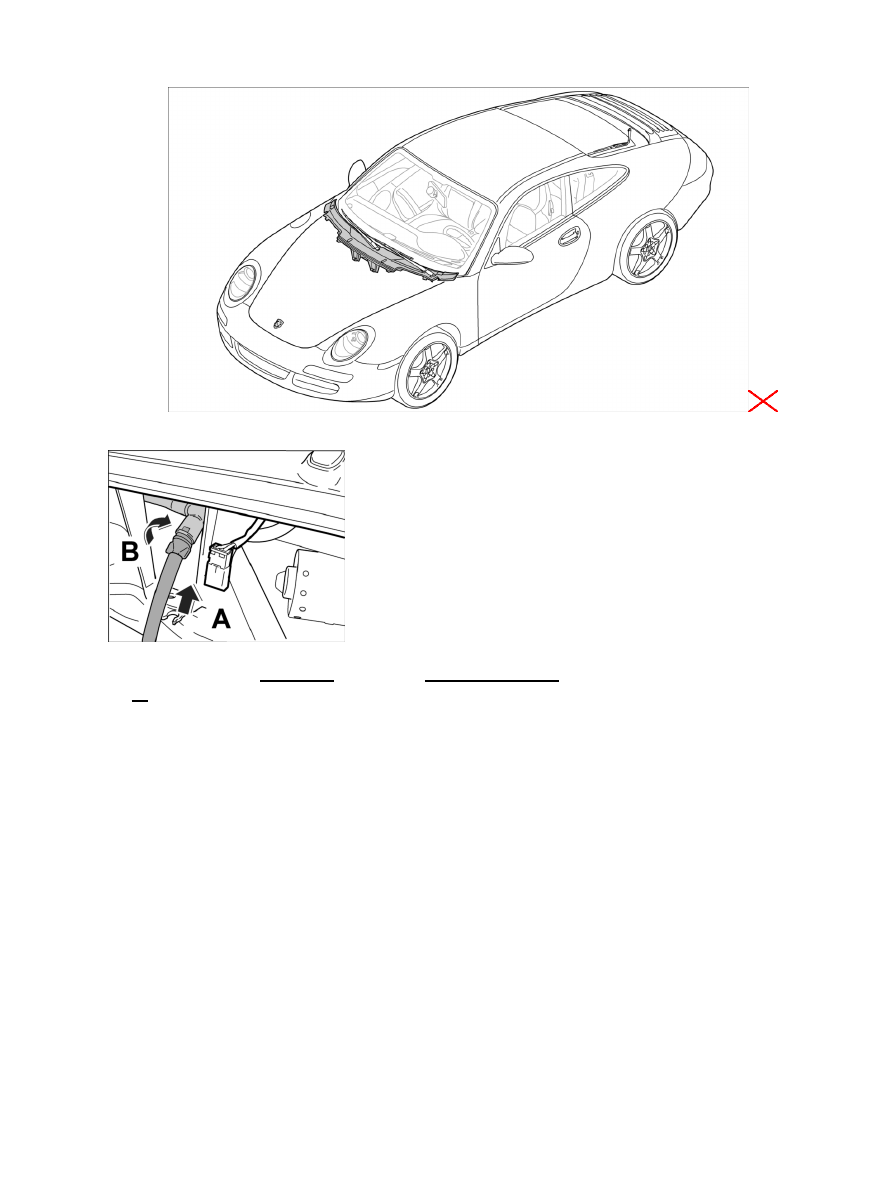

Locking water line for windscreen washer system

1. Connect water line -Arrow A- and rotate in -direction of arrow

B-

 .

Locking plug connection of spray nozzle for windscreen washer system

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking water line for windscreen washer system

1529

Main illustration for cowl panel cover

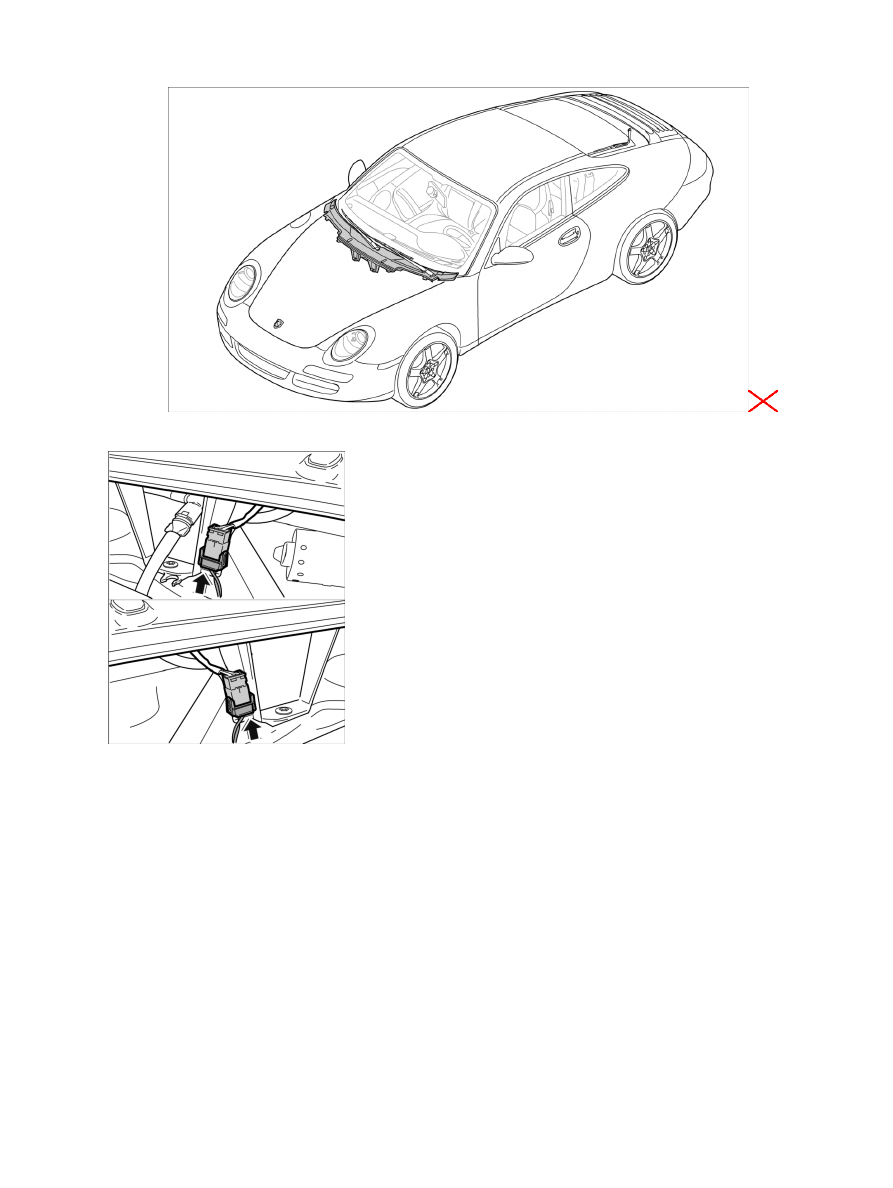

Locking plug connection of spray nozzle for windscreen washer system

1. Push on electric connector for spray nozzle until it clicks into

place.

Fastening upper cowl panel cover

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking plug connection of spray nozzle for windscreen washer system

1530

Main illustration for cowl panel cover

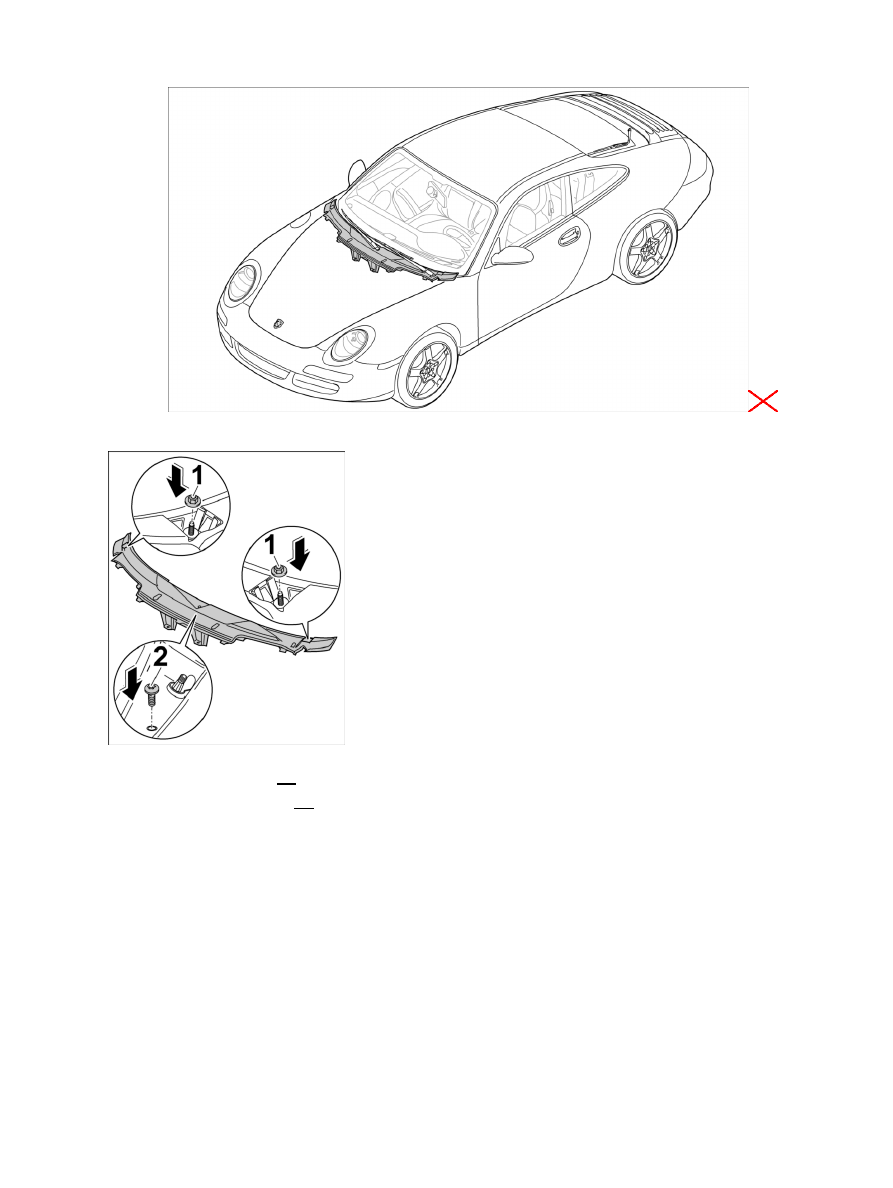

Fastening upper cowl panel cover

1. Tighten fastening nut -2- .

2. Tighten fastening screw -1- .

Installing lateral cover cap

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fastening upper cowl panel cover

1531

Main illustration for cowl panel cover

Clipping lateral cap into place

1. Clip lateral cap into place.

Subsequent work

Subsequent work

1. Install right and left wiper arm. → 922519 Removing and installing wiper arm - chapter on

"Installing"

2. Install right and left cover. → 852219 Removing and installing cover - chapter on

"Installing"

Diagnostic system: reading out fault memory and activating systems

Installing lateral cover cap

1532
