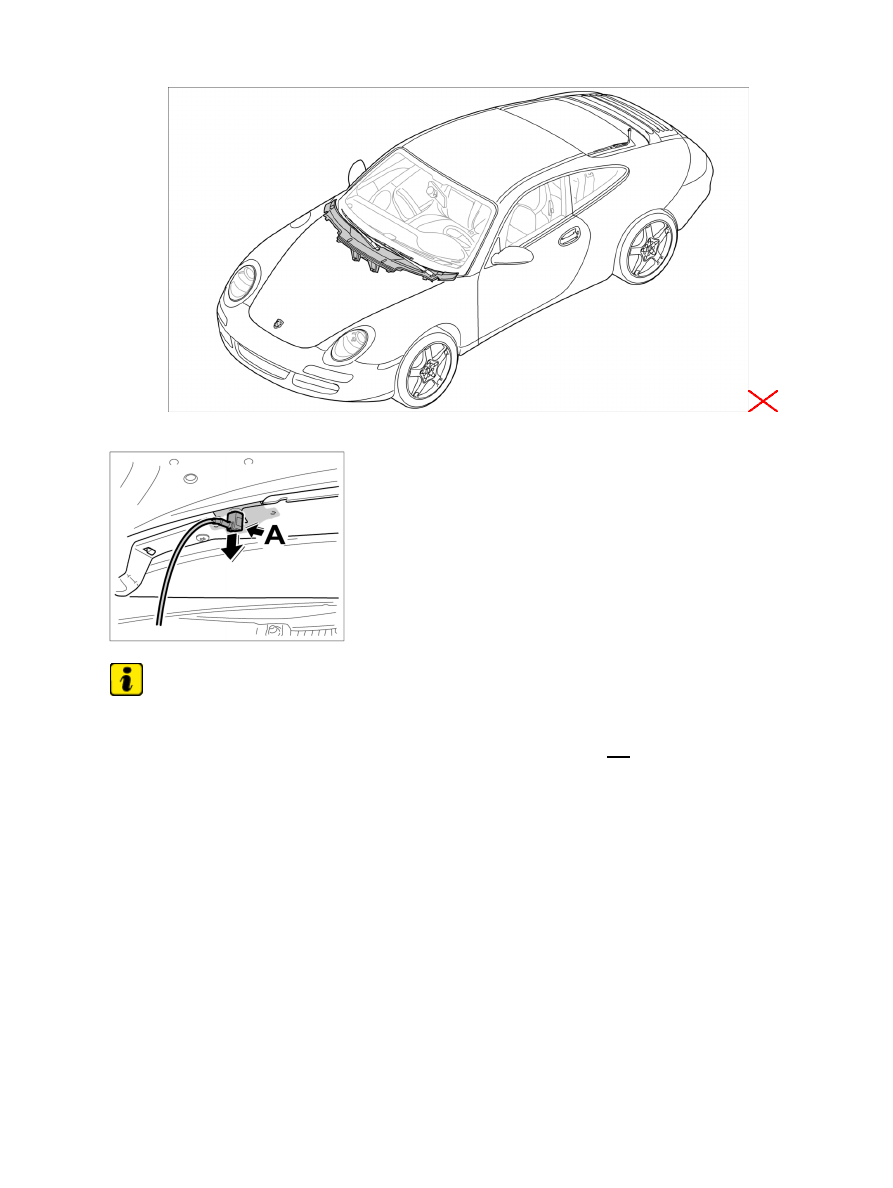

Main illustration for cowl panel cover

Disconnecting plug connection of spray nozzle

1. Release electric plug connection for right and left spray nozzle -Arrow A- and pull apart.

Disconnecting water line for windscreen washer system

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting plug connection of spray nozzle for windscreen washersystem

1521

Main illustration for cowl panel cover

Disconnecting water line for windscreen washer system

1. Rotate water line in -direction of arrow A- and pull off -Arrow

B-

 .

Disconnecting plug connection for GPS antenna

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting water line for windscreen washer system

1522

Main illustration for cowl panel cover

GPS plug connection.

Note

Only for vehicles with GPS antenna.

1. Under the cover for the cowl panel, release the electric plug connection -A- and remove.

Disconnecting plug connection for radio antenna

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting plug connection for GPS antenna

1523

Main illustration for cowl panel cover

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

Disconnecting plug connection for radio antenna

Note

Only for vehicles with radio antenna.

1. Unclip the retaining clamps for the antenna line. Disconnect antenna line and undo the fastening screws

-1-

 .

Diagnostic system: reading out fault memory and activating systems

Disconnecting plug connection for radio antenna

1524
