Removing lower cowl panel cover

Installation Location:

Main illustration for cowl panel cover

Removing lower cowl panel cover

Note

Two persons are needed to remove the cowl panel cover!

1. Unscrew fastening screws -1- and carefully remove cowl panel cover -2-

upwards.

Diagnostic system: reading out fault memory and activating systems

Removing lower cowl panel cover

1525

Installing cowl panel cover

Installing cowl panel cover

Installation Location:

Main illustration for cowl panel cover

Installing cowl panel cover

Note

Two persons are needed to remove the cowl panel cover!

1. Insert cowl panel cover -2- in the plenum panel and align.

2. Tighten fastening screws -1- . Tightening torque → Tightening torque: 1.5 ftlb.

Diagnostic system: reading out fault memory and activating systems

 Installing cowl panel cover

1526

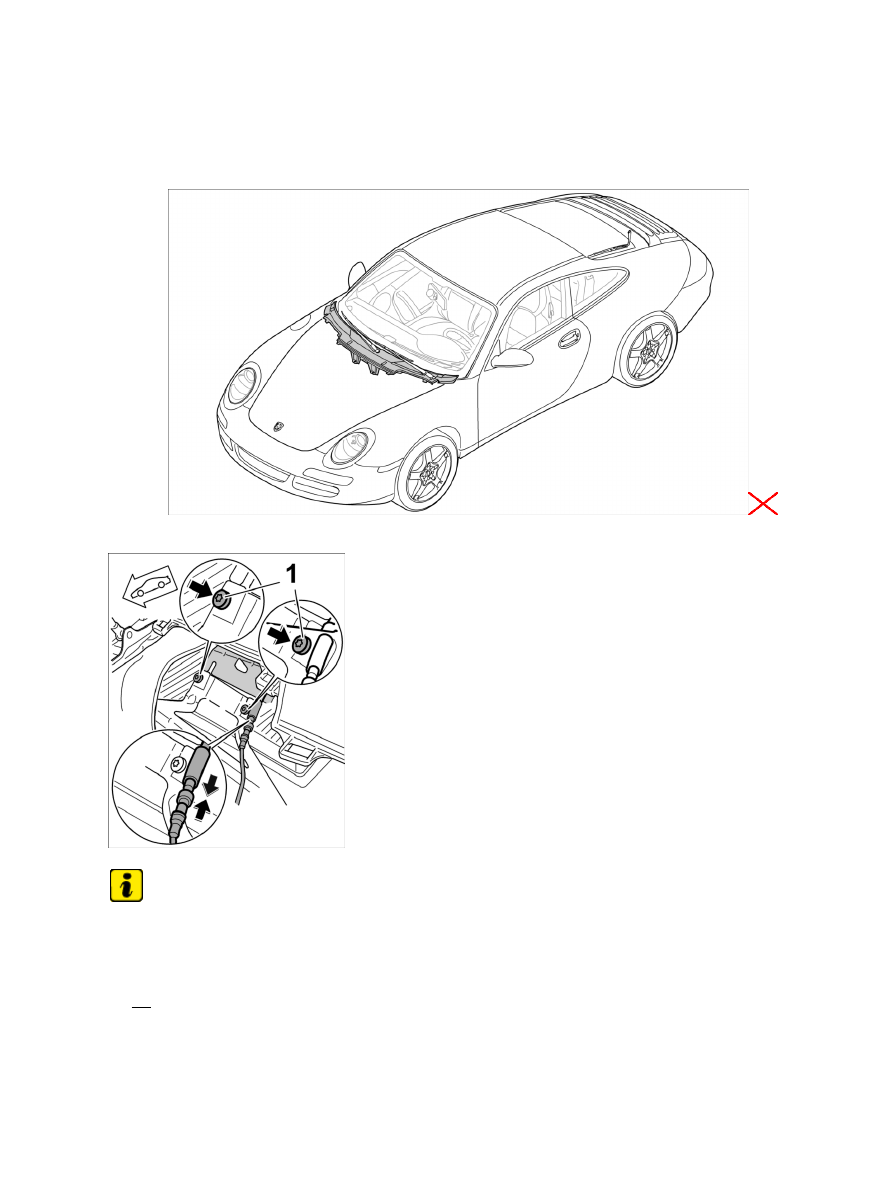

Locking plug connection for radio antenna

Installation Location:

Main illustration for cowl panel cover

Disconnecting plug connection for radio antenna

Note

Only for vehicles with radio antenna.

1. Connect the antenna line and clip on the fuse.

2. Slide antenna onto its support and screw it down with the fastening screws

-1-

 .

Diagnostic system: reading out fault memory and activating systems

Locking plug connection for radio antenna

1527

Locking plug connection for GPS antenna

Installation Location:

Main illustration for cowl panel cover

Locking plug connection for GPS

Note

Only for vehicles with GPS antenna.

1. Push on the electric plug until it clicks into place.

Locking water line for windscreen washer system

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking plug connection for GPS antenna
